Amel Super Maramu 2000

Air Conditioning Climma Marine Compact 9

Disconnecting the cooling hoses of the forward cabin Air Conditioning Climma Marine Compact 9

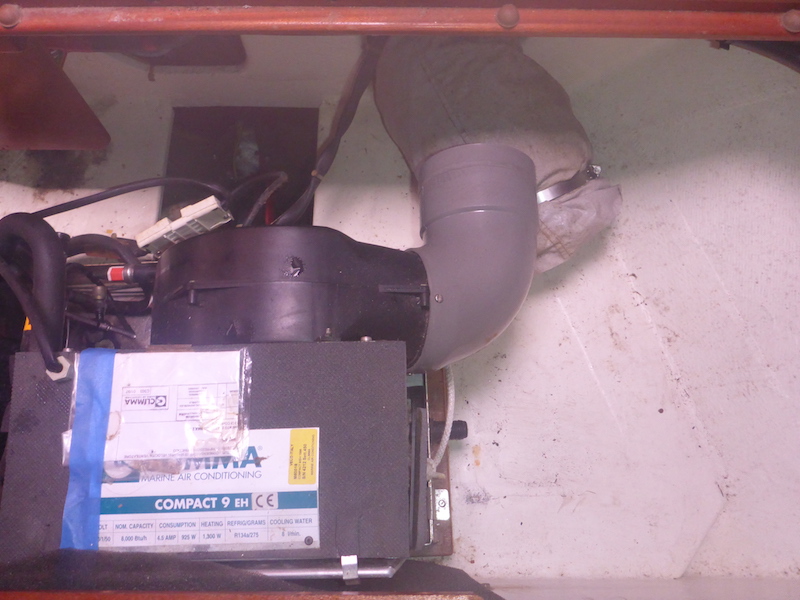

Empty the cabin and open the 3 panels

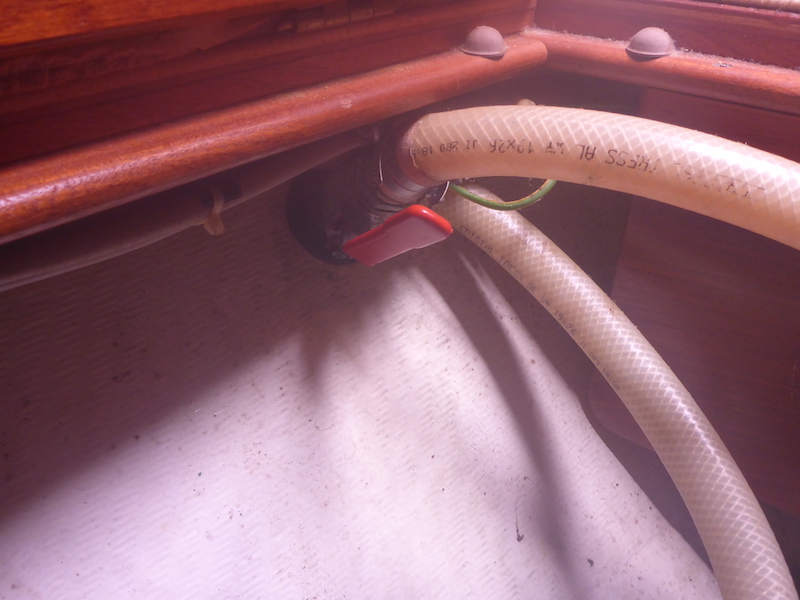

Close the valve that reject the cooling water

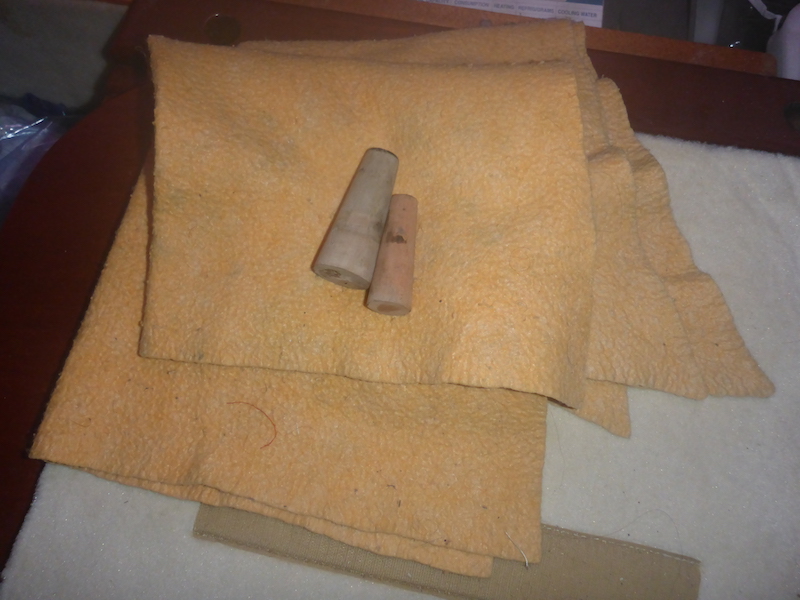

In my case, it appears frozen and I did not want to risk adding another problem, so I did not close it, but prepared with towels and plugs

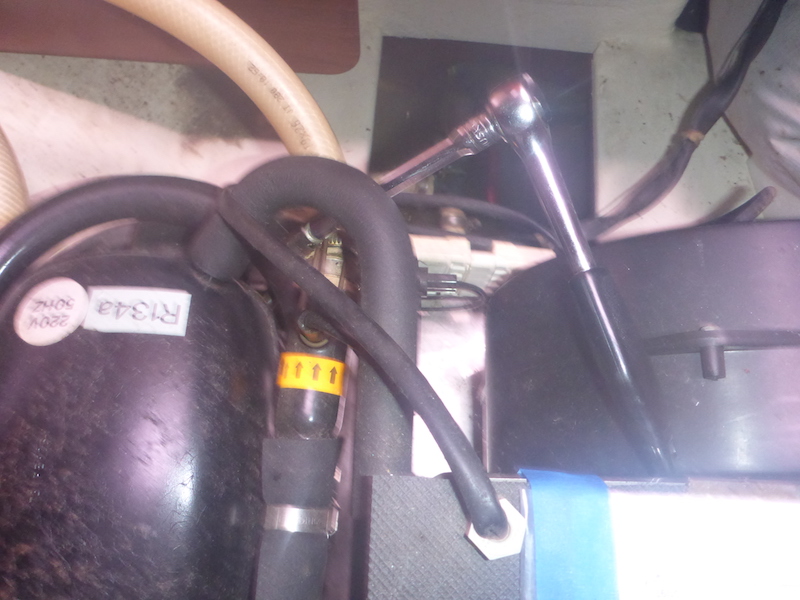

Removed the 2 clamps, same as the aft cabin there is also a metallic wire attached on the 2nd clamp.

Very little water went and I put the plug.

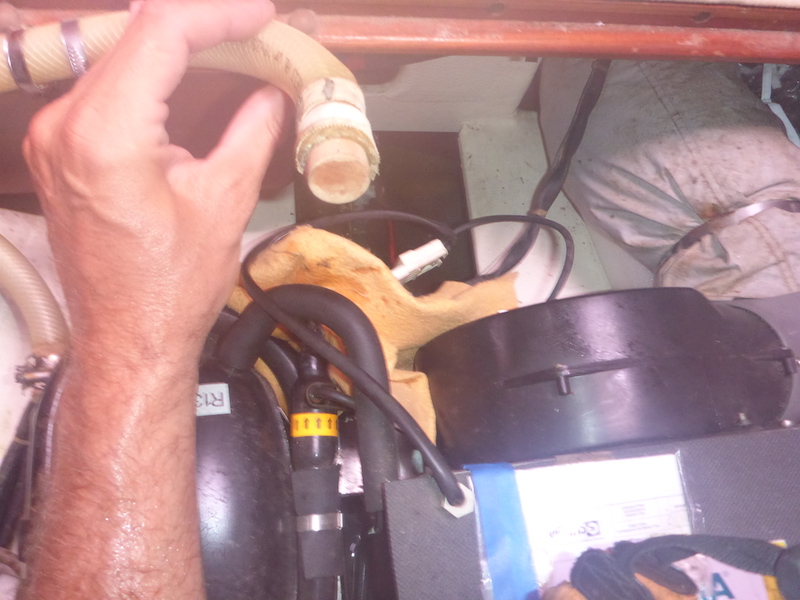

Also removed the 2nd hose, put a plug and position these high above the water line.

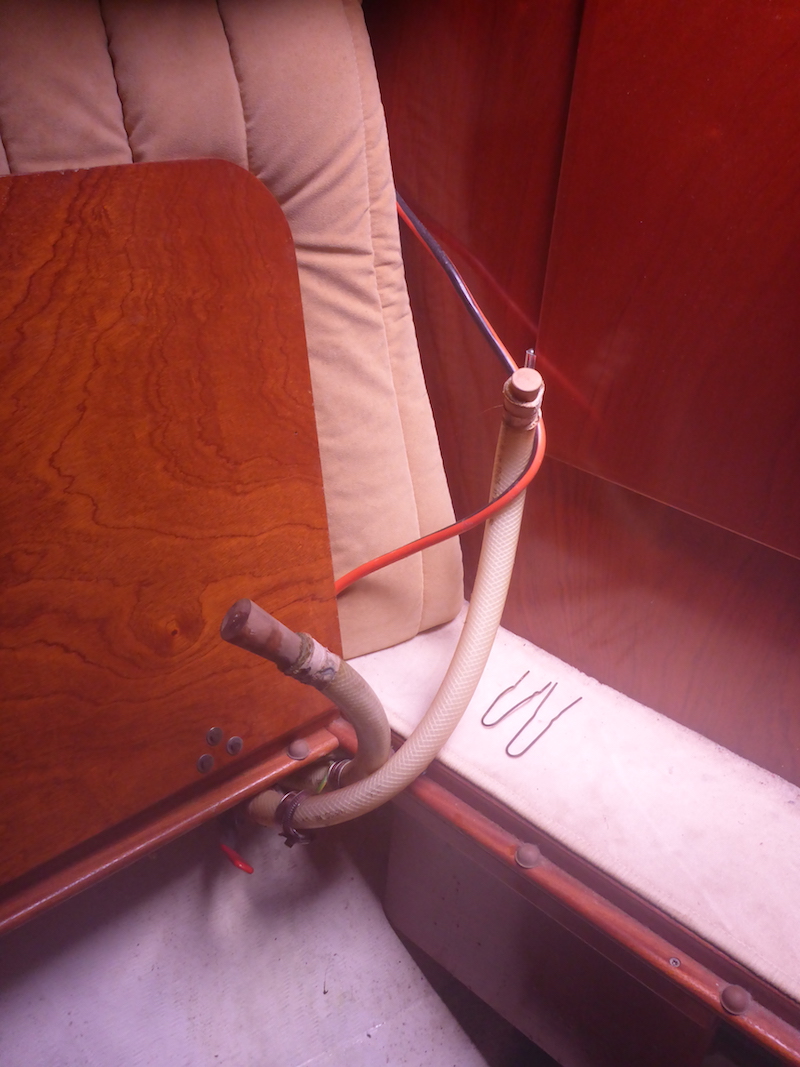

You can see the 2 metallic wire holding the 2nd clamp in position

Remove the clamp holding the air hose

Next: Part 9 Removal control box
