Amel Super Maramu 2000

Air Conditioning Climma Marine Compact 9

Attaching holding brackets of the forward Climma Marine Compact 9

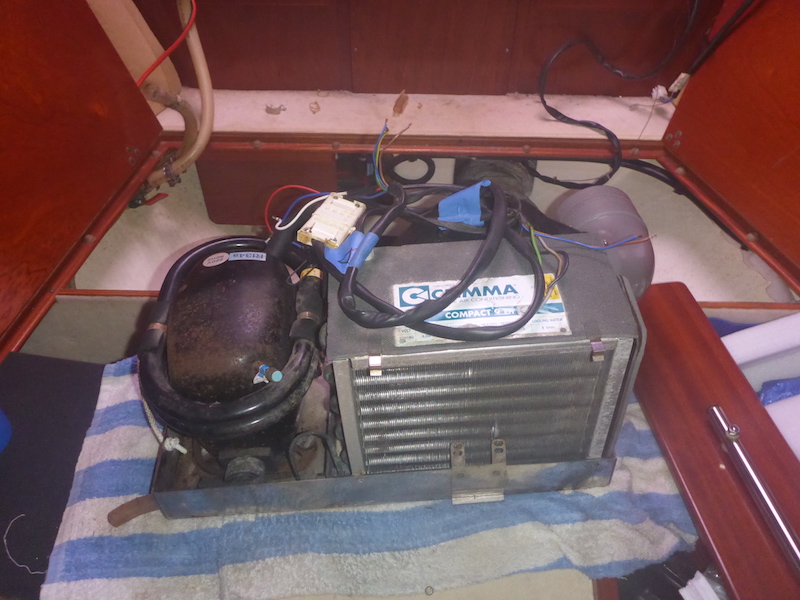

The unit is ready

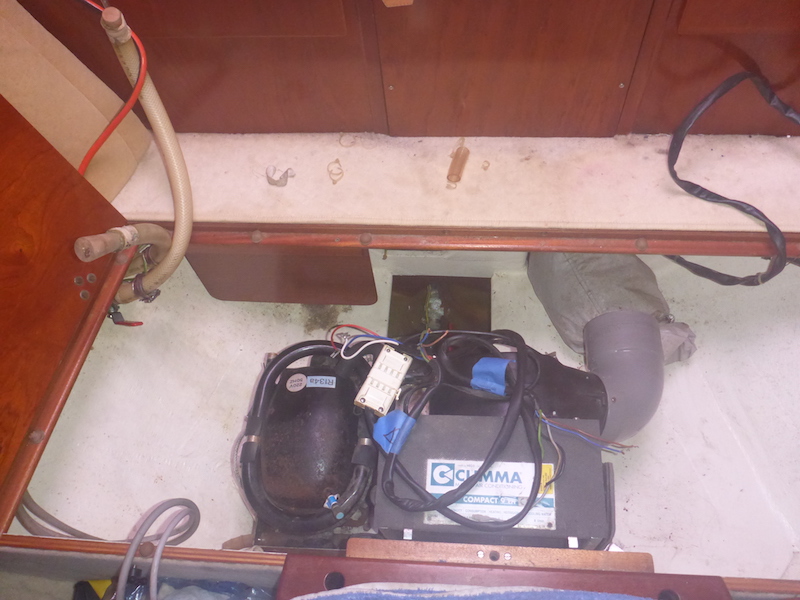

Back in position

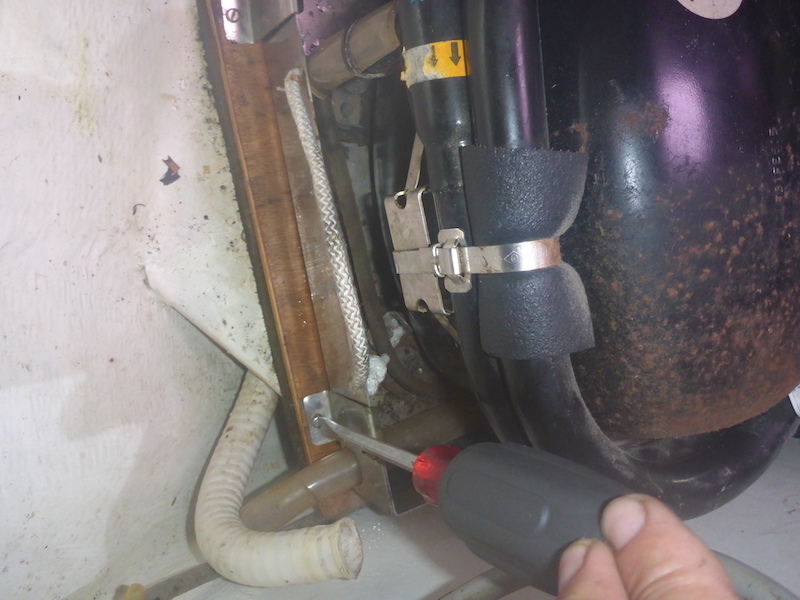

Attach back the 4 brackets holding the unit in place

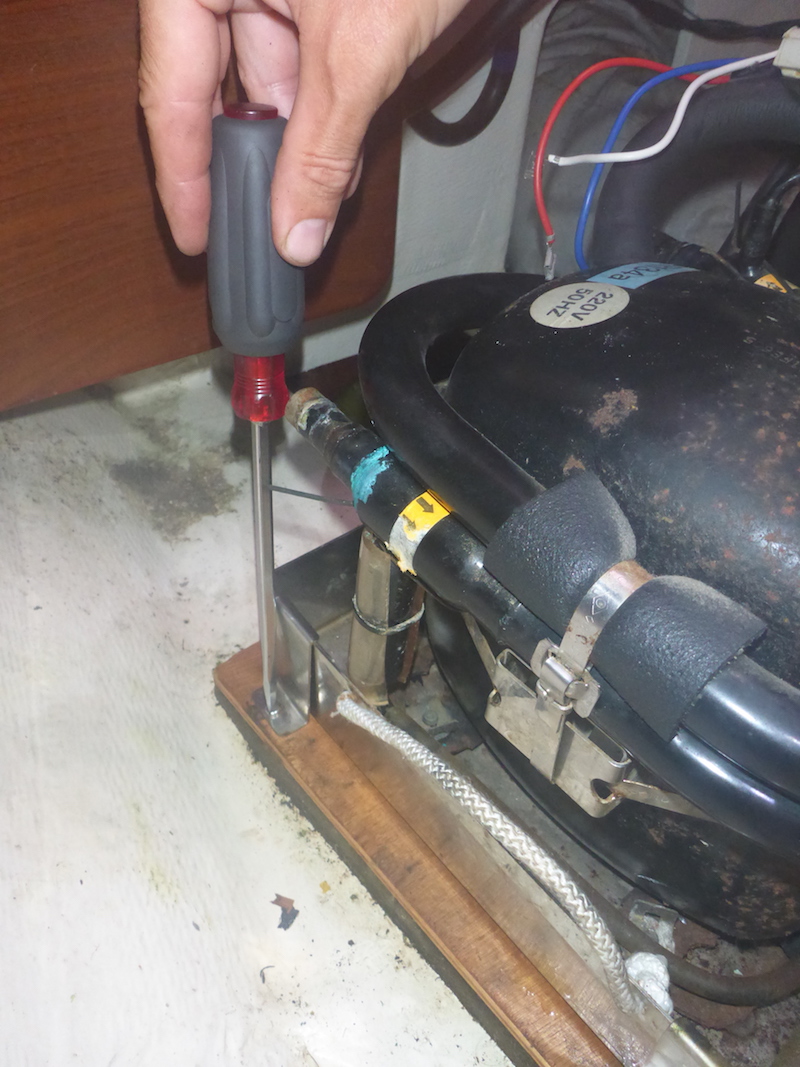

2nd one

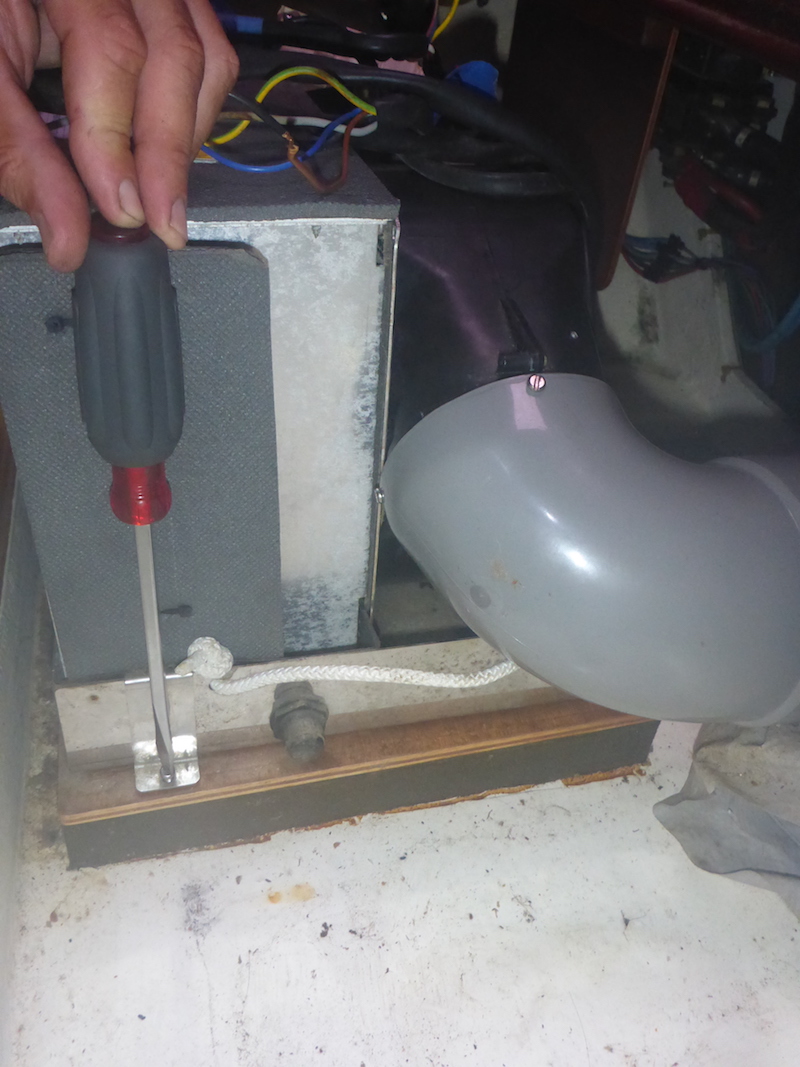

3rd one

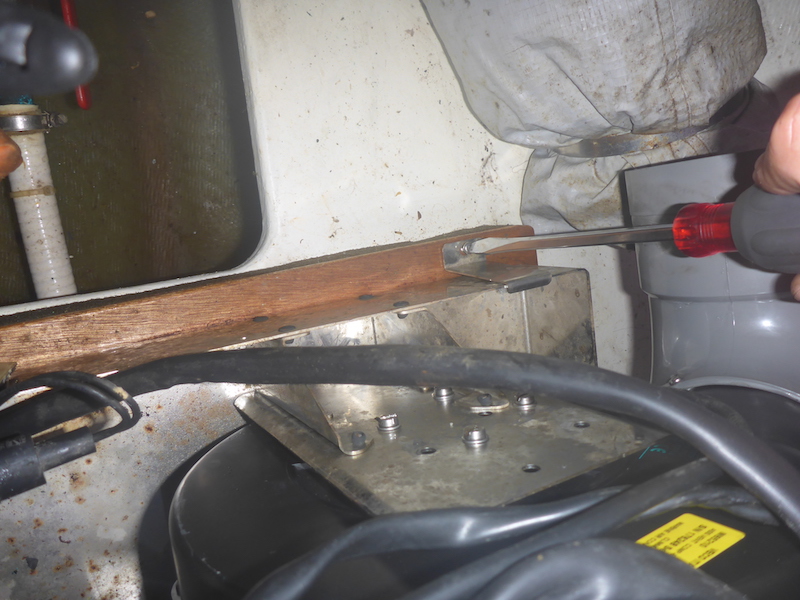

4th brackets

Next: Part 31 Reconnecting the hoses and Thermostat
