Amel Super Maramu 2000

Air Conditioning Climma Marine Compact 9

Removing the thermostats/control of the Aft Climma Marine Compact 9

Not necessary to swap the units, but necessary in my test, I removed the thermostat adjuster

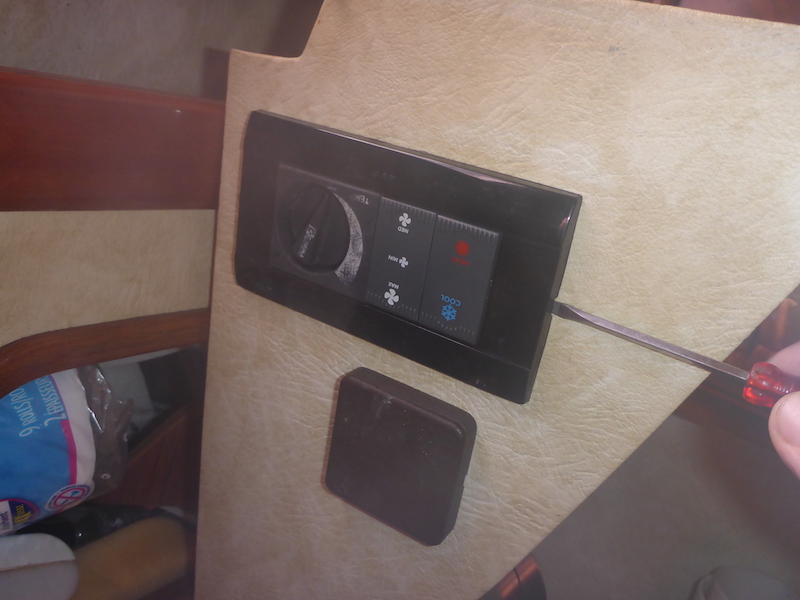

Remove the cover with a screw driver

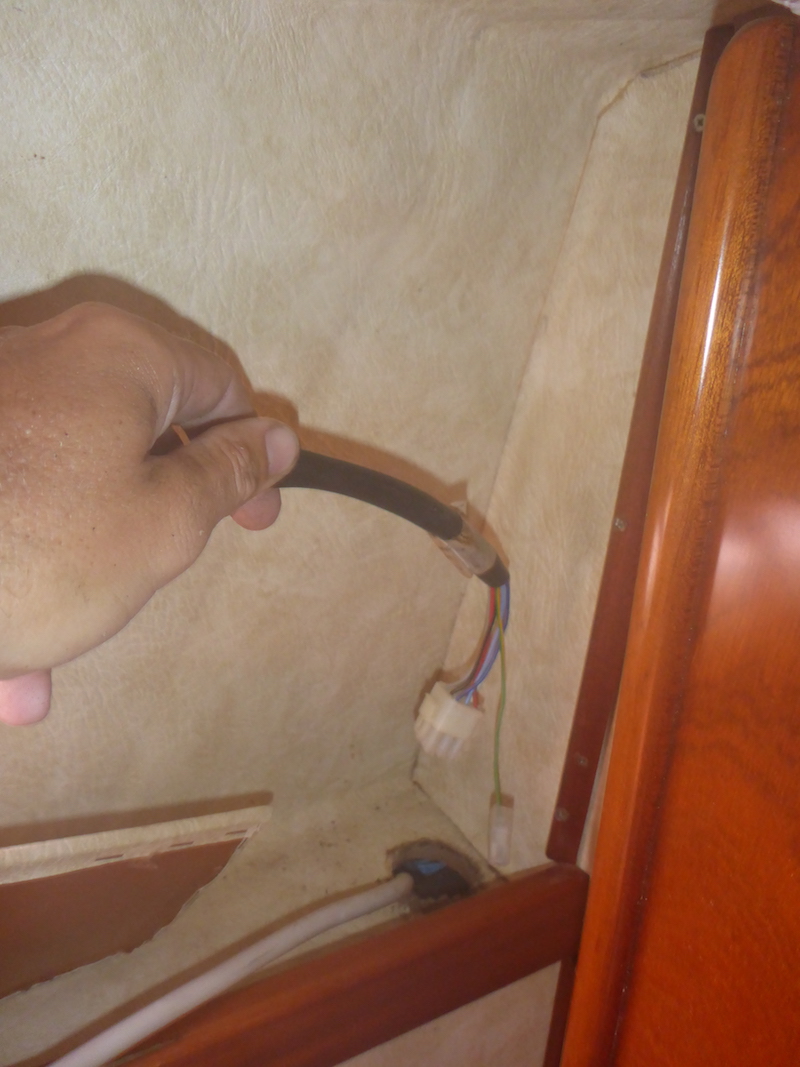

Pull the cable out

uncrew the cover

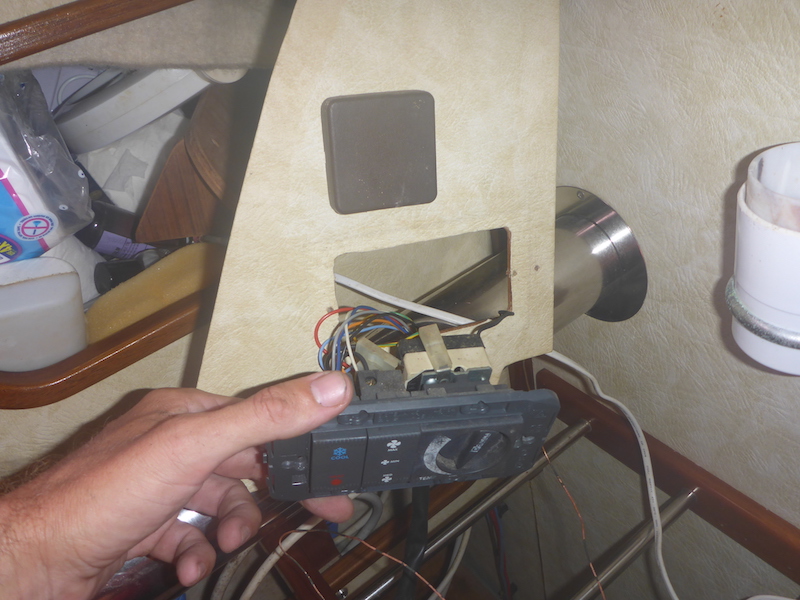

Pull out the unit
again careful that the electric outlet above is either off or stay away from it

Next: Part 8 Disconnecting the cooling hoses
