Amel Super Maramu 2000

Air Conditioning Climma Marine Compact 9

Disconnecting the harnesses of the Aft Climma Marine Compact 9

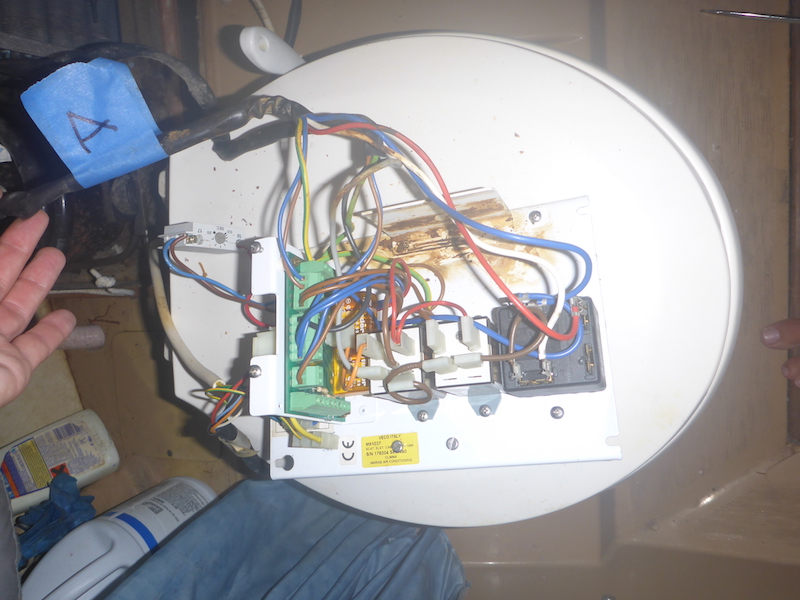

I randomly named the first harness "A" as I will find out later, it is going to the Compressor

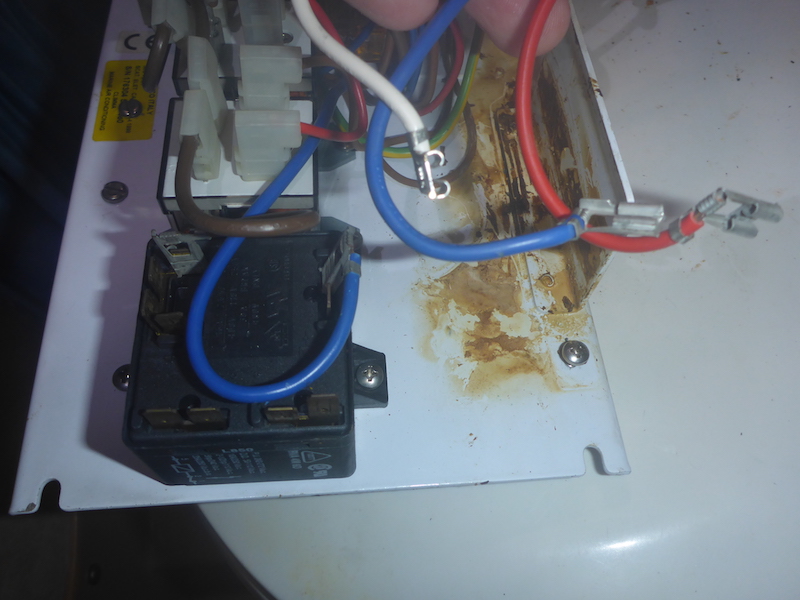

I took note of the wire position and removed the blue, white and red wires

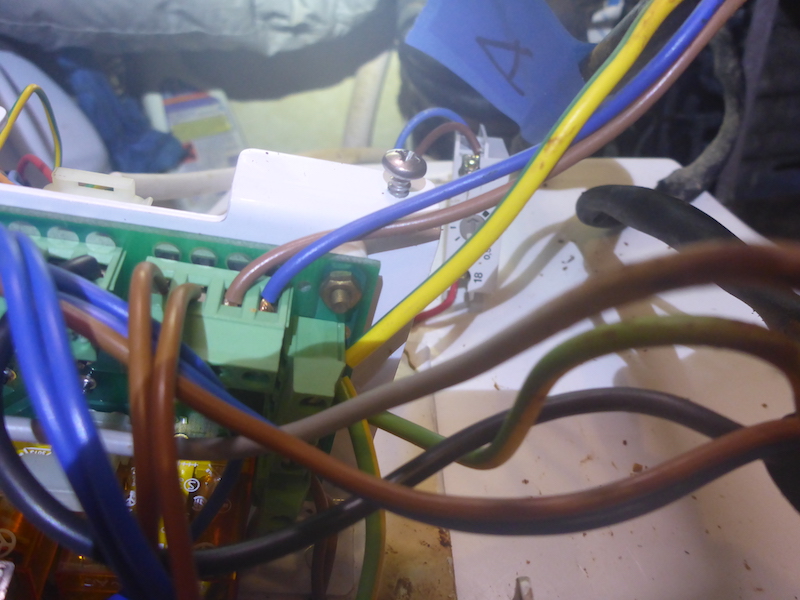

Then the brown, blue and ground (yellow/green) wires

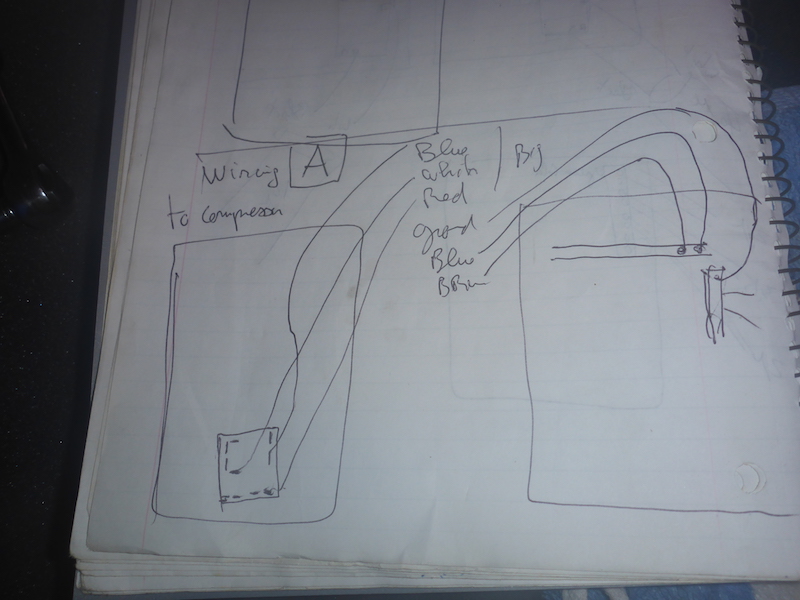

Here is a picture of my notes

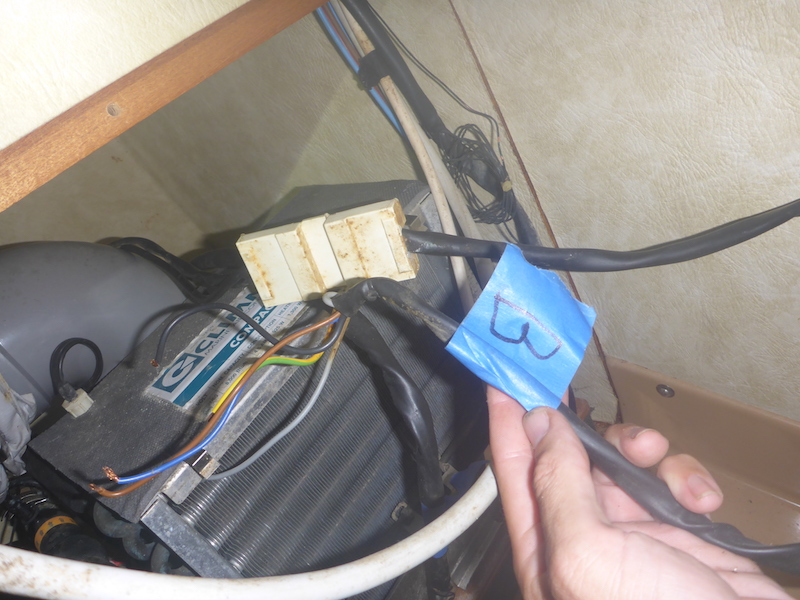

Then I label the second harness "B", as I will find out later it goes to the fan

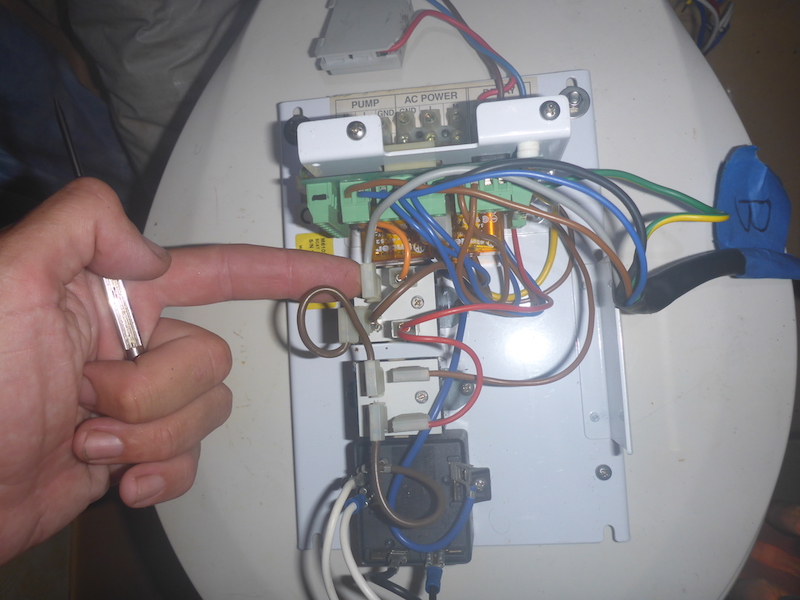

I took note of the wire position and removed the brown, blue, black, ground (yellow/green) and grey wires

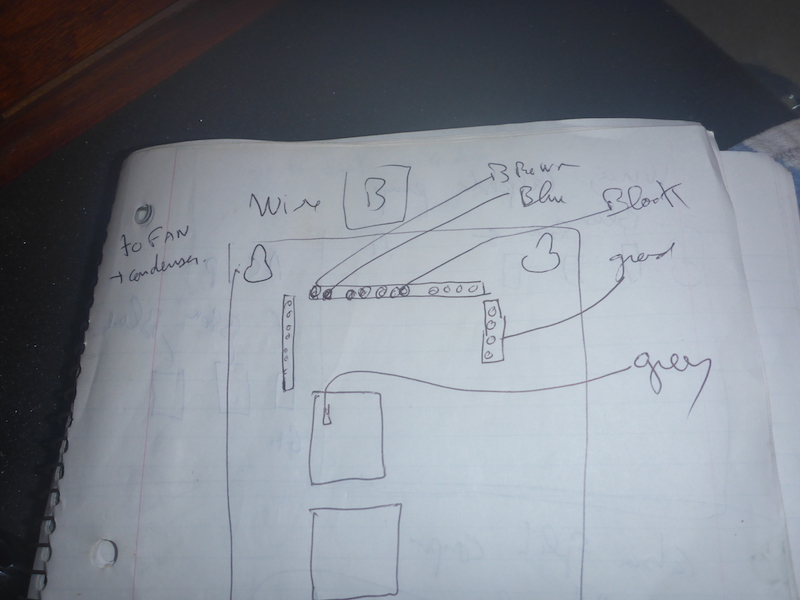

Here is a picture of my notes

Next: Part 4 Disconnecting the Calpeda cooling pump and control harness
