Amel Super Maramu 2000

Air Conditioning Climma Marine Compact 9

Testing Climma Marine Compact 9

Before I close everything down (forward cabin access to the air conditioning and the cover of the aft cabin)
I wanted to make sure the hose were not leaking as it would be desastrous
So I turn on the aft cabin air conditioning

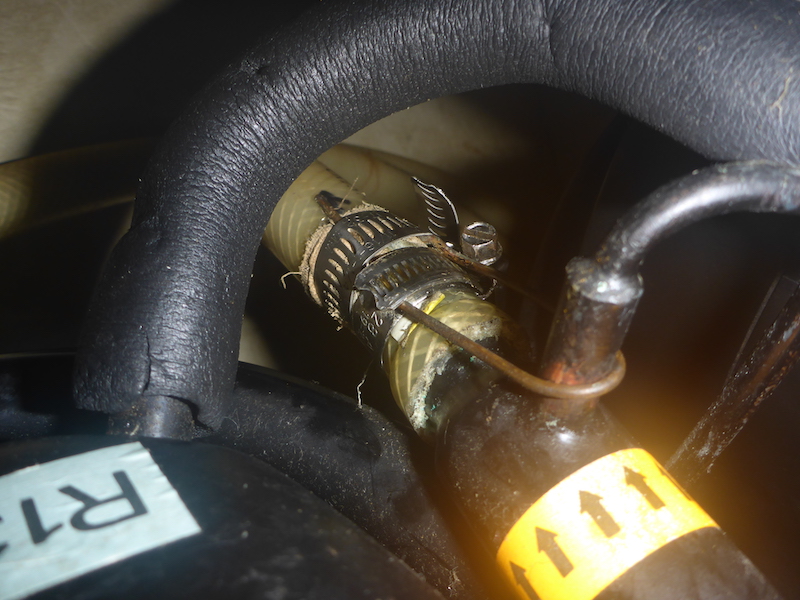

Then inspected for several minutes to make sure there was water leak on both hoses

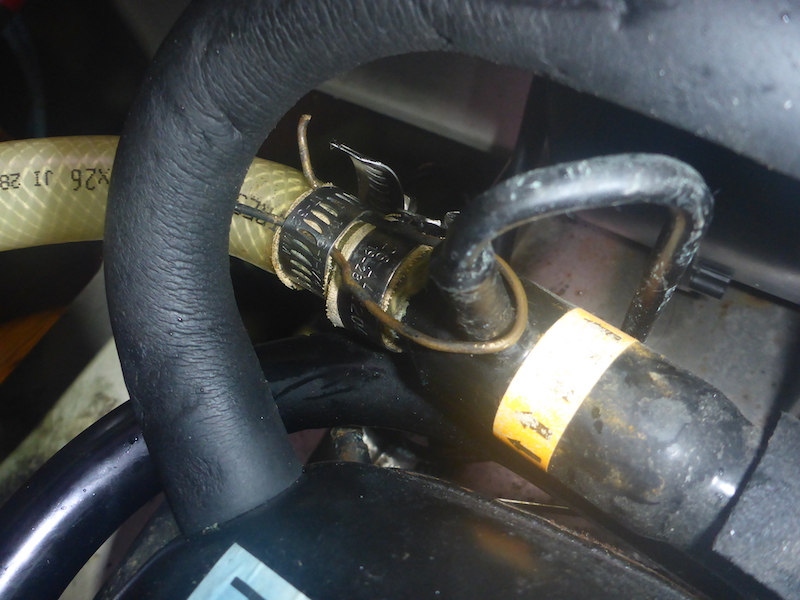

Then look at the hoses of the forward cabin

All good

Next: Part 34 Putting back cover for Aft and Forward units
