Amel Super Maramu 2000

Air Conditioning Climma Marine Compact 9

Reconnecting the Fan harness to the Aft Climma Marine Compact 9

Here is a picture of my notes for Harness "B" going to fan

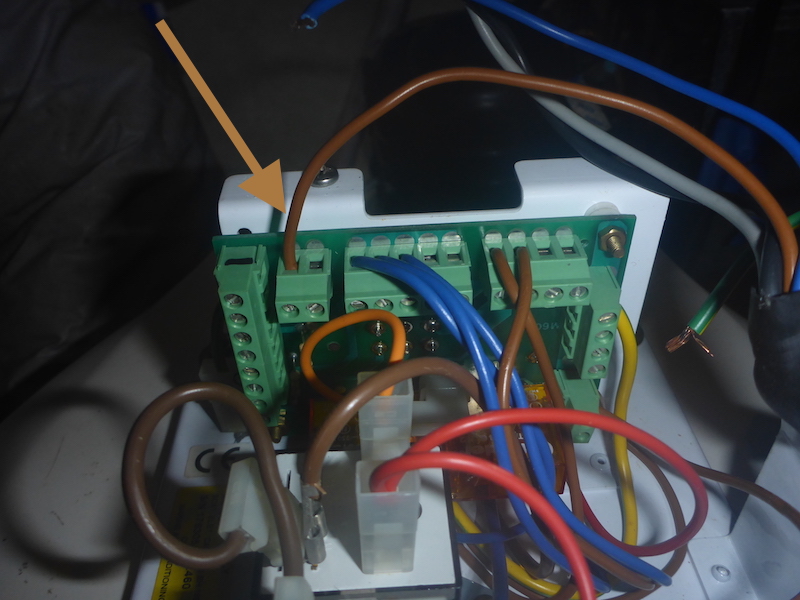

Brown wire

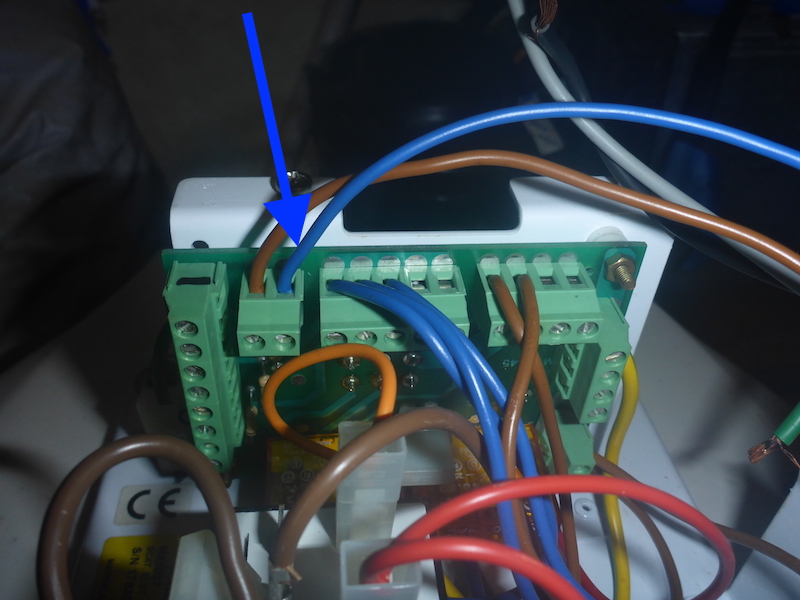

Blue wire

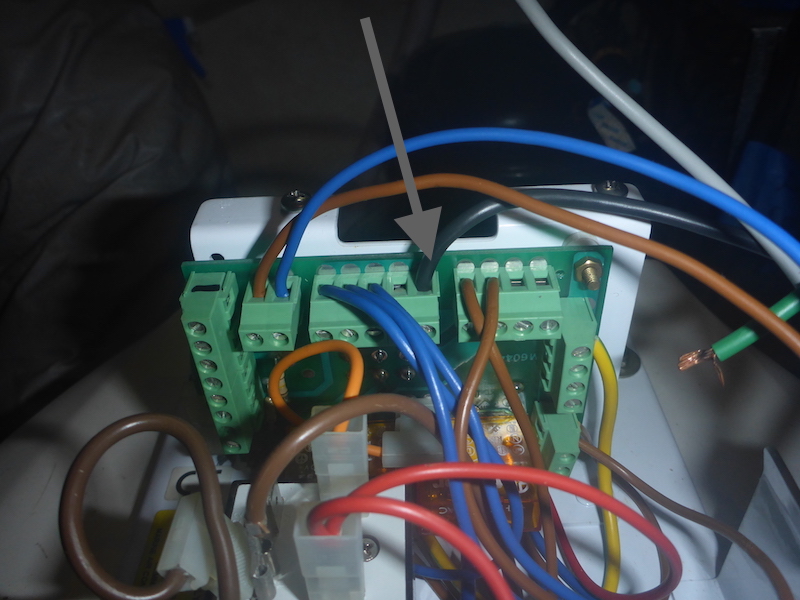

Black wire

Yellow/Green (Ground) wire

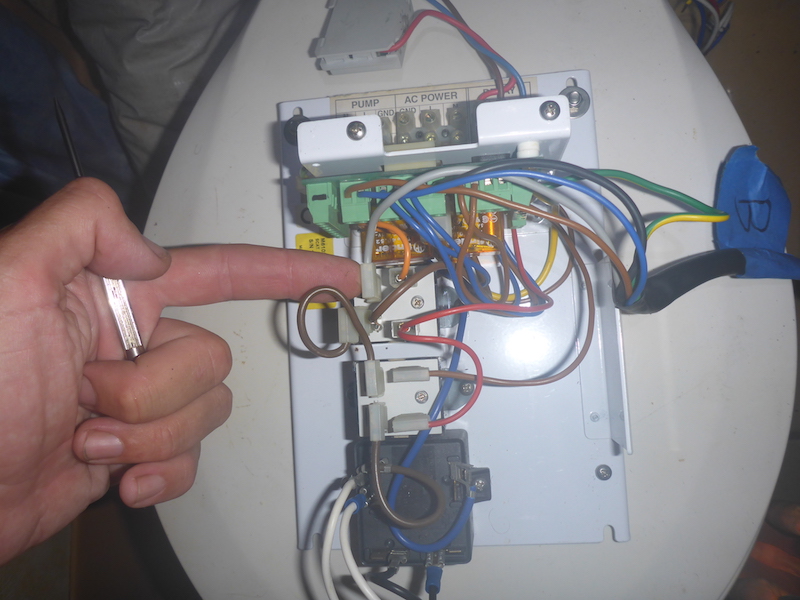

Then the gray attach there
