Amel Super Maramu 2000

Air Conditioning Climma Marine Compact 9

Disconnecting the Compressor and Fan harnesses of the forward cabin Air Conditioning Climma Marine Compact 9

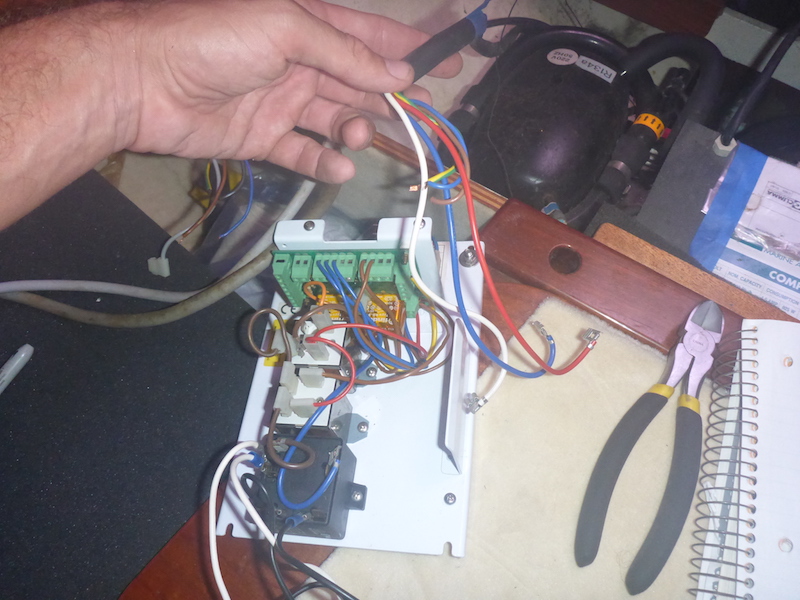

Removing what I called Harness "A" and "B" - make sure to take notes where the wires go

Here is a picture of my notes for harness "A" going to Compressor

Here is a picture of my notes for Harness "B" going to fan

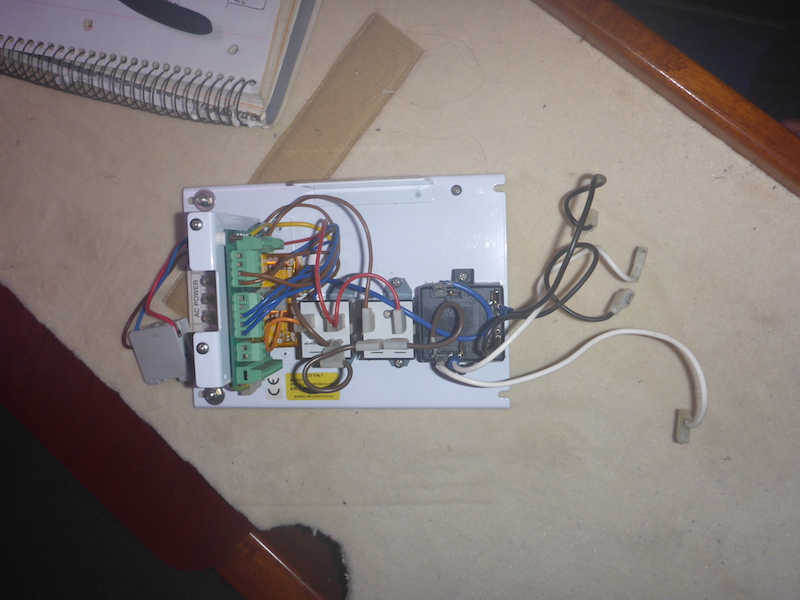

The control box is off

Next: Part 13 Removing the thermostats and holding brackets
