Amel Super Maramu 2000

Air Conditioning Climma Marine Compact 9

Putting back holding brackets, overflow and thermostat on the Aft Climma Marine Compact 9

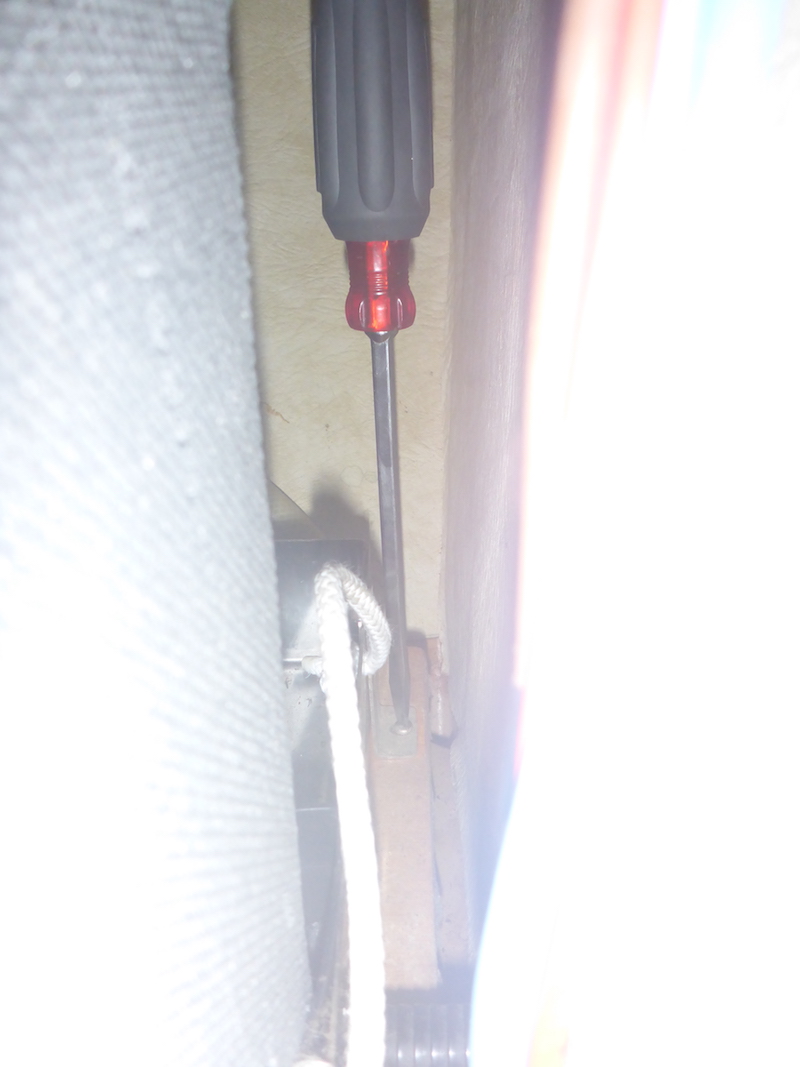

screw back the brackets holding in place the unit

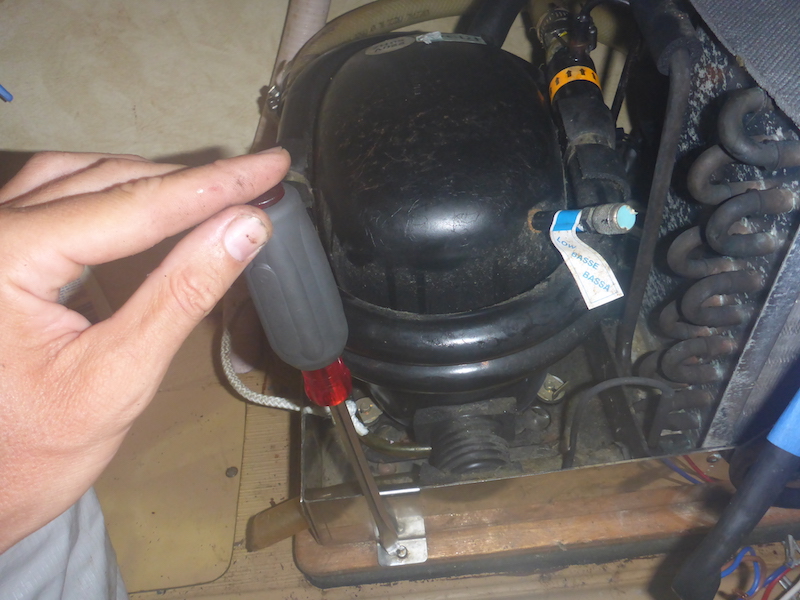

2nd one

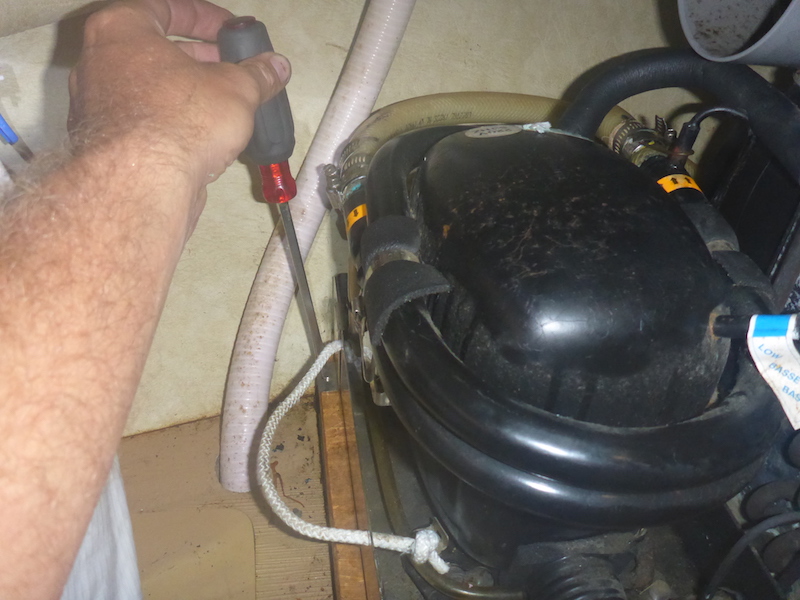

3rd one

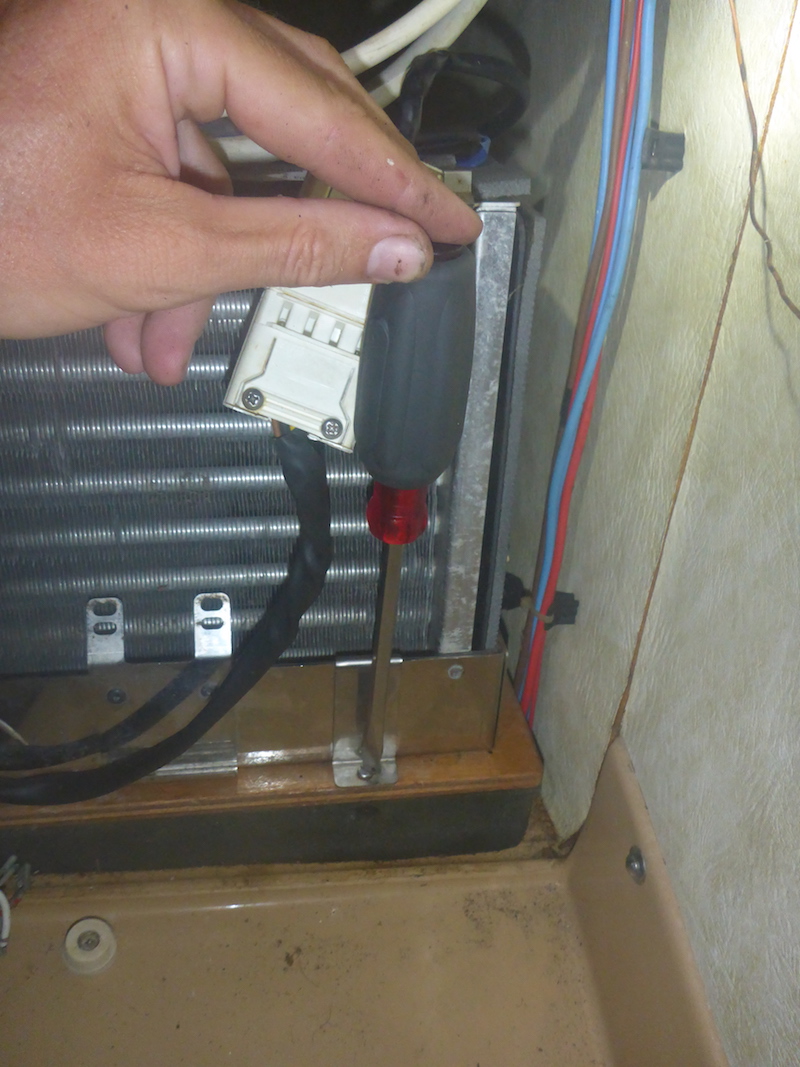

4th and last one

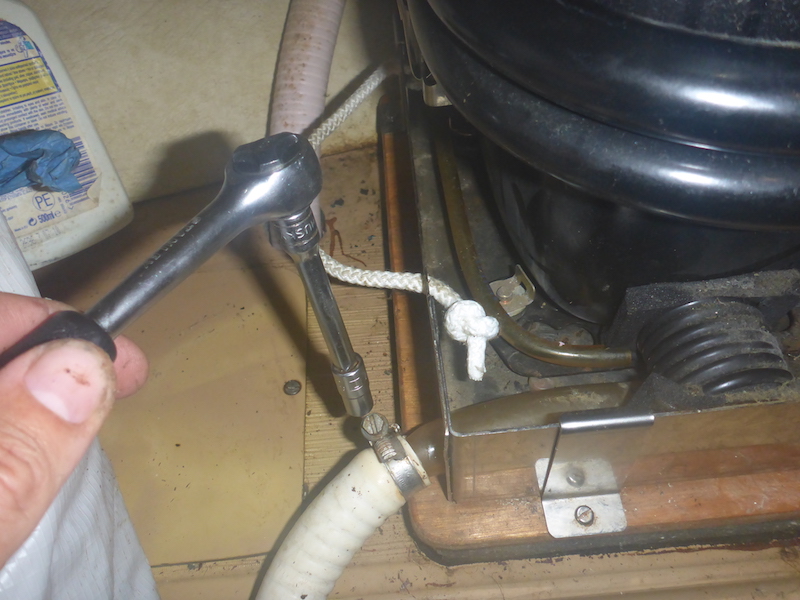

clamp back the hose

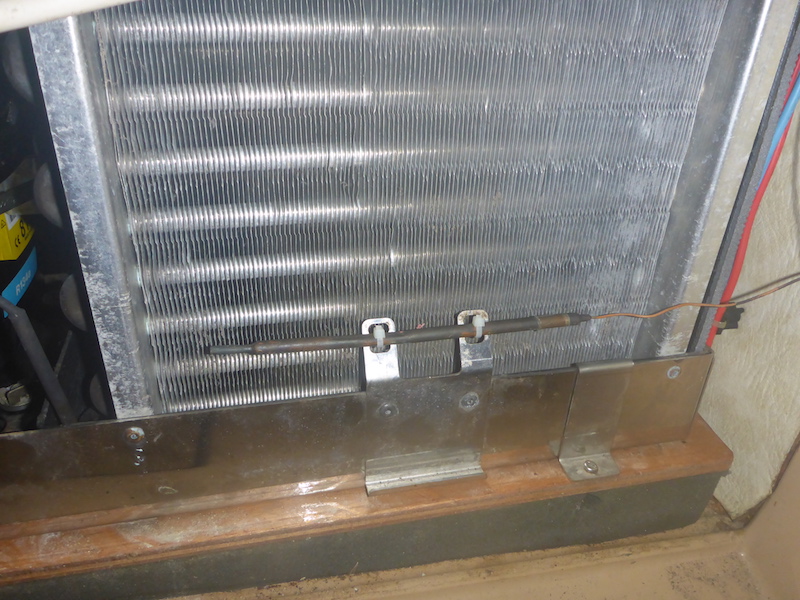

tie back the thermostat

Next: Part 22 Looking at the control box
