Amel Super Maramu 2000

Air Conditioning Climma Marine Compact 9

Reconnecting the fan assembly on the forward Climma Marine Compact 9

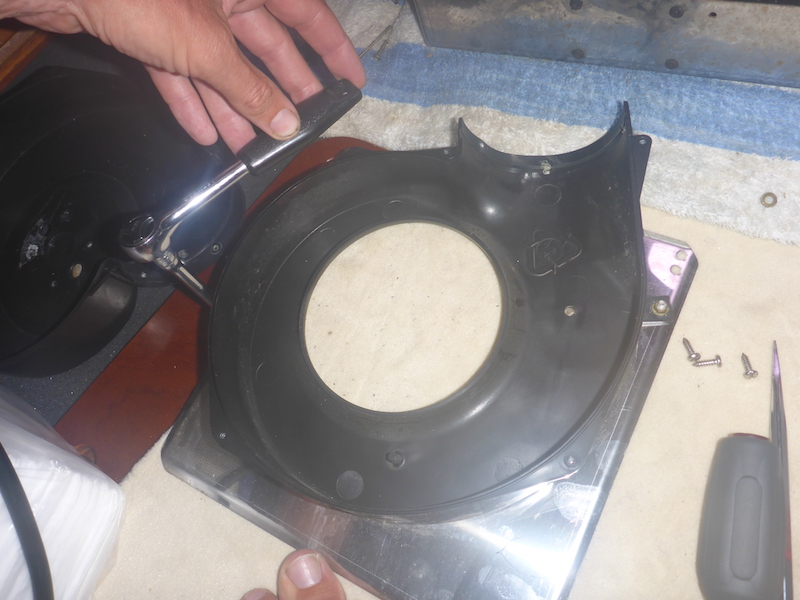

Putting back the half fan assembly on the plate

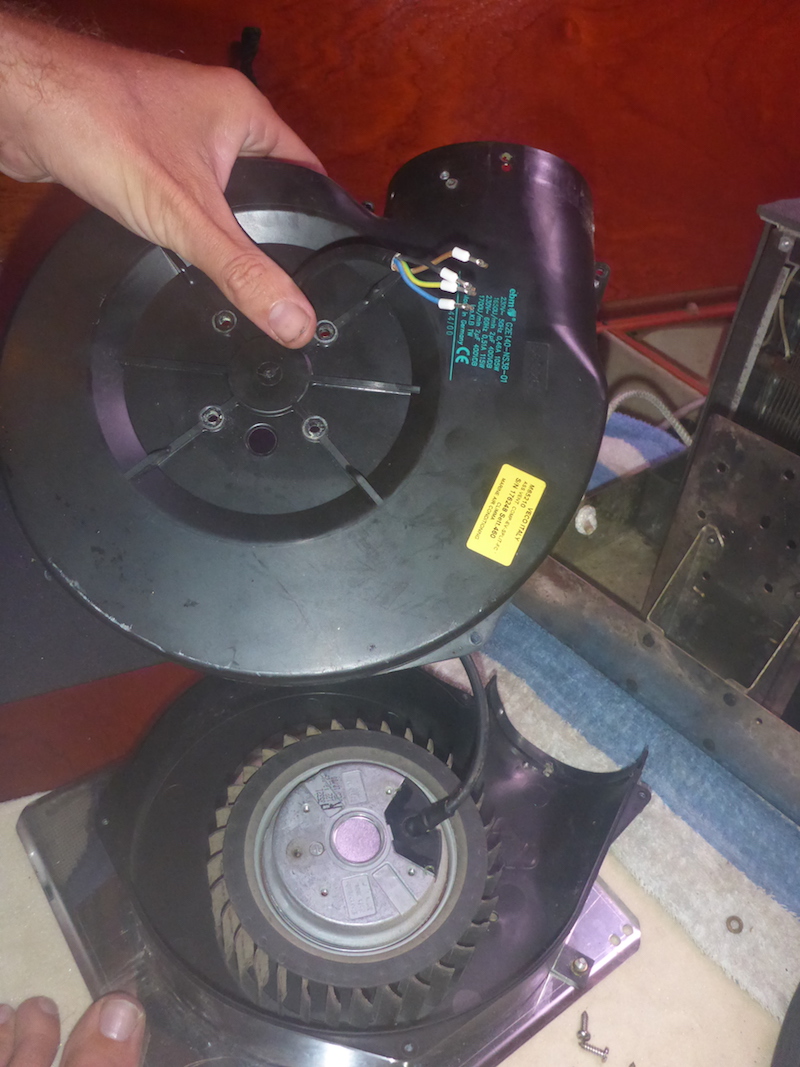

Passing the wire through the hole

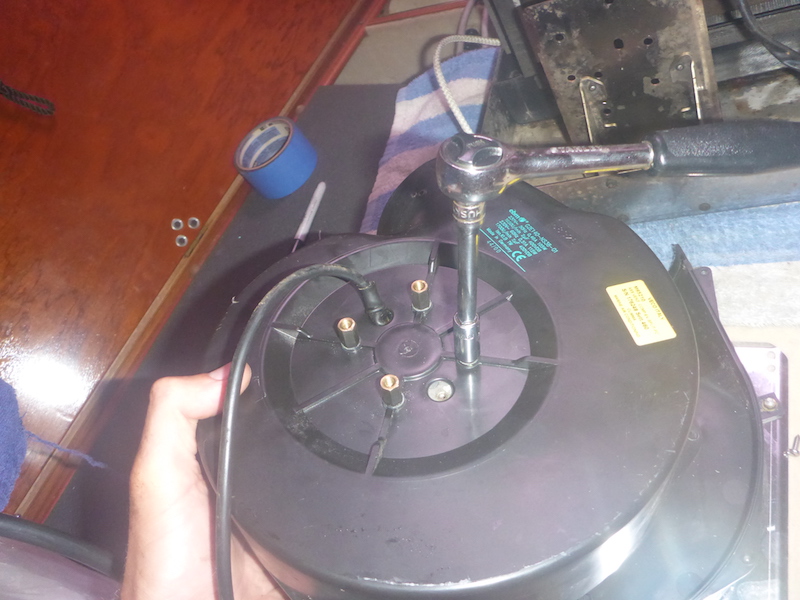

Reconnecting the 4 bolt that hold the fan motor in place

connecting the 2 halves of the fan assembly together

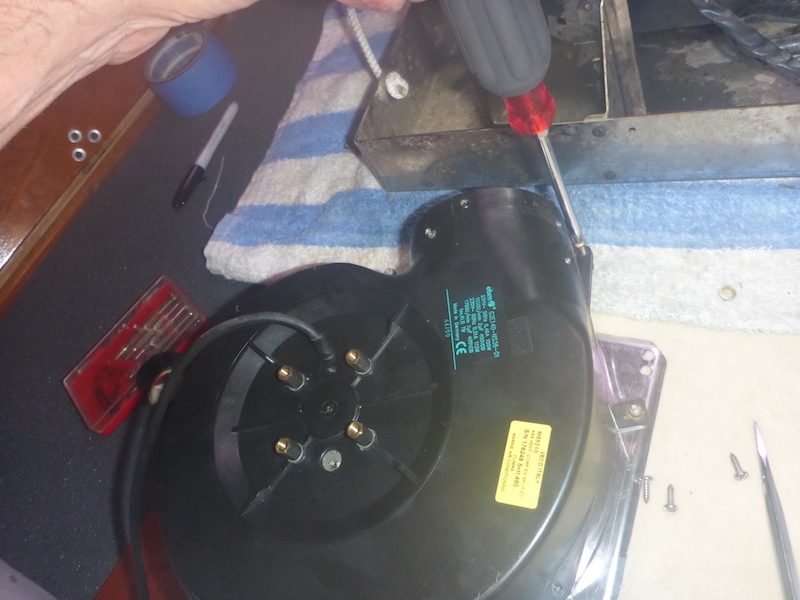

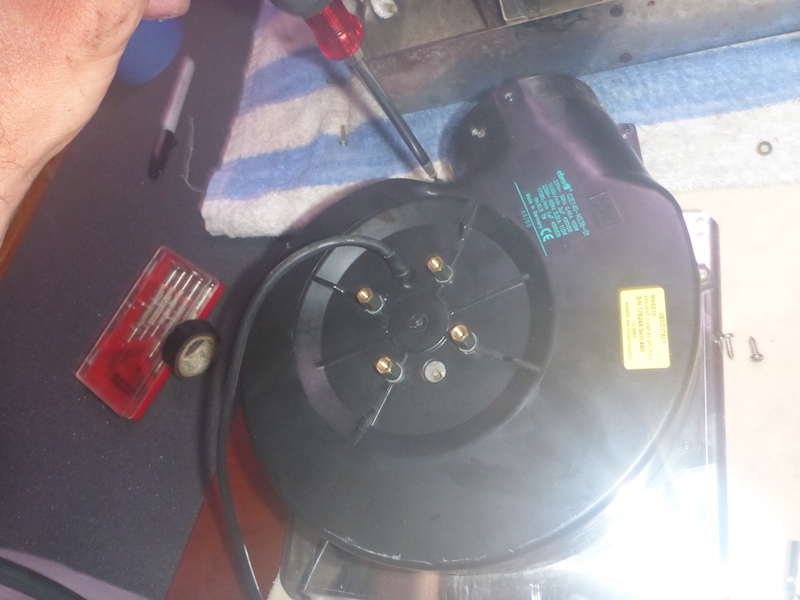

4 screws

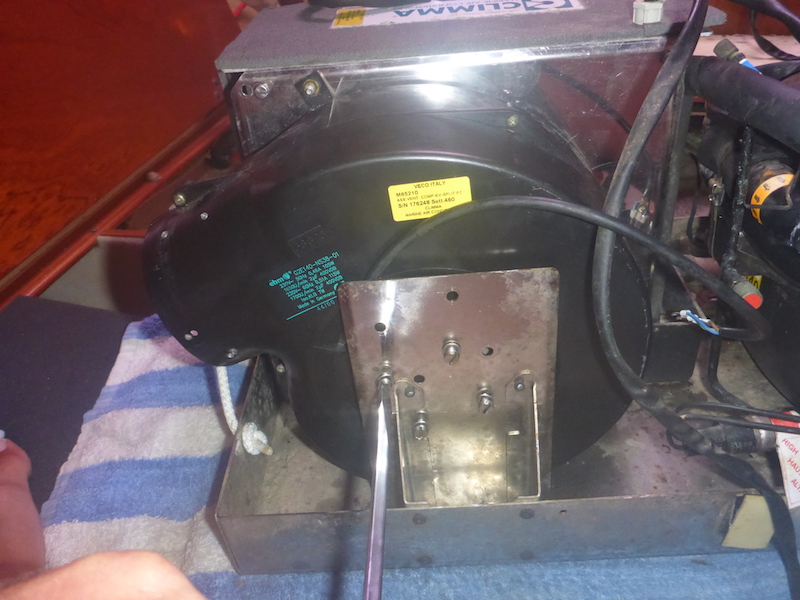

Putting back the plate on the unit and bolt the 2 bolts holding it and 4 bolts in the middle

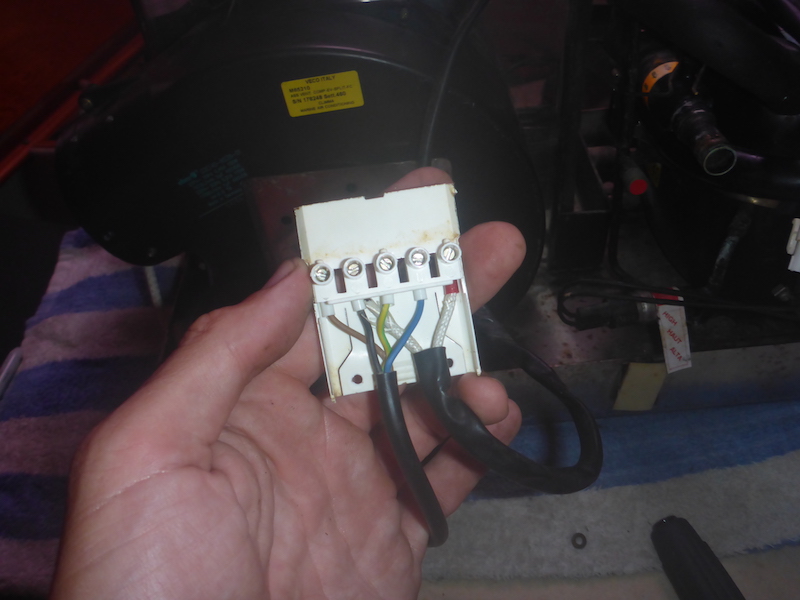

putting back the harness

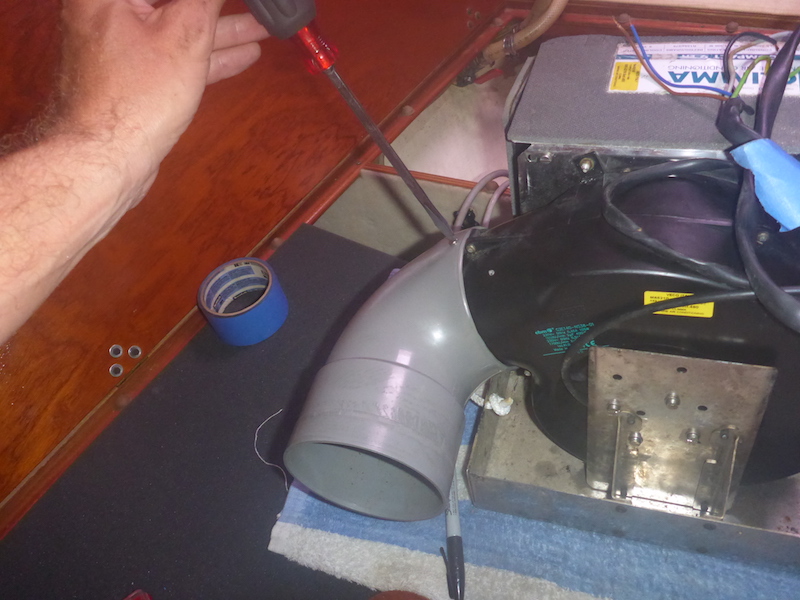

screwing back the 90 degree elbow

Next: Part 30 Attaching holding brackets
