Amel Super Maramu 2000

Air Conditioning Climma Marine Compact 9

Changing the hose direction of the Aft cabin Air Conditioning Climma Marine Compact 9 to later realize it will not fit

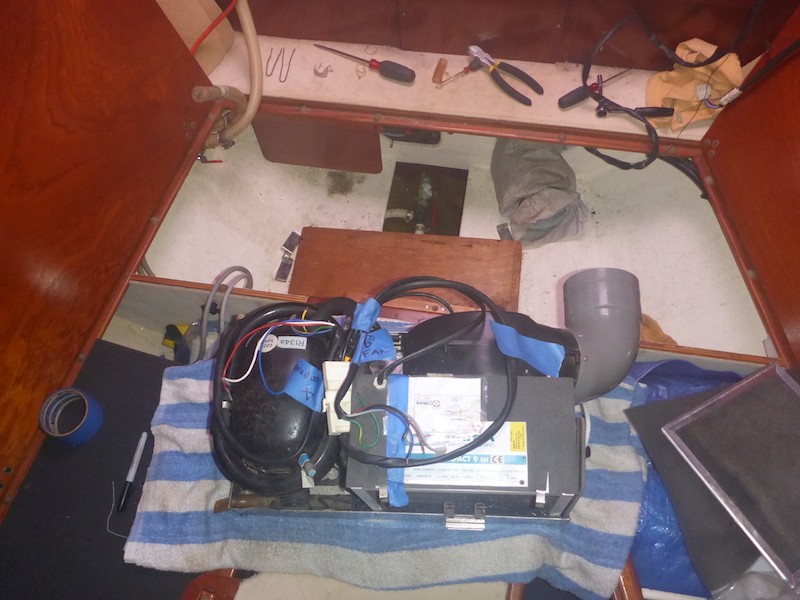

Original unit in the aft cabin has the hose pointed in one direction

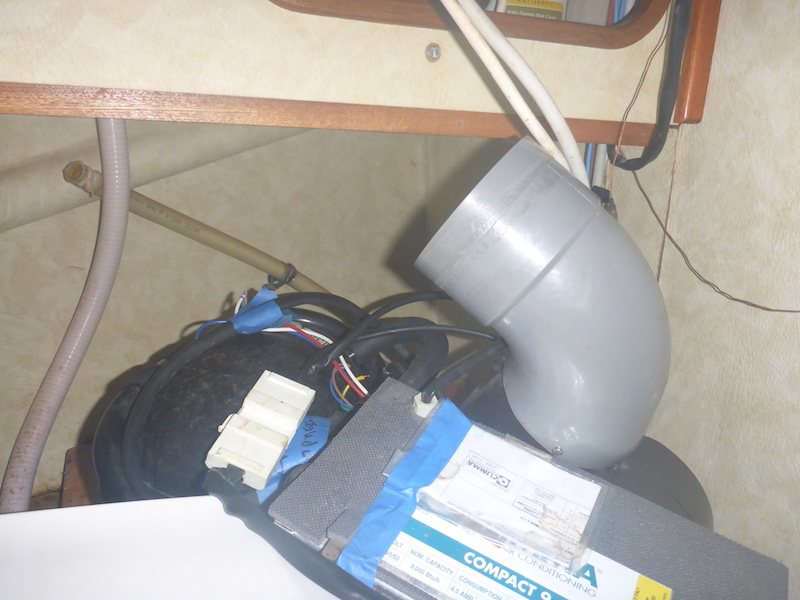

Original unit in the forward cabin has the hose pointed in a different direction

So naturally I thought of changing the directions - unfortunately this was wasted time
look at the pictures before you do the work

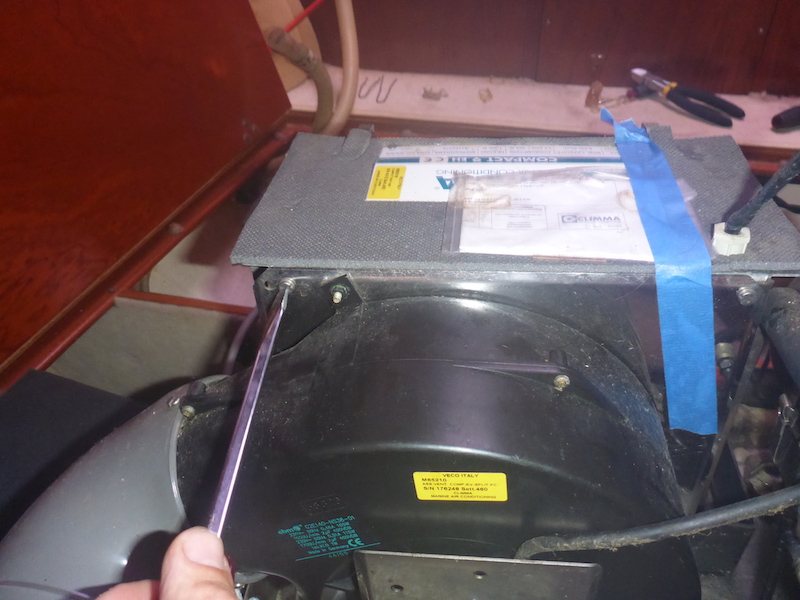

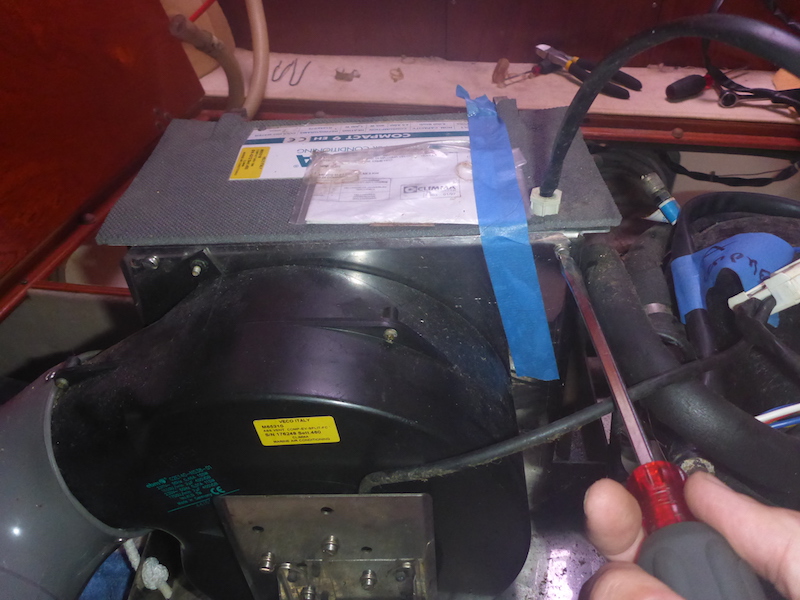

unscrew in the middle

4 bolt total

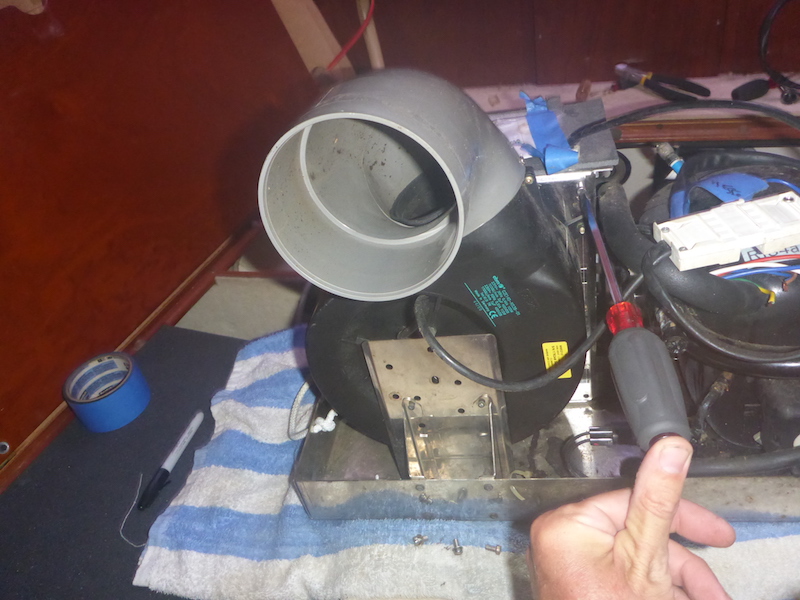

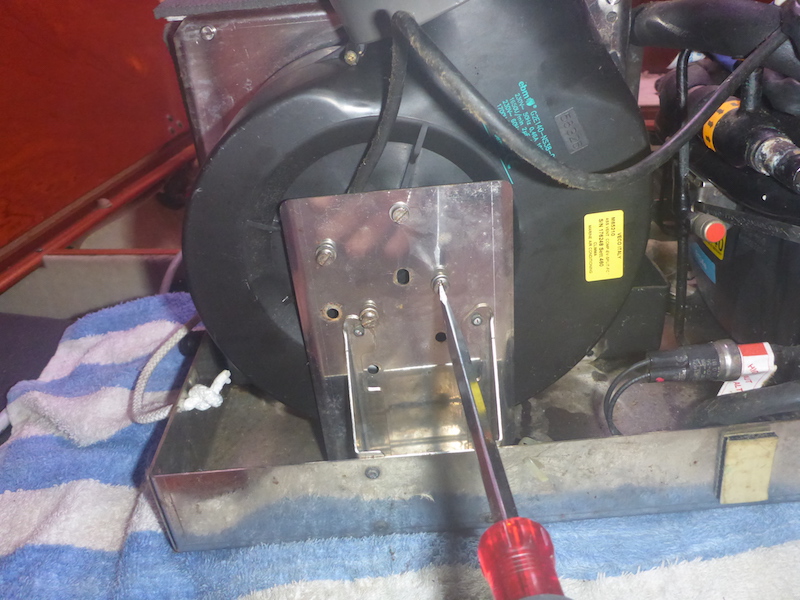

unscrew the plate that hold the fan

2nd bolt

the plate goes out

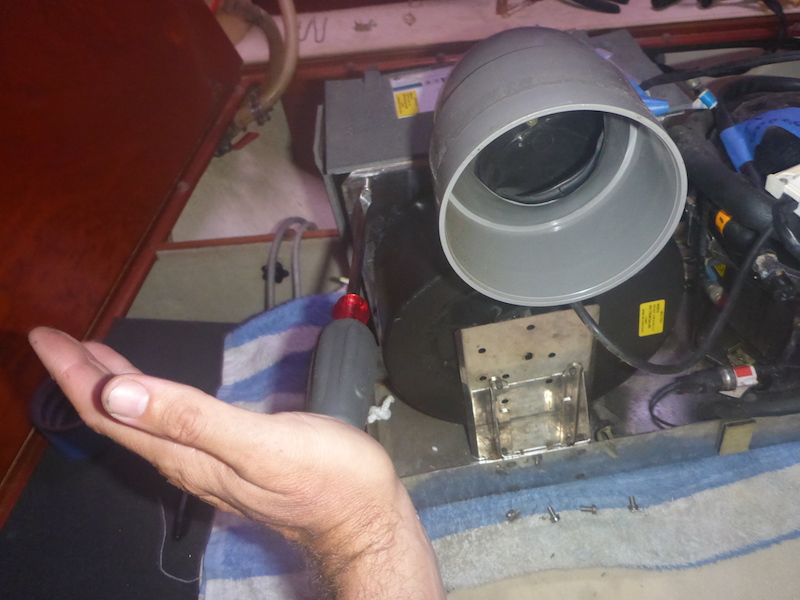

Put it back the plate turning it 90 degrees

put bolt on

and the 4 in the middle

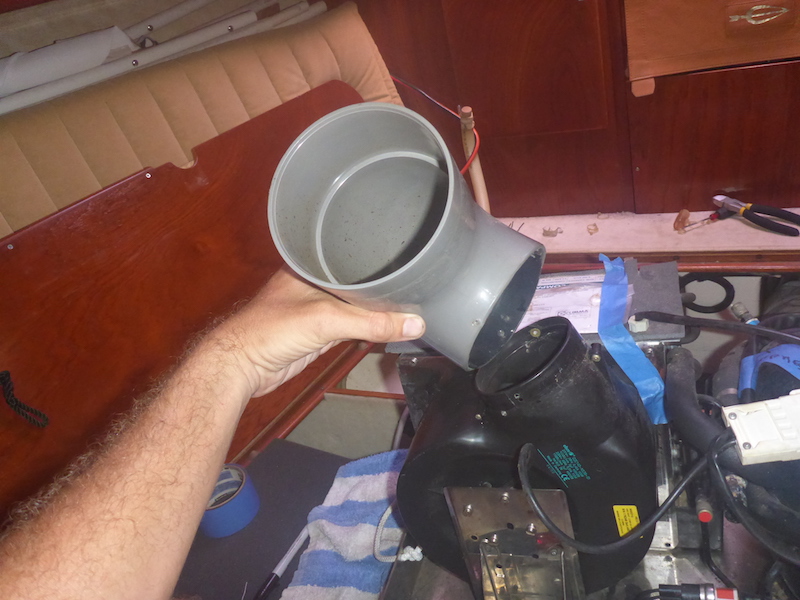

unbolt the 90 elbow

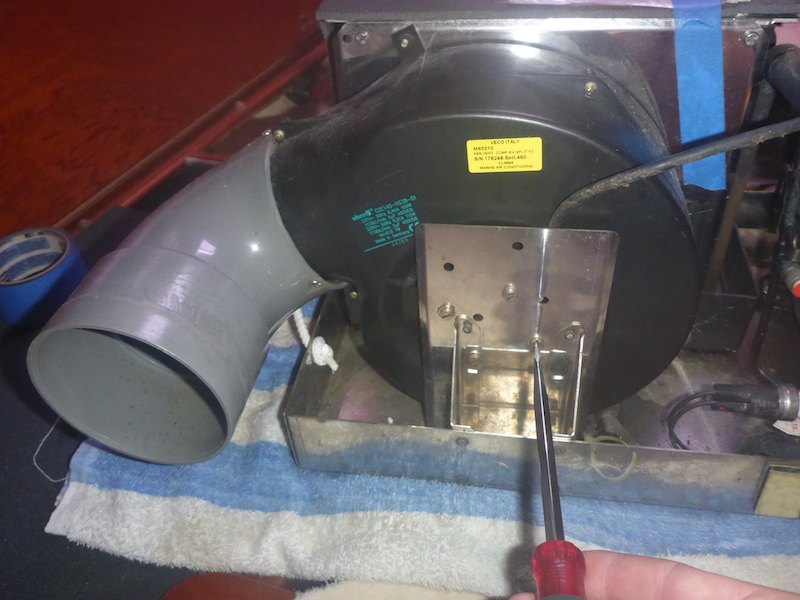

has 3 screw

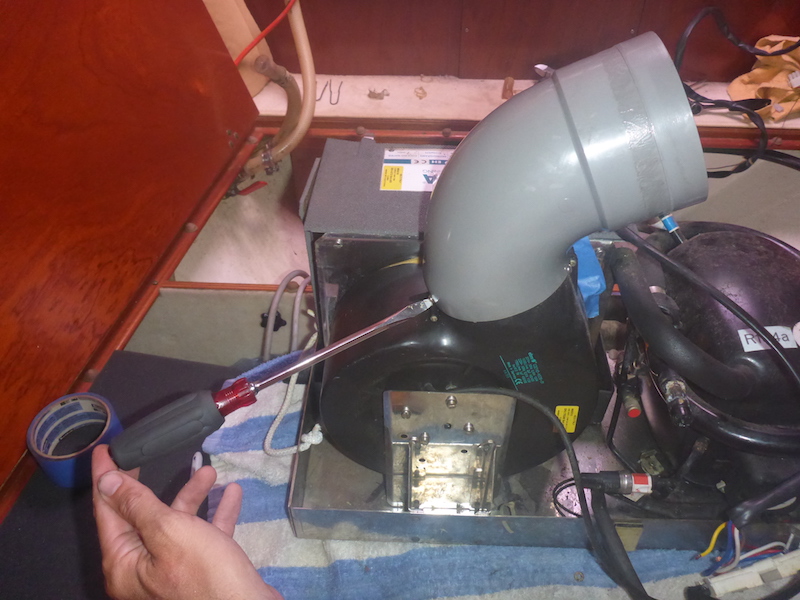

turn is 90 degree and screw it back

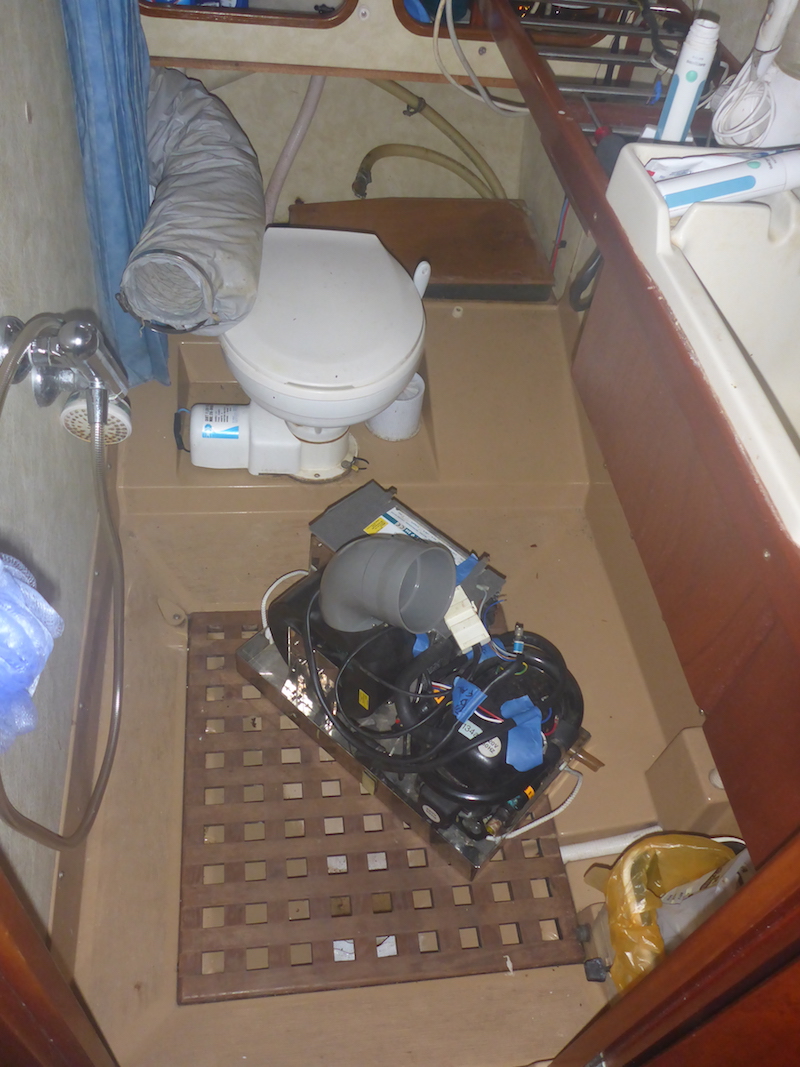

Bring the unit to the aft cabin

And it does not fit...

Next: Part 16 Comparing air duct the Aft and Forward cabin
