Amel Super Maramu 2000

Air Conditioning Climma Marine Compact 9

Reconnecting the cooling hoses of the Aft Climma Marine Compact 9

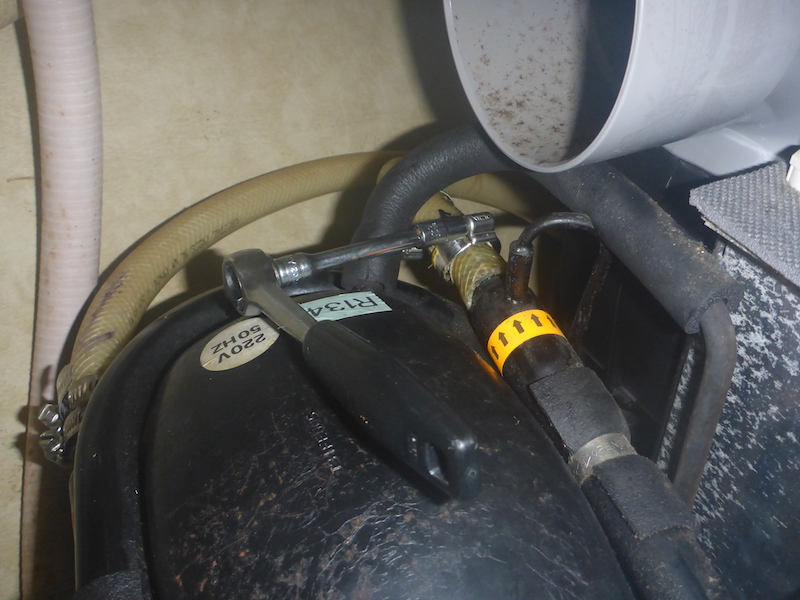

Replace the original clamp with new ones

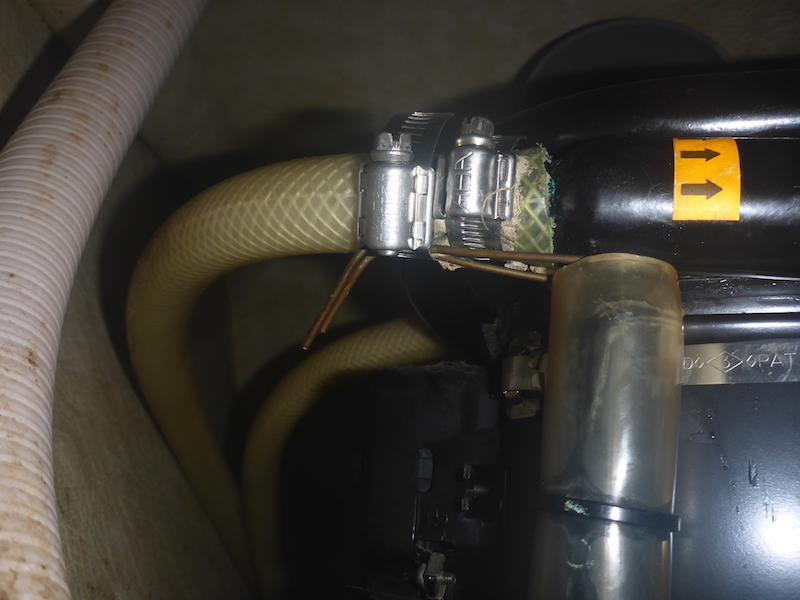

Remember that there is a critical piece of wire that will be placed under the 2nd clamp as an additional way to hold the hose in place

The 2 ends of the metal wires will be bent

Same on the other hose

close up of the work

Next: Part 21 Putting back holding brackets, overflow and thermostat
