Amel Super Maramu 2000

Air Conditioning Climma Marine Compact 9

Starting with removing the fan of the Aft Climma Marine Compact 9

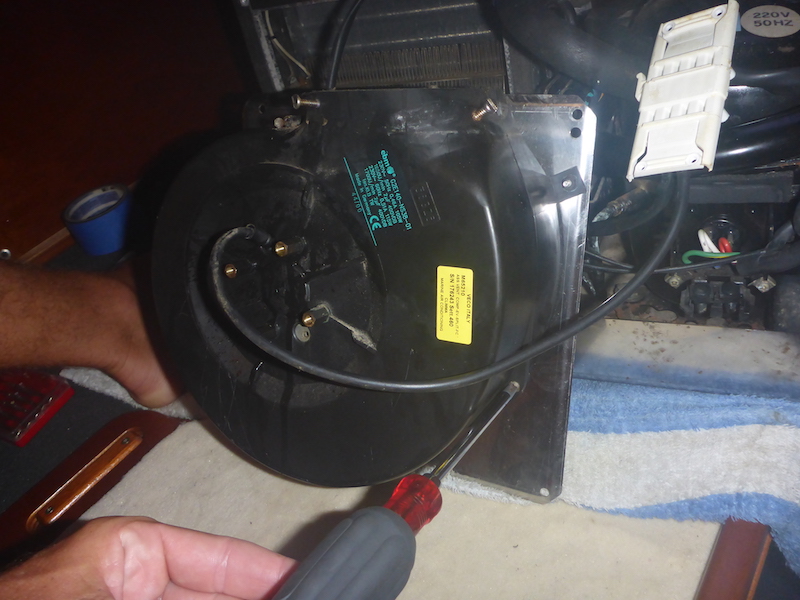

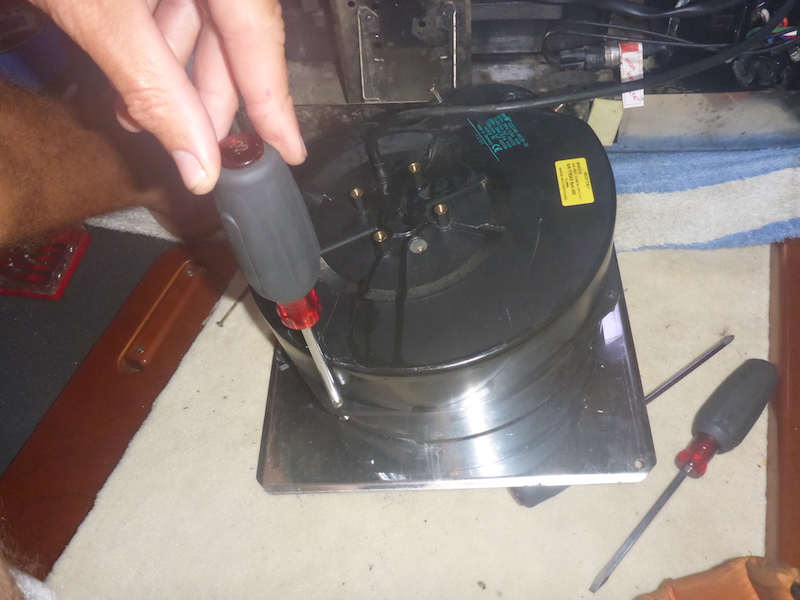

remove the 4 bolt that hold the fan

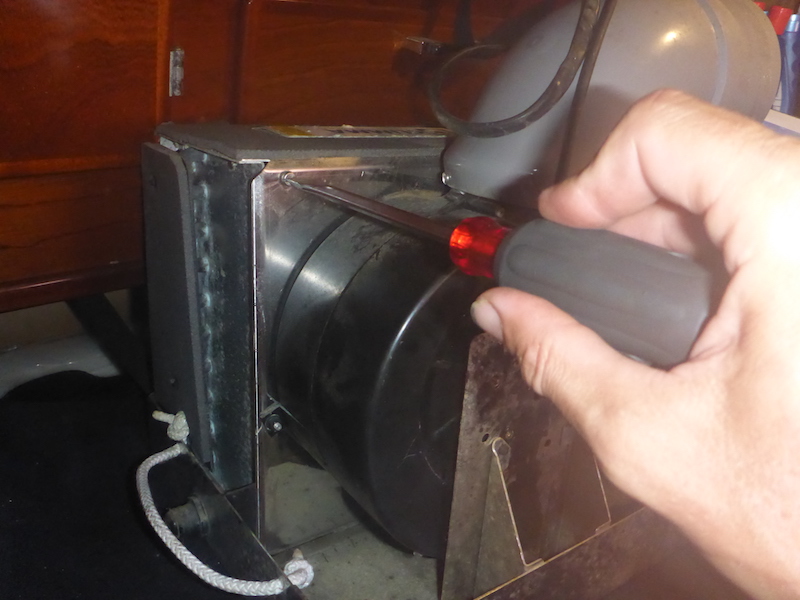

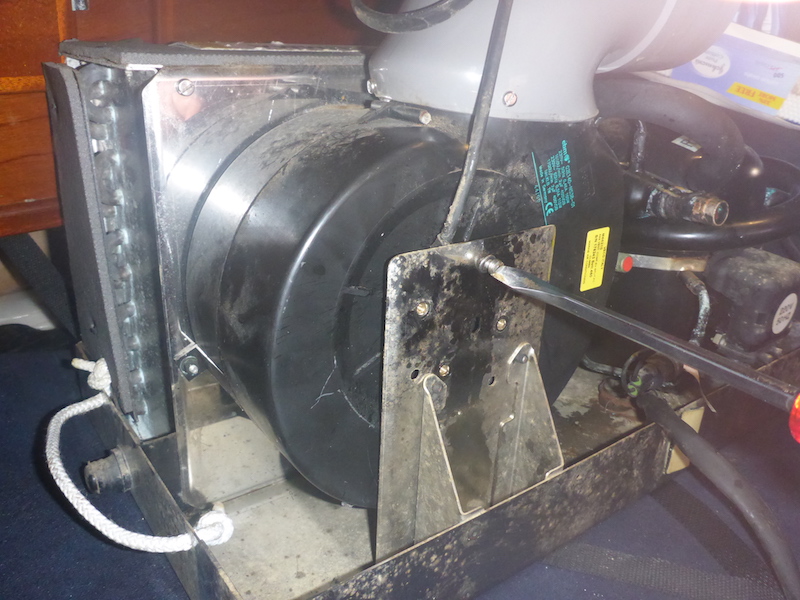

remove the 2 bolt that hold the place

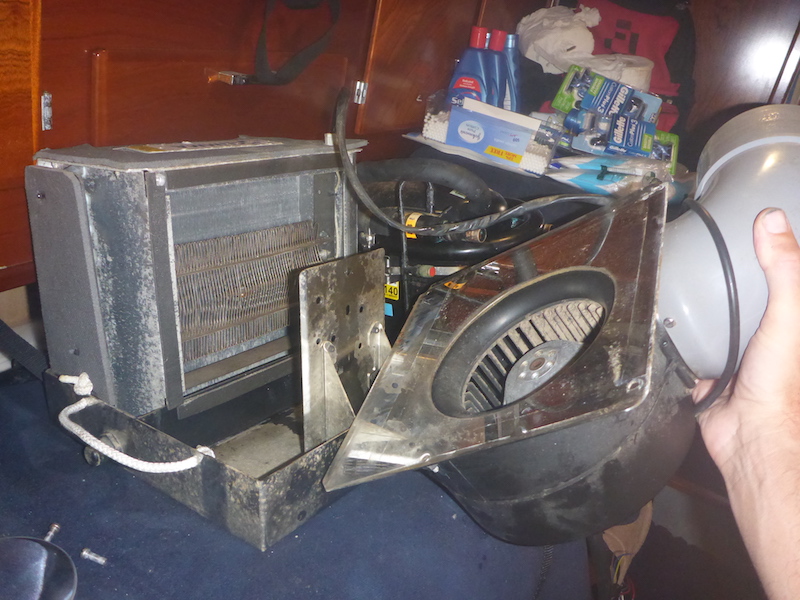

remove the assembly

remove the bolts that hold the 2 halves of the fan together

another one

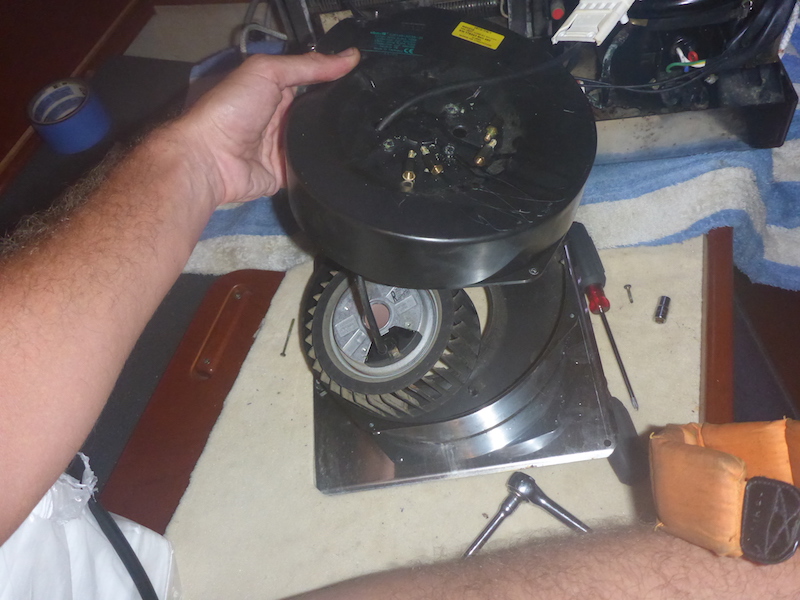

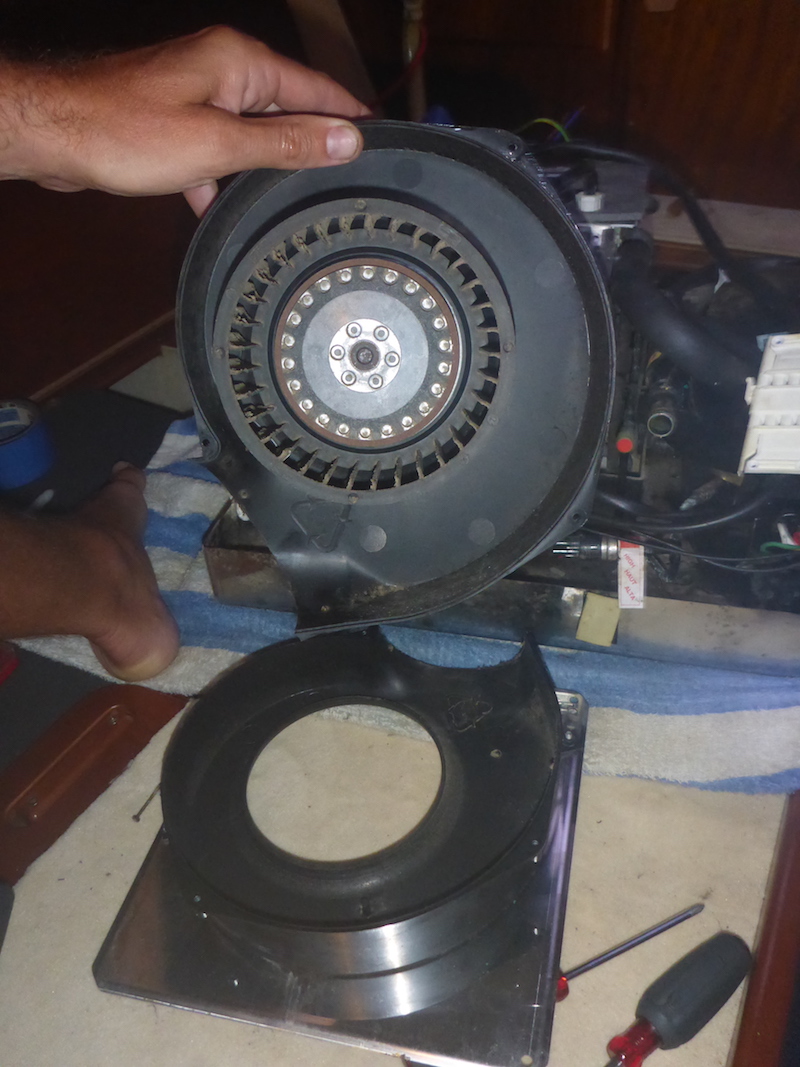

lift up one half

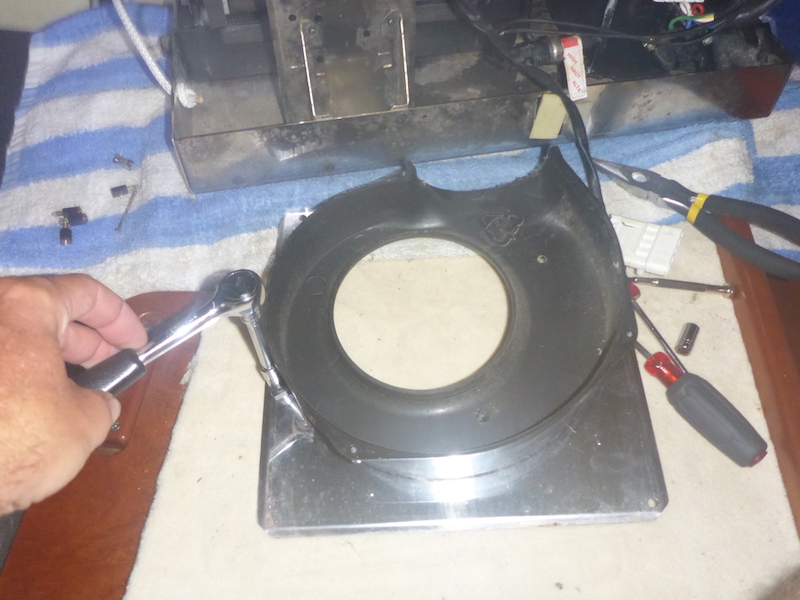

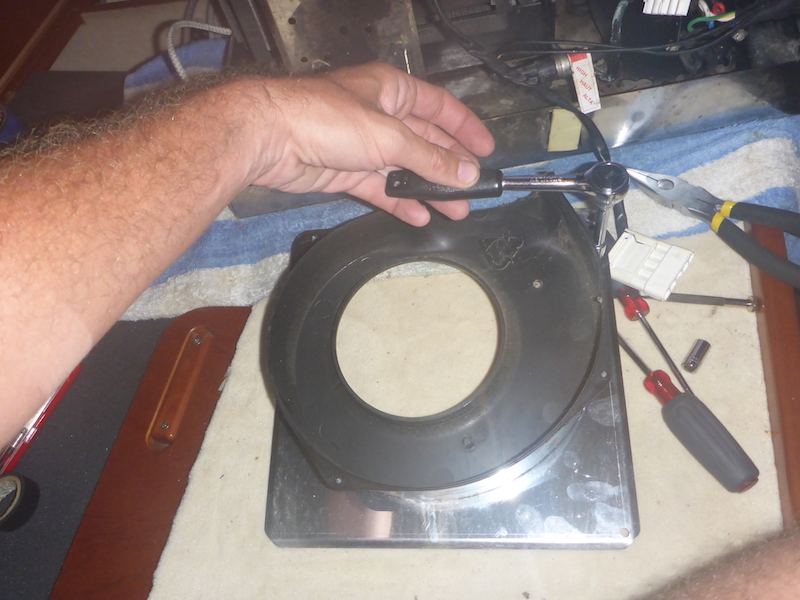

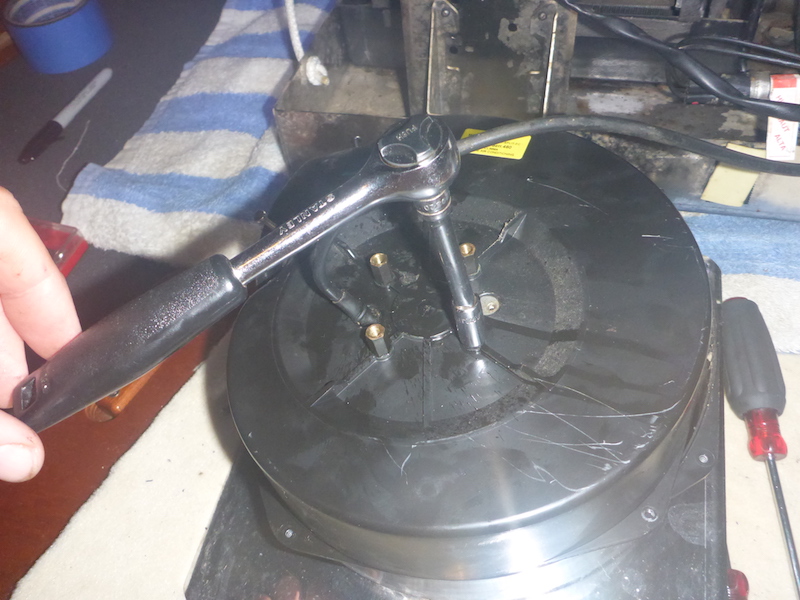

using a socket wrench remove the 4 bolt

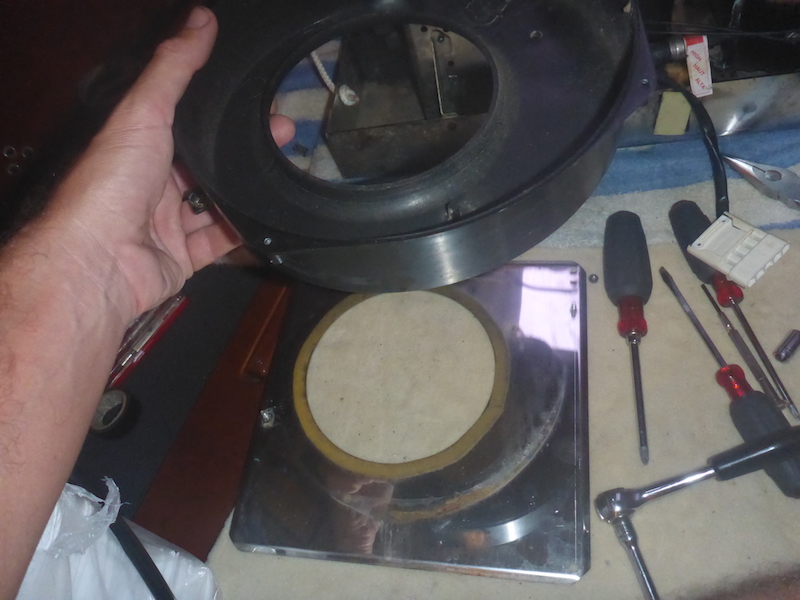

remove the other half

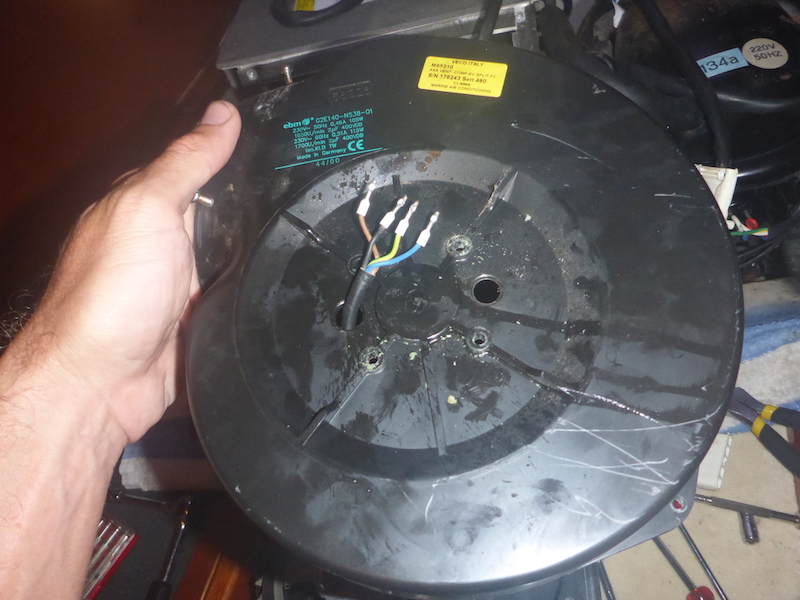

Take note of the wiring

unscrew the bolt that hold the wires

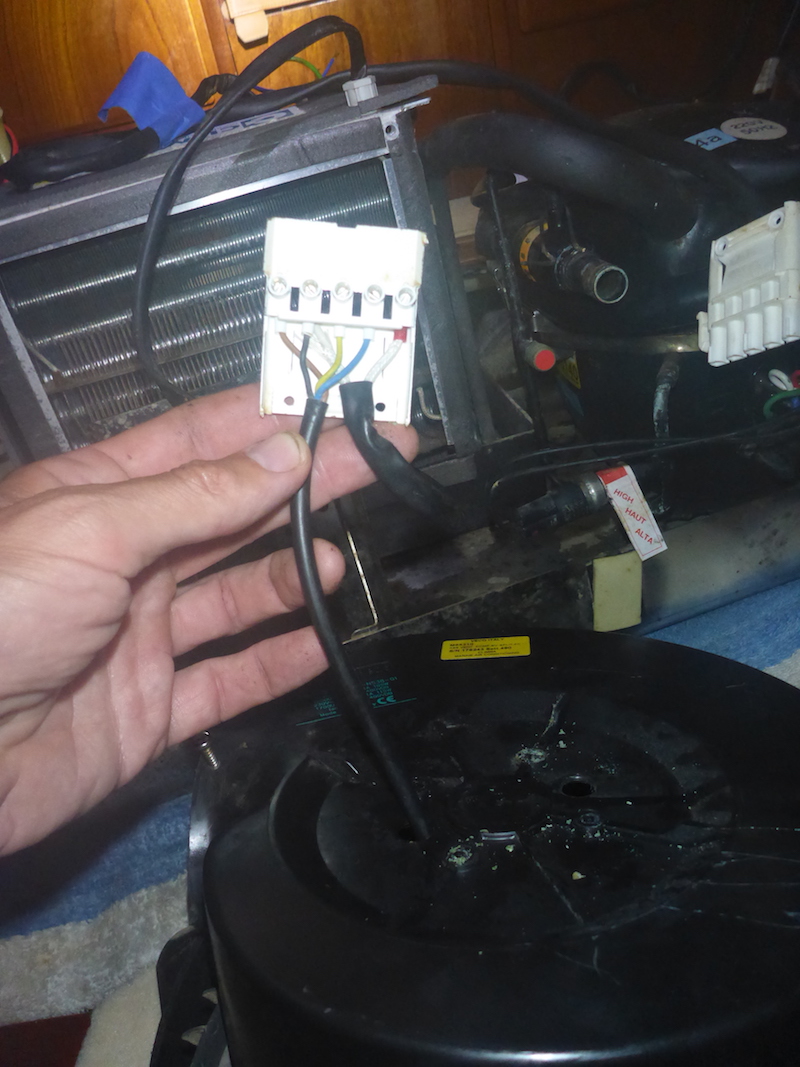

Pass the wires through the hole

unbolt the 2nd half from the plate

one more bolt

remove the 2nd half

Next: Part 18 Removing the fan of the Forward unit
