Amel Super Maramu 2000
Air Conditioning Climma Marine Compact 9 |
Reconnecting the Capacitors to the Aft Climma Marine Compact 9

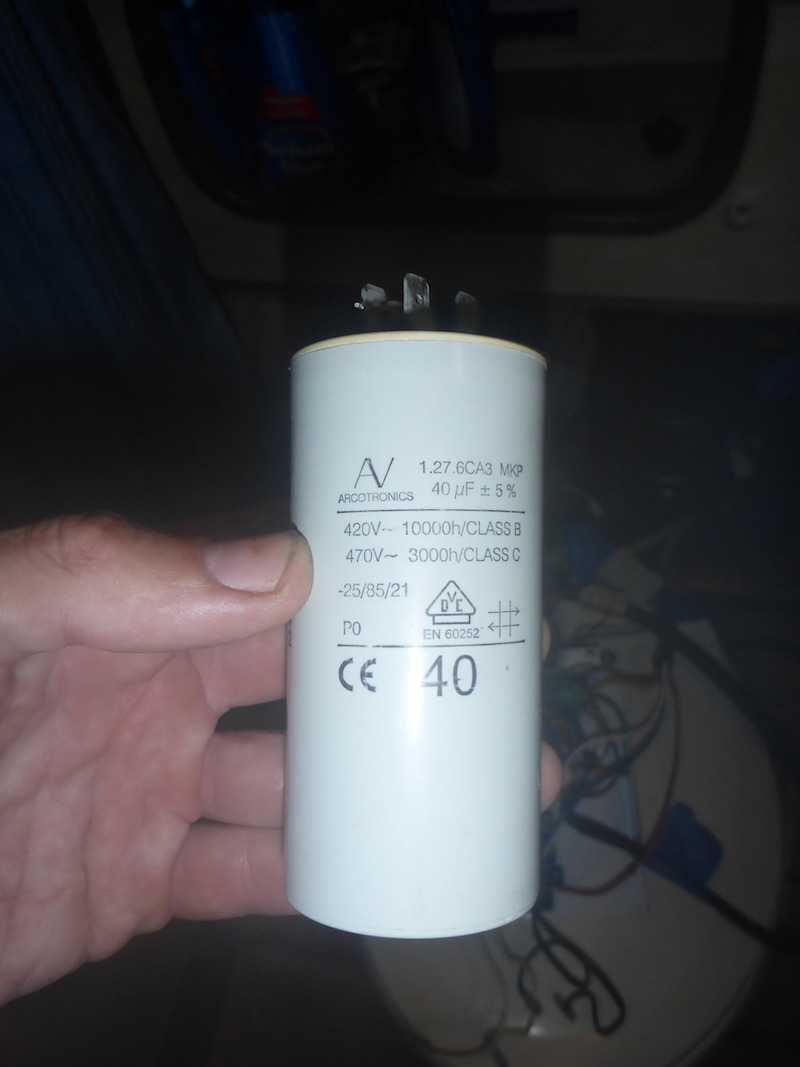

Now the 40 Microfarad capacitors
back in place

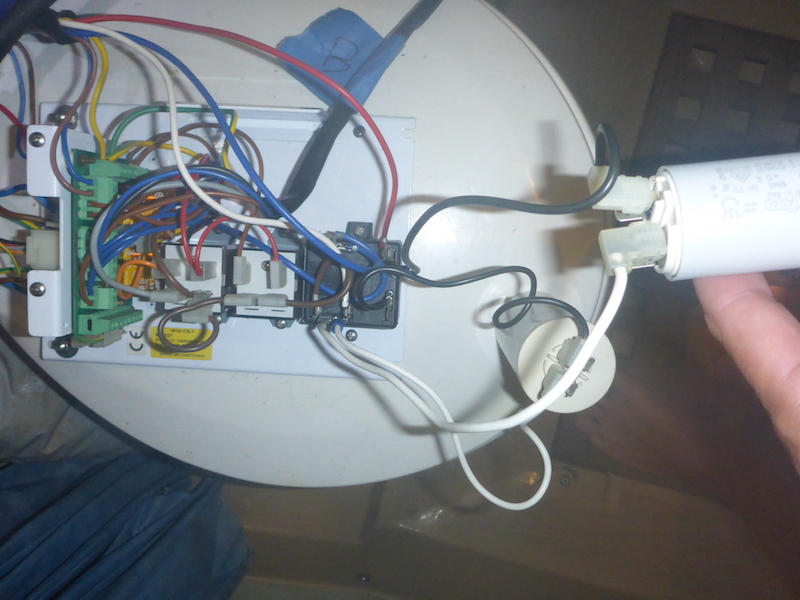

Now the 10 Microfarad capacitors
back in place

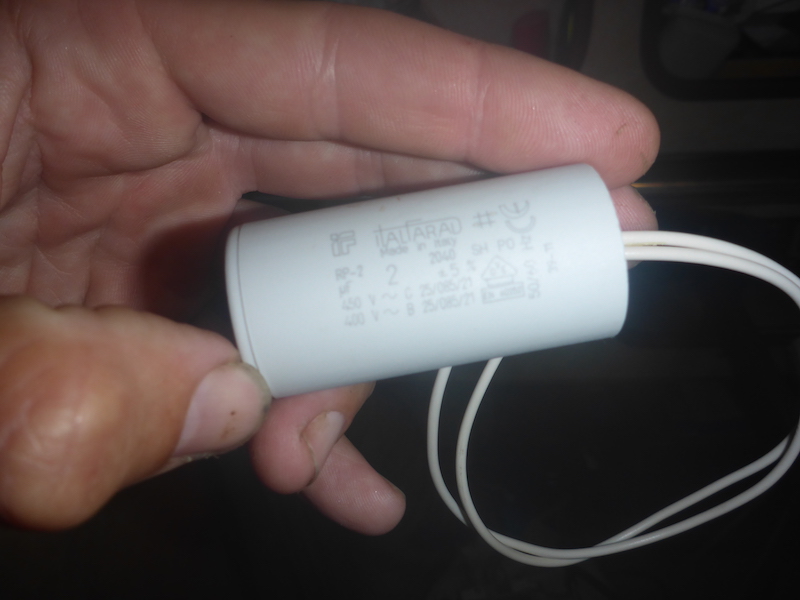

Now the 2 Microfarad capacitors (starting with the bottom as it is easier to go up)

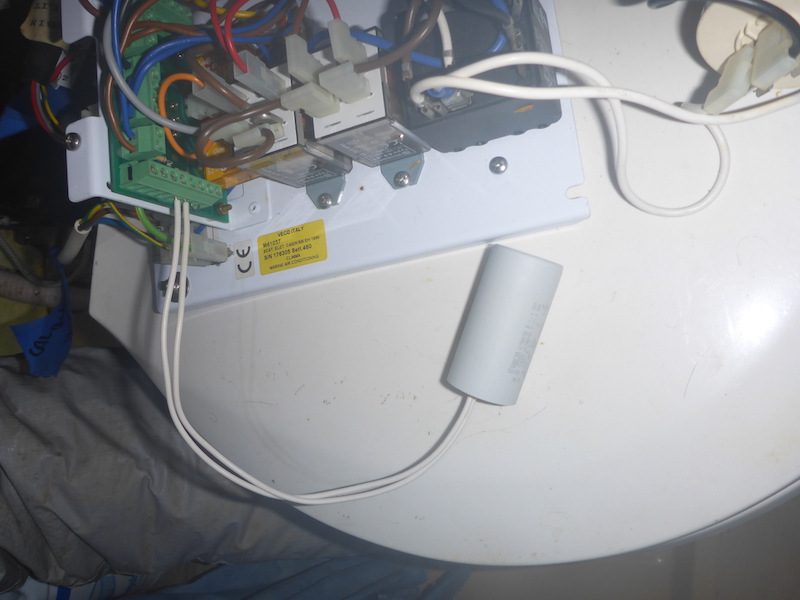

In place

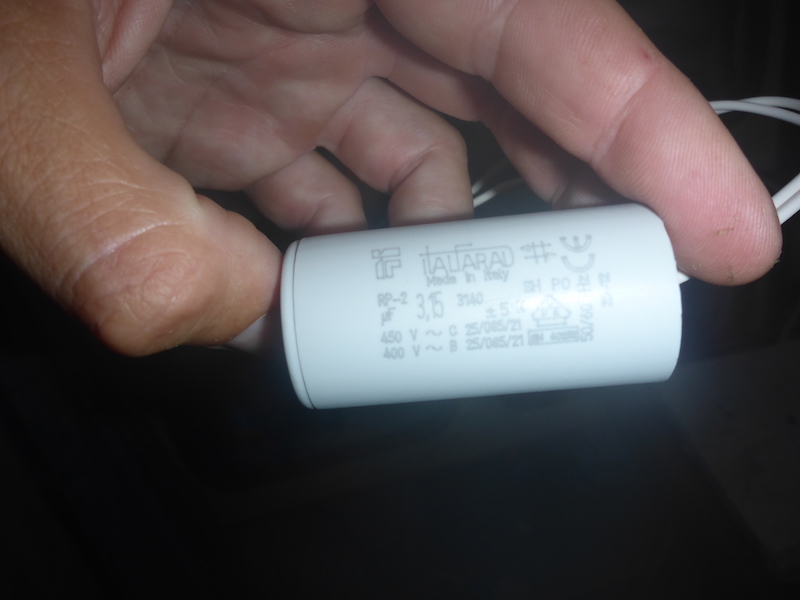

Now the 3.15 Microfarad capacitors
In place

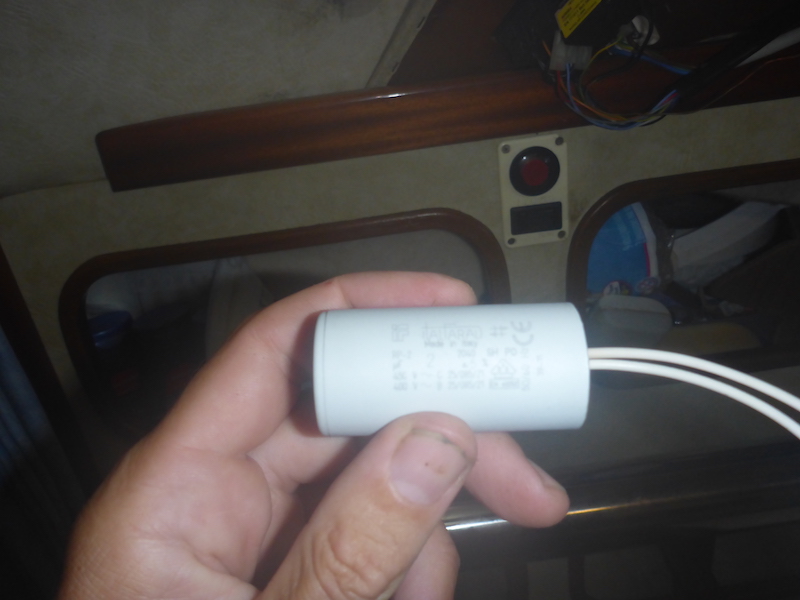

Now the second 2 Microfarad capacitors at the top

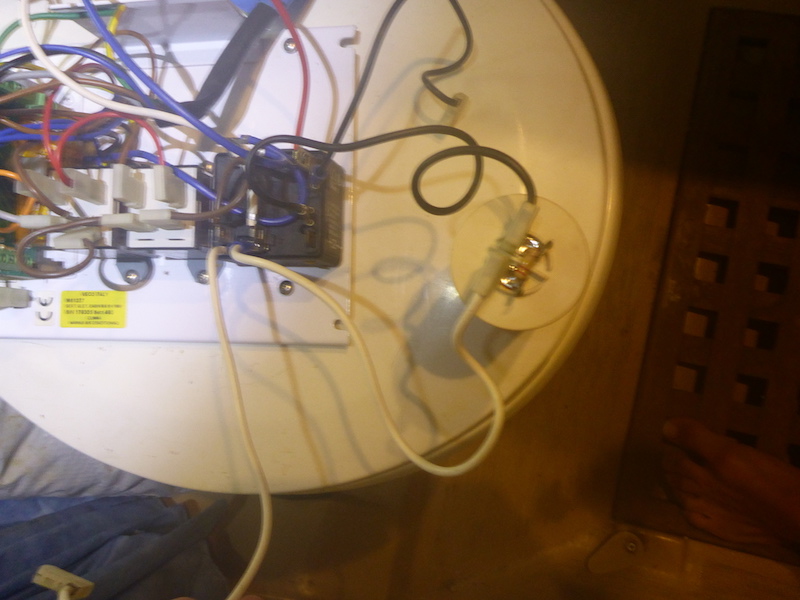

All back in place
Next: Part 27
|
