Amel Super Maramu 2000

Air Conditioning Climma Marine Compact 9

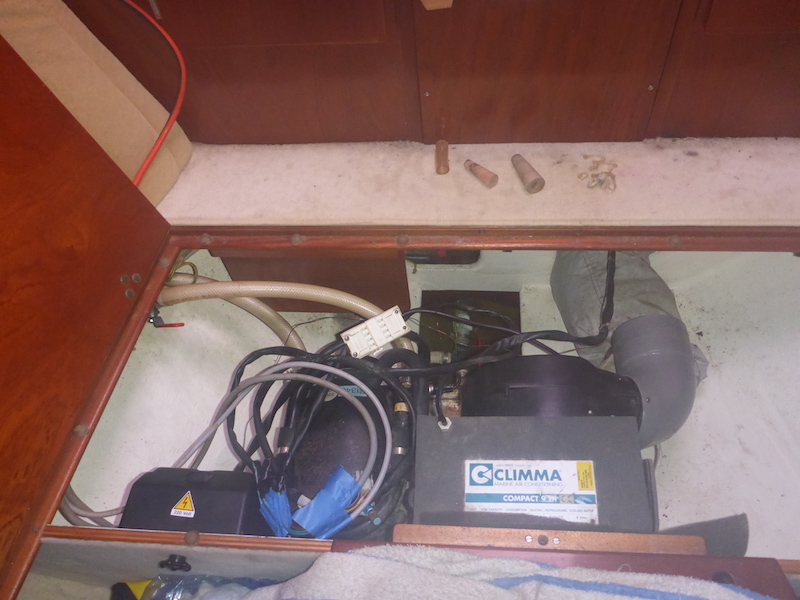

Quick reconnection of the harnesses, Capacitors of the forward Climma Marine Compact 9

As detailed for the other unit, put back the fan harness

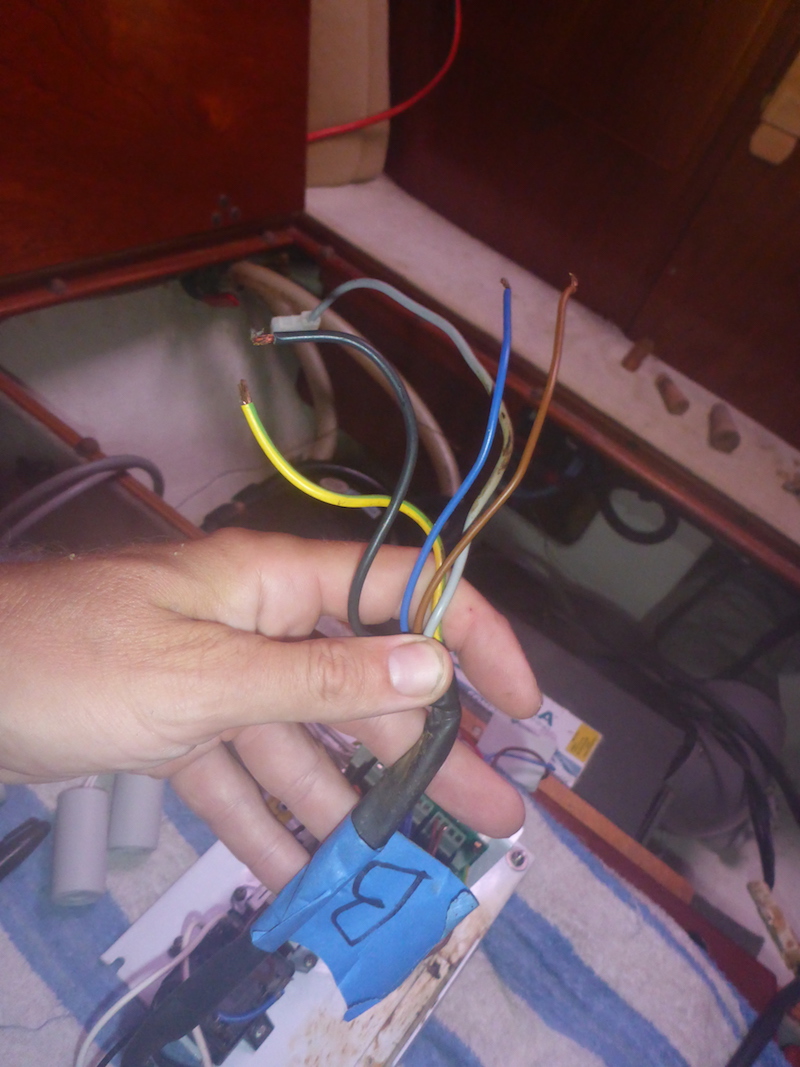

Here is a picture of my notes for Harness "B" going to fan

Now in place

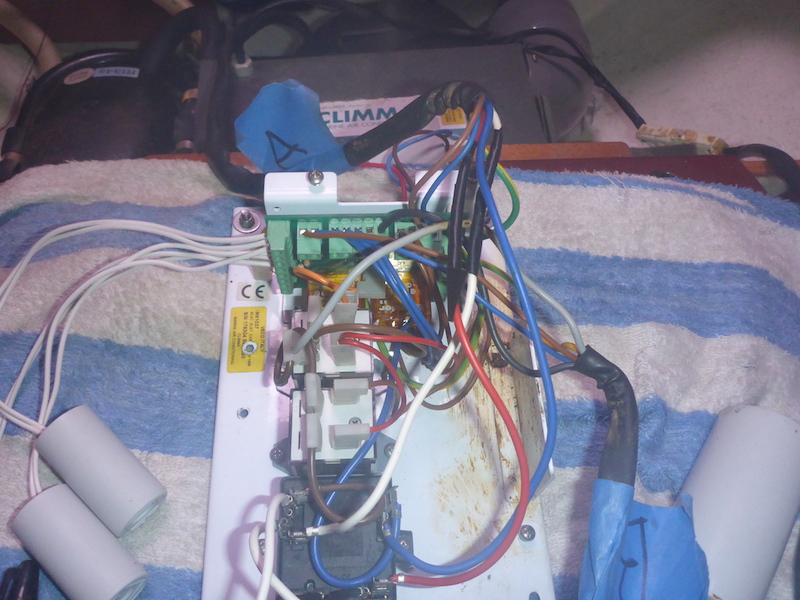

Now the compressor harness

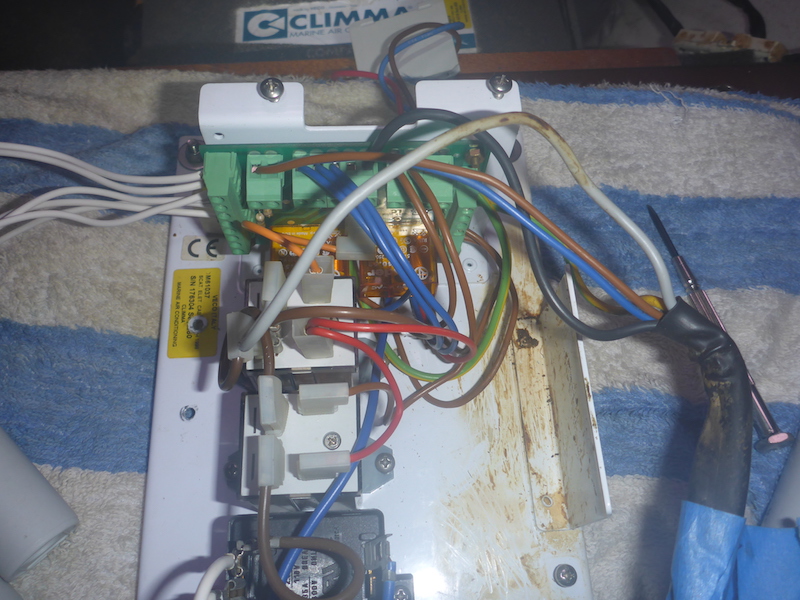

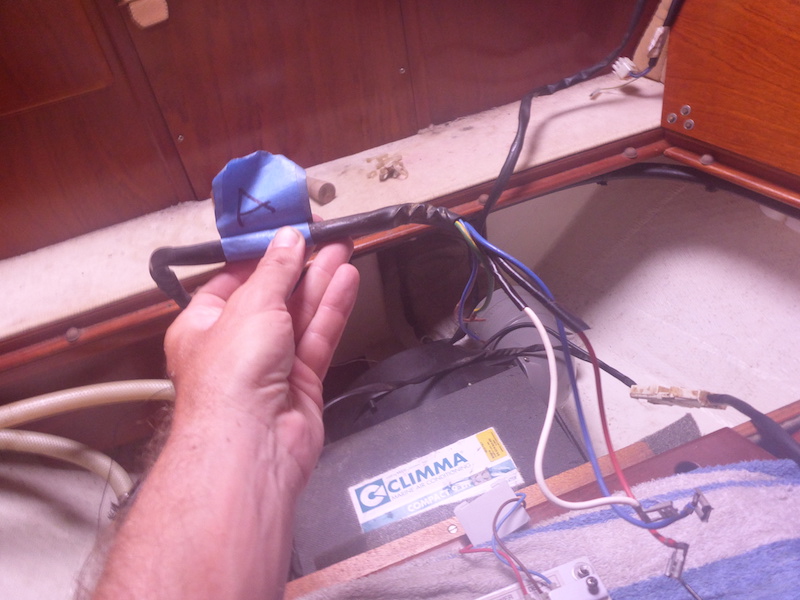

Here is a picture of my notes for harness "A" going to Compressor

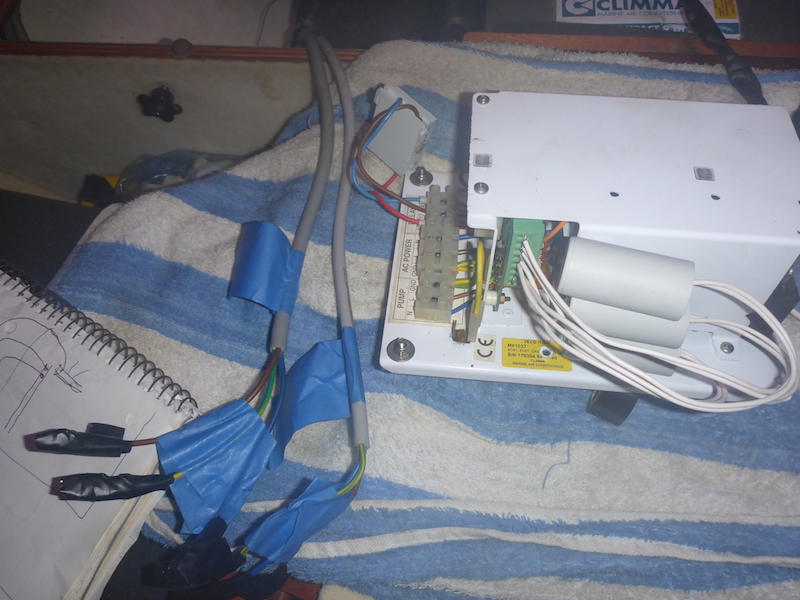

Now in place as well as the 3 capacitors on the side

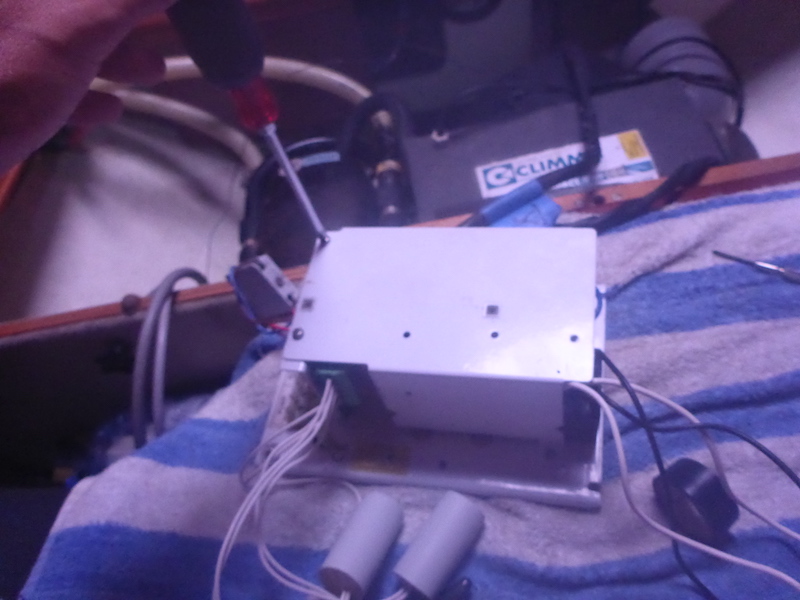

Put the 2 larger capacitors and close the cover

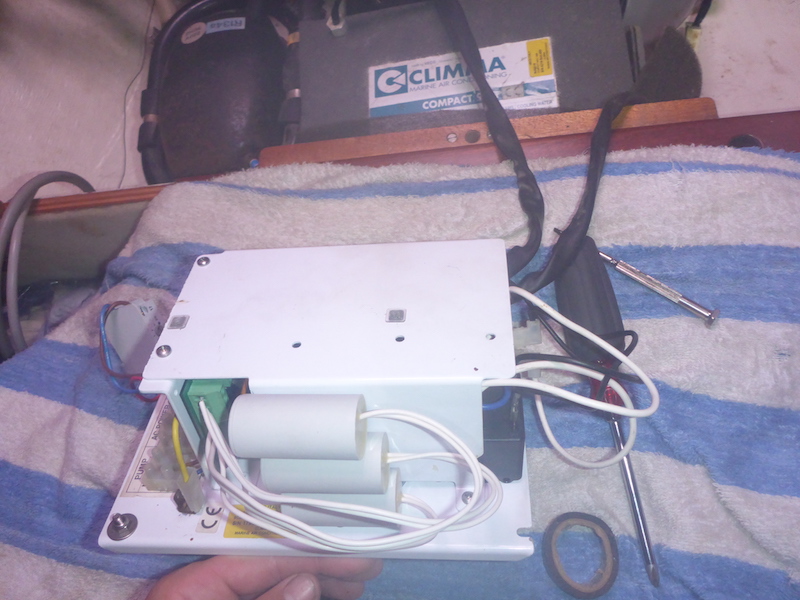

Position the capacitors

Position the wires

Since this unit is NOT working and to avoid any risk to trip the main breaker should the Diruptor of the 220 Volt panel be activated for this unit
I will not reconnect the AC (Alternative Current) wires and make sure they are well cover and away from each other.
Same for the calpeda pump, which I believe has current coming to these wires.

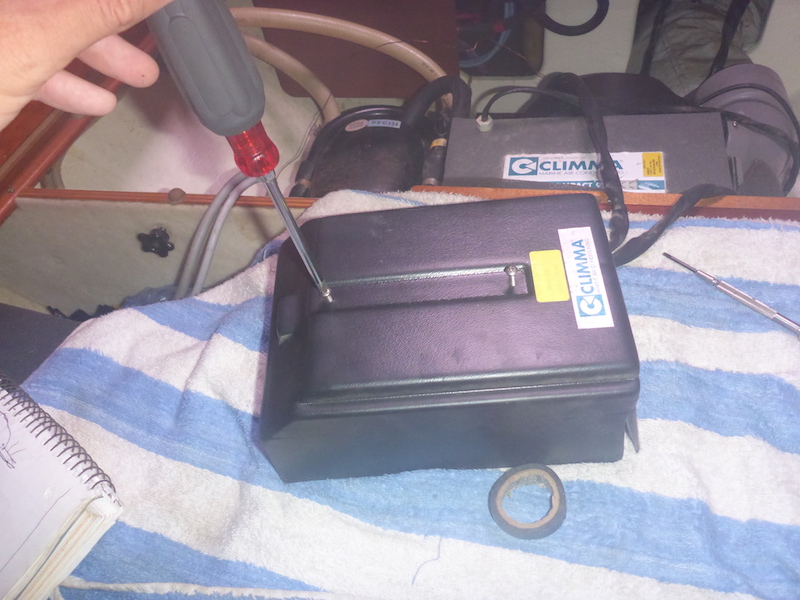

Put back the cover

Bolt in back (we previously exchange the brackets)

Next: Part 33 Testing for leaks
