Amel Super Maramu 2000

Air Conditioning Climma Marine Compact 9

Putting back the thermostat and control box of the Aft cabin Air Conditioning Climma Marine Compact 9

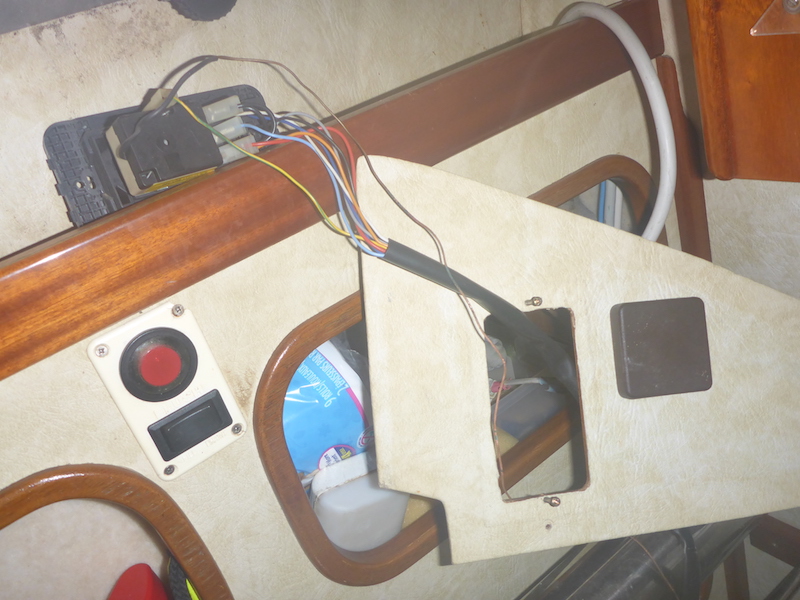

Install the harness for the control

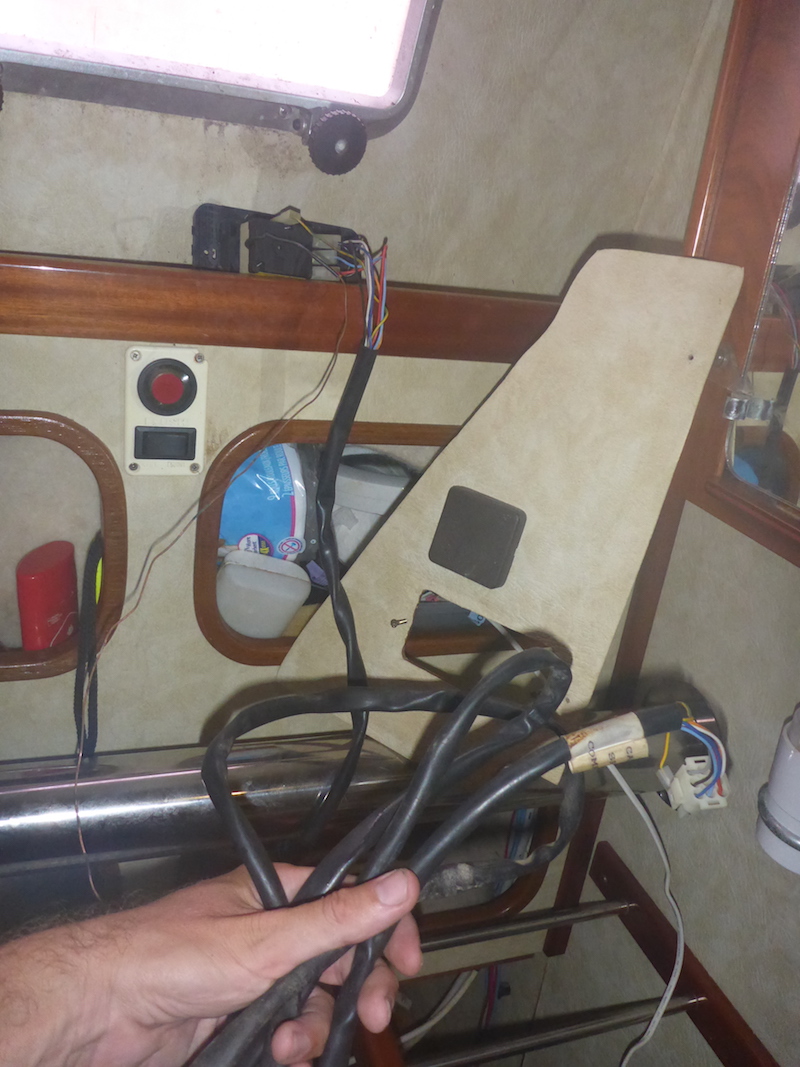

Through the hole

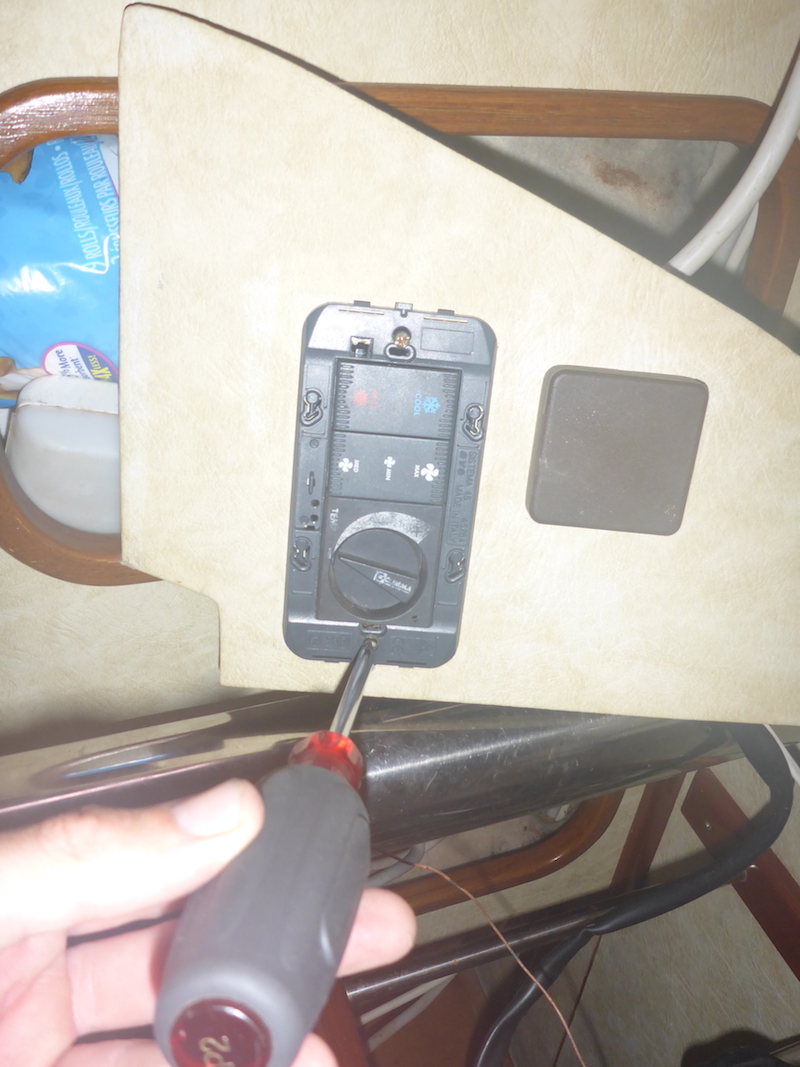

Bolt it in

Put the cover plate

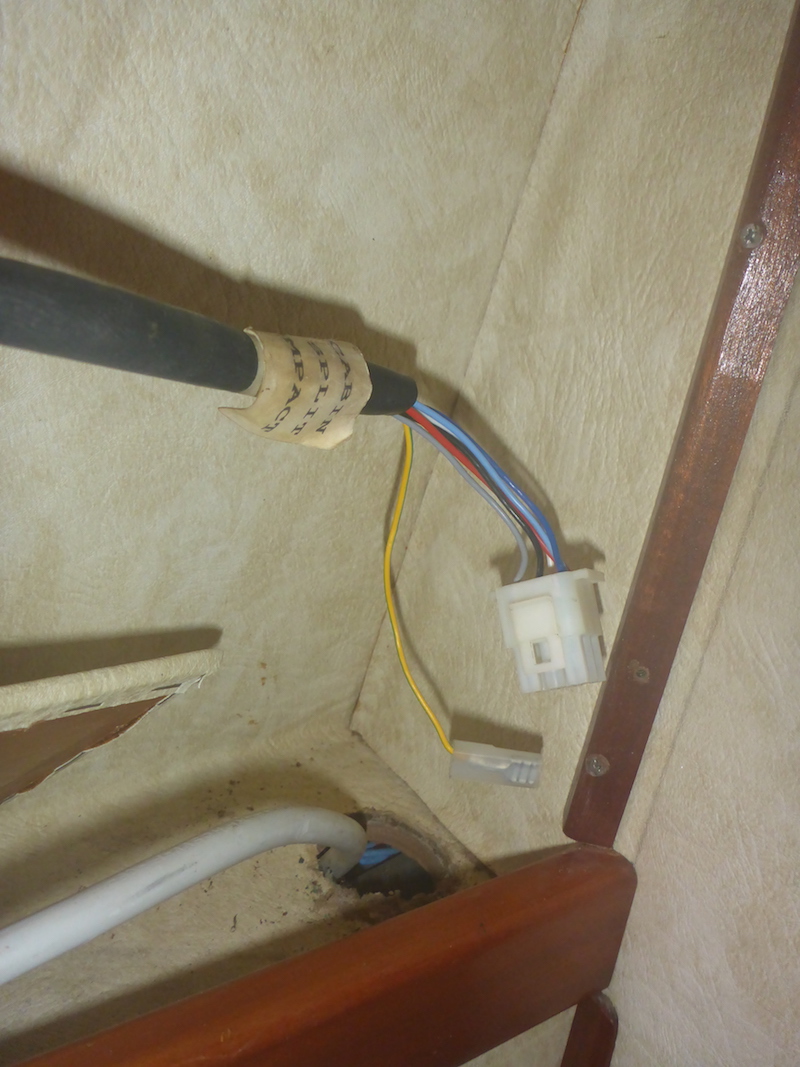

Put the harness through the hole

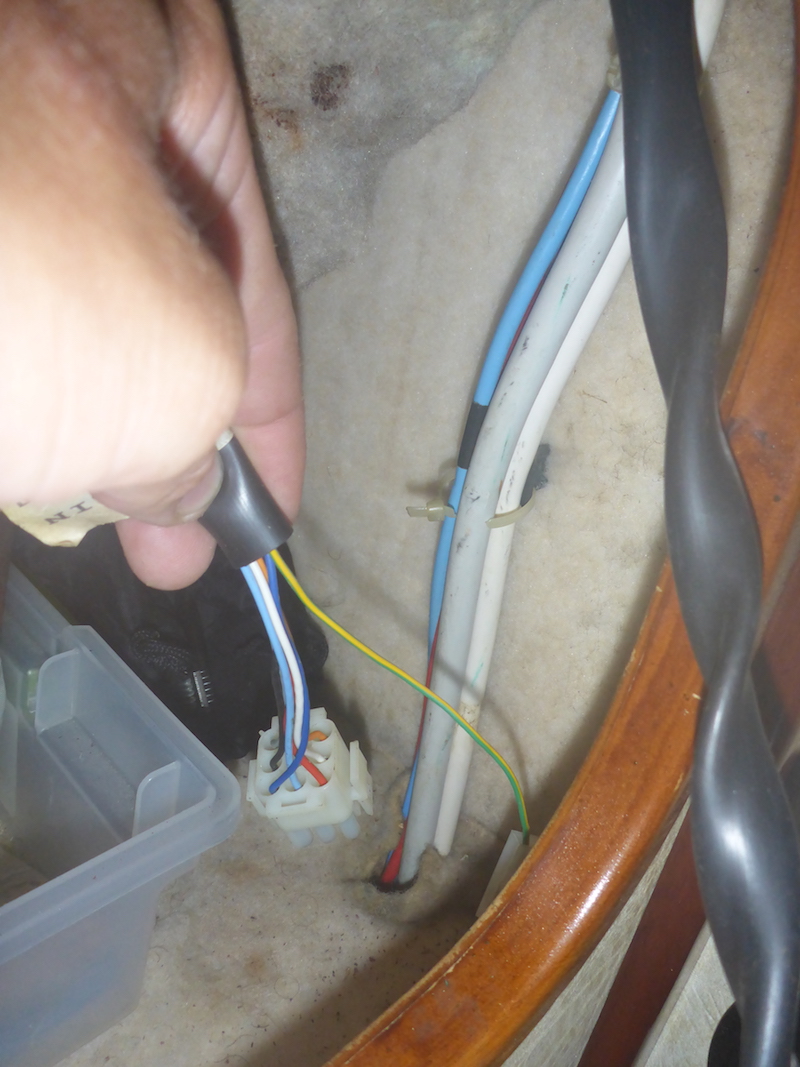

Next level down

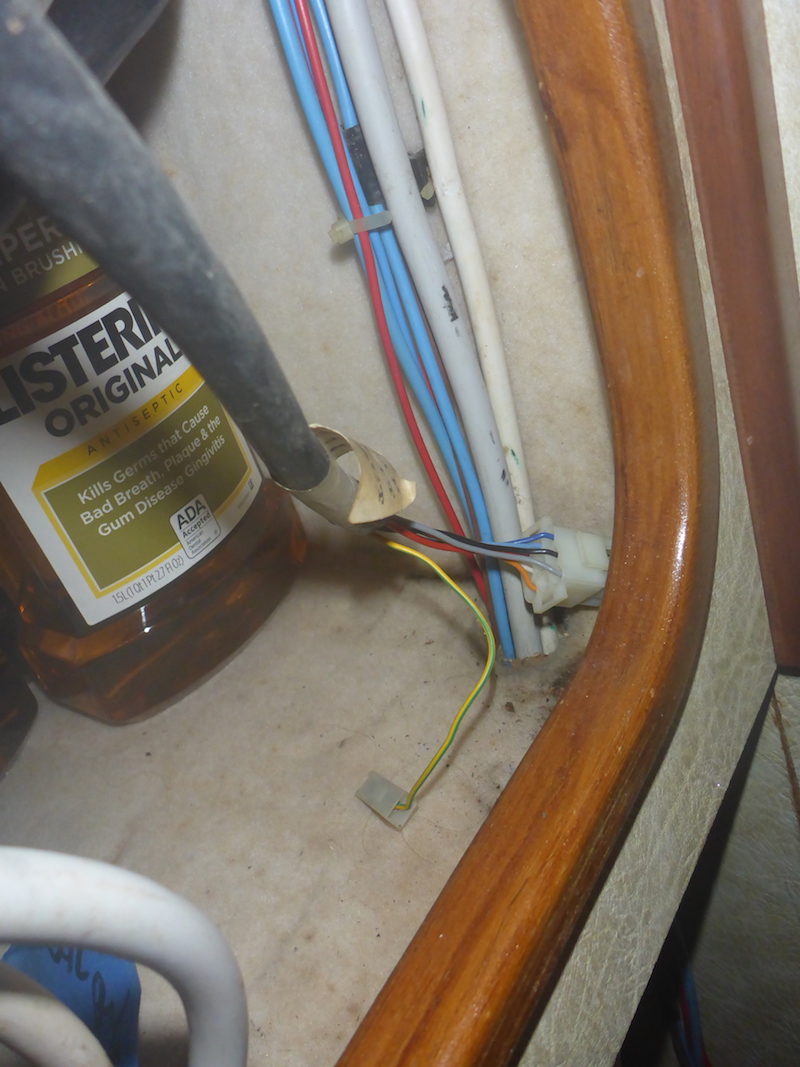

Lower level

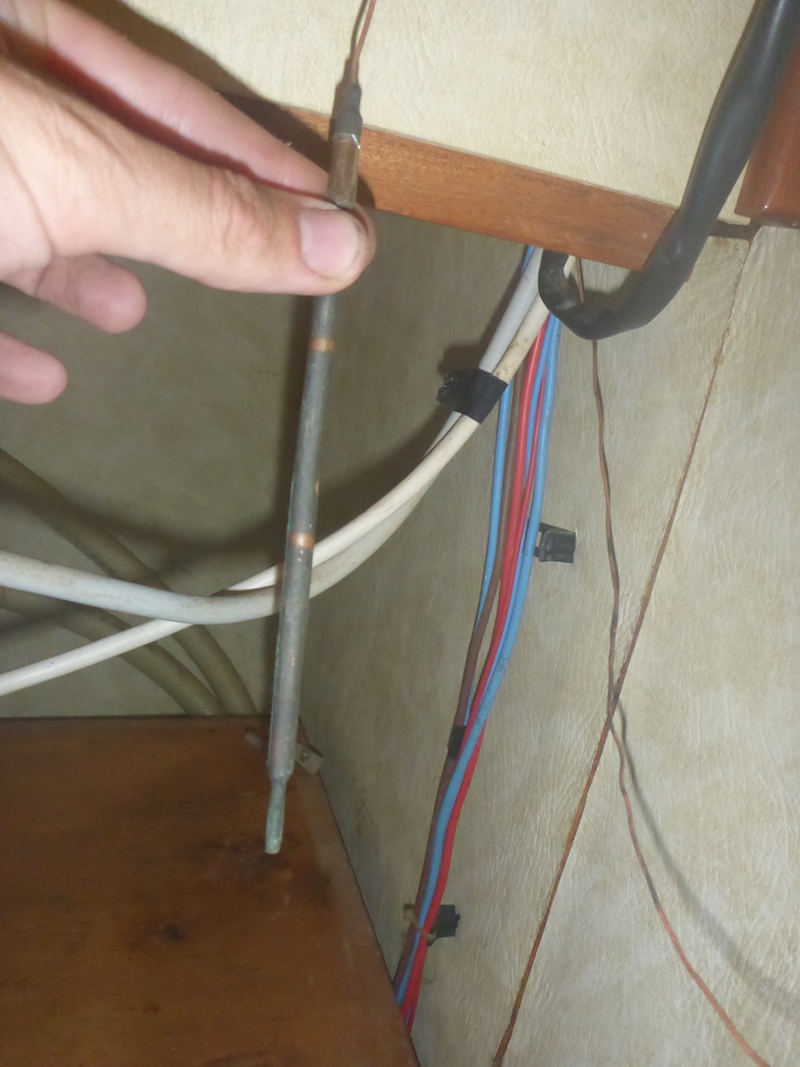

Then put the thermostat

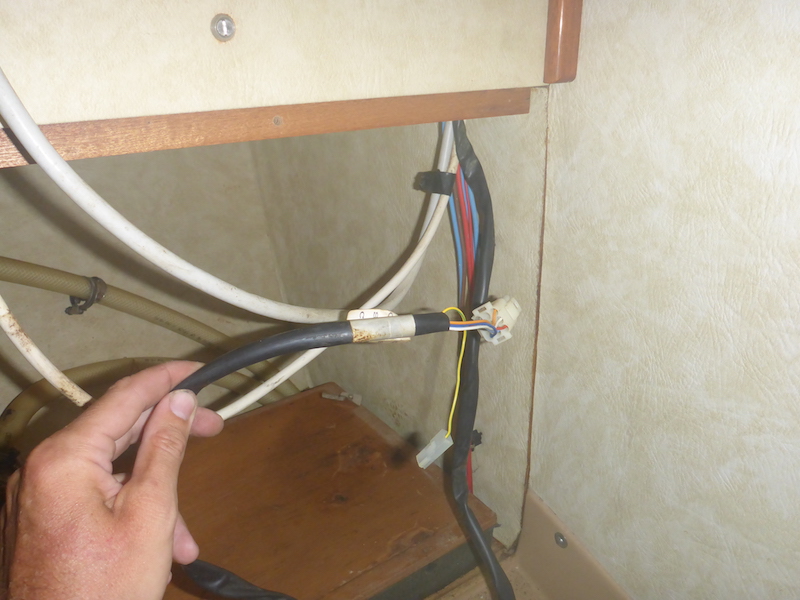

Through all levels

Next: Part 15 Changing the air duct direction (to later realize it will not fit)
