Amel Super Maramu 2000

Air Conditioning Climma Marine Compact 9

Disconnecting the Calpeda pump and control harness of the Aft Climma Marine Compact 9

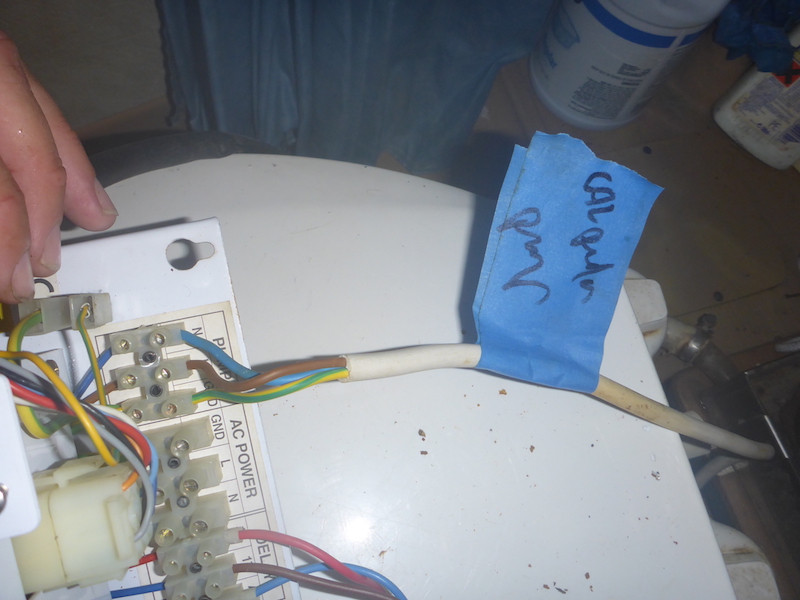

I labeled the wire going to the Calpeda pump then removed them

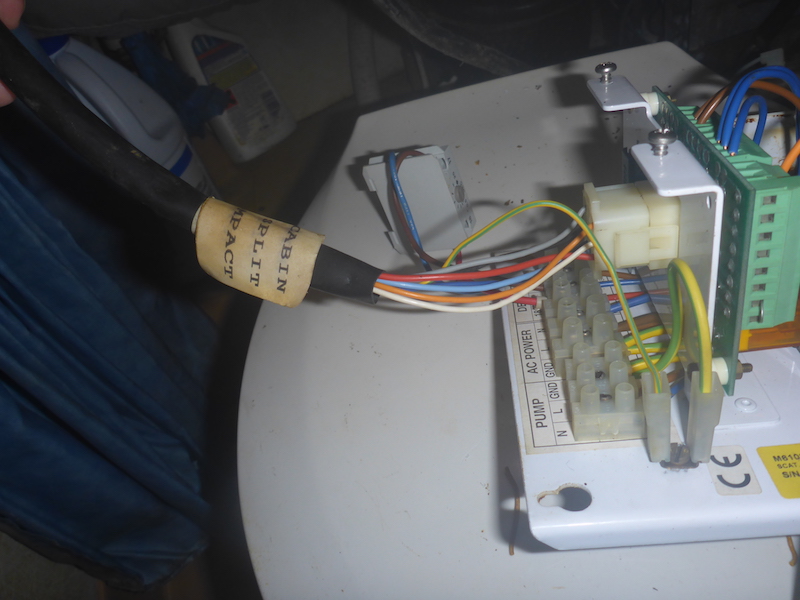

Here is the harness going to the control box

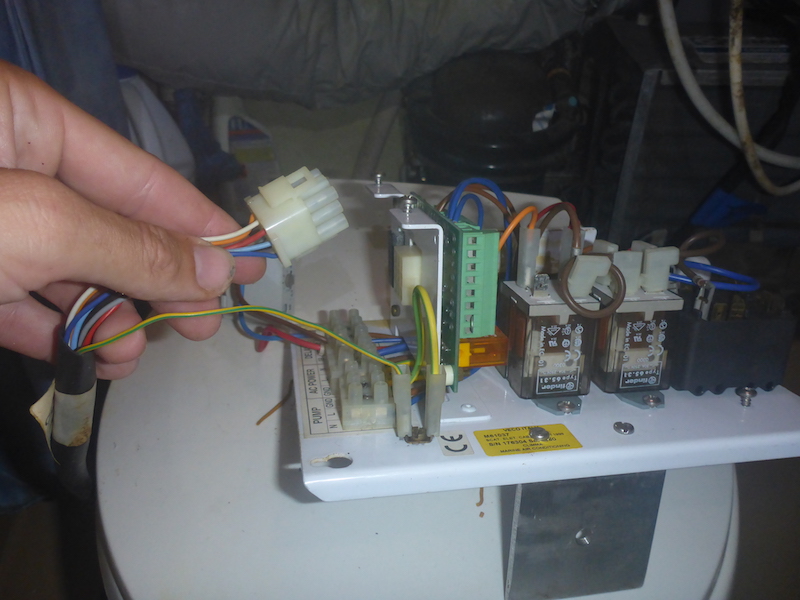

Easy to unplug including the ground

Now the control box is completely disconnected

Next: Part 5 Disconnecting the air duct and cooling hoses
