Amel Super Maramu 2000

Air Conditioning Climma Marine Compact 9

Removing the fan of the forward Climma Marine Compact 9

Go to the other unit and pretty much do the same.
I did it in a difference sequence for variety

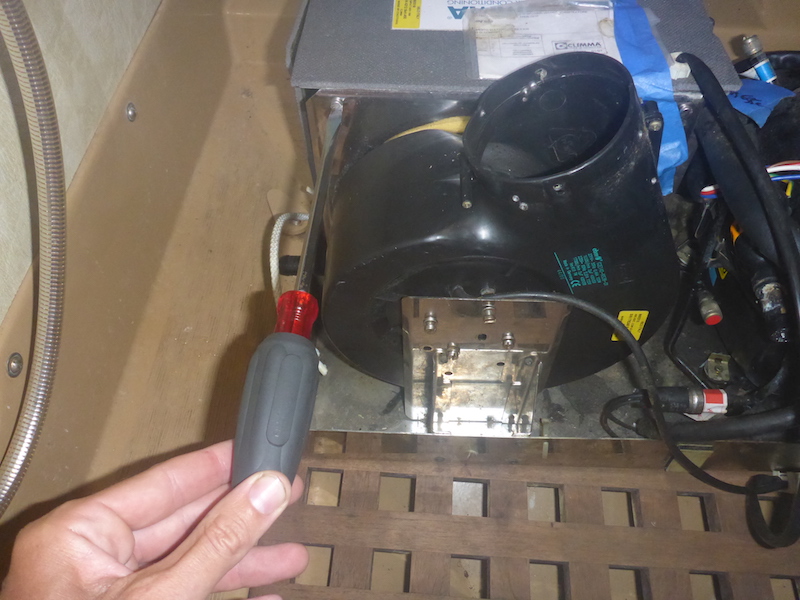

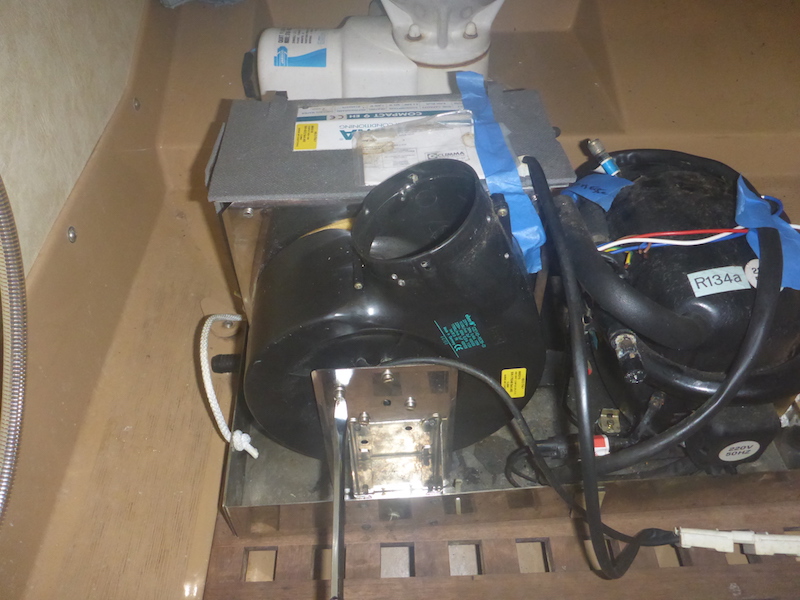

unbolt the bolt holding the plate

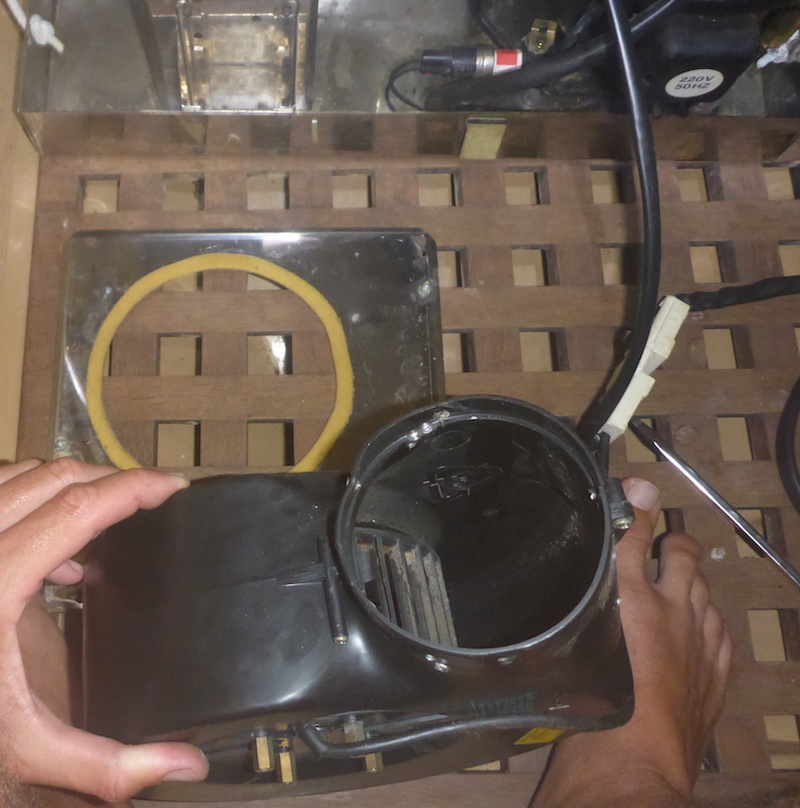

remove the plate and remove the bolt that hold the fan assembly

Another one

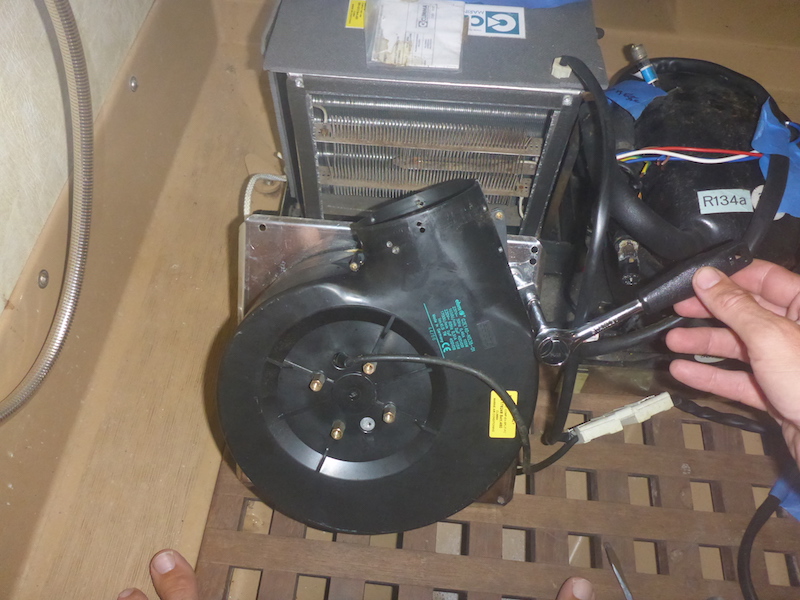

The fan is now removed from the plate

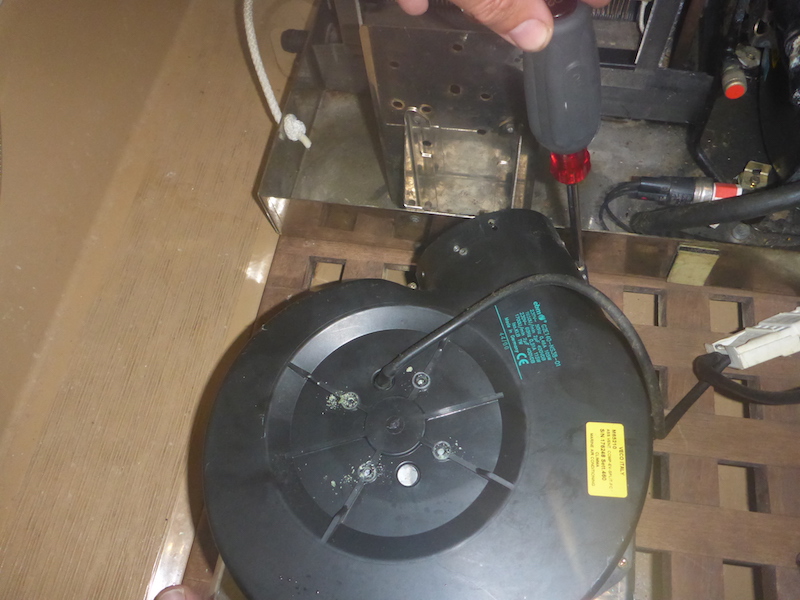

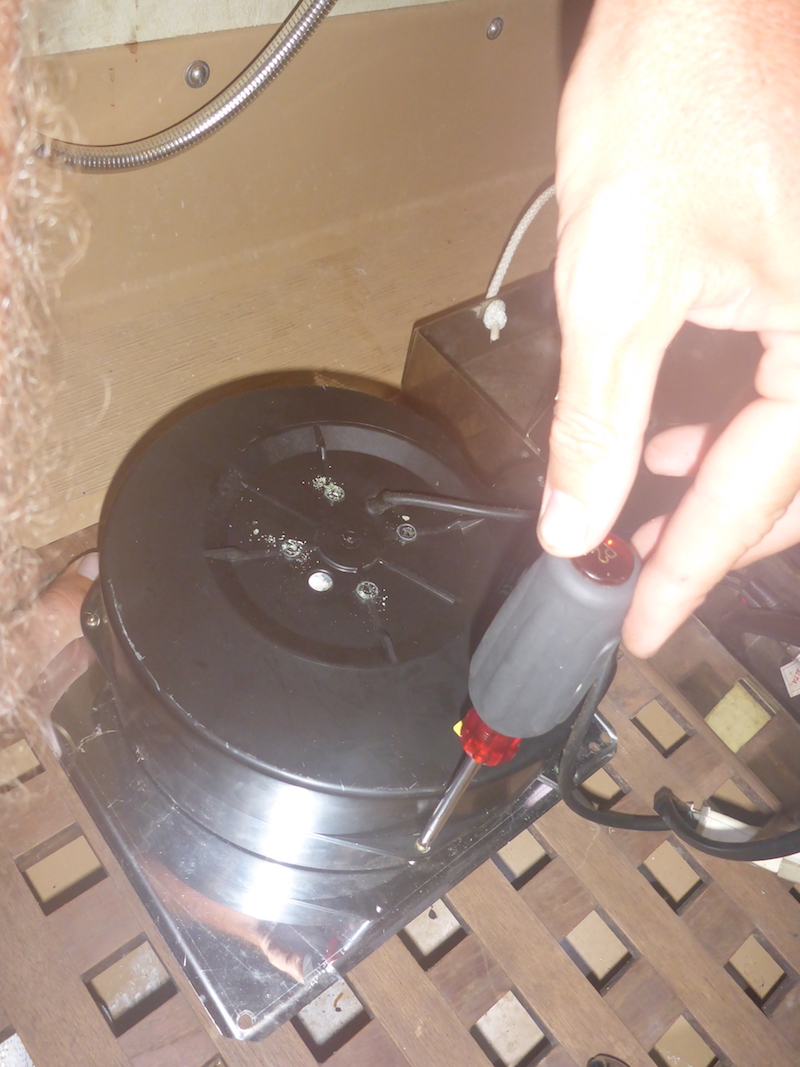

Remove the 4 bolt holding the electric motor to the fan assembly

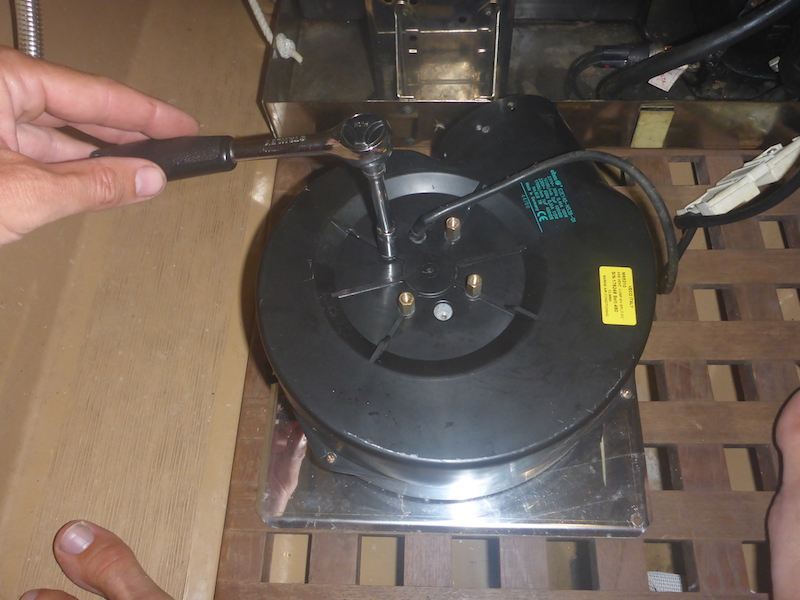

Remove the bolts that hold the 2 half of the fan assembly/casing together

another one

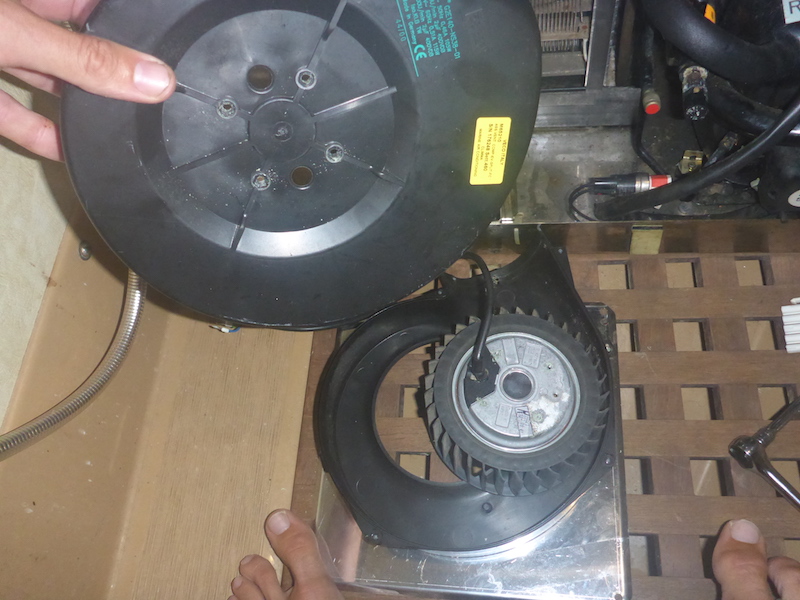

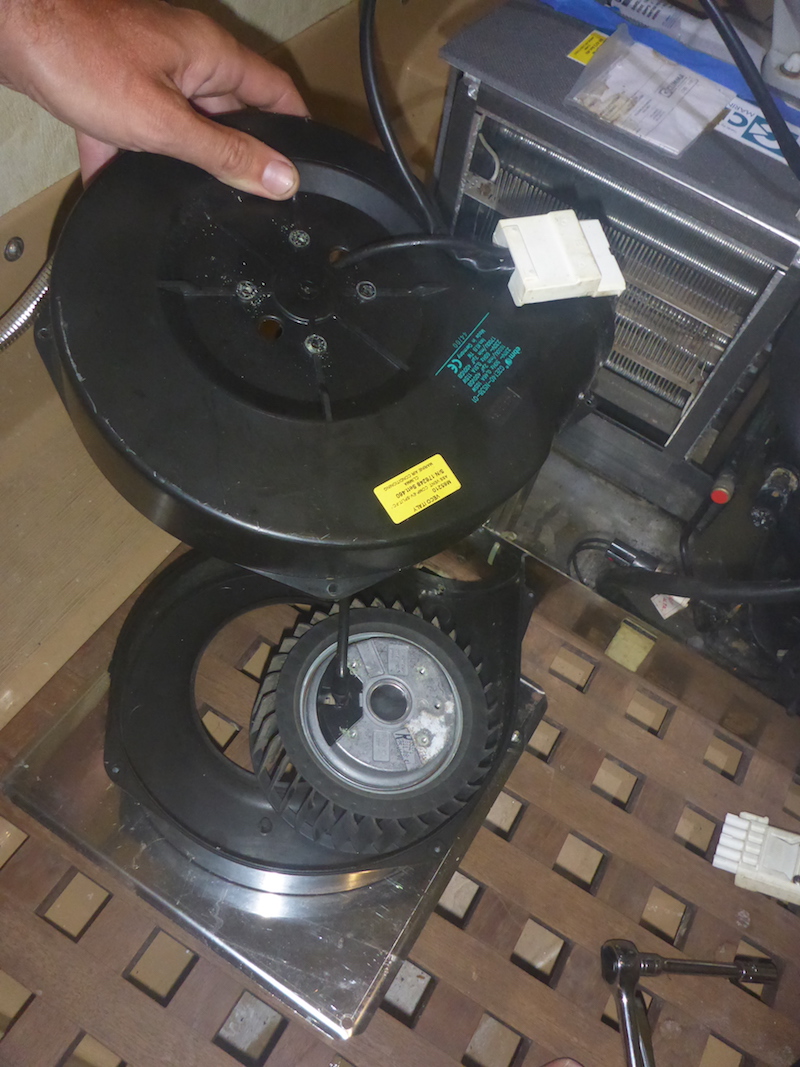

separate the 2 halves

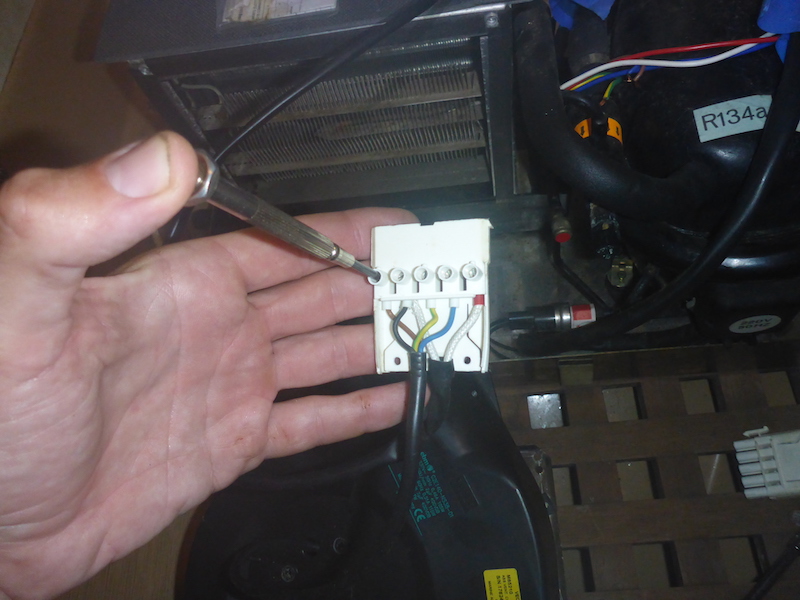

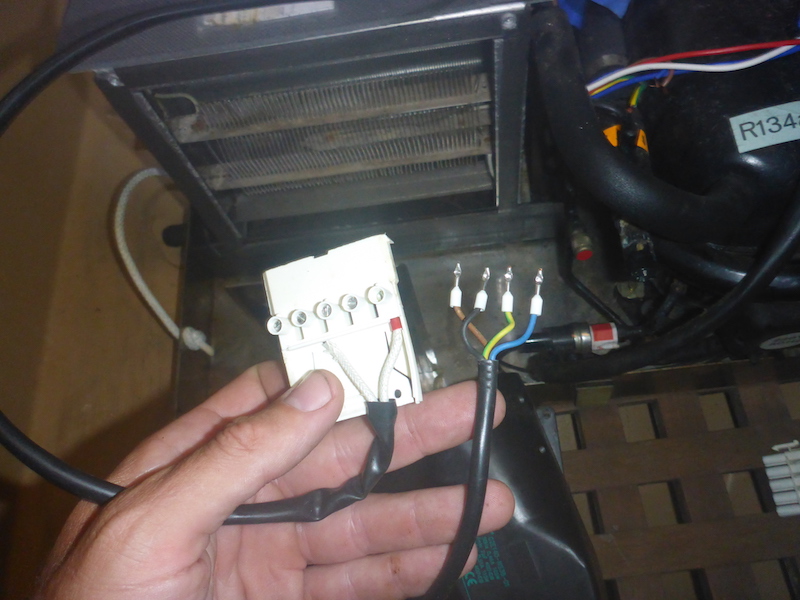

Take note of the wiring

removed the wires

pass through the hole

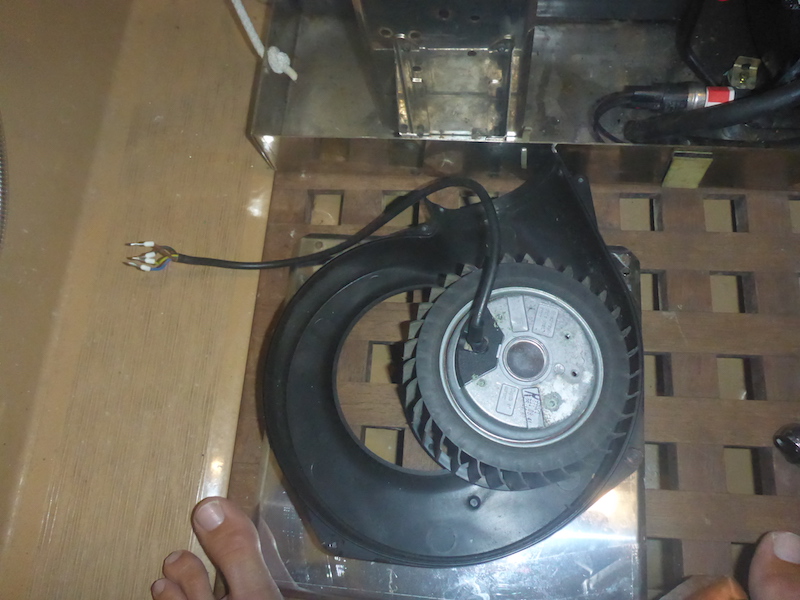

now by itself
