Amel Super Maramu 2000

Air Conditioning Climma Marine Compact 9

Removing the thermostats and brackets holding the forward cabin Air Conditioning Climma Marine Compact 9

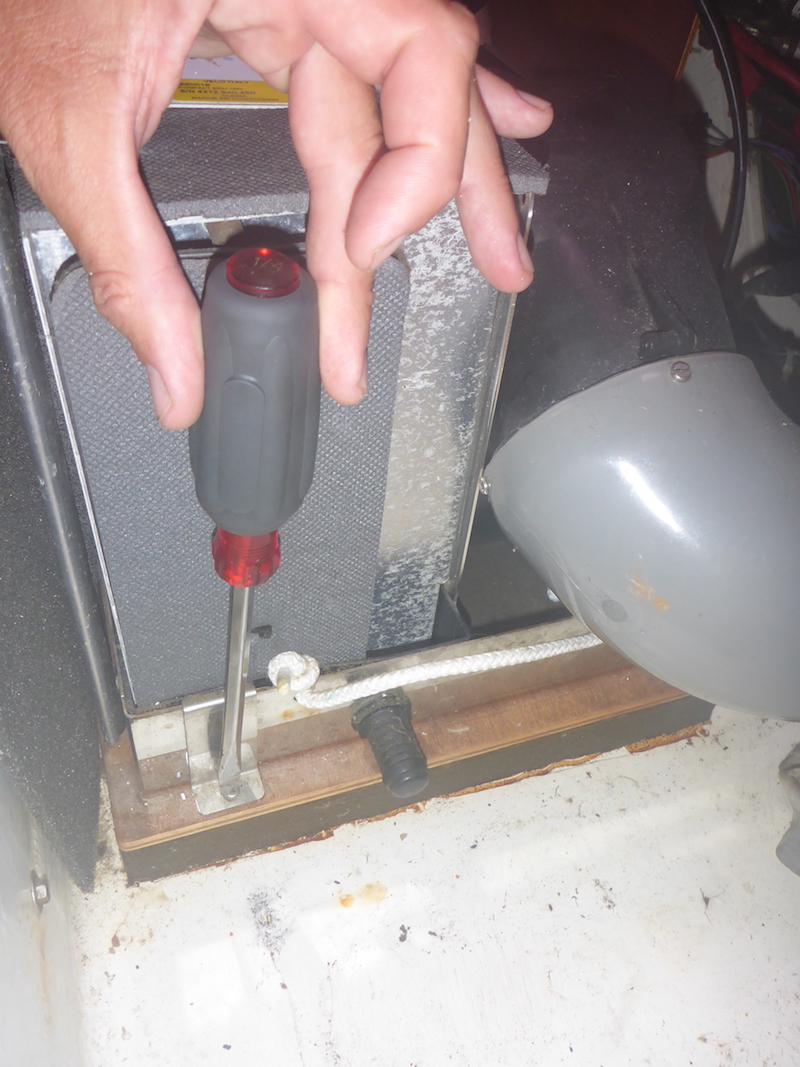

Removing the 4 attach point that hold the unit in place

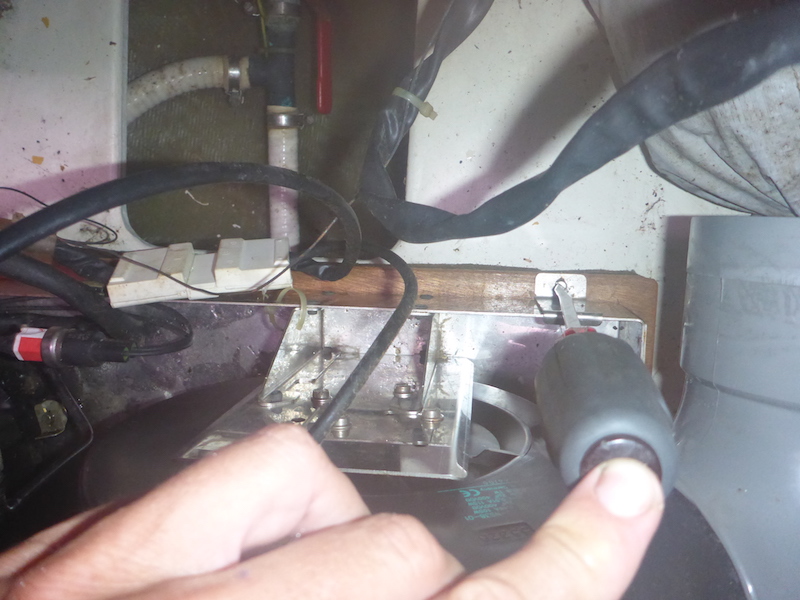

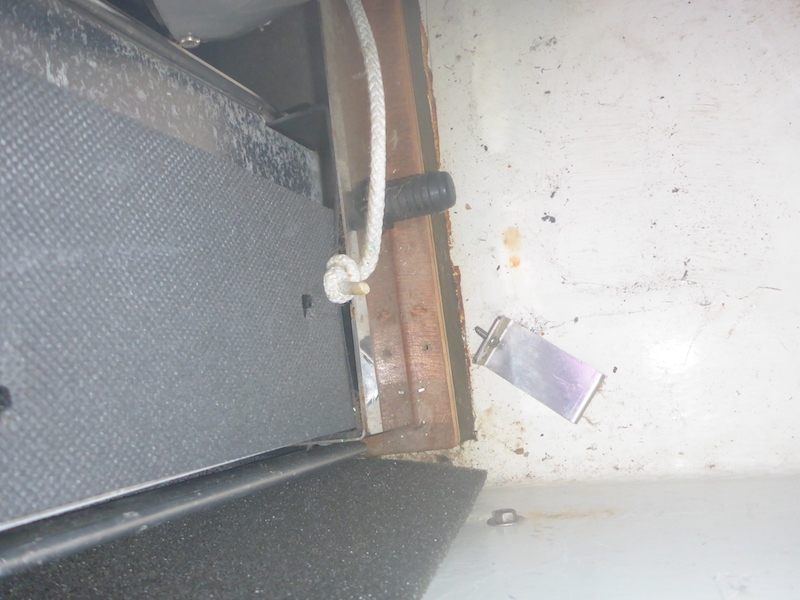

Clip out

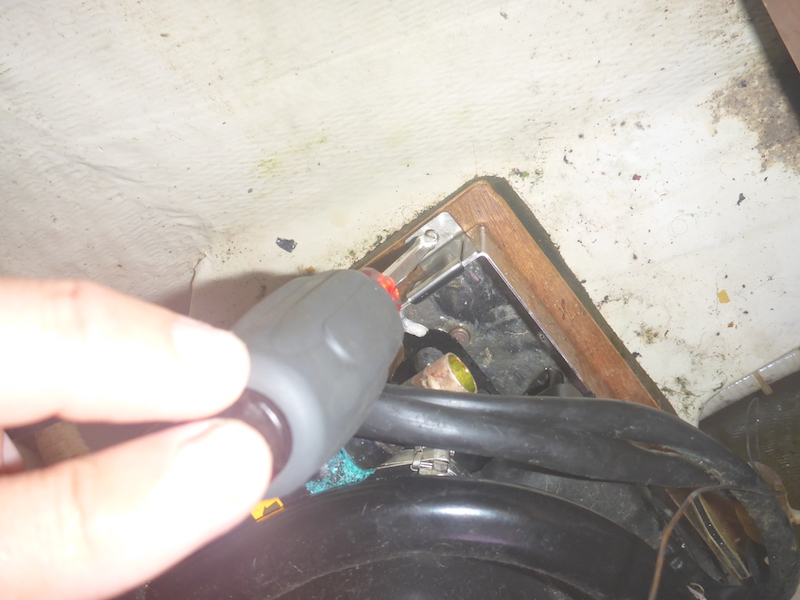

2nd one

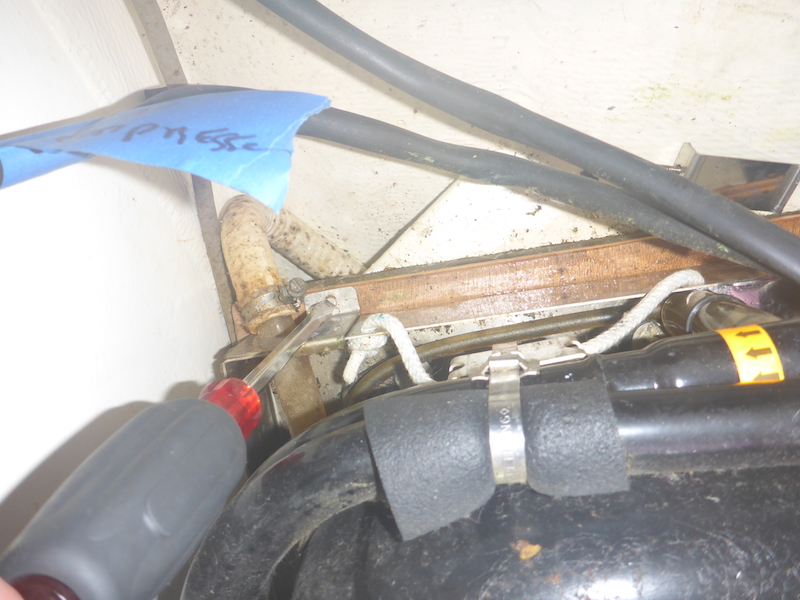

3rd one

4th and last one

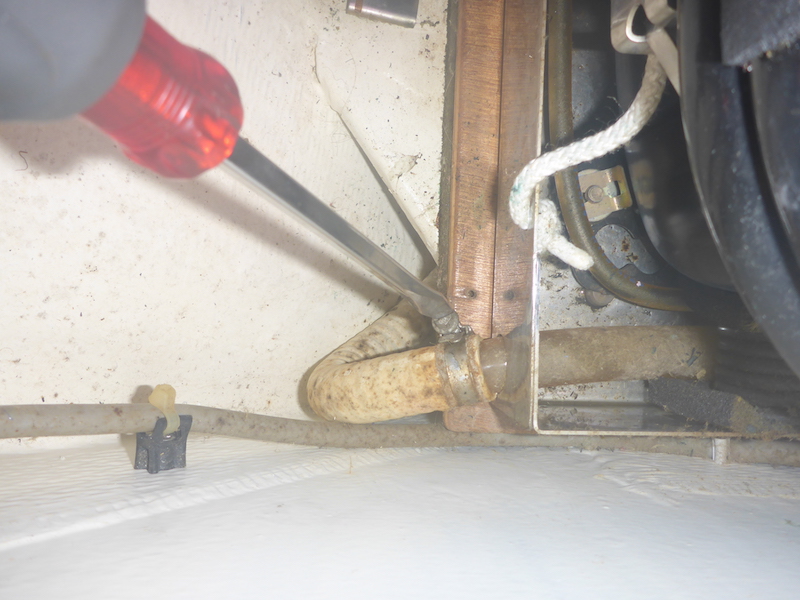

Then removing the hose for the condensation - more difficult than it sounds

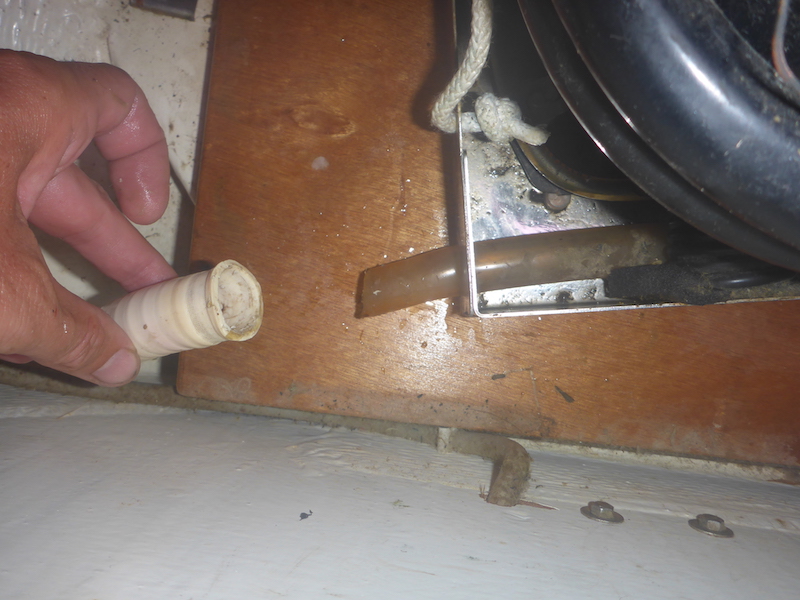

Hose is off

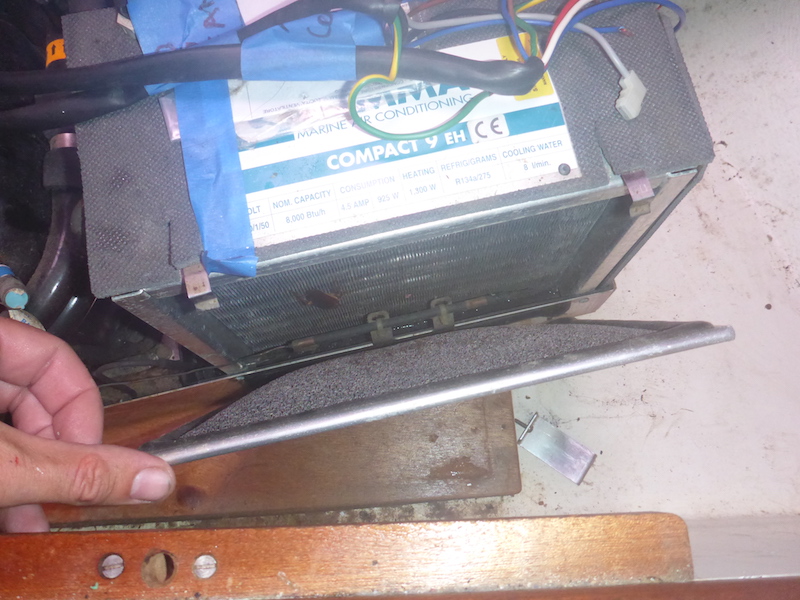

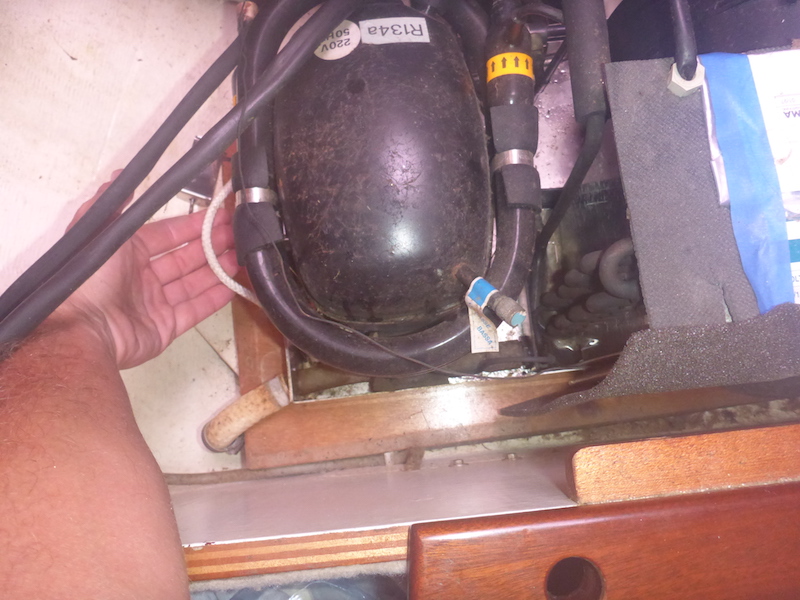

Now using the handle you can more the unit

let's not forget the thermotat

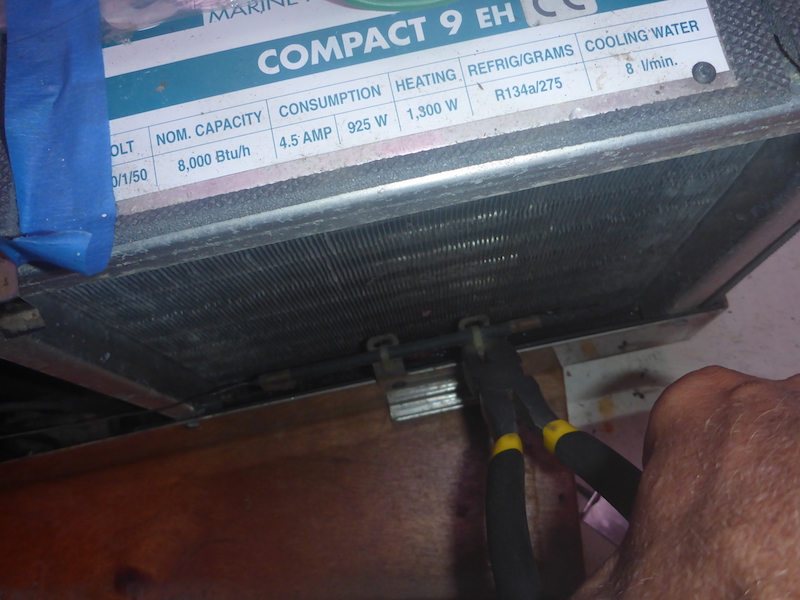

Cutting the little zip tide that hold the thermostat

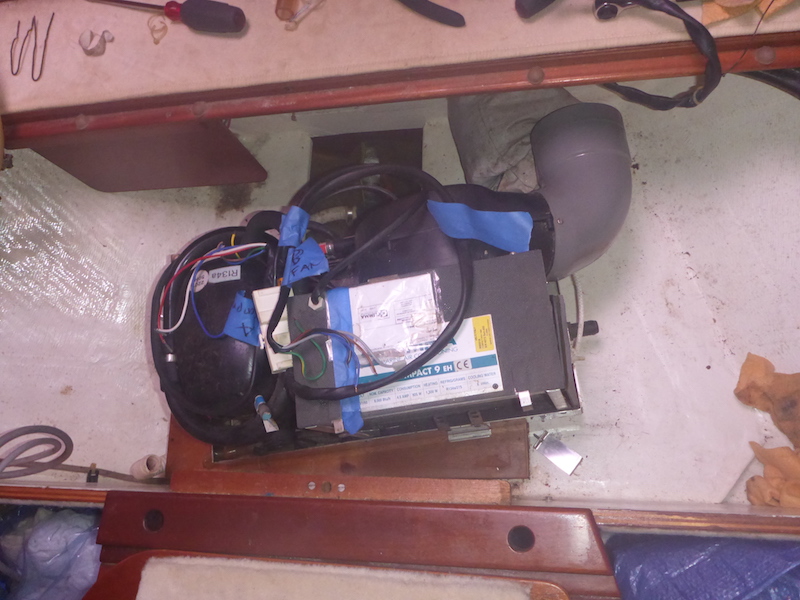

The unit can now be lifted

Next: Part 14 Putting back the thermostat and control box
