Lofrans Tigres Windlass Overhaul Part 30: 12 Pictures from 267 to 278 Reassembly of the drum, emergency wheel clutch plate and manual emergency wheel

Pictures 267 to 278 are similar to the link below but some pictures are clearer

Reassembly of the drum, emergency wheel clutch plate and manual emergency wheel

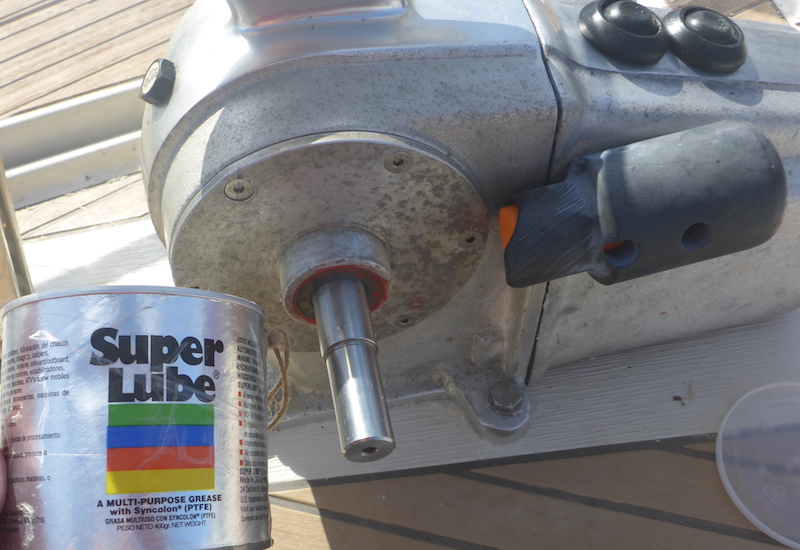

Picture 267
James from Maramu #220 SV Sueno suggests to use the white lithiums because they tend to stain the deck and sails less.
The best white lithium James came across for this application (and winches/turnbuckles as well) is the Vari-prop grease

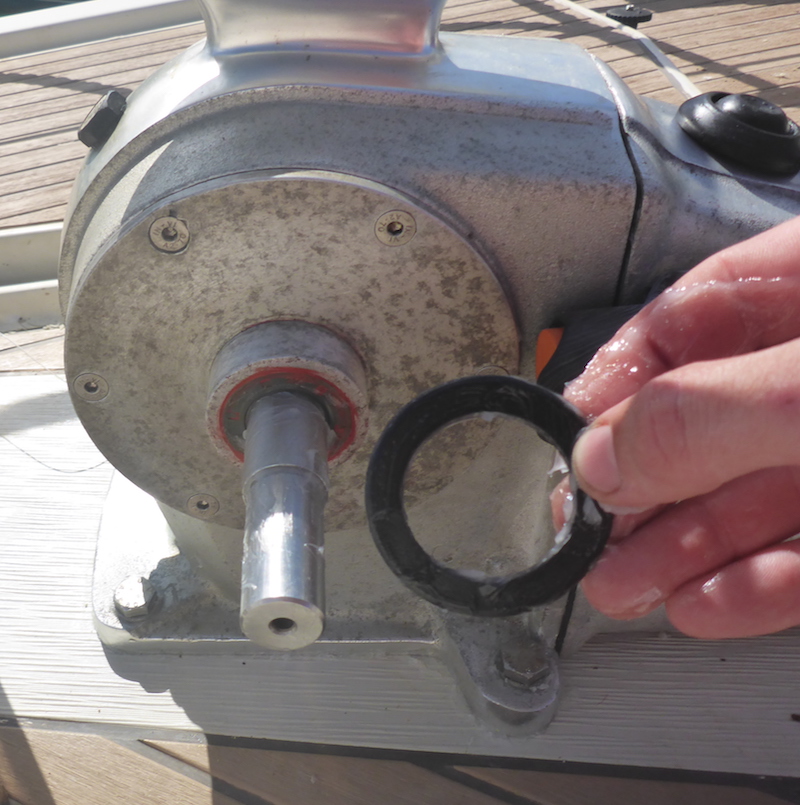

Picture 268
Grease and put the plastic washer (Part 339)

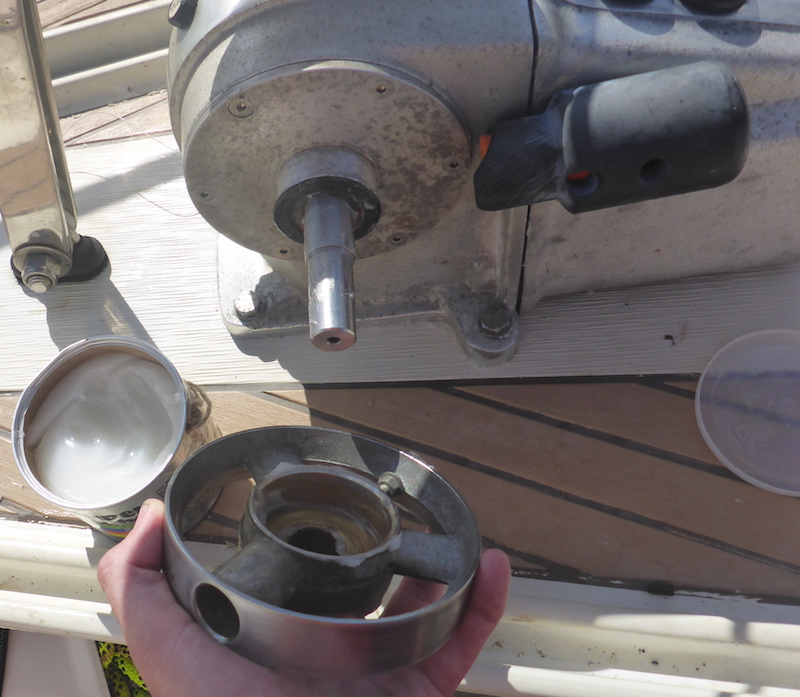

Picture 269
Grease and put the manual emergency wheel (part 340)

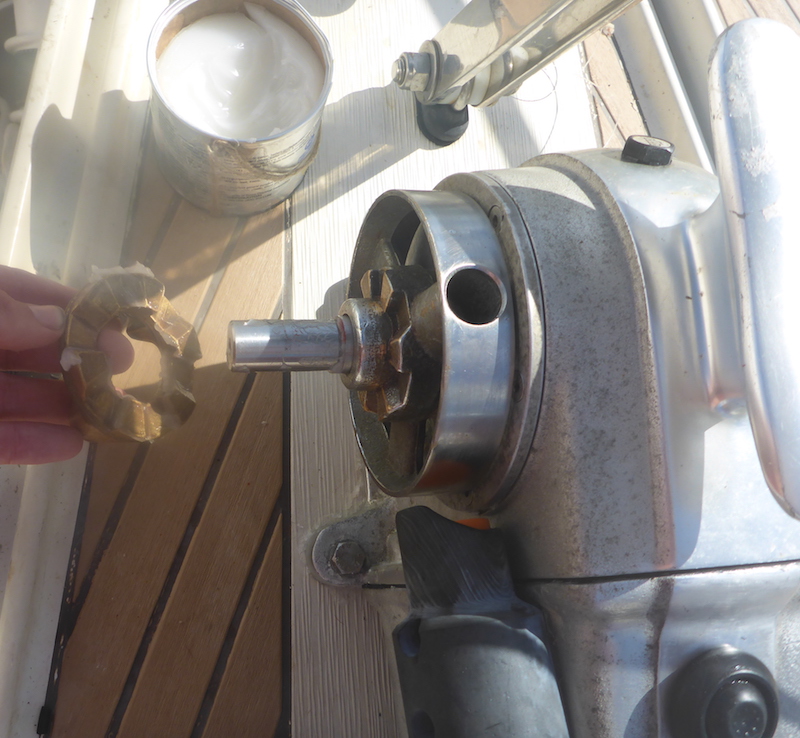

Picture 270
grease and put back the Dog Clutch (Part 341) and its 2 springs (Part 342)

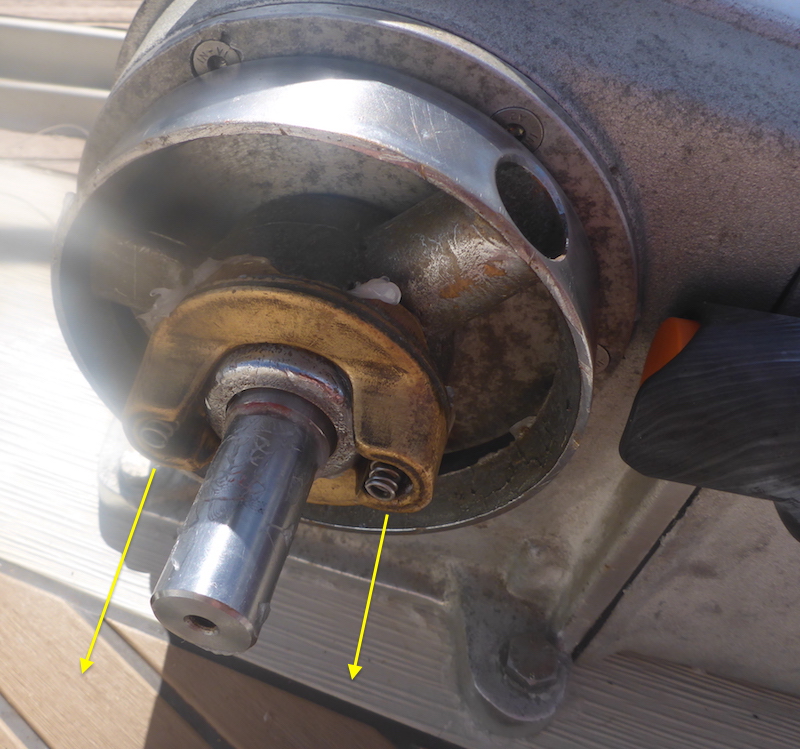

Picture 271
Now we can see the 2 springs (Part 342)
Note these 2 springs need to be against these 2 parts of the Drum (Part 343) (Yellow Arrows)

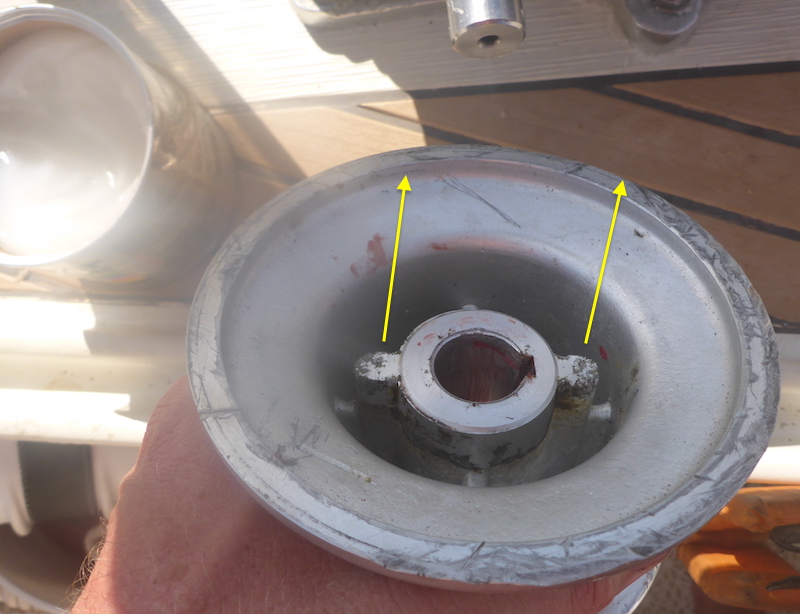

Picture 272
Where the 2 spring will rest on the Drum (Part 343)

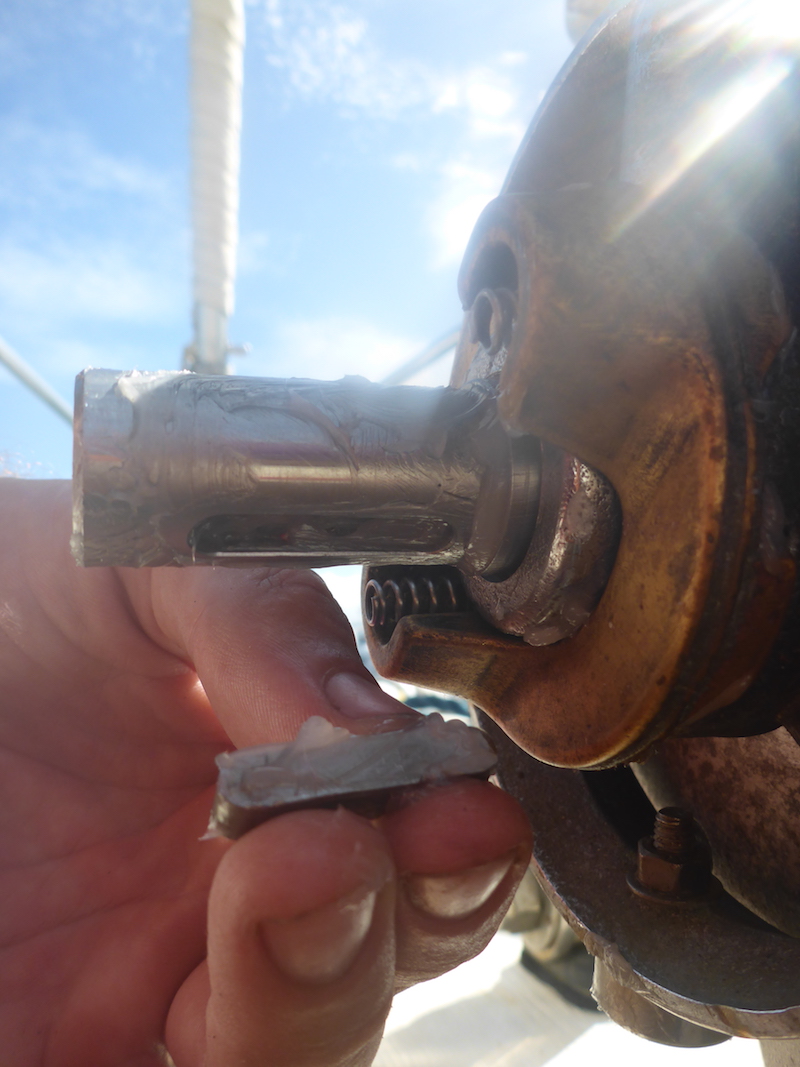

Picture 273
Greasing and adding the Key 6x6x30 (Part 209) on the shaft
note: last time did a better planning having the shaft in a position where the key space was up

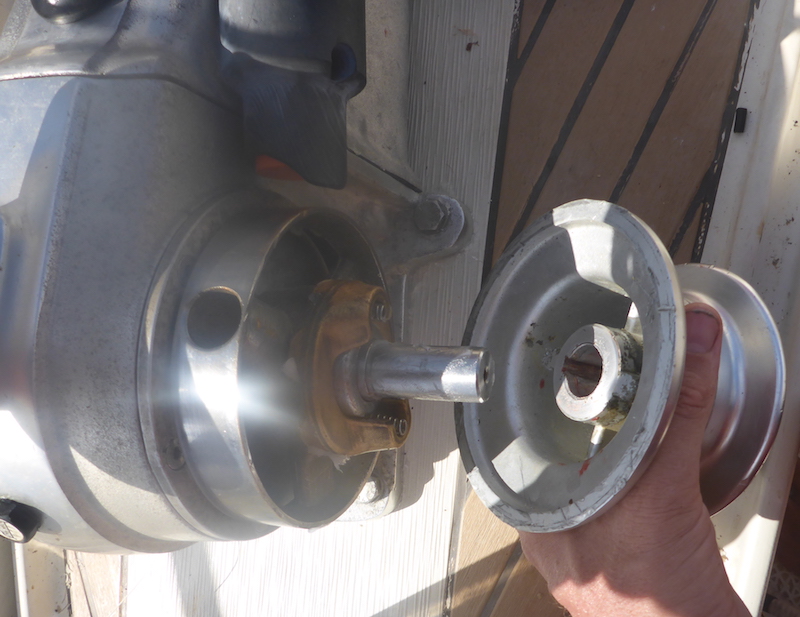

Picture 274
Grease and slide the Drum (Part 343) over the Key 6x6x30 (Part 209)

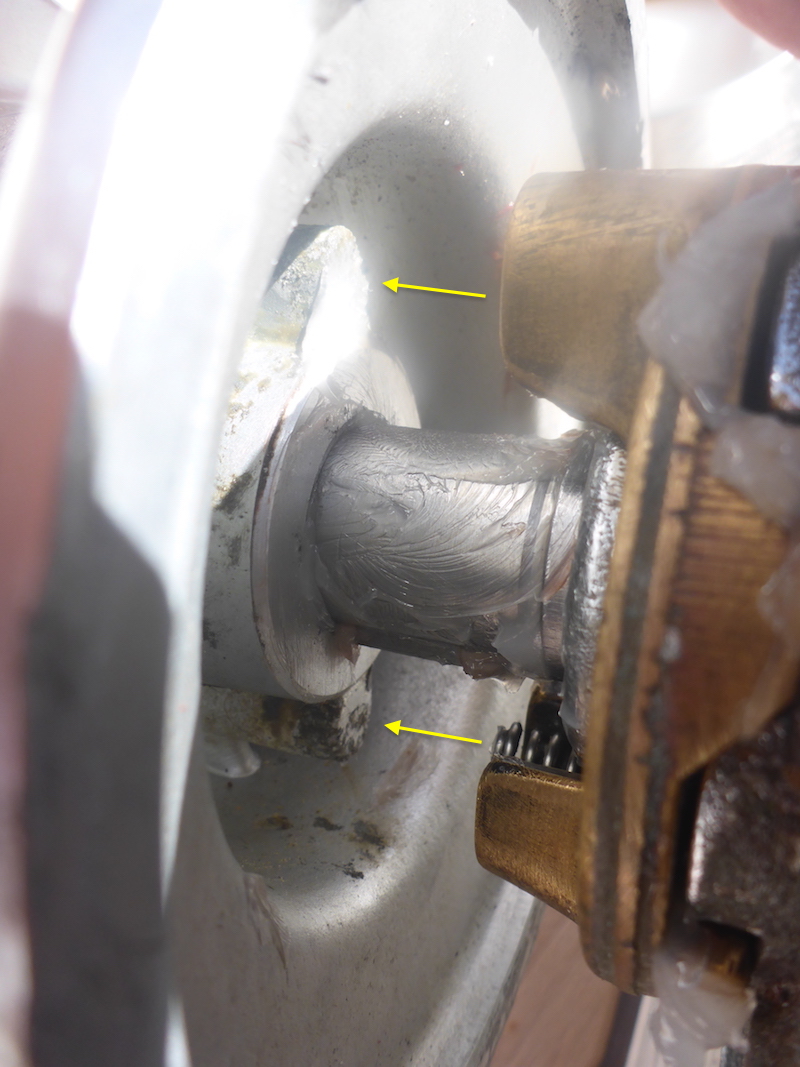

Picture 275
Again yellow arrows to show how the springs will go

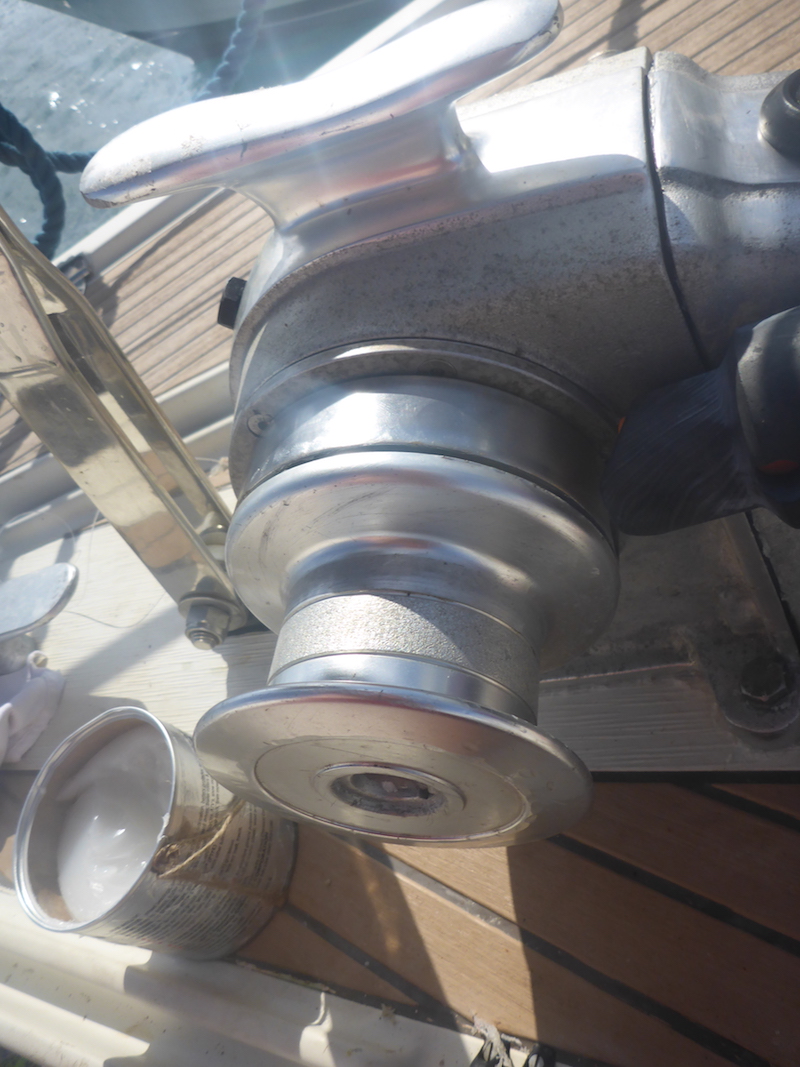

Picture 276
Drum (Part 343) back in place

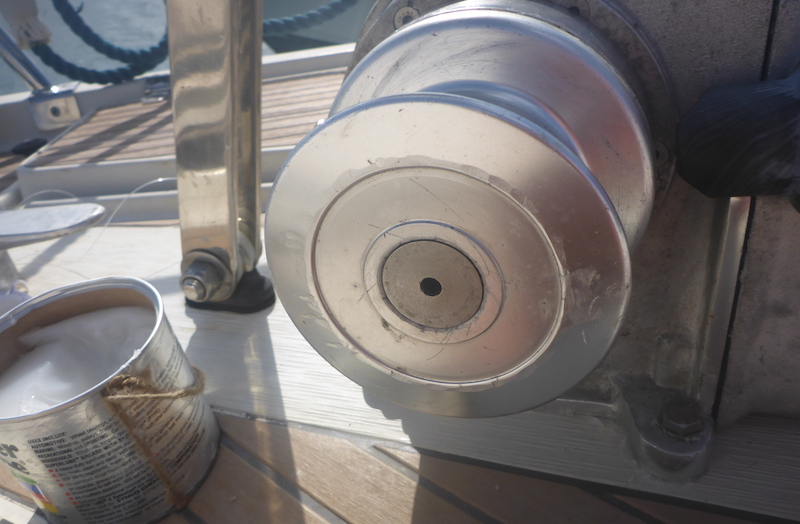

Picture 277
Washer (Part 344) back in place

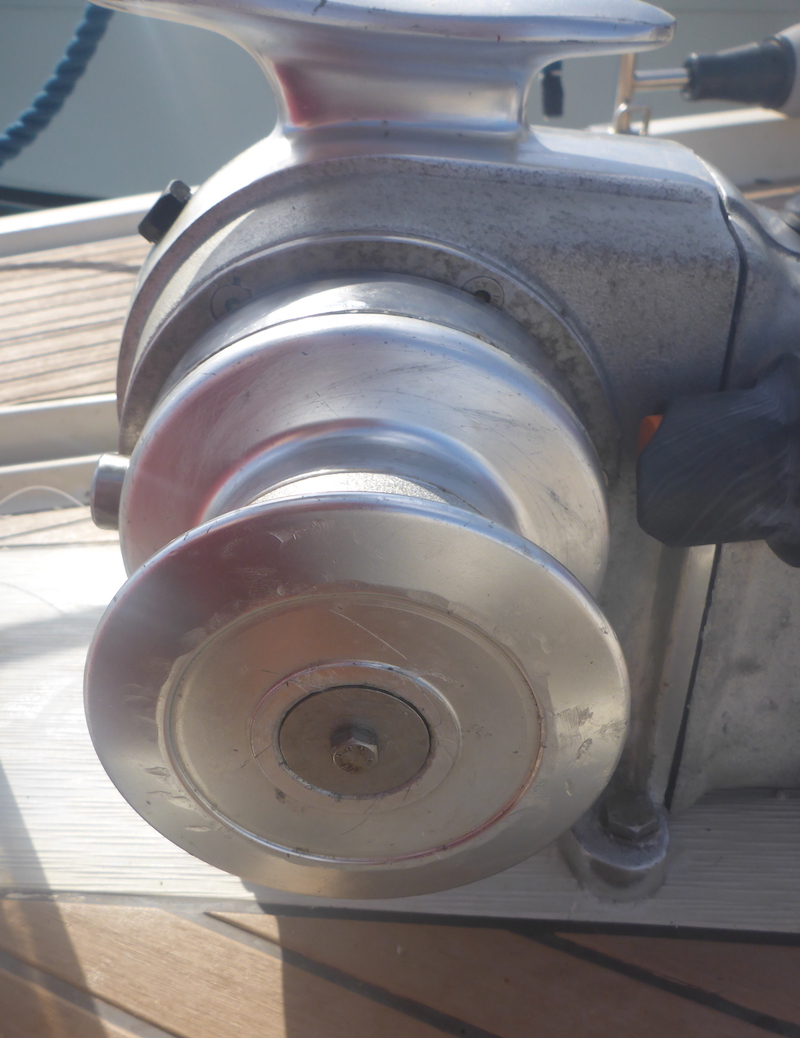

Picture 278
Bolt Hex hd screw M6x20 Uni 5739 (Part 345) back in place - I forgot to put lock tight like last time

Next: Part 31 Reassembly of the shove gipsy, gipsy / chain wheel and gipsy holder
