Lofrans Tigres Windlass Overhaul Part 19: 12 Pictures from 157 to 168 Putting back the Worm (Shaft), bearing and (main) Shaft in the Body

Originally I thought I would put together the way I put apart
It never worked, after 2 hours of de-assembly and reassembly what I had done
I realize the sequence which is as follow:

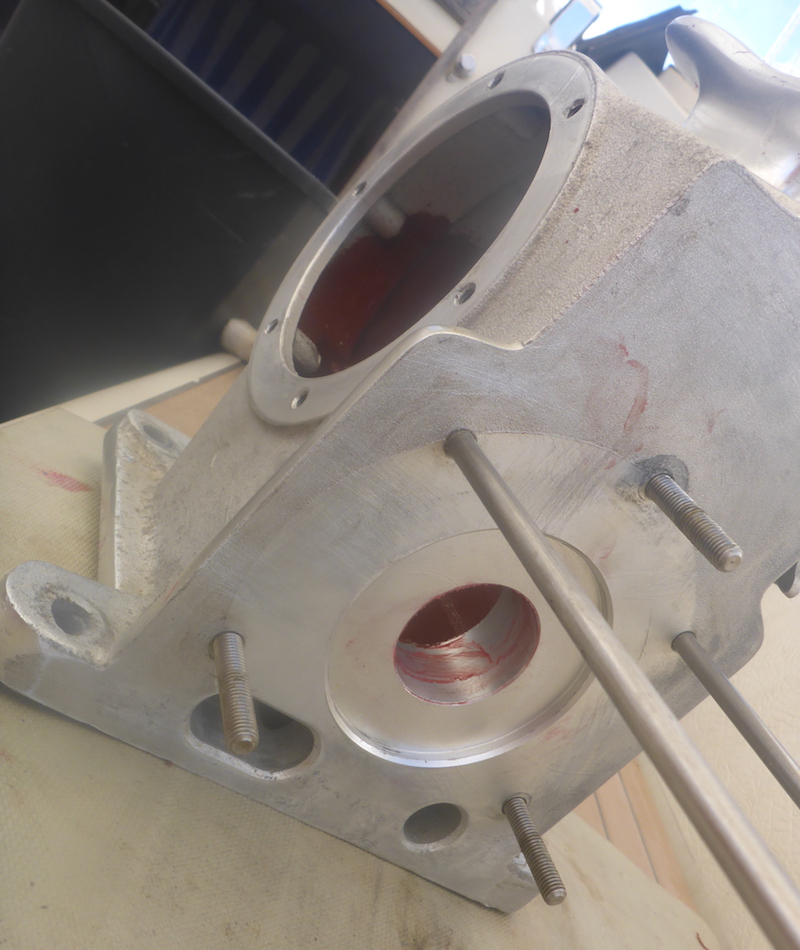

Picture 157
Windlass body

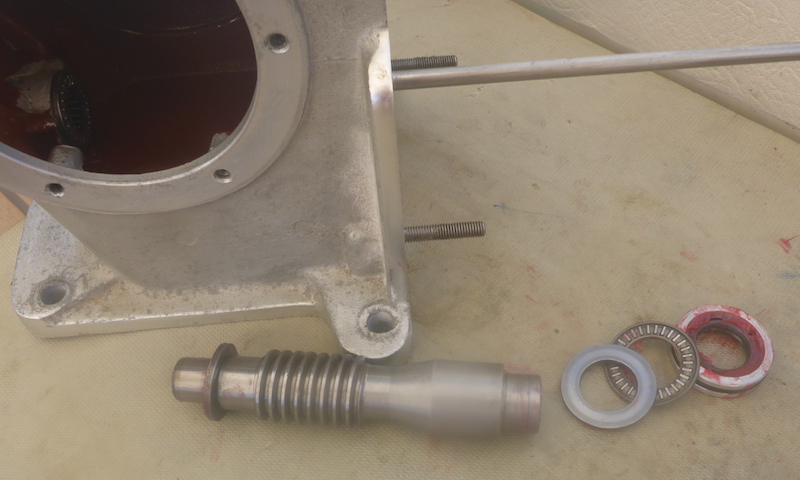

Picture 158
Worm and parts

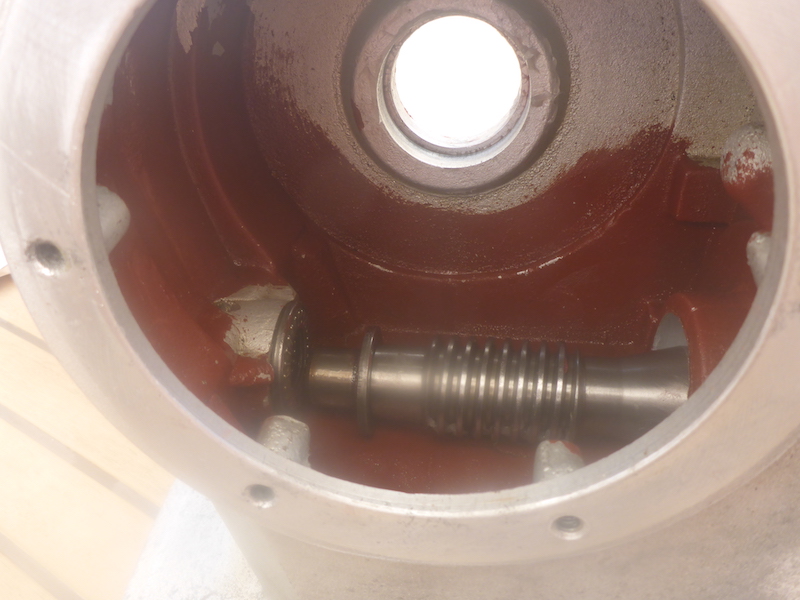

Picture 159
Just let it rest on the bottom of the body

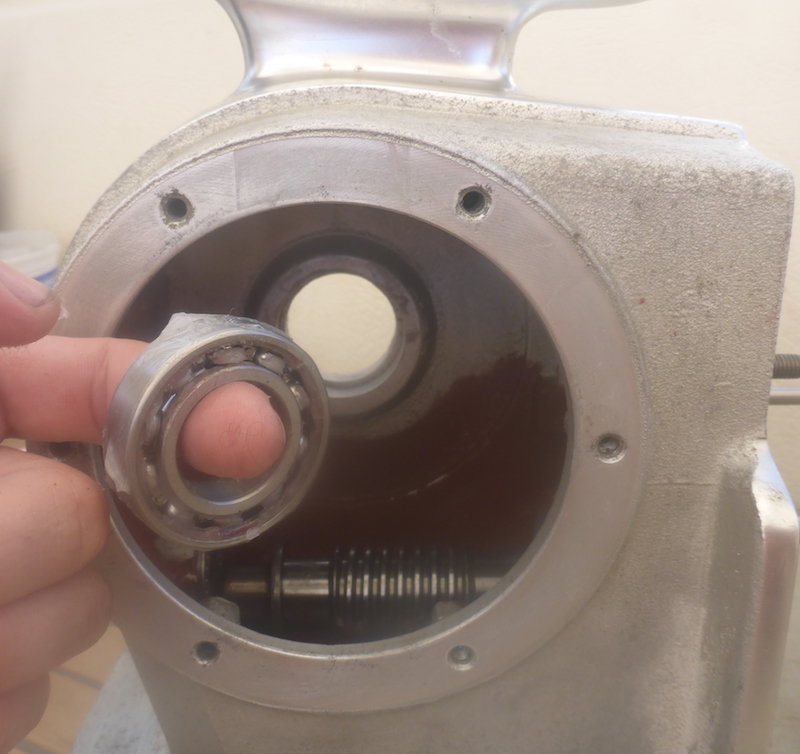

Picture 160
Greaser the new Bearing 6005 (Part 323)

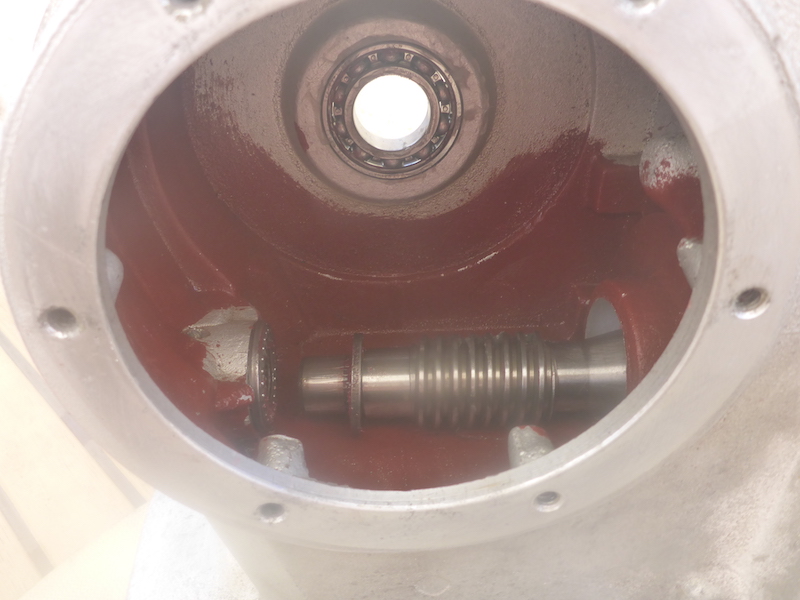

Picture 161
As previously shown you can use a PVC pipe to set it in

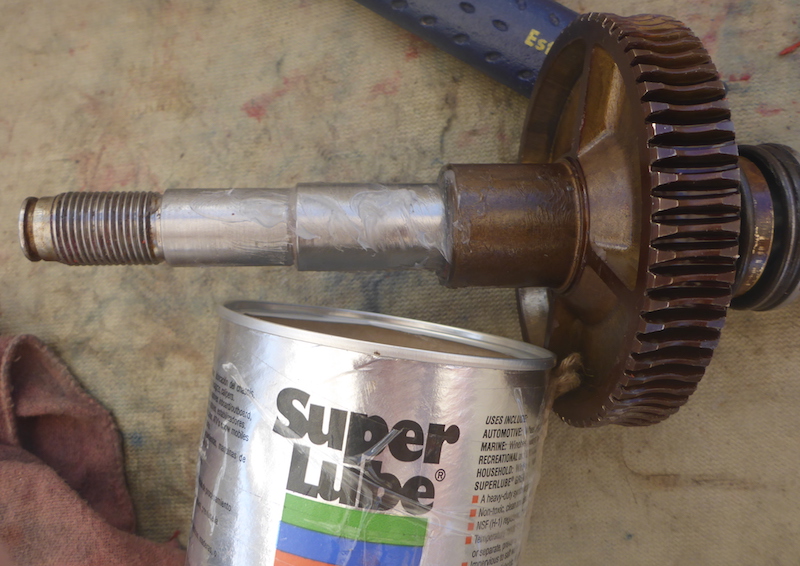

Picture 162
Grease the Shaft

James from Maramu #220 SV Sueno suggests to use the white lithiums because they tend to stain the deck and sails less.
The best white lithium James came across for this application (and winches/turnbuckles as well) is the Vari-prop grease

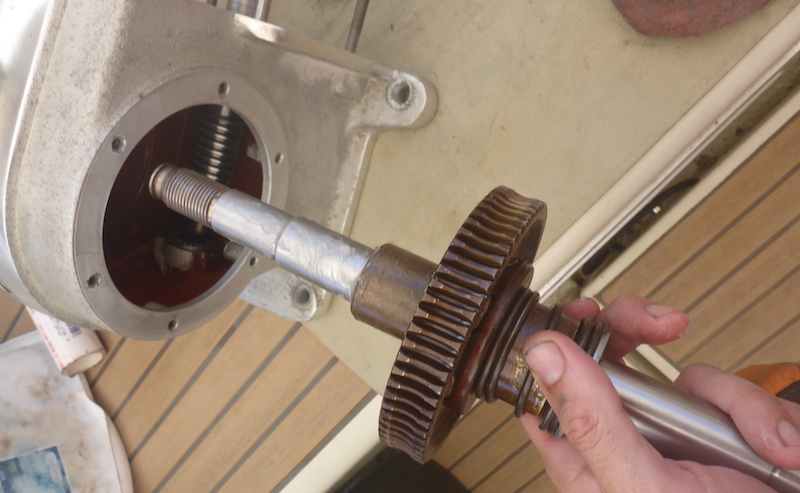

Picture 163
Putting shaft in

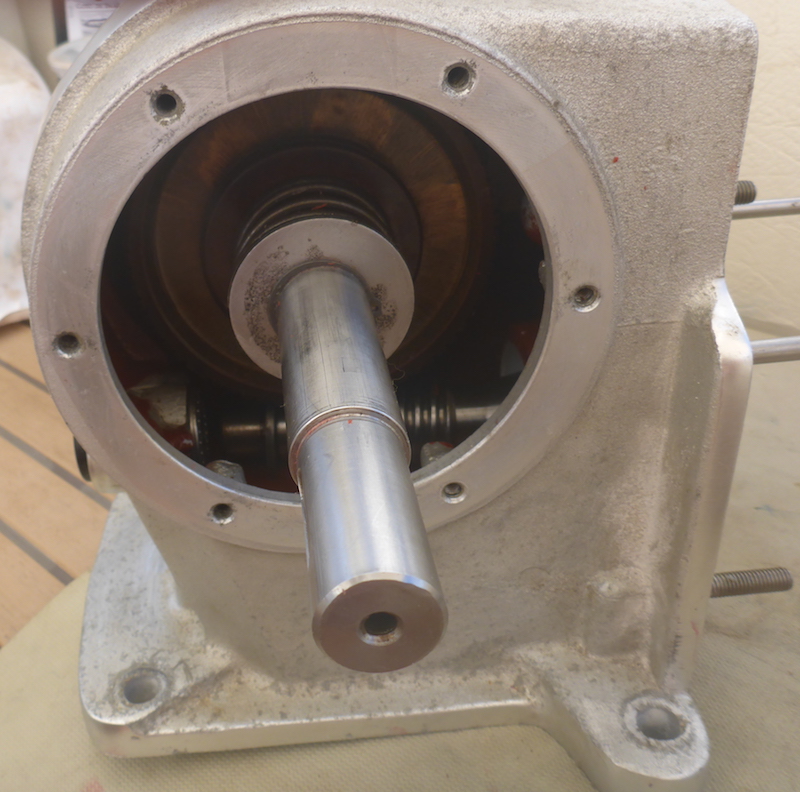

Picture 164
Shaft in

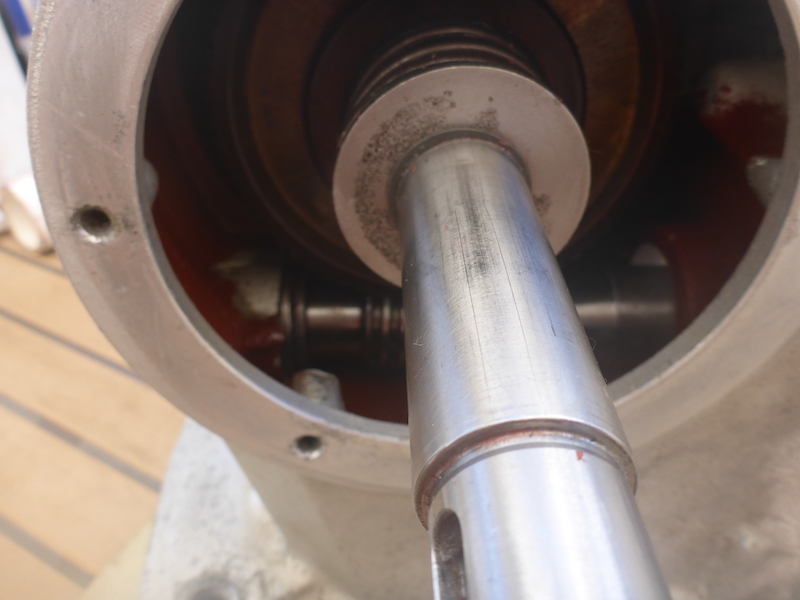

Picture 165
Now is when we will put the Worm in

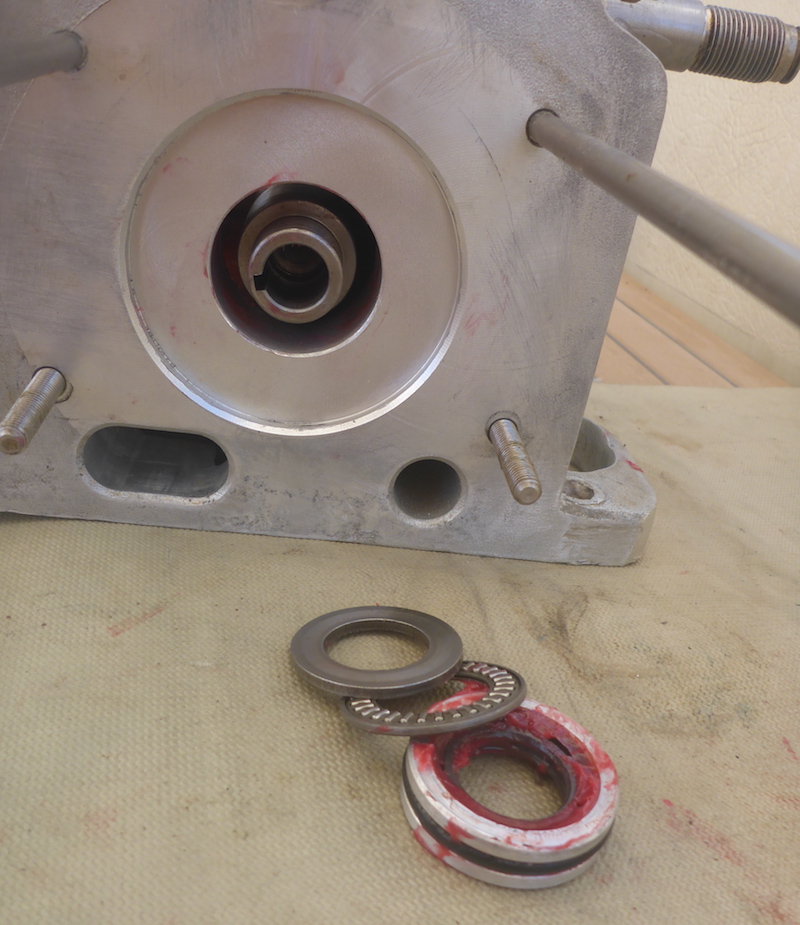

Picture 166
Then add in the following sequence the
Thrust ring CP32542 (Part 484)
Thrust bearing AX2542 (part 485)
Spacer (Part 486) with the seal facing the worm

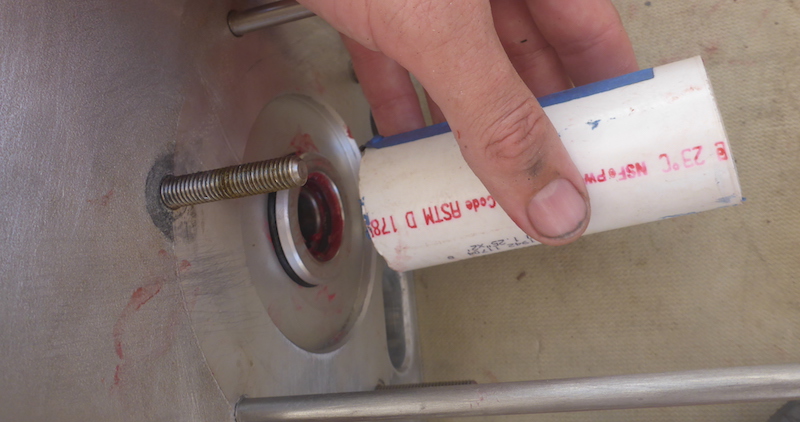

Picture 167
Using a hammer and PVC pipe I willpush in

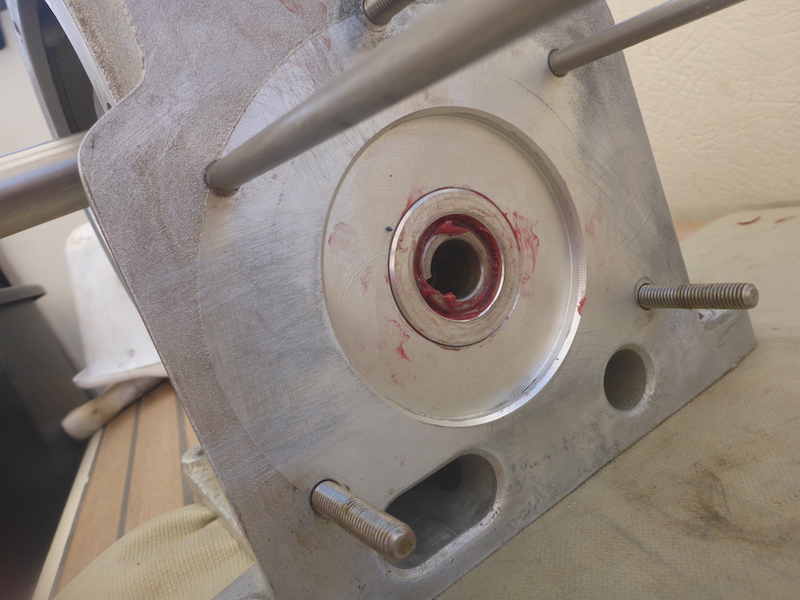

Picture 168
Then I will add grease inside the worm

Next: Part 20 Bolting back electric motor and putting Cover to Body
