Amel Super Maramu 2000

Lofrans Tigres Windlass Overhaul Part 4: 8 Pictures from 25 to 32 Extraction of the shove gipsy, gipsy / chain wheel and gipsy holder

Pictures 33 to 40 are similar to the below links, a little less detailed.
Also was smoother and done in half an hour as opposed as 4 hours.

Extraction of the drum, emergency wheel clutch plate and manual emergency wheel

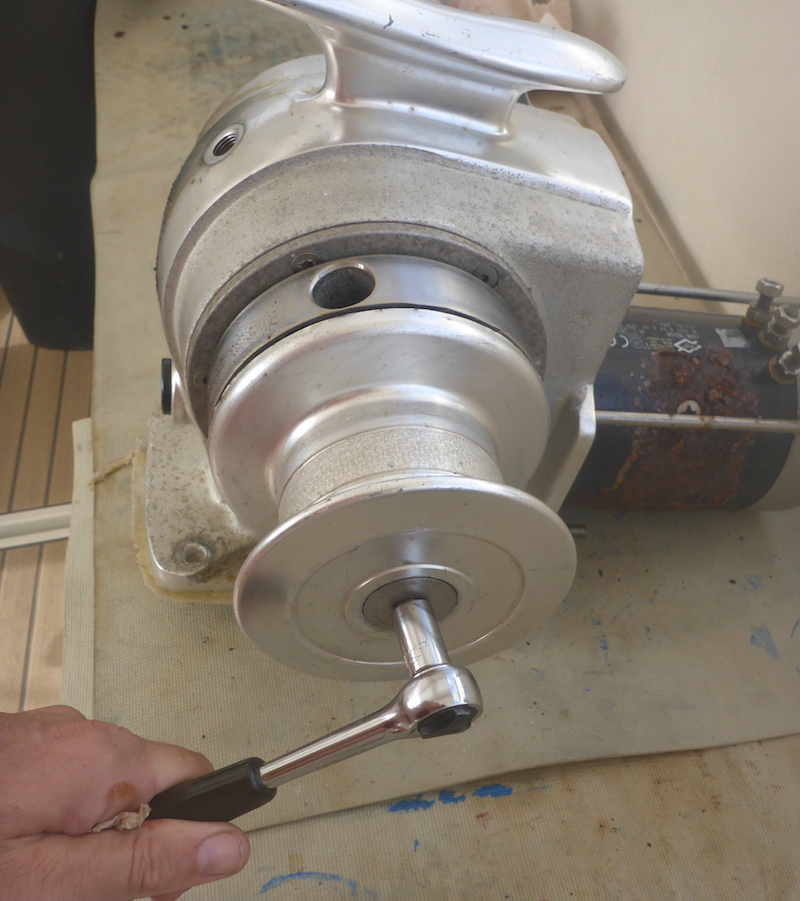

Picture 33
Using a 10 mm socket remove the bold

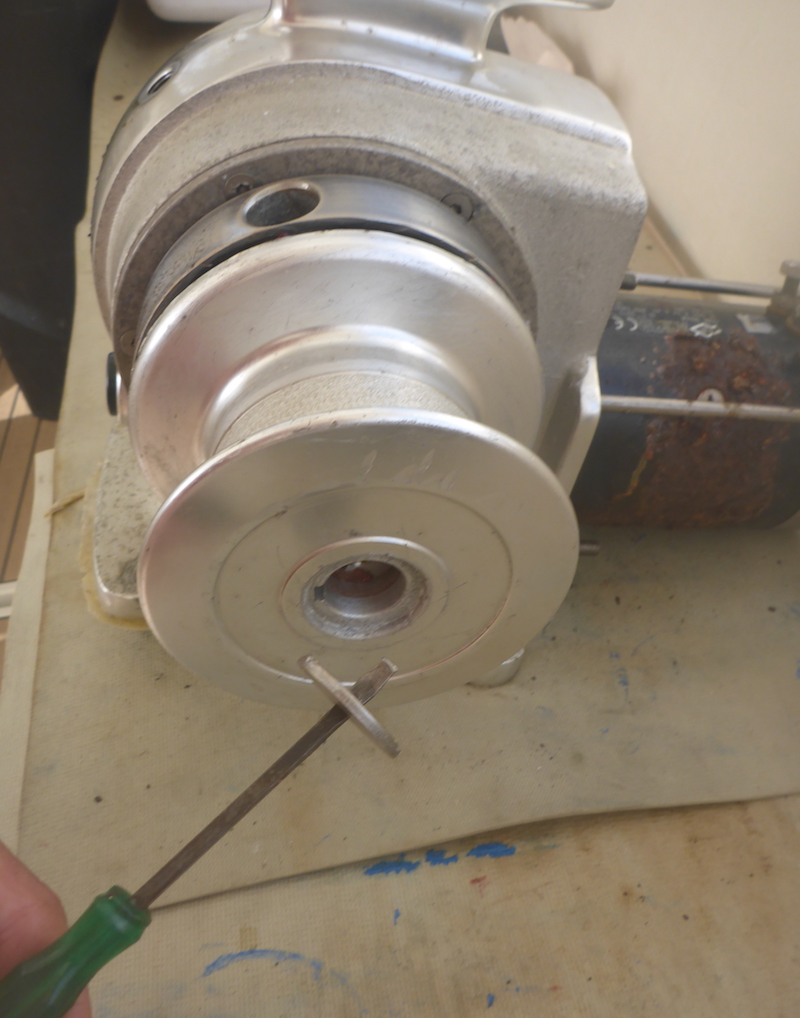

Picture 34
Remove the washer

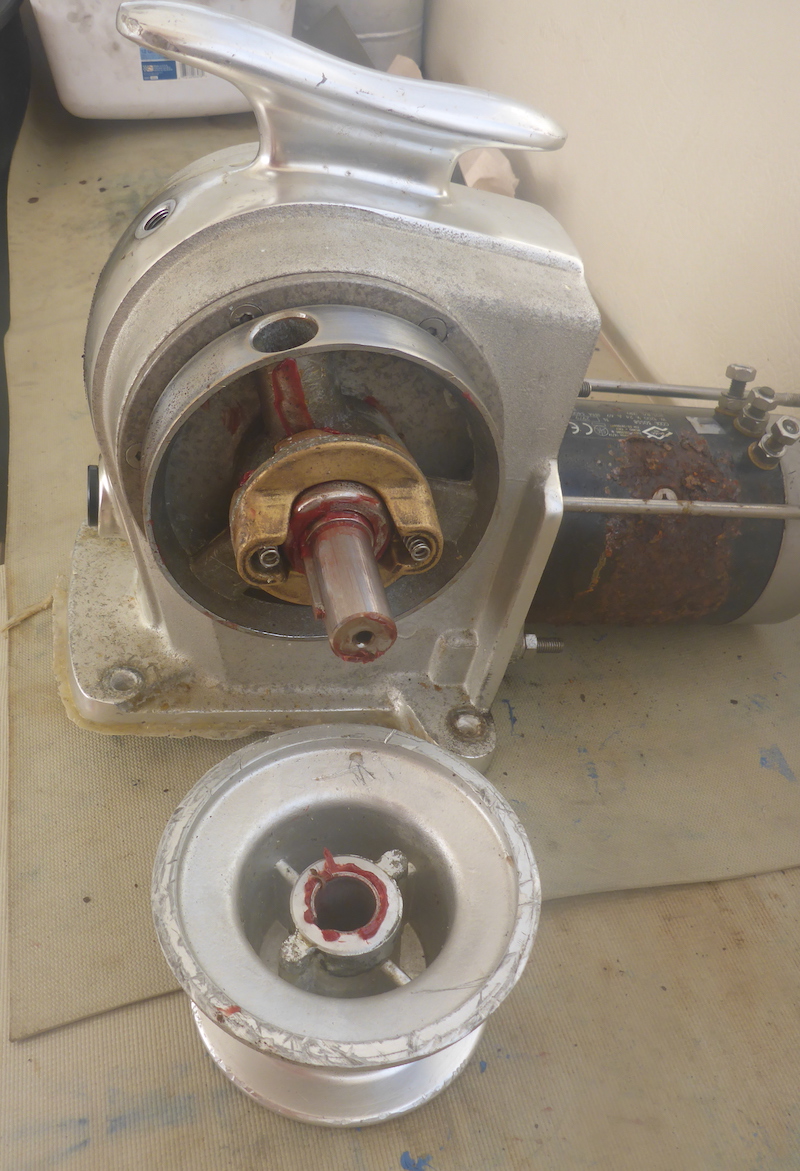

Picture 35
Remove the drum

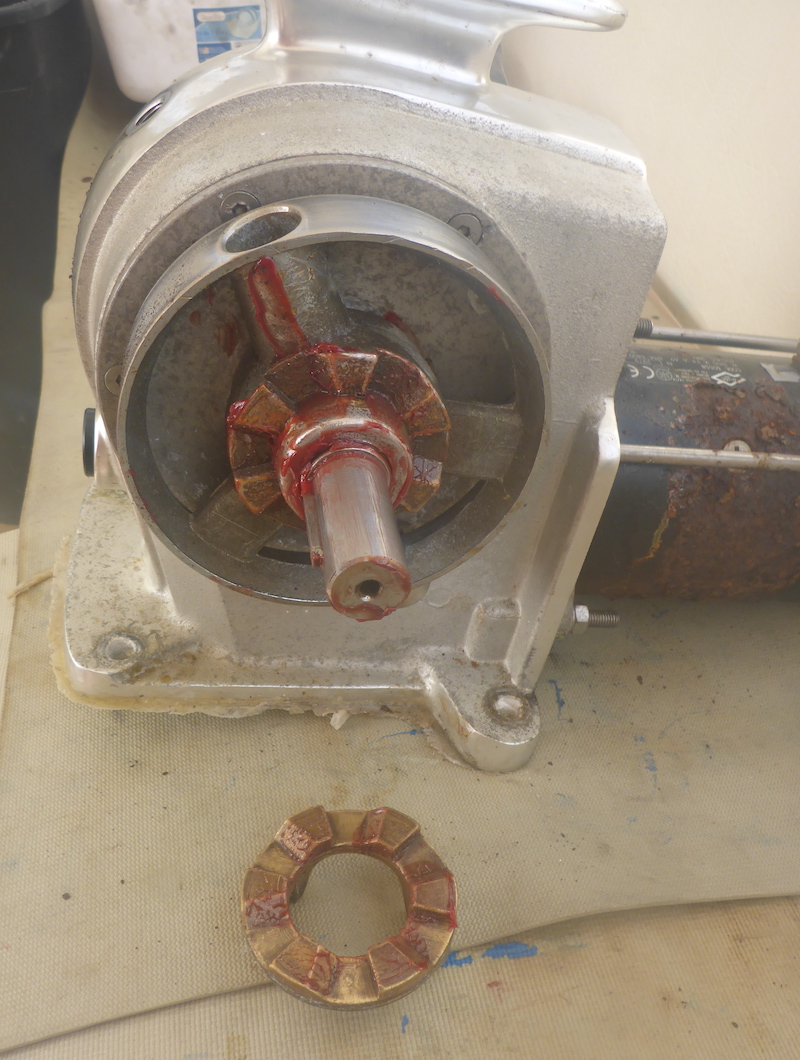

Picture 36
Remove the emergency wheel clutch plate

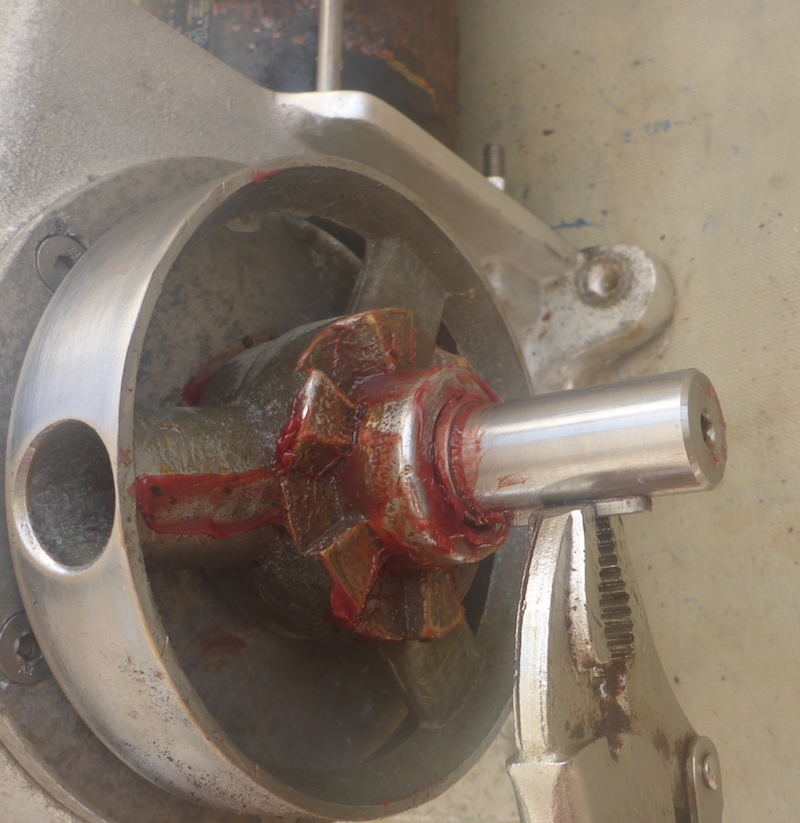

Picture 37
Remove the shaft key

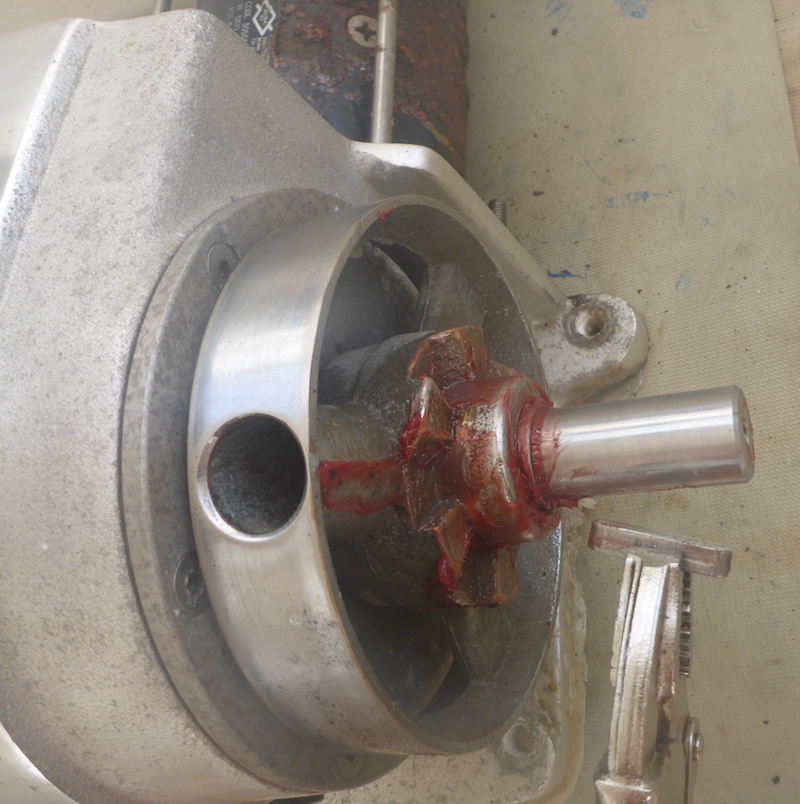

Picture 38
key removed

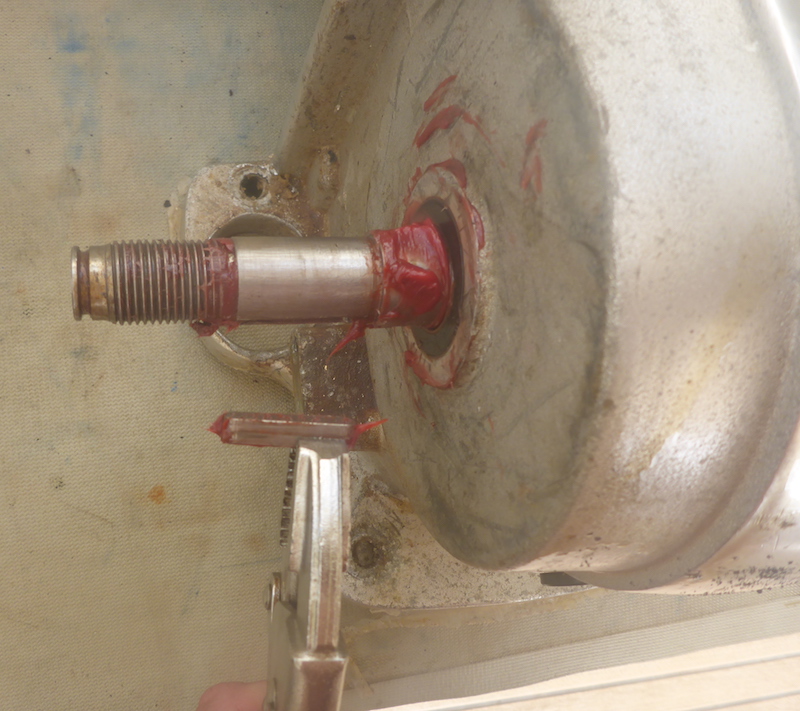

Picture 39
Remove the key on the other side

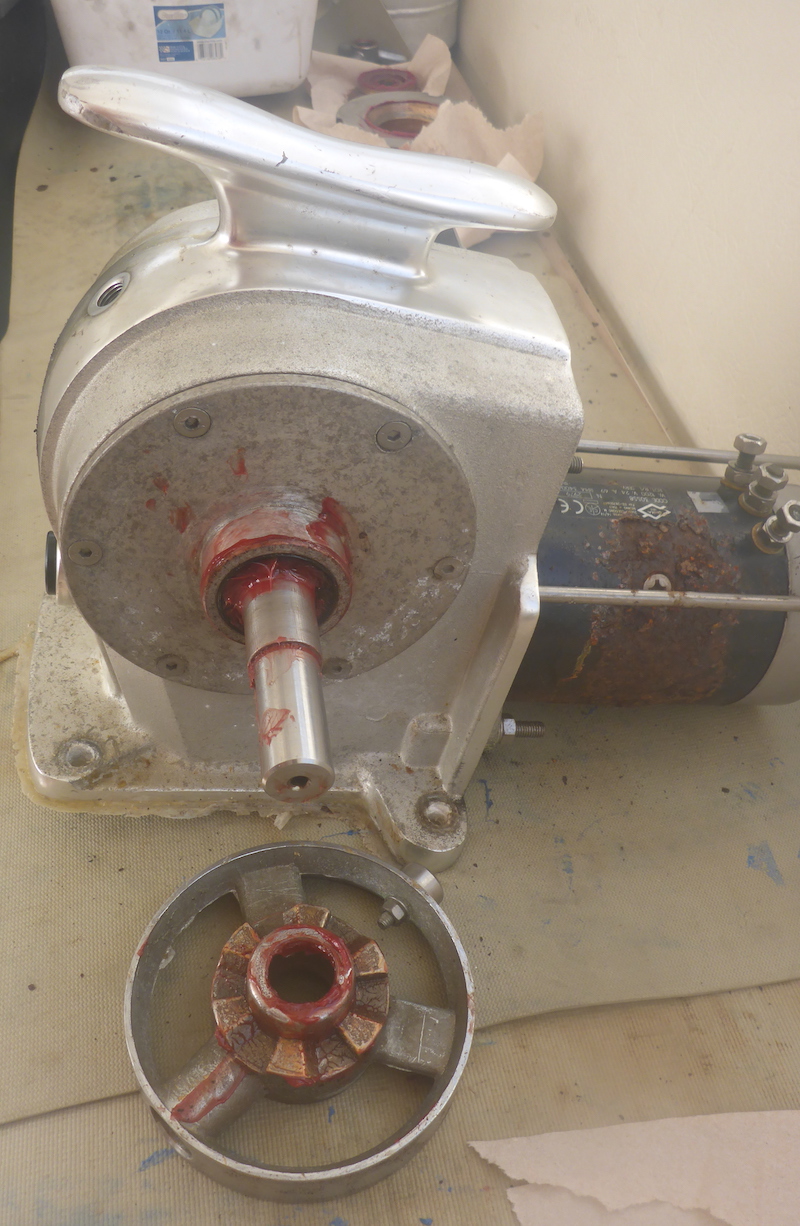

Picture 40
Remove the manual emergency wheel

There is also a plastic washer on the other side

Next: Part 5 Opening the windlass, extract broken bolt on cover
