Amel Super Maramu 2000

Lofrans Tigres Windlass Overhaul Part 5: 8 Pictures from 41 to 48 Opening the windlass, extract broken bolt on cover

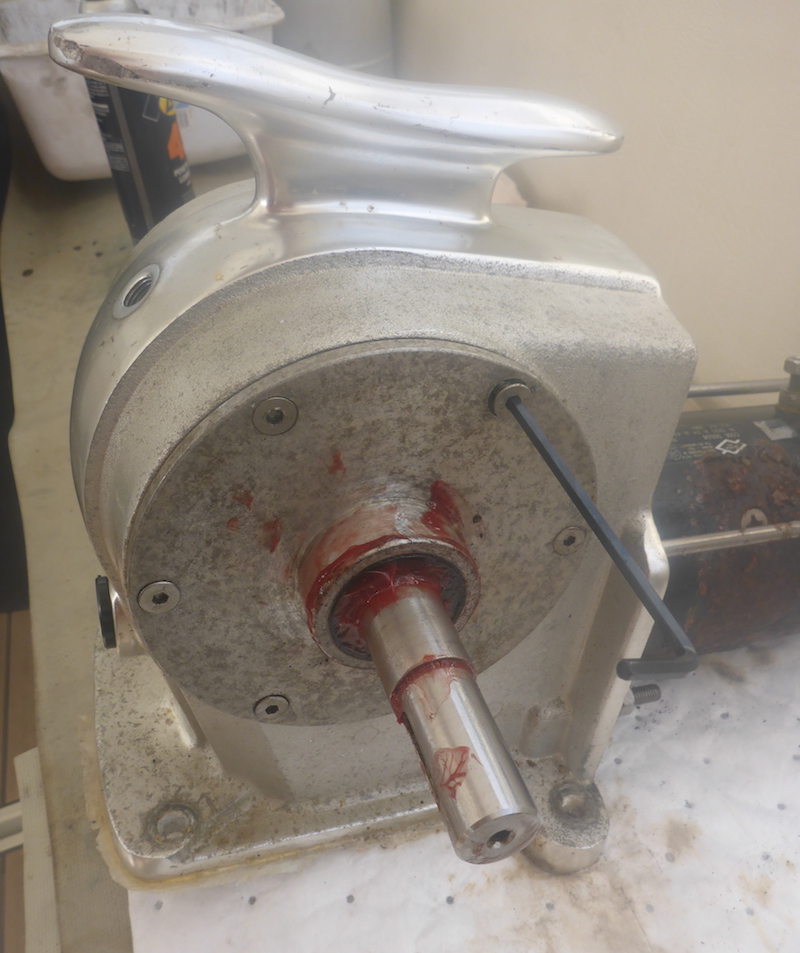

Picture 41
Using allen key remove the 6 bolt
Note: they are M6-1.0 x 16mm Stainless Steel Flat Head Socket Cap Screws A2

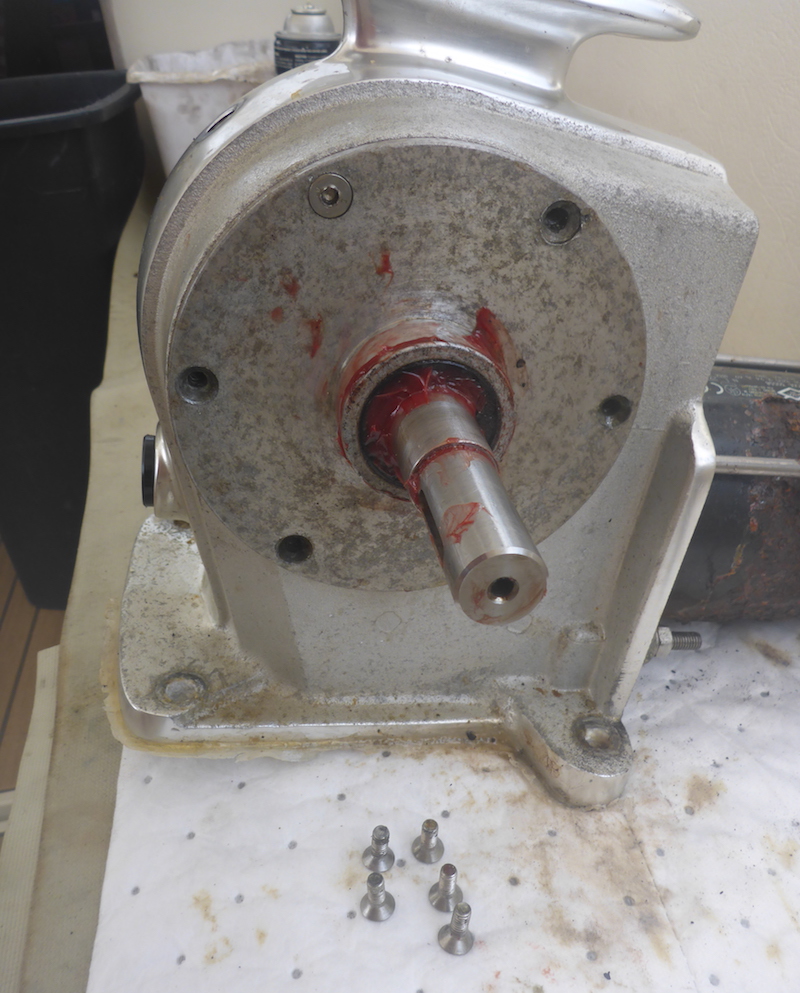

Picture 42
On the remaining bolt you can see the thread is damaged...

Trying several unsuccessful methods and tools, I will spend 3 hours removing it...

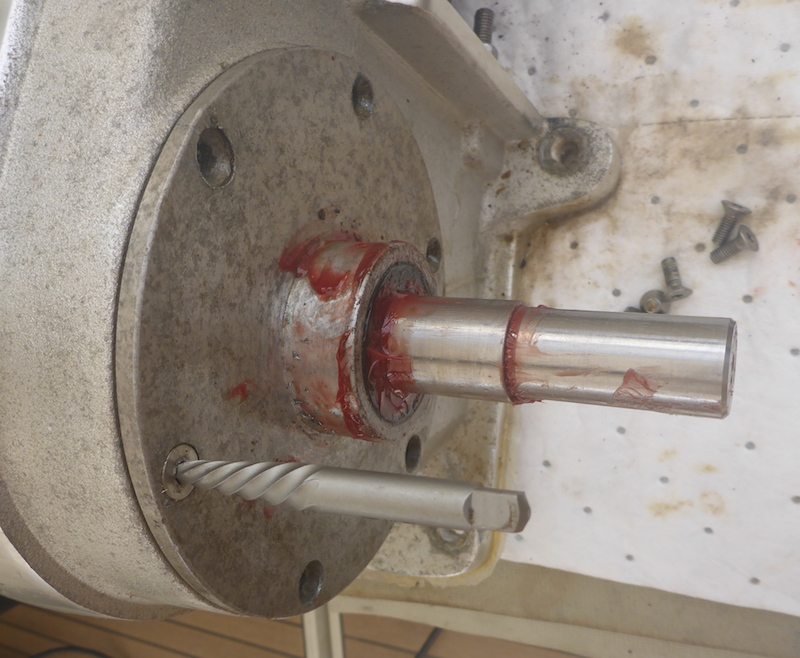

Picture 43
I gently hammered in the Spiral Flute Extractor
Since it is a 6 mm bolt, I used the EX-3

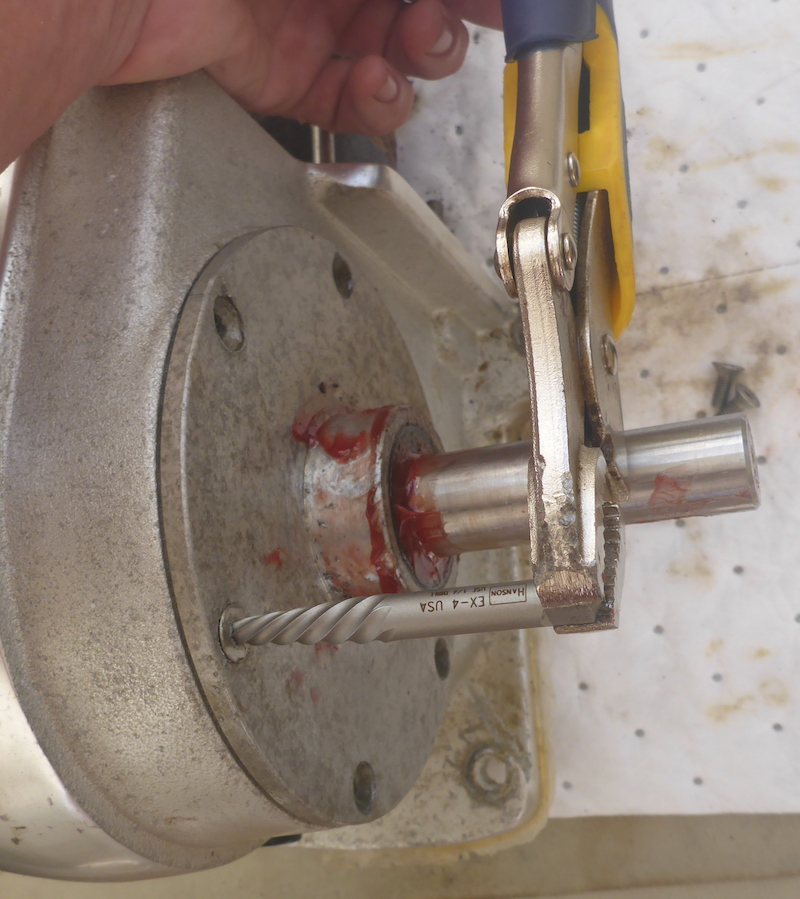

Picture 44
With a vise grip was able to remove unstuck it

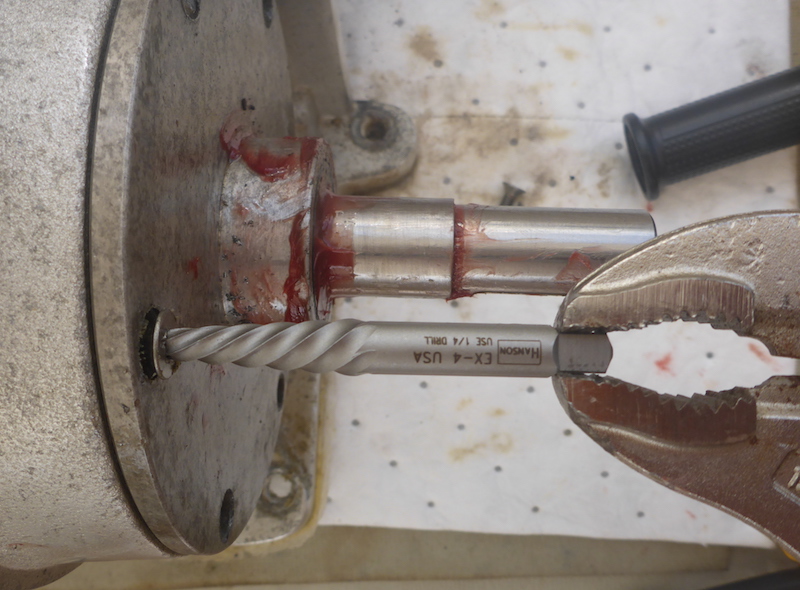

Picture 45
Then unscrewing it

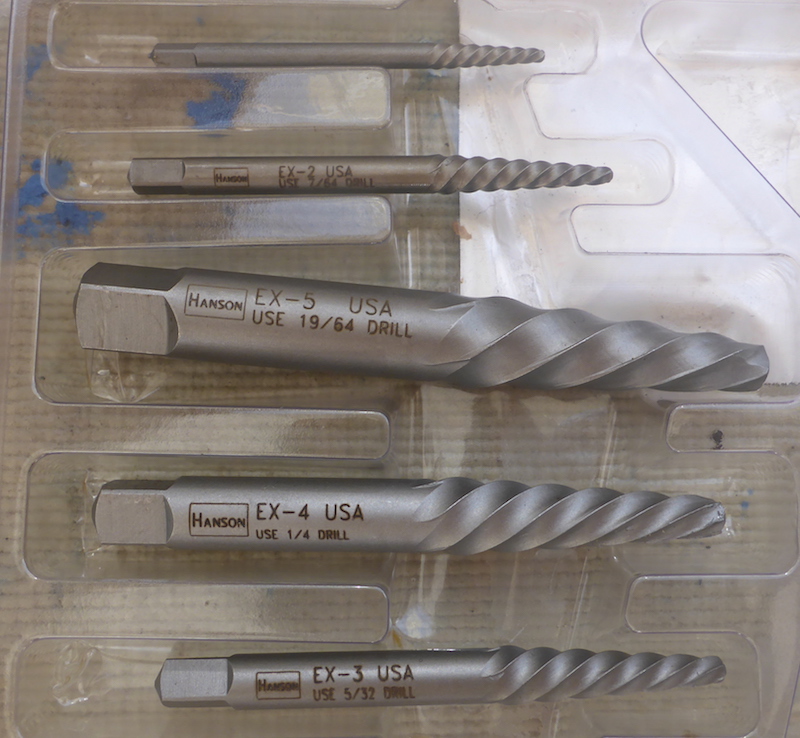

Picture 46
Picture of the tools I use

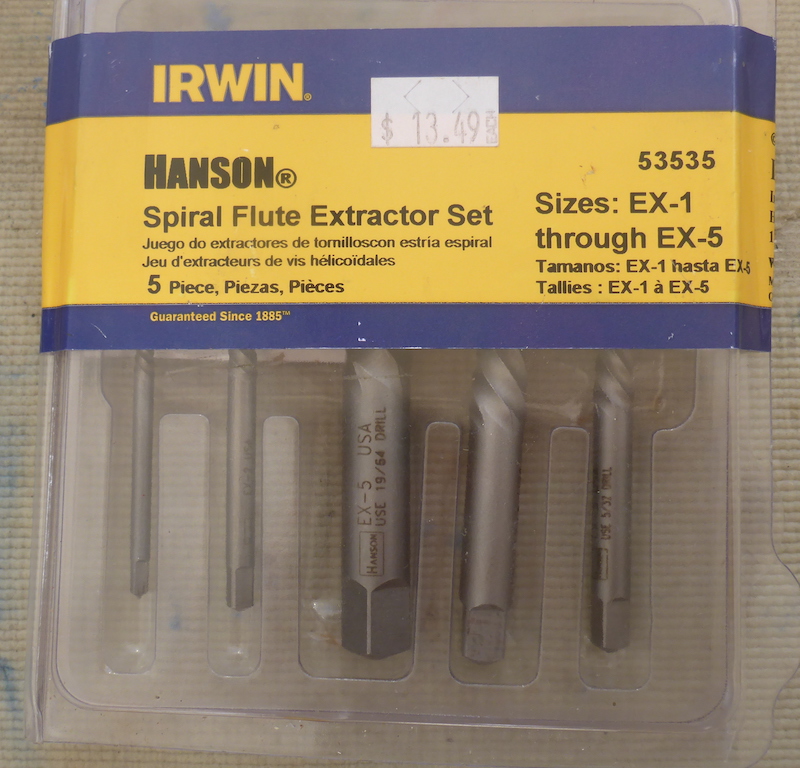

Picture 47
I highly recommend this set

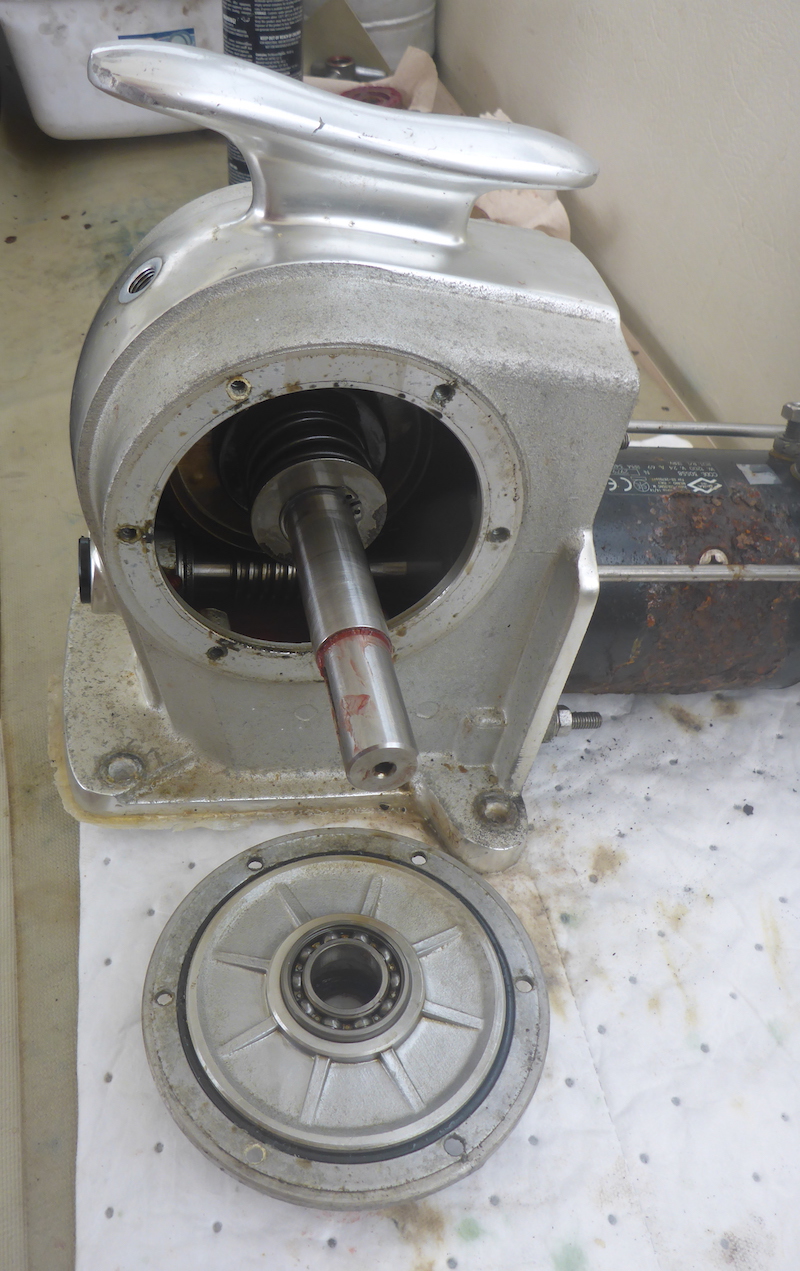

Picture 48
Removing the cover (Part 481)

Next: Part 6 Removing oil seals, bearings, O Ring, on cover
