Lofrans Tigres Windlass Overhaul Part 14: 6 Pictures from 108 to 114 Cleaning of the housing, Cover, Deck, attach Anchor Chain to fishing line

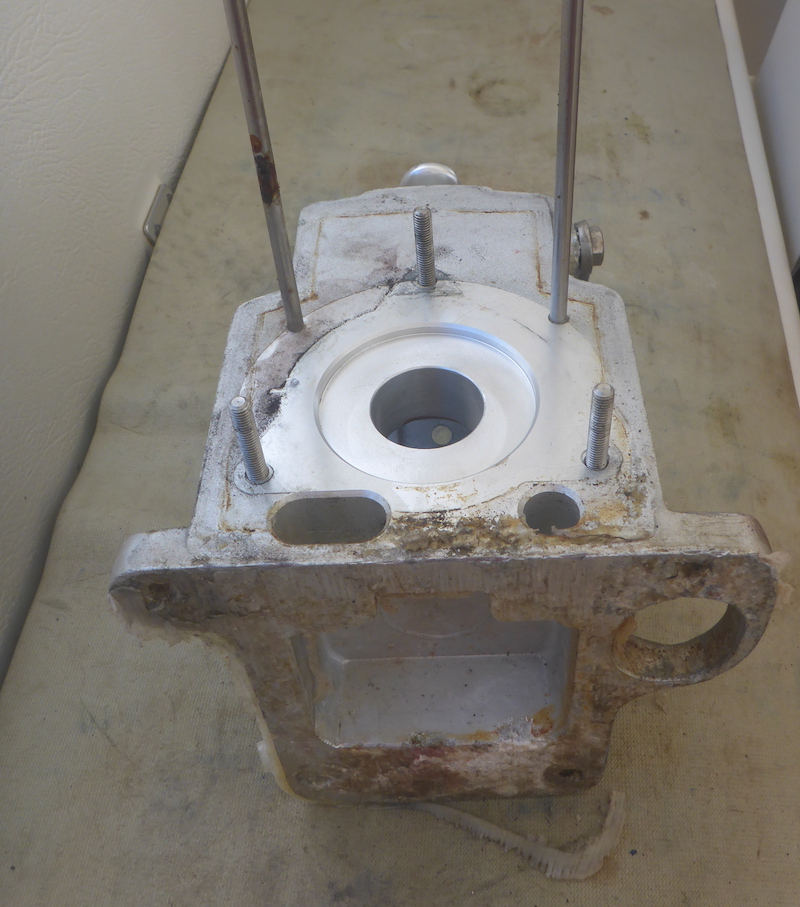

Picture 108
The housing will also need cleaning, unfortunately I forgot to take a picture

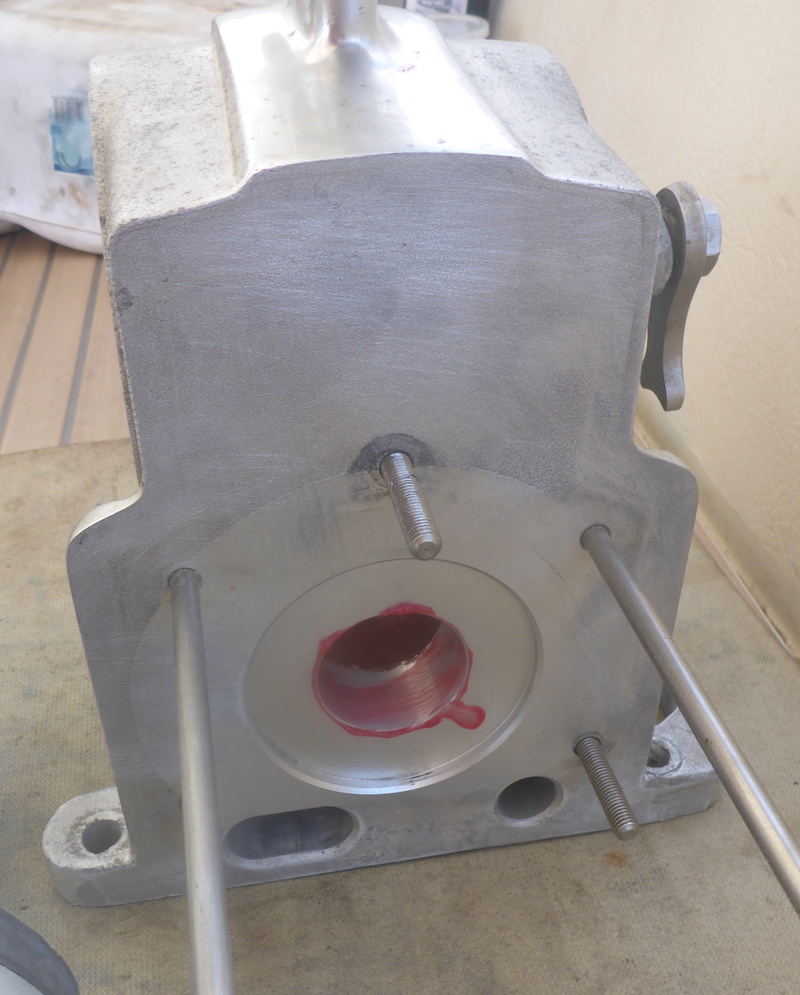

Picture 109
Here is showing the cleaning later during the reassembly

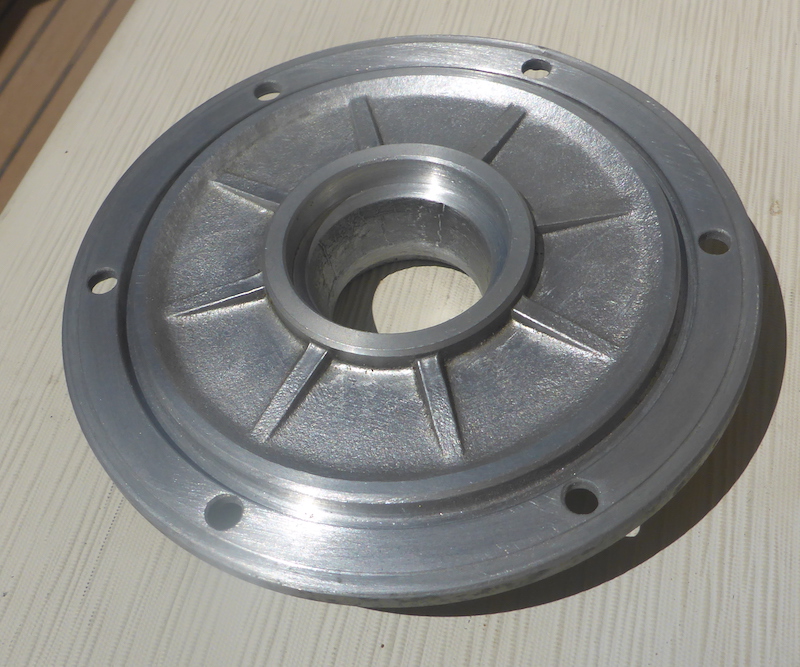

Picture 110
Clean cover

Picture 111
Clean deck

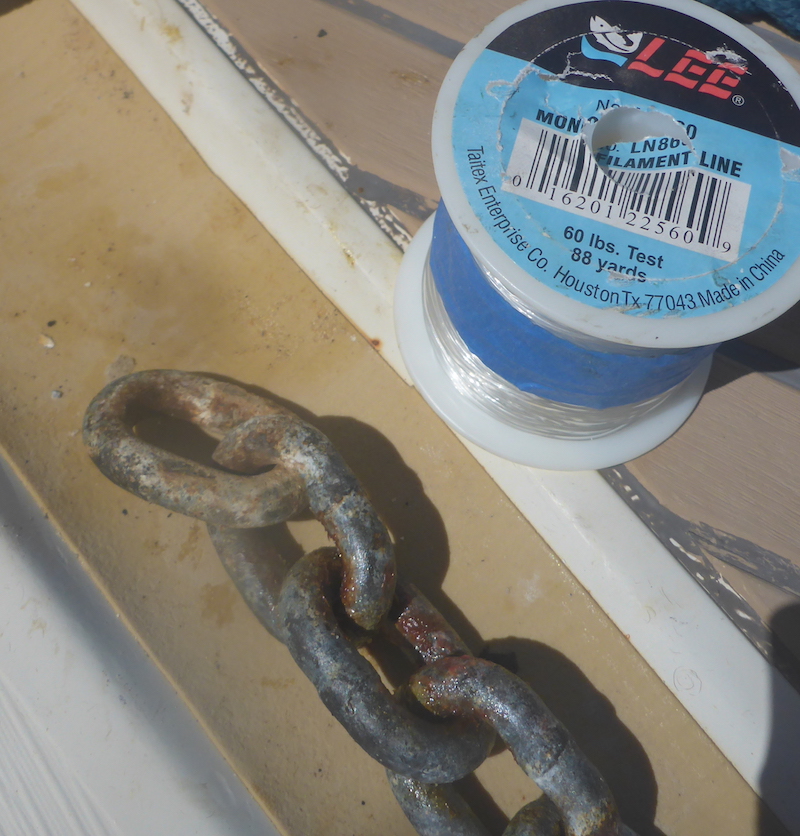

Picture 112
To ease the re-installation of the windlass, I will attach the chain with a fishing line

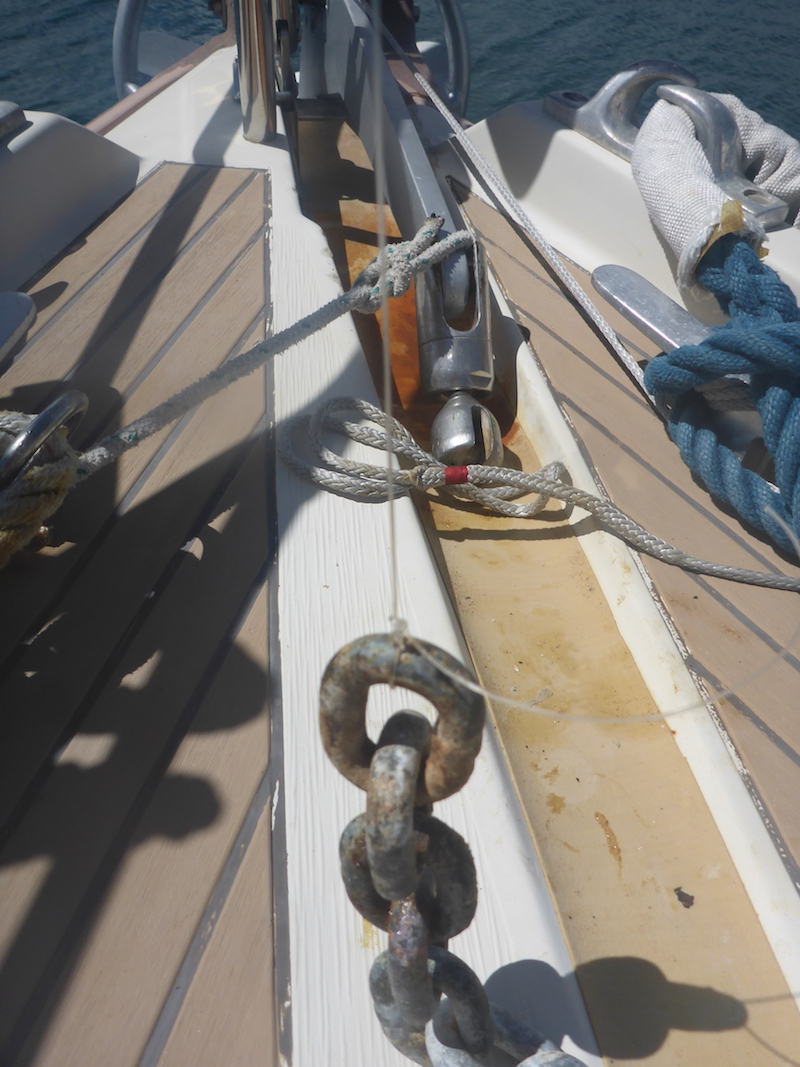

Picture 113
Then lower the chain in its locker

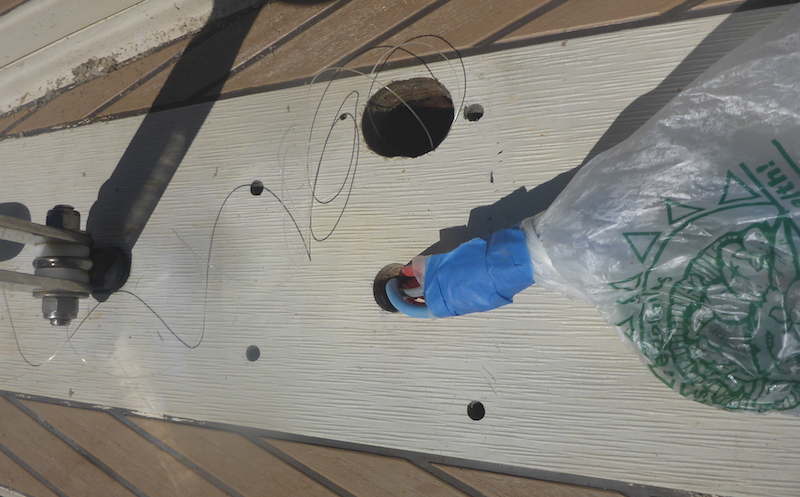

Picture 114
It will be a lot easier to deal with a fishing line than a 10 mm chain

Next: Part 15 Reassembly of the Shaft Circlip, Wormwheel, keys, Dog Clutch, Spring and Washers
