Lofrans Tigres Windlass Overhaul Part 29: 7 Pictures from 259 to 266 Adding Silicone, slide back Motor Cover, add Oil

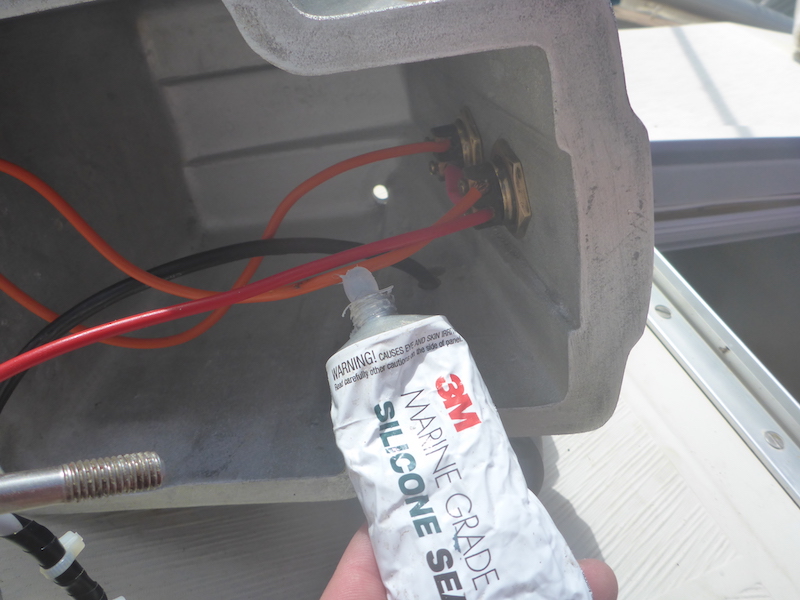

Picture 259
Make sure to put silicone where the electric wire of the chain counter "eye" comes

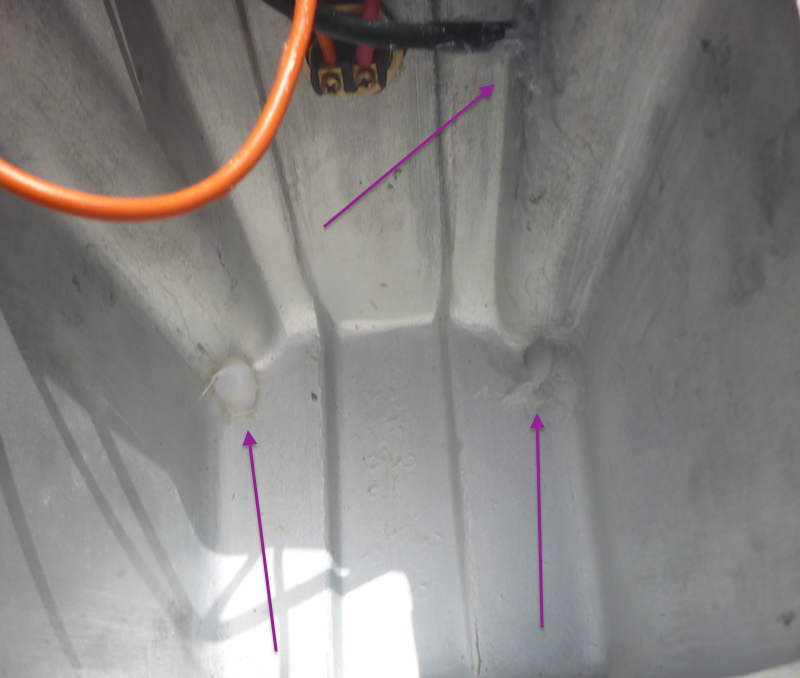

Picture 260
As well as the 2 hole where the long bolt will go through

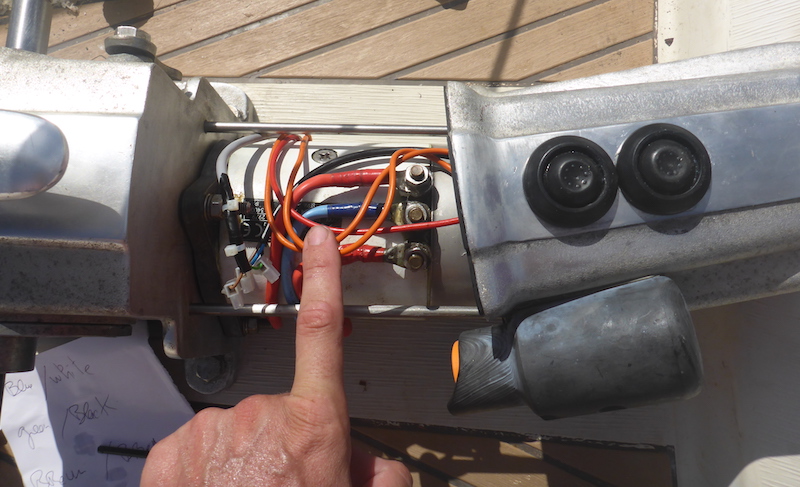

Picture 261
Carefully sliding back the cover
Note: how the red, orange and chain counter sensor wires go under the long bolt

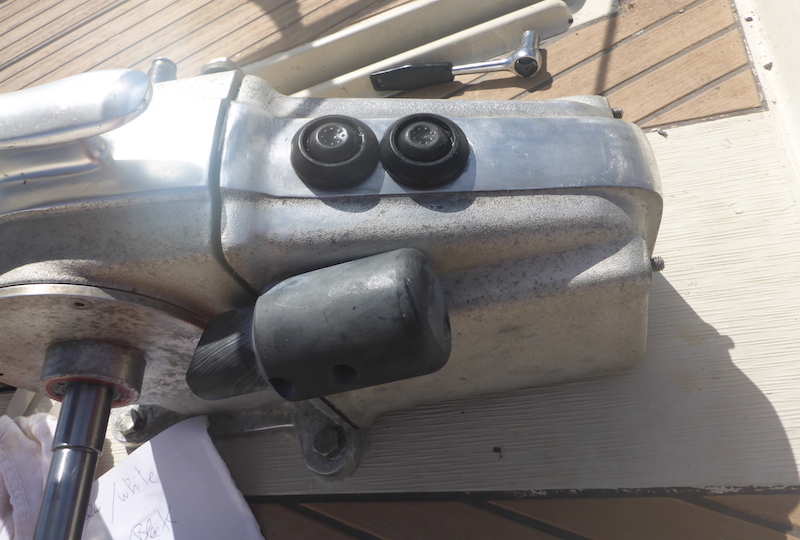

Picture 262
In position

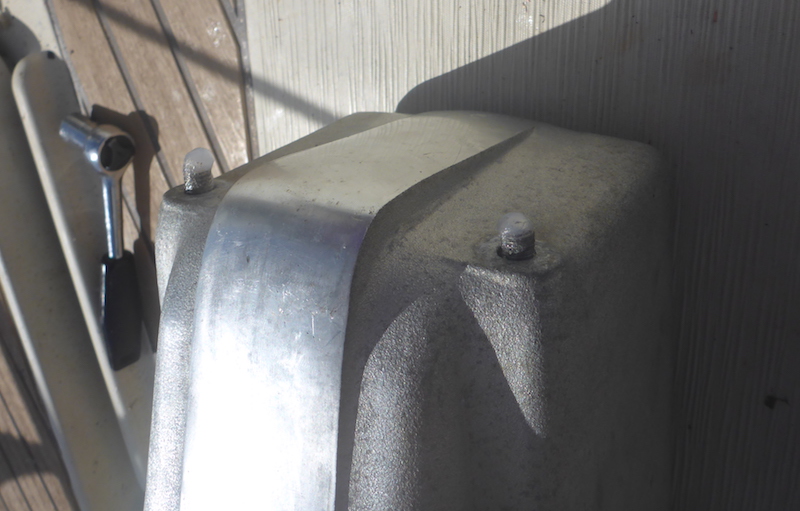

Picture 263
Silicone went through the bolt as expected, added some more

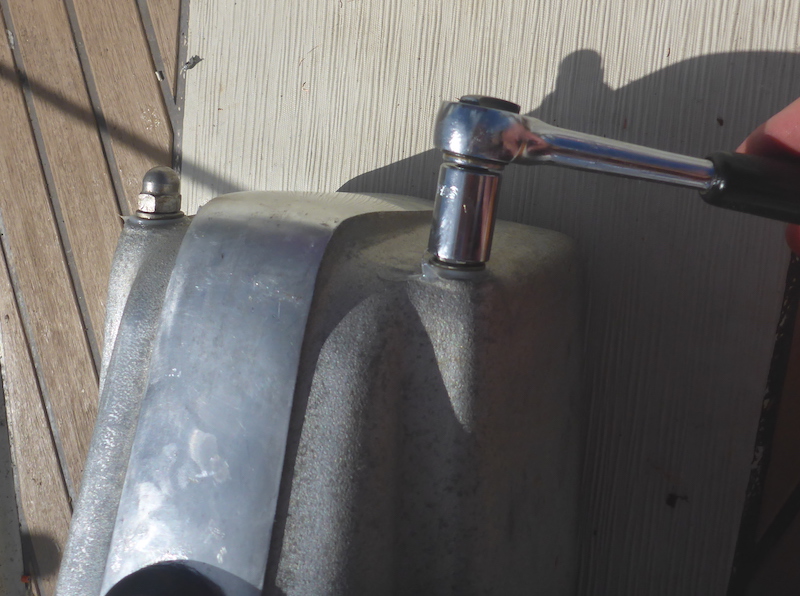

Picture 264
Tight and done

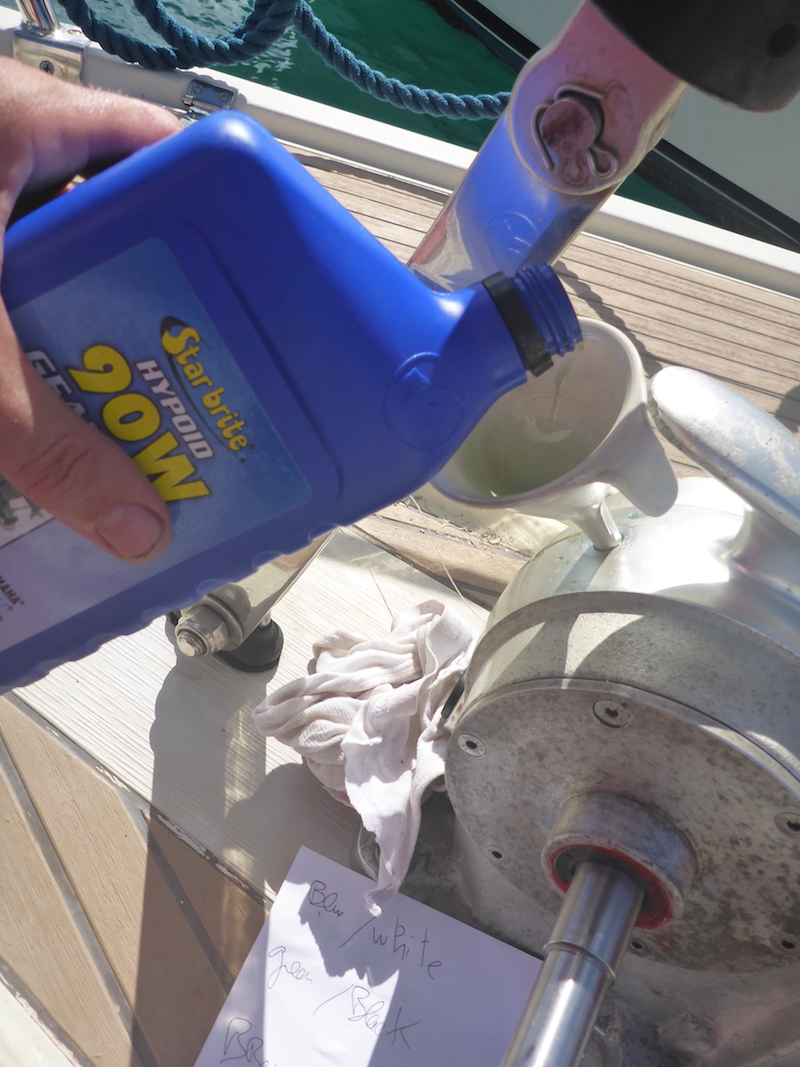

Picture 265
Adding oil - I only had access to 90 SAE oil which is what the original owner manual recommended
Eric SM2K #376 Kimberlite noted the newer Lofrans windlass require SAE 90-140 oil

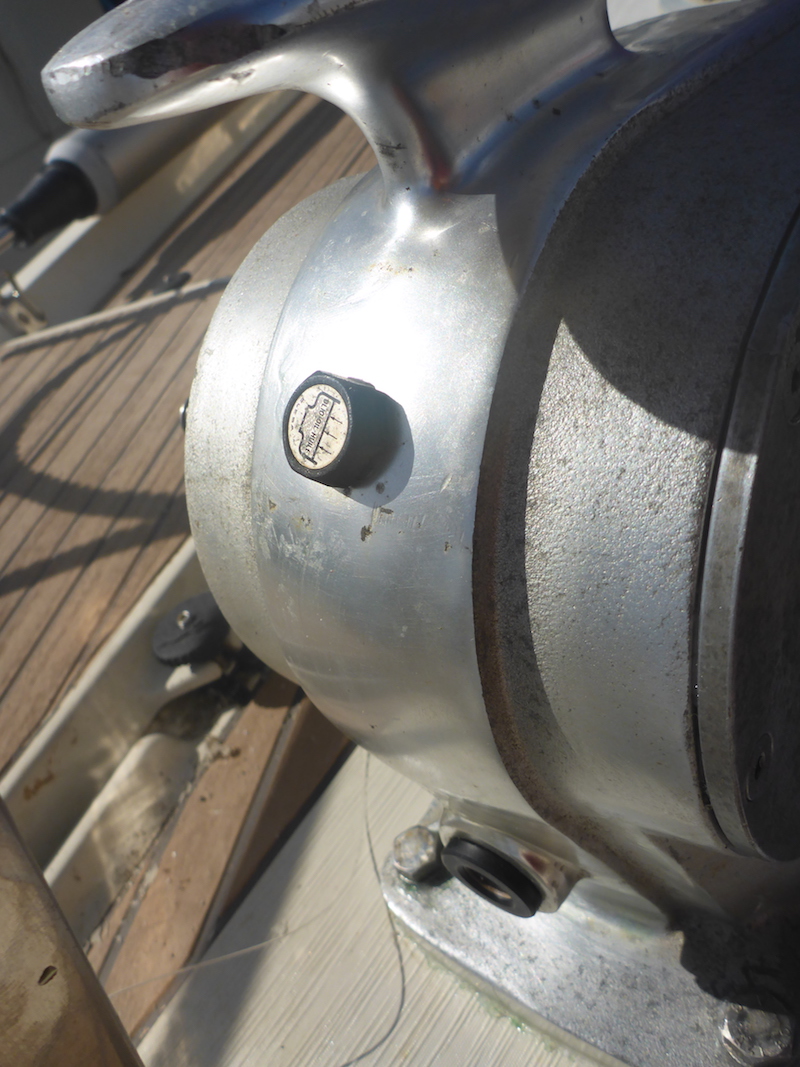

Picture 266
Putting back the oil cap

Next: Part 30 Reassembly of the drum, emergency wheel clutch plate and manual emergency wheel
