Lofrans Tigres Windlass Overhaul Part 2: 17 Pictures from 8 to 24 Unbolting the windlass from the deck (and complications), protecting electric wires, removing the oil

Picture 8

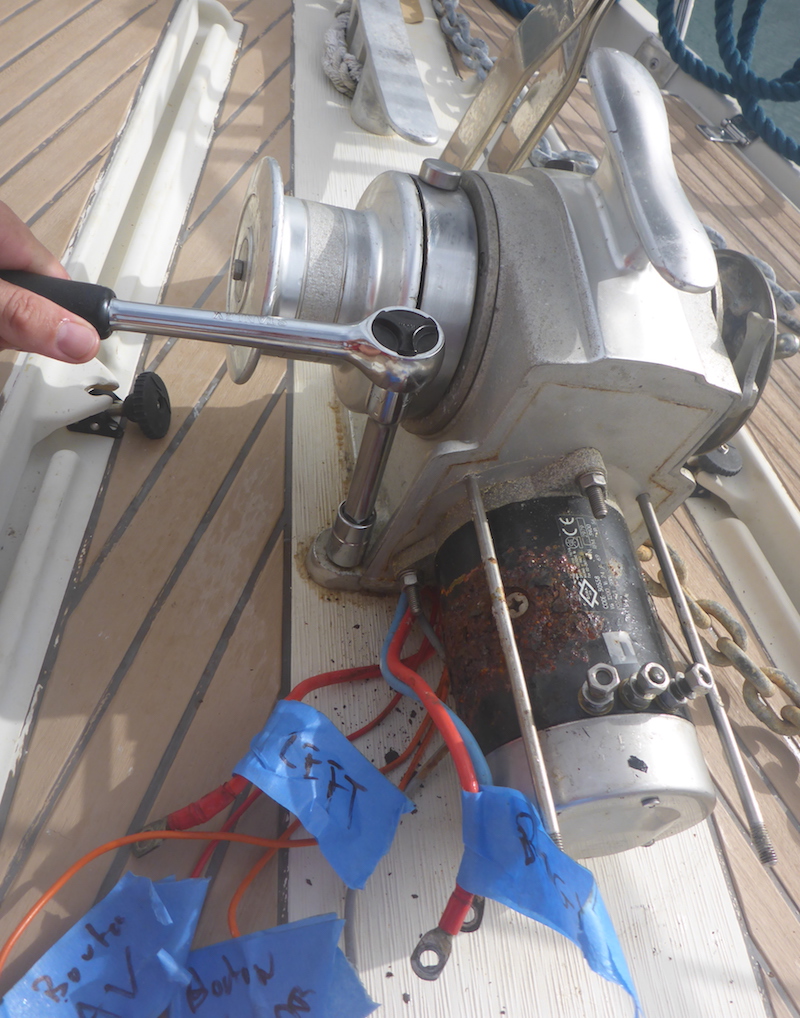

Now loosing the bolt holding the windlass from the deck

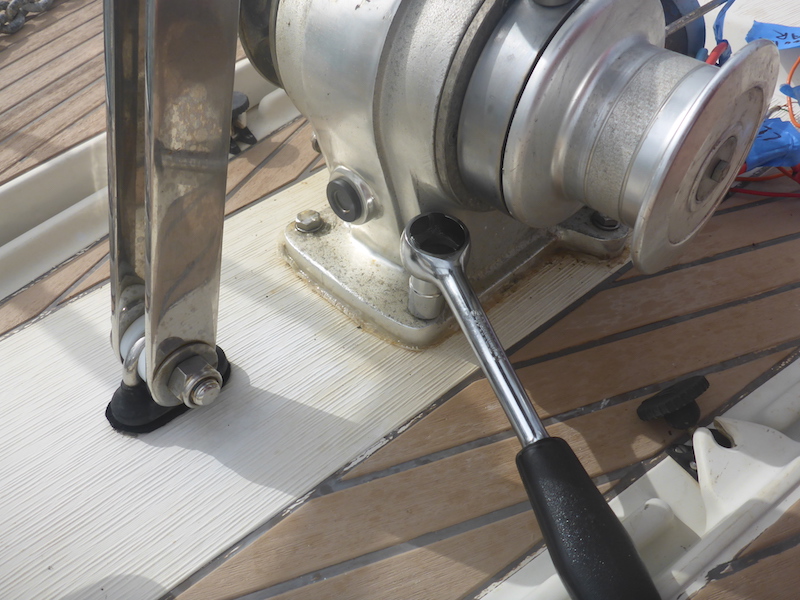

Picture 9
So far easy

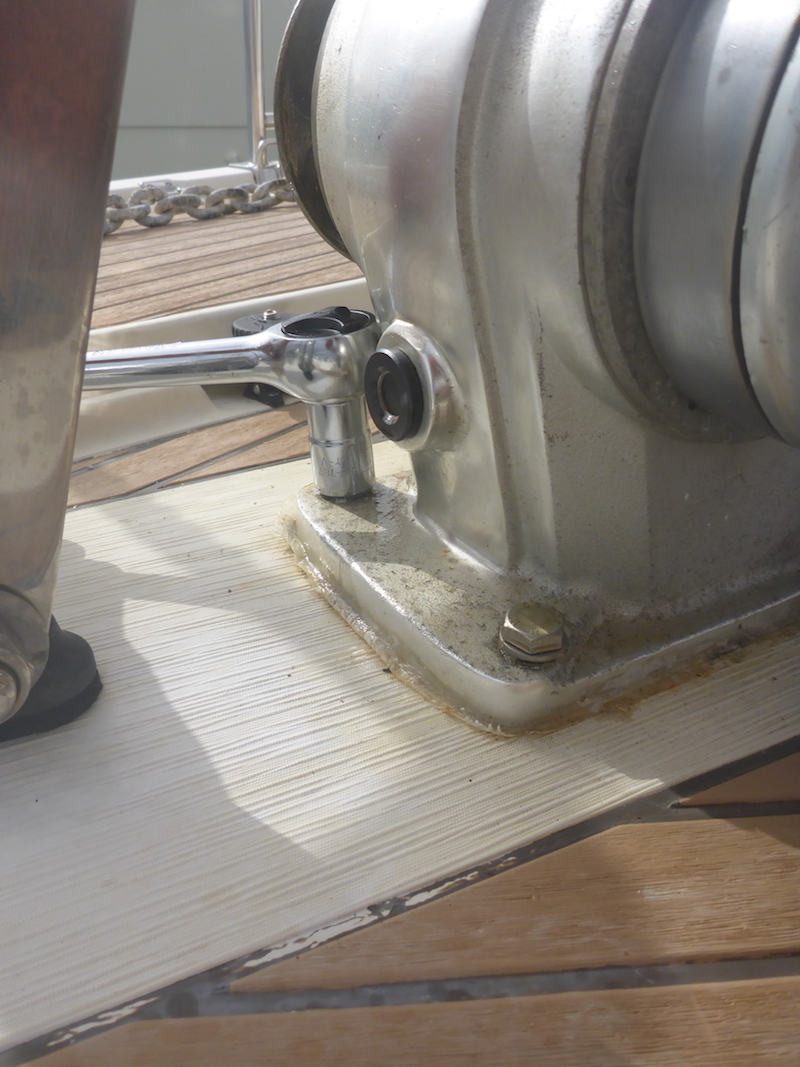

Picture 10
All going well

Picture 11

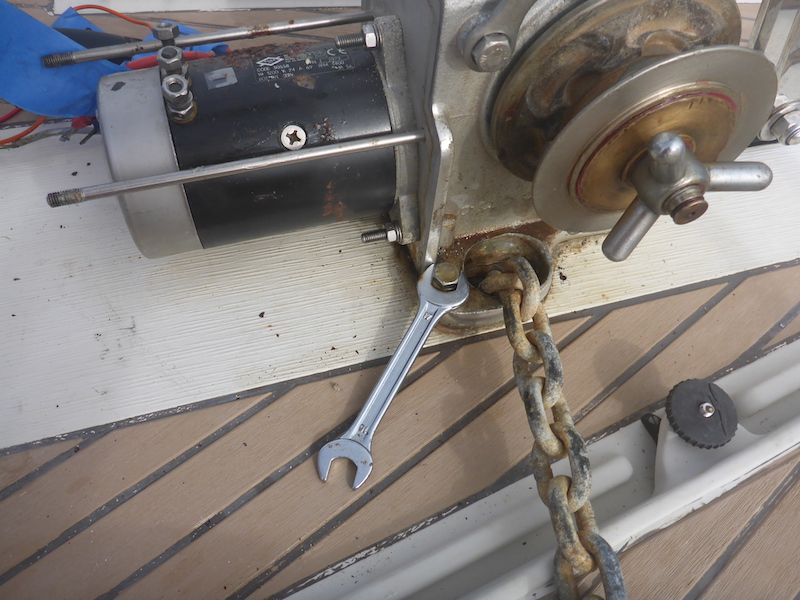

Socket will not fit - so use a wrench, but the bolt will not move

Note: this particular bolt will take me 4 hours to remove, here is how I did:

Note: during the whole process, I constantly apply penetrating oil (ZEP 45) and tries to unbolt it
Also used a hammer on top to try to loose it

Picture 12

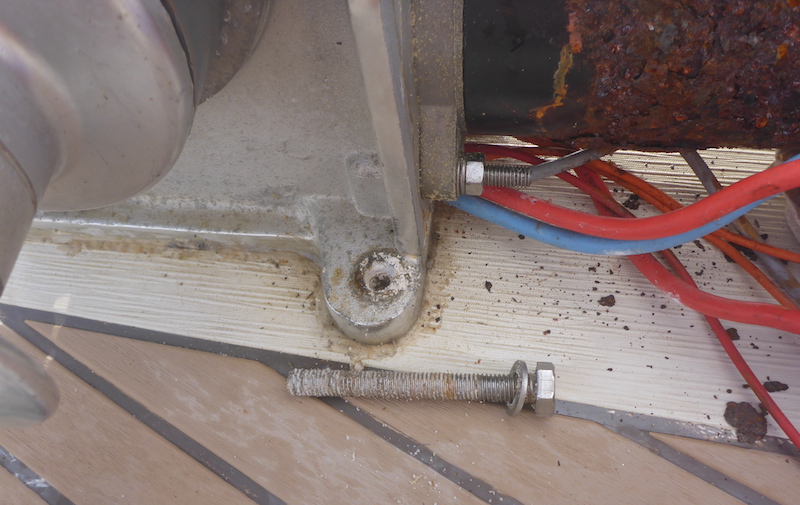

I removed the other bolt

Picture 13

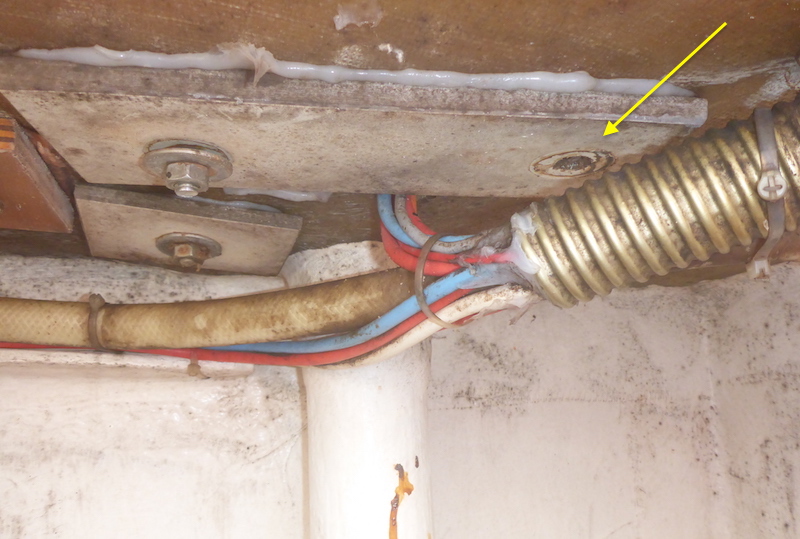

Accessing from the Port bow storage, you can see 3 nuts and washers
Note the right/aft nut and washer is removed already (yellow arrow)

Picture 14

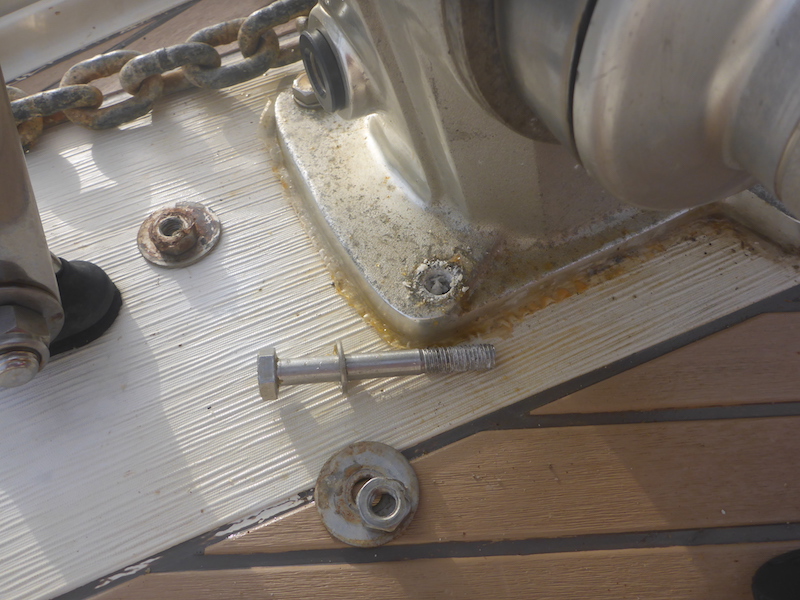

I had to first remove the nut and washer in the bow storage to remove completely the bolt

Picture 15

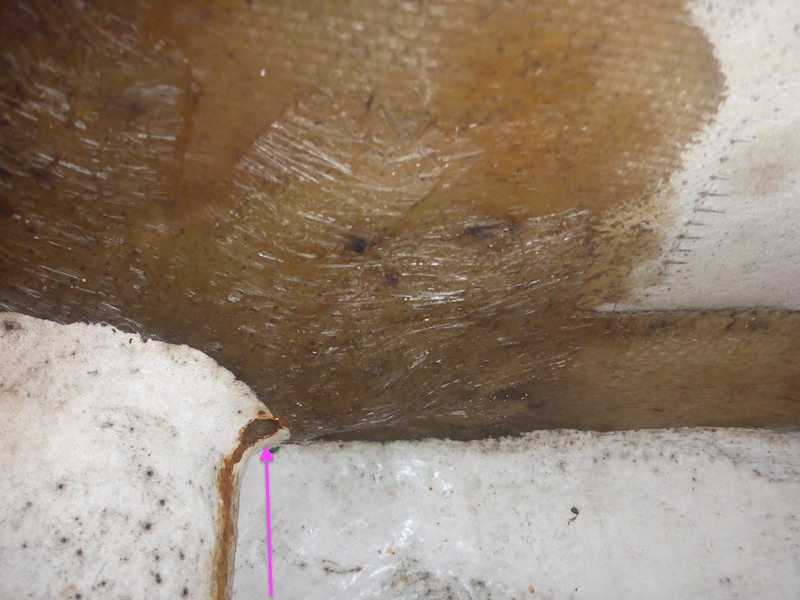

Unfortunately, on the stuck bolt there is no access to the nut as it is fiberglassed in... (Pink arrow)
Note: you can see some rust that went through

Picture 16

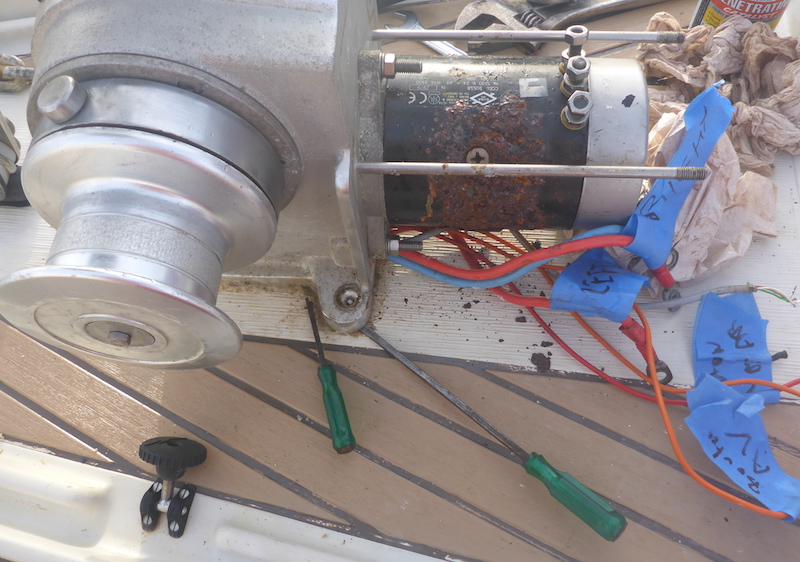

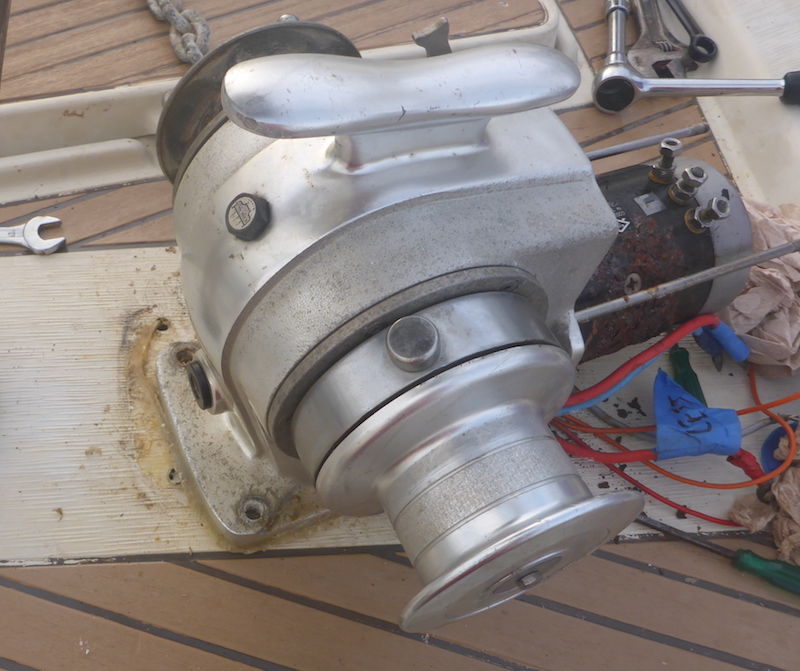

With screw driver I put some play

Picture 17
slowly was able to move side to side (really rotate around the stuck bolt) the windlass

Picture 18

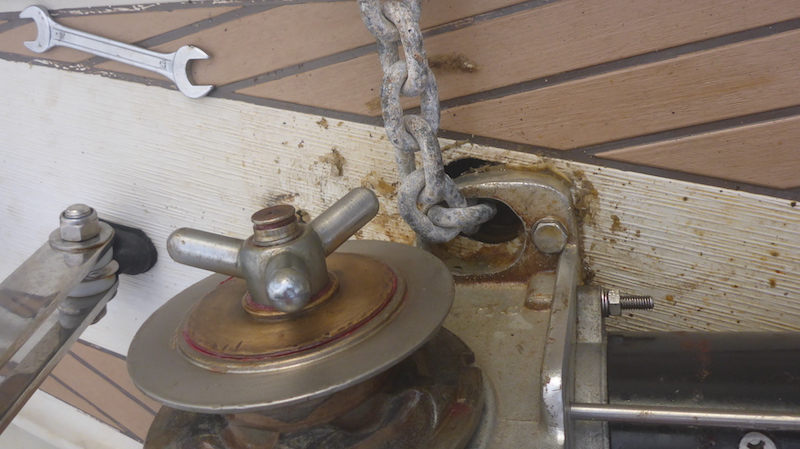

Unlike what I was expecting, the bolt was turning "with" the windlass.
So it was not stuck in the nut at the bottom, but stuck in the windlass at the top

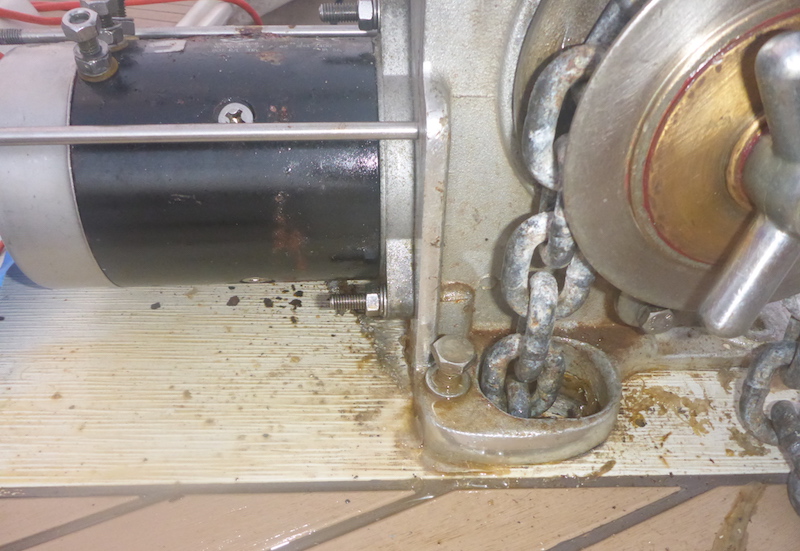

Picture 19
I secure the windlass back in place (using screw driver where the bolt were)
and added more and more penetrating oil, I also filled a little the windlass to be able to hammer in a socket

4 Hours after picture 11, the bolt is slowly getting loose
I later realize it was stuck because of "salt" built up

Picture 20

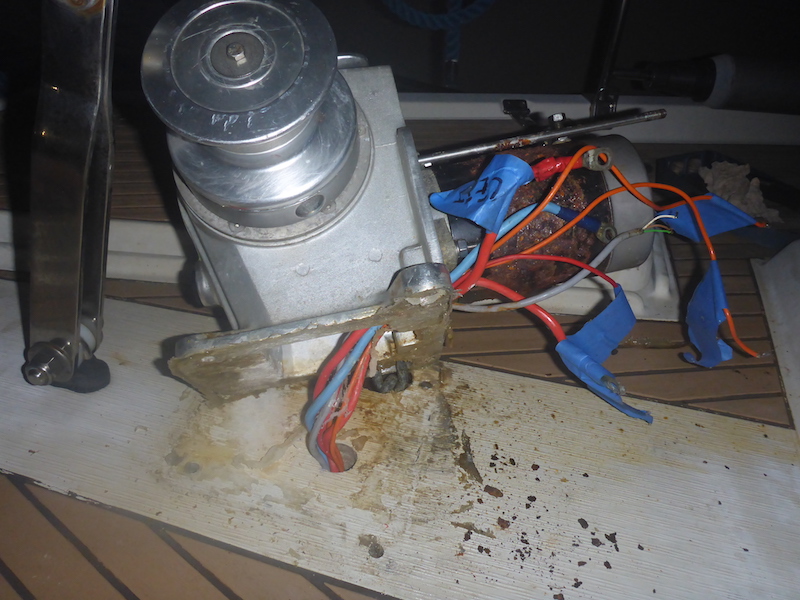

Finally it is off

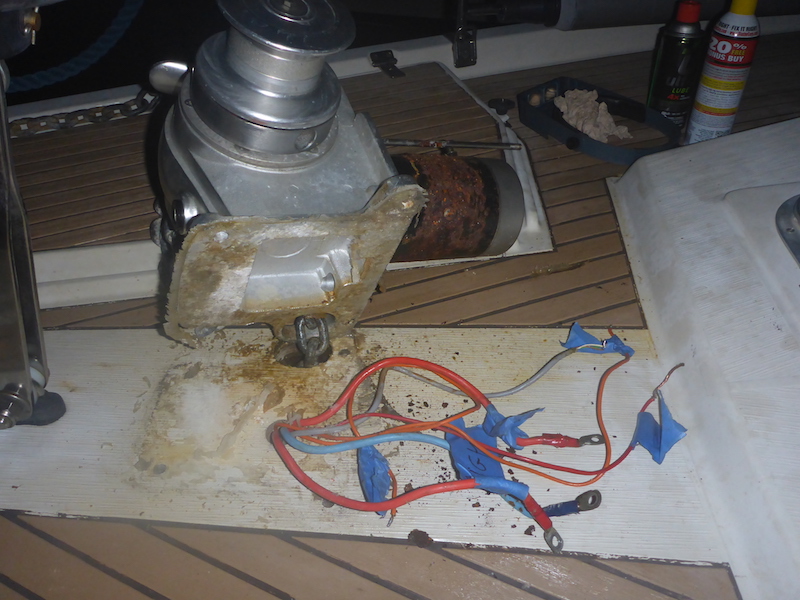

Picture 21
remove the wires

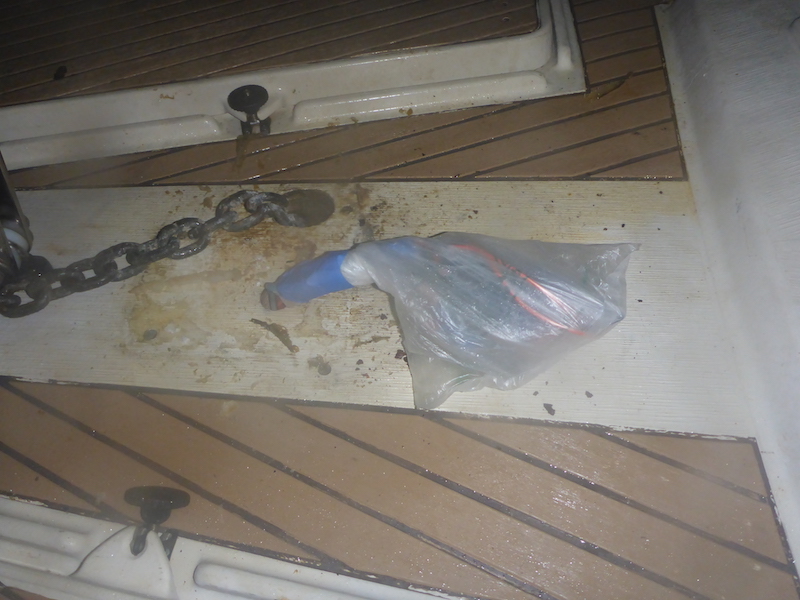

Picture 22
Protect the wires in plastic bags (I put 3 bags, each tape individually)
During the re-installation, I attach the chain to a fishing line
Much easier to manage than the heavy chain

Because of the stuck bolt, this whole process took 5 hours

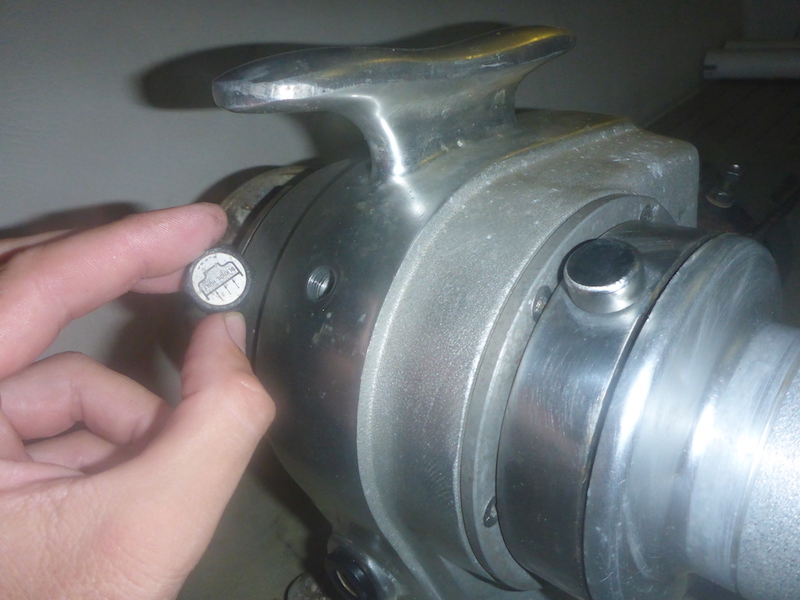

Picture 23
Remove the oil filler cap

Picture 24

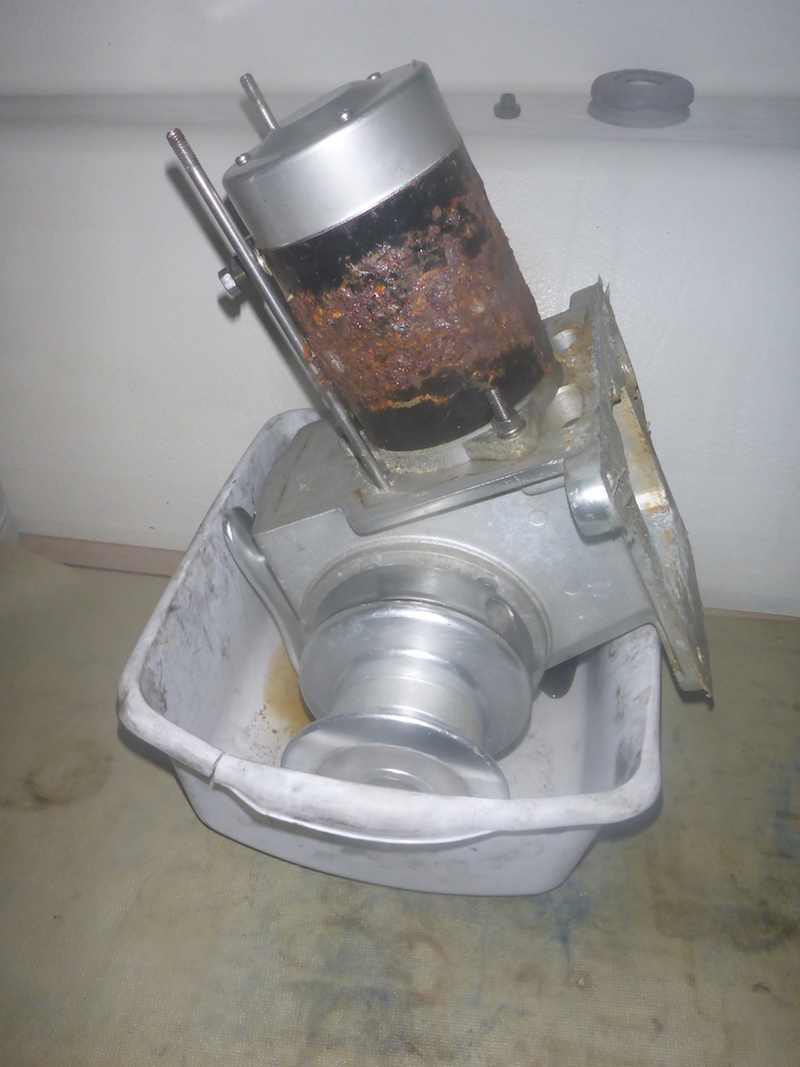

put upside down the windlass to let overnight the oil go

Next: Part 3 Extraction of the shove gipsy, gipsy / chain wheel and gipsy holder
