Lofrans Tigre Windlass Basic Maintenance Part 4: Reassembly of the drum, emergency wheel clutch plate and manual emergency wheel

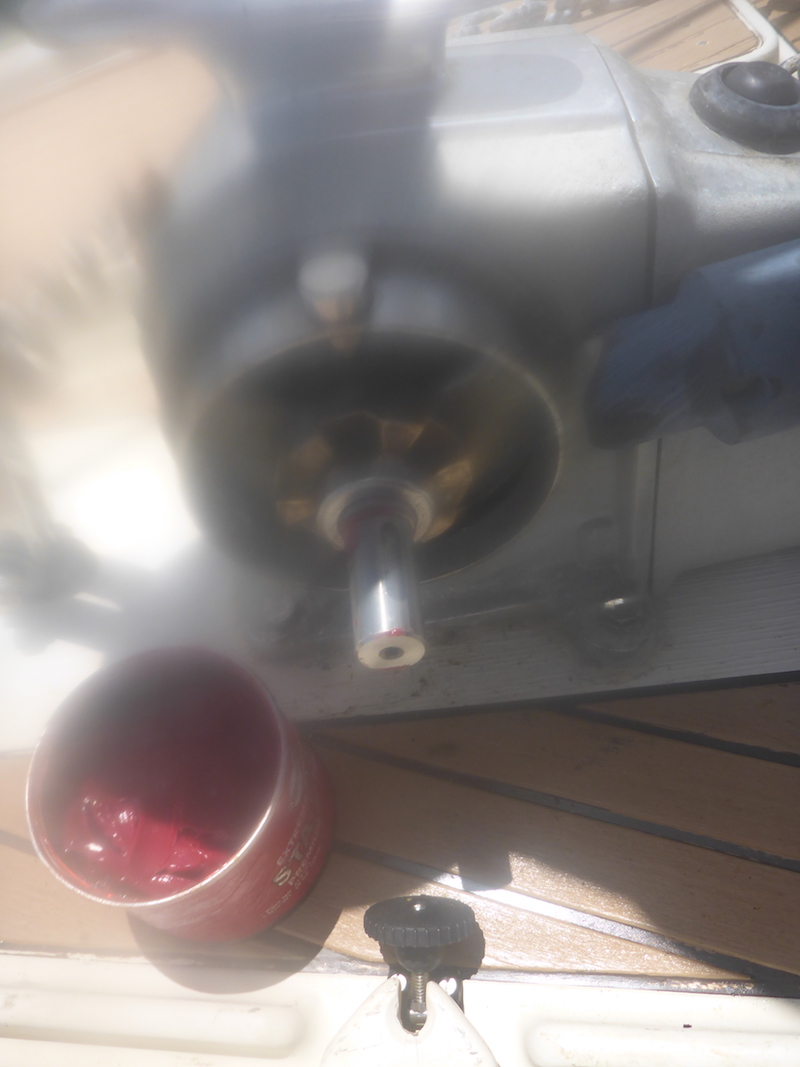

Sorry about the picture: I put marine grease on the main shaft
I also put grease on the manual emergency wheel to hold it washer

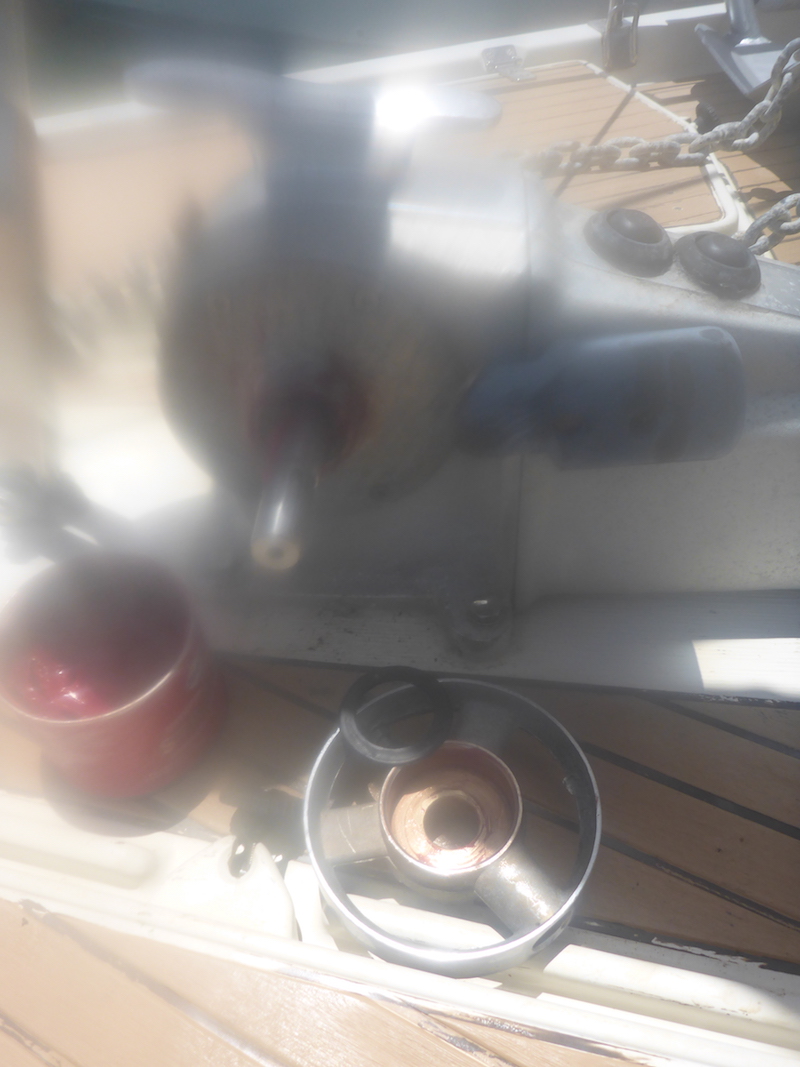

put back the manual emergency wheel

put back the key on the main shaft

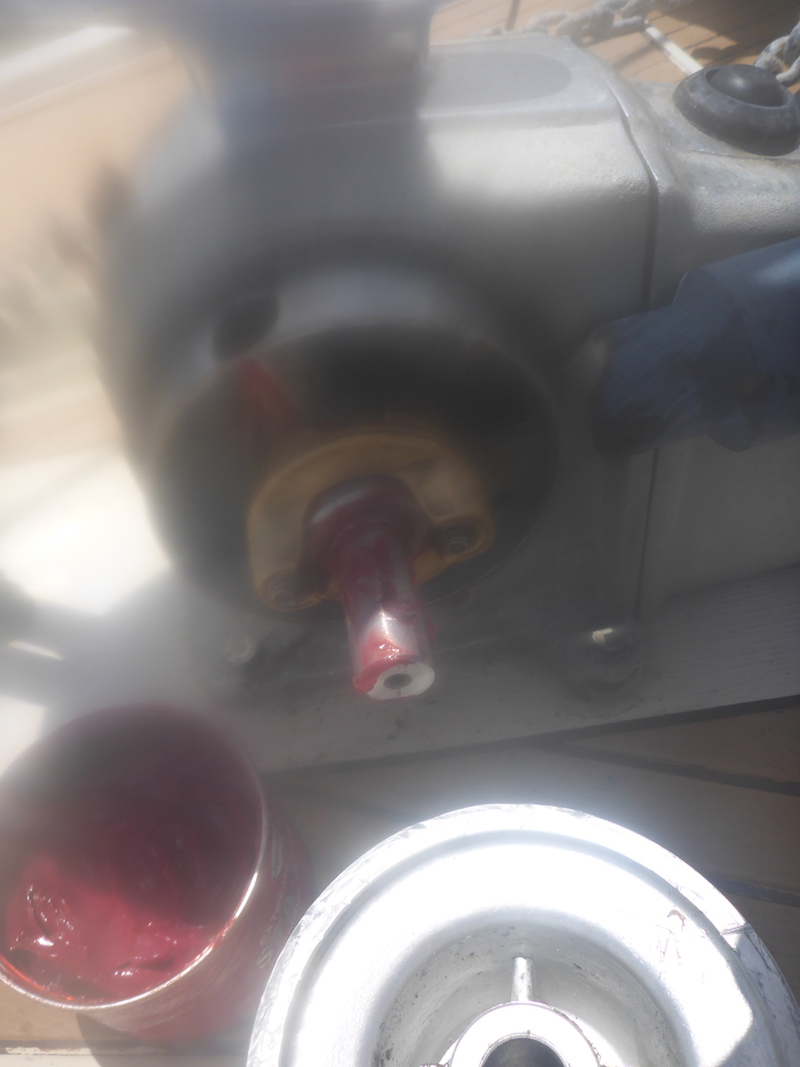

look carefully at the emergency wheel clutch plate and the drum
the spring must position on the matching part on the drum

putting back the emergency wheel clutch plate, then the drum (making sure the spring are at the right position)

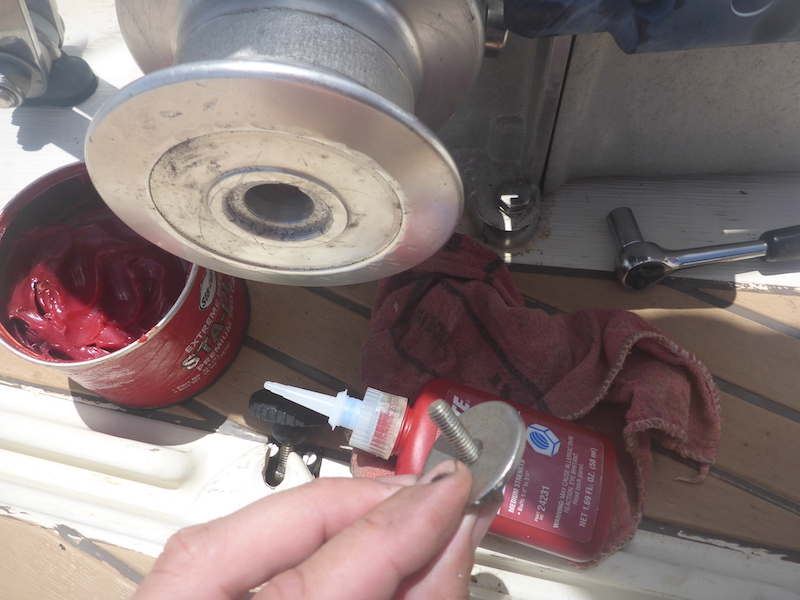

I used locktite to secure the bold in place

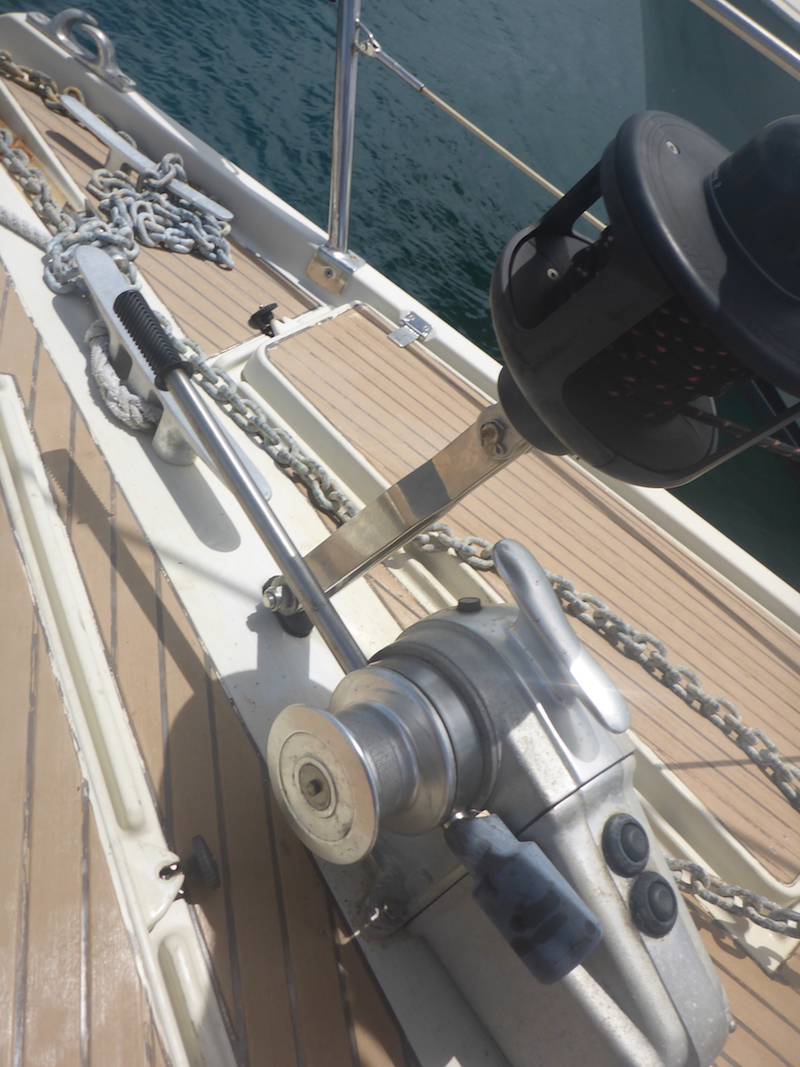

Port side done

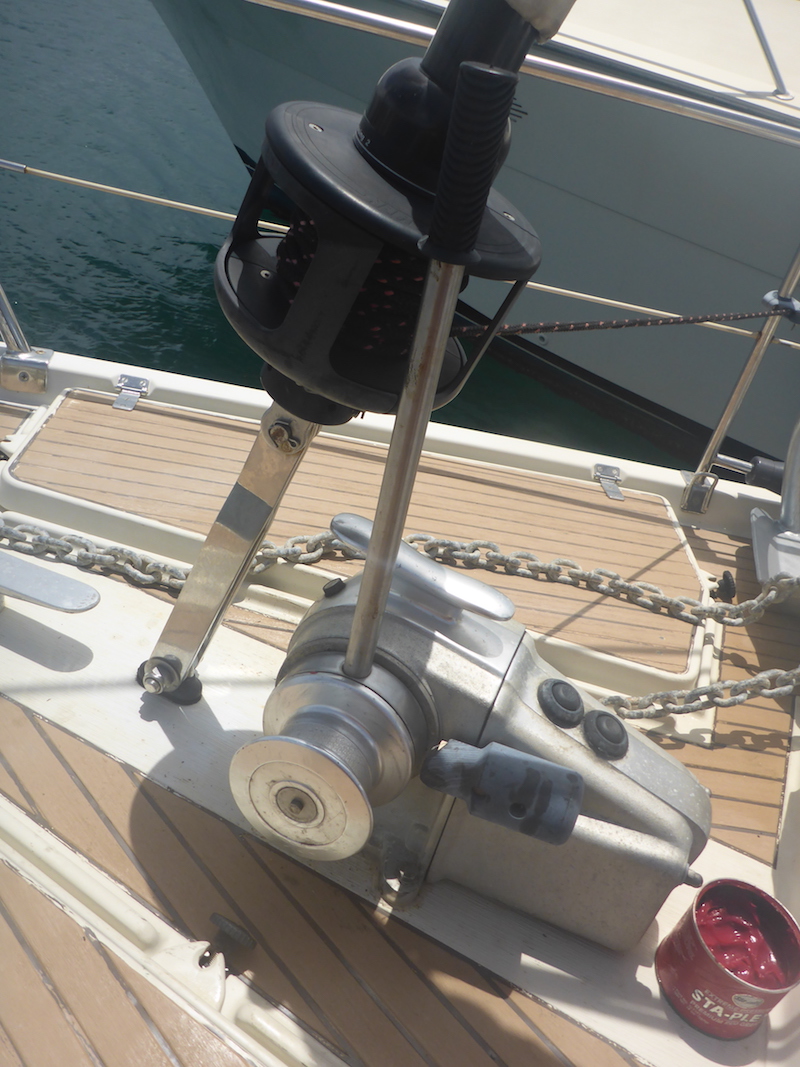

I made sure the emergency handle worked as supposed
I suggest making a full turn (so that the location of the key on the main shaft will be position up)

Next: Part 5 Reassembly of the drum, emergency wheel clutch plate and manual emergency wheel
