Amel Super Maramu 2000

Lofrans Tigres Windlass Overhaul Part 23: 19 Pictures from 209 to 217 Installing new Chain Counter "Eye"/sensor on Cover

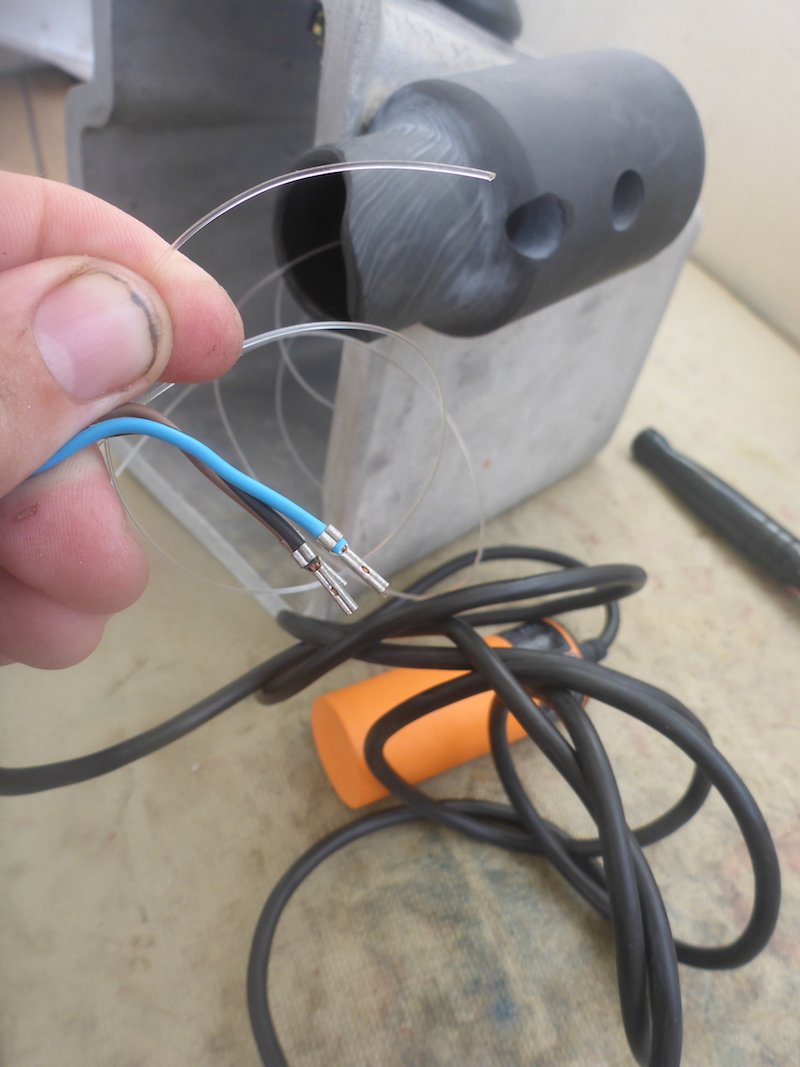

Picture 209
Now using my fishing messenger line

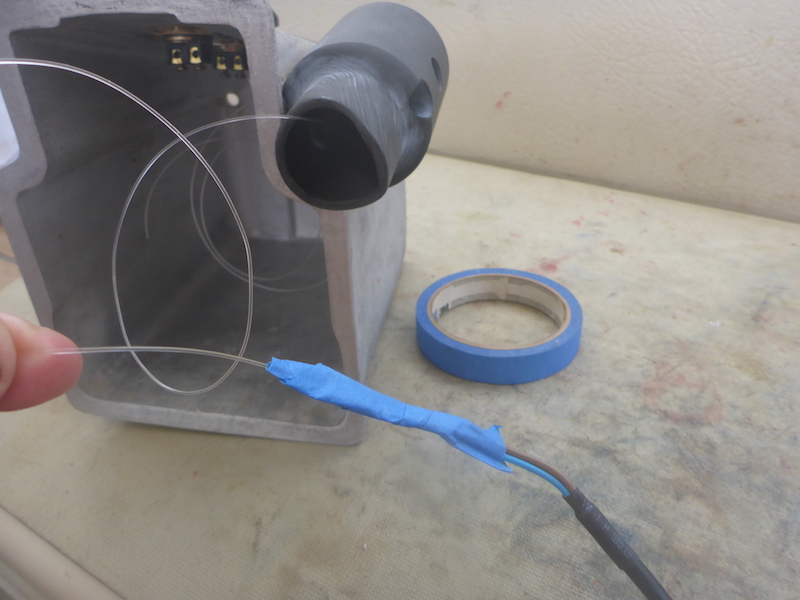

Picture 210

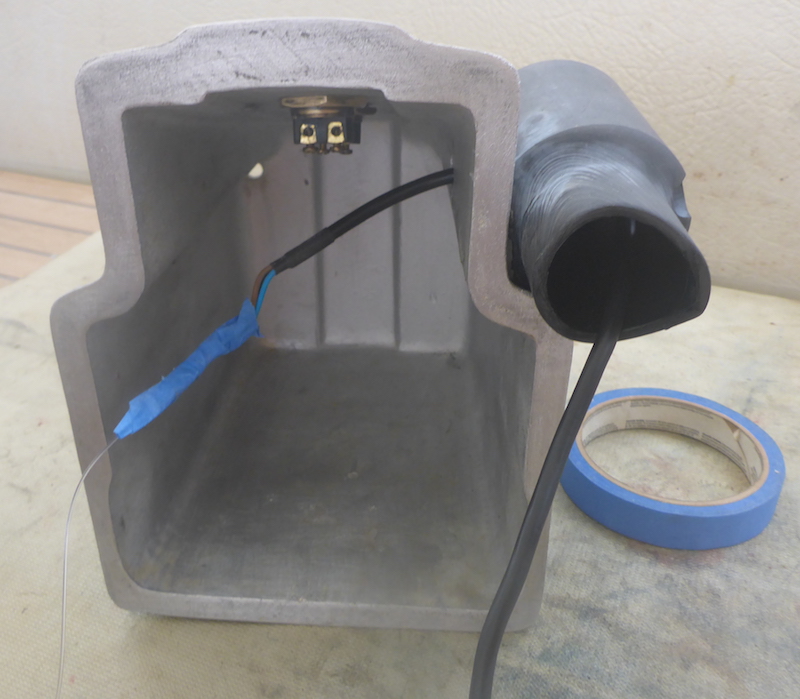

blue tape the electric wire of the chain counter "eye"

Picture 211
Passes through

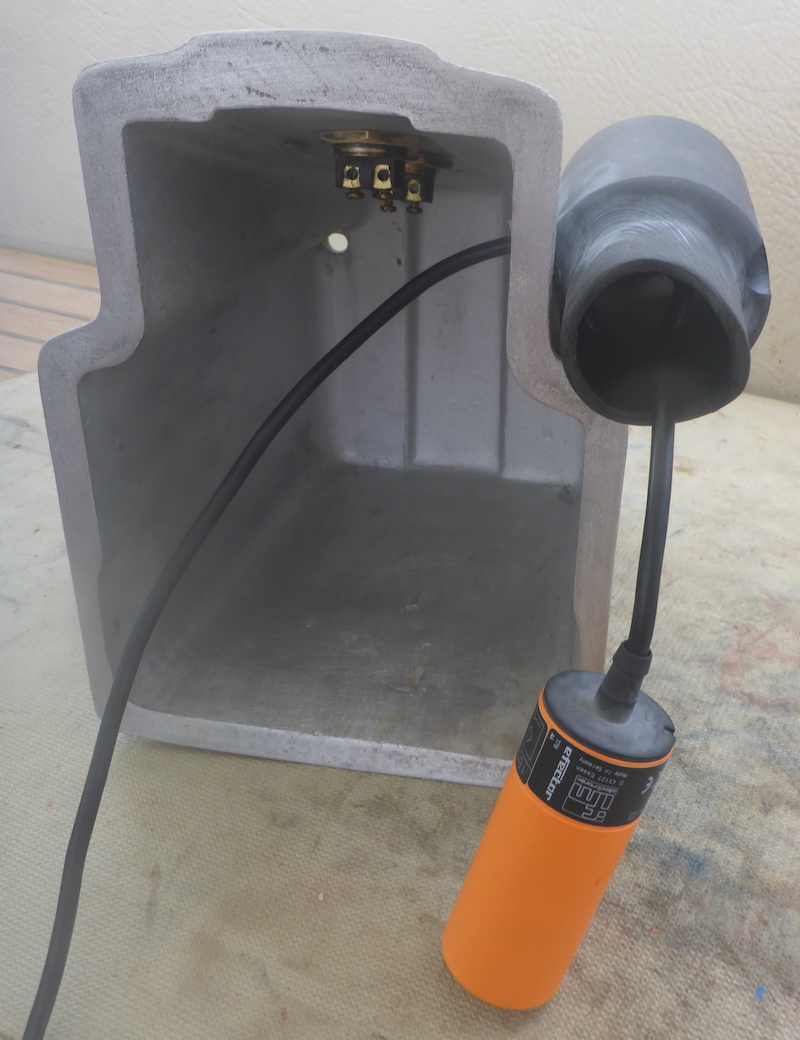

Picture 212
here comes the eye

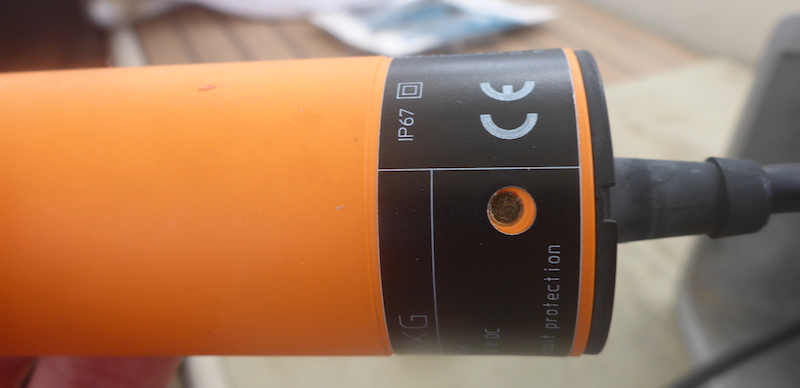

Picture 213
This LED will show if the chain counter sensor is working correctly

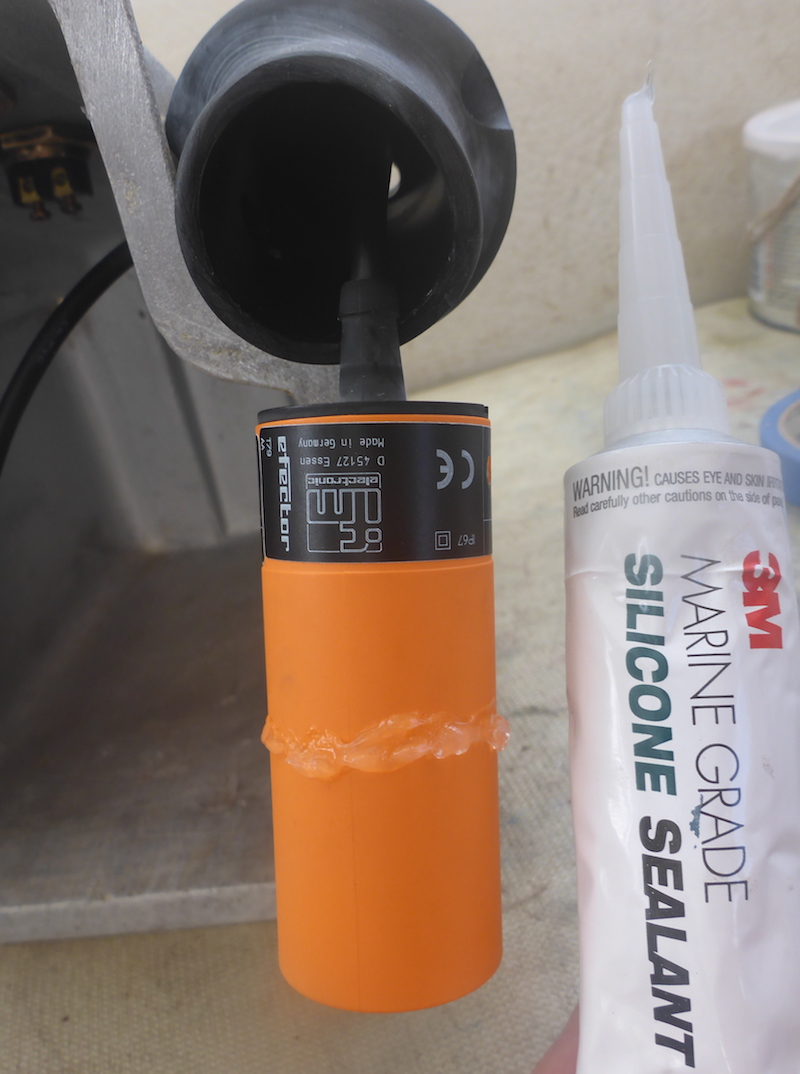

Picture 214
It is simply hold with silicone - I end up putting more than this

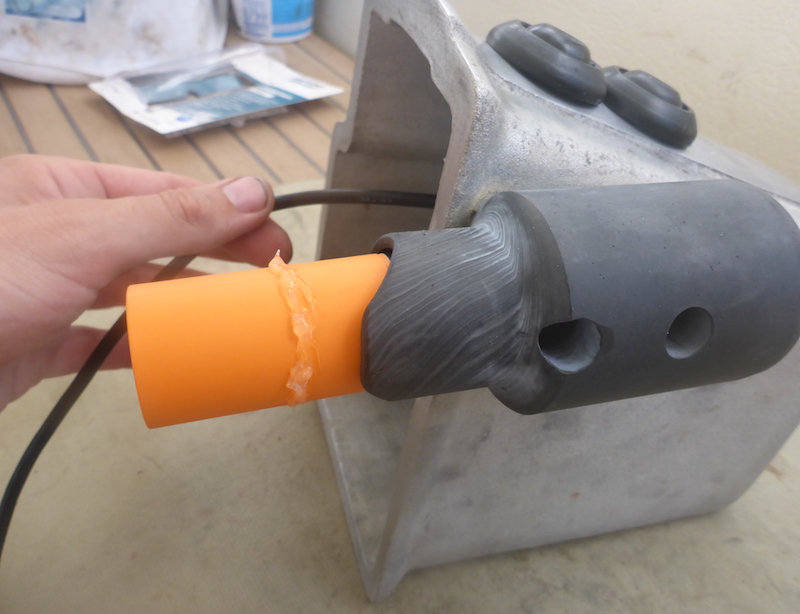

Picture 215
Push in while gently pulling the wire

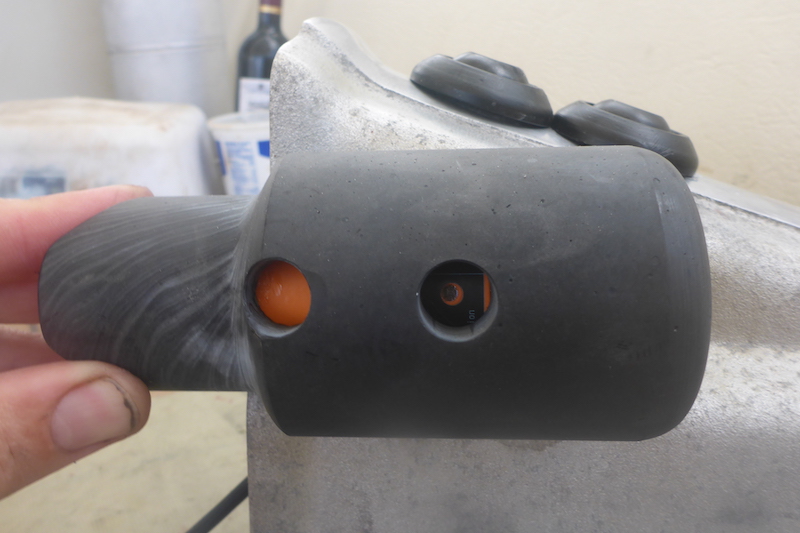

Picture 216
Align with the hole

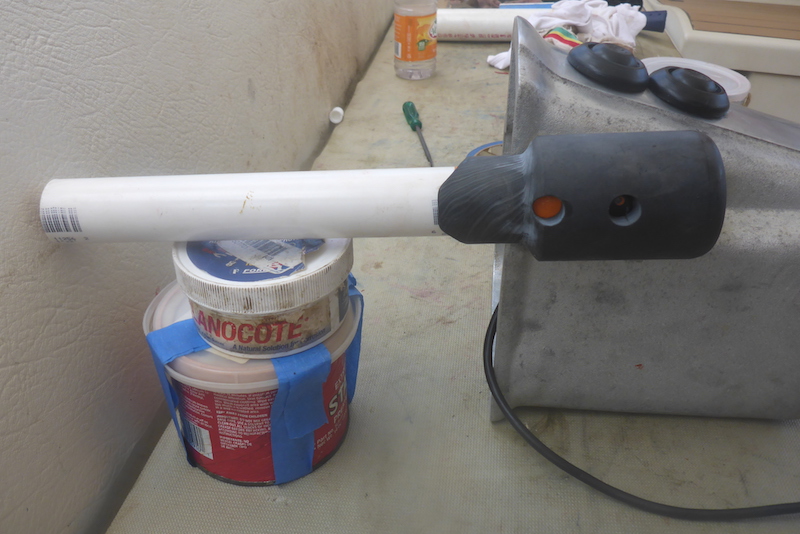

Picture 217
Little system to hold it in place while the silicone is drying

Next: Part 24 Preparing and bolting the Windlass on Deck
