Amel Super Maramu 2000

Lofrans Tigres Windlass Overhaul

Part 3:

8 Pictures from 25 to 32

Extraction of the shove gipsy, gipsy / chain wheel and gipsy holder



Pictures 25 to 32 are similar to the below links, a little less detailed.
Also was smoother and done in half an hour as opposed as 4 hours.

Extraction of the shove gipsy, gipsy / chain wheel and gipsy holder

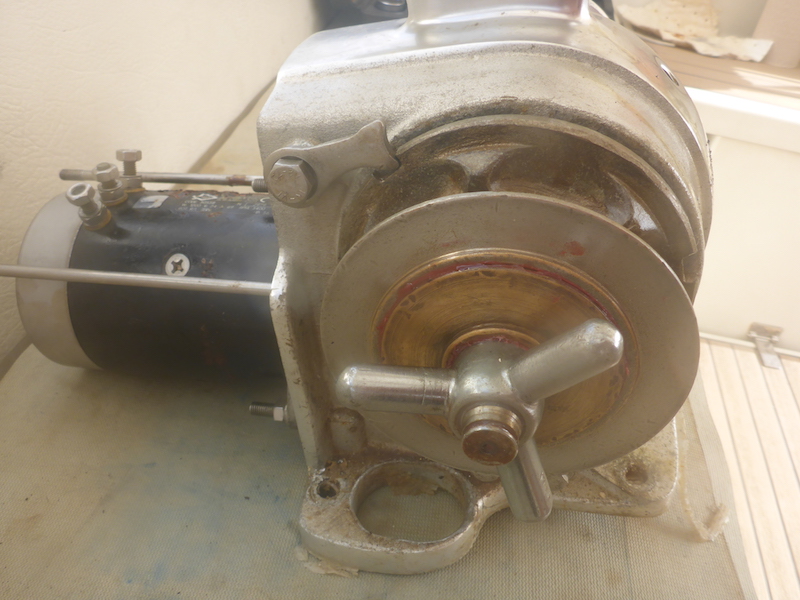

Picture 25
use a 17 mm socket to lock the gipsy stopper into a gipsy border socket
 windlass lofrans tigres overhaul Amel Super Maramu 2000

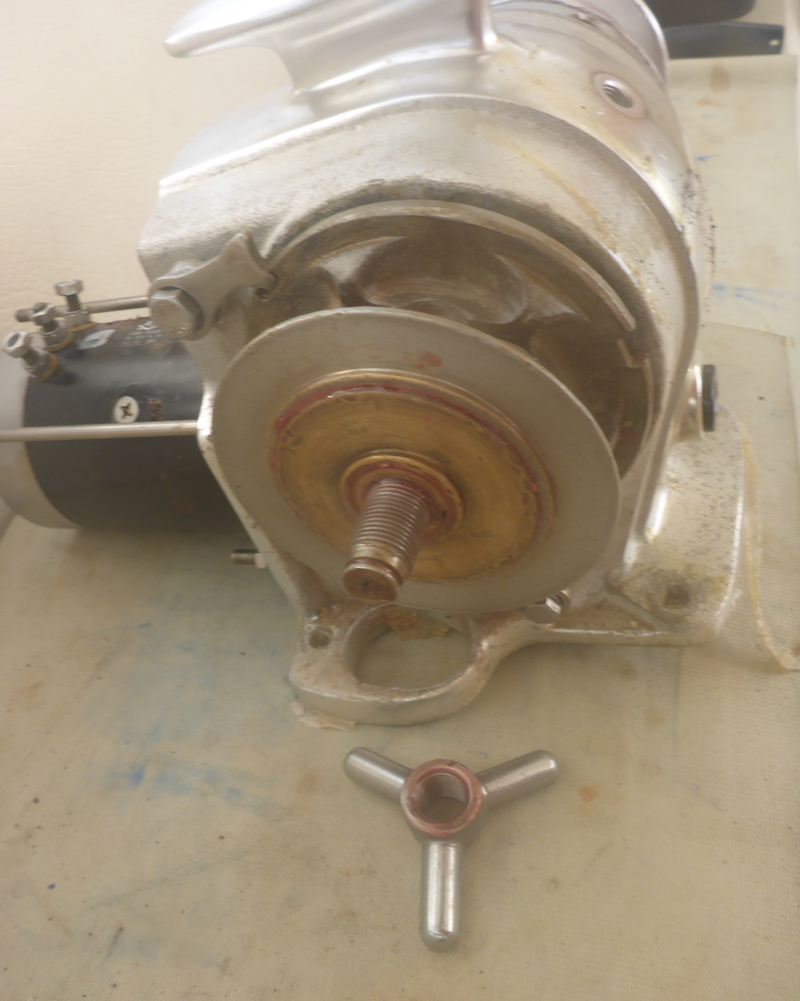

Picture 26
unscrew the wingnut
 windlass lofrans tigres overhaul Amel Super Maramu 2000

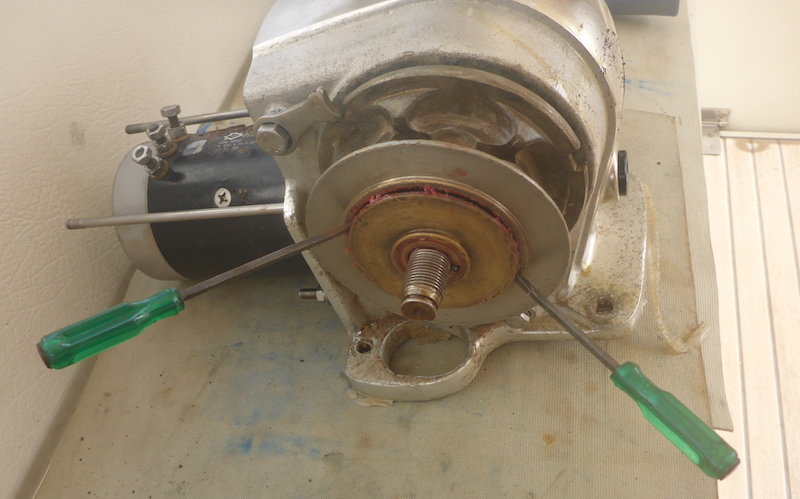

Picture 27
extract the shove gipsy
 windlass lofrans tigres overhaul Amel Super Maramu 2000

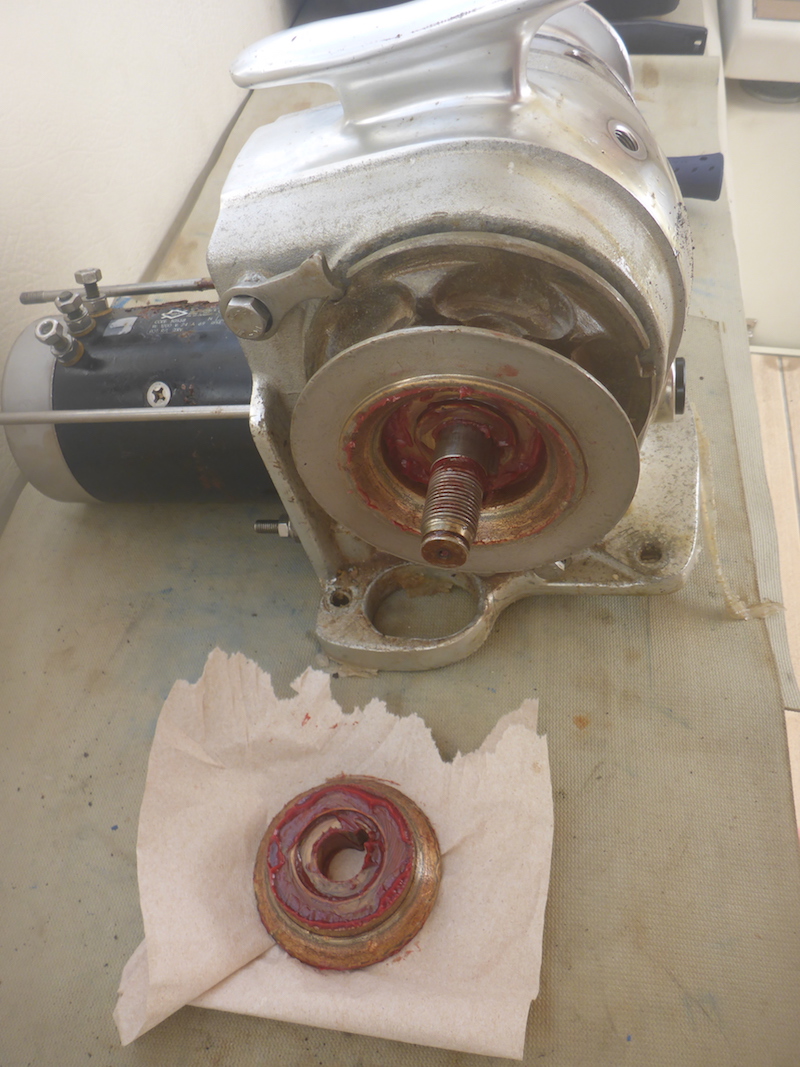

Picture 28
shove gipsy is out
 windlass lofrans tigres overhaul Amel Super Maramu 2000

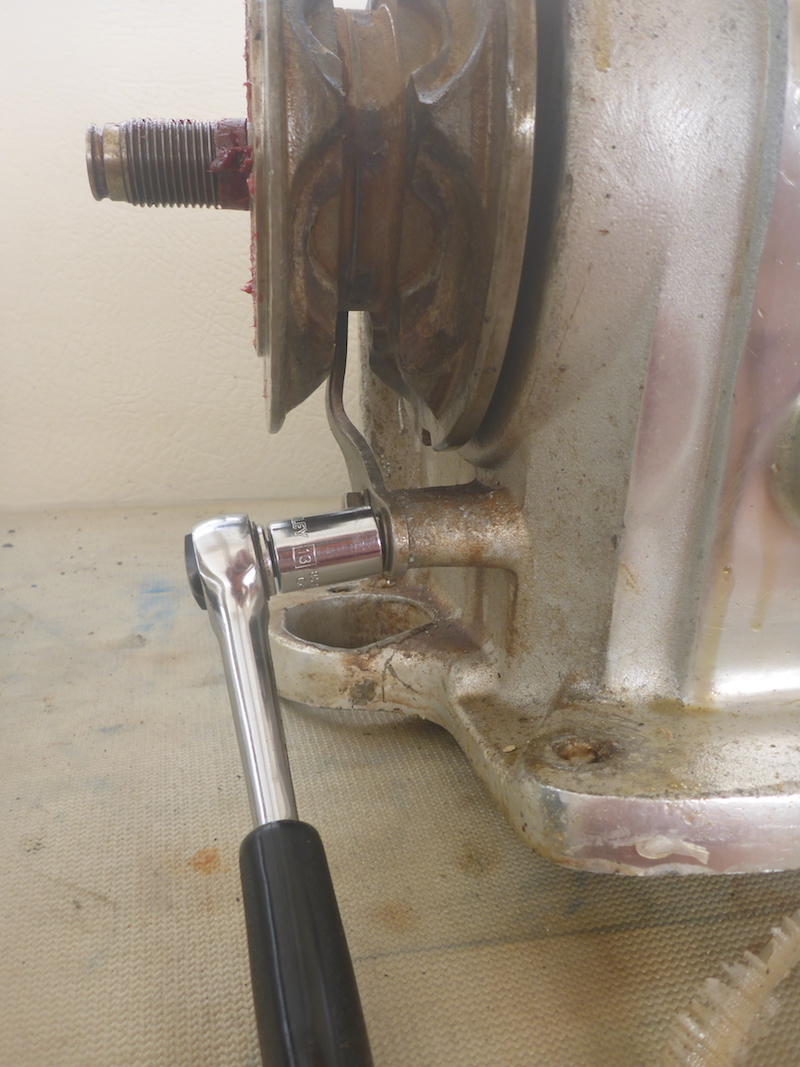

Picture 29
using a 13 mm socket unscrew bolt, remove washer and stripper
 windlass lofrans tigres overhaul Amel Super Maramu 2000



Picture 30
bolt and stripper out
 windlass lofrans tigres overhaul Amel Super Maramu 2000

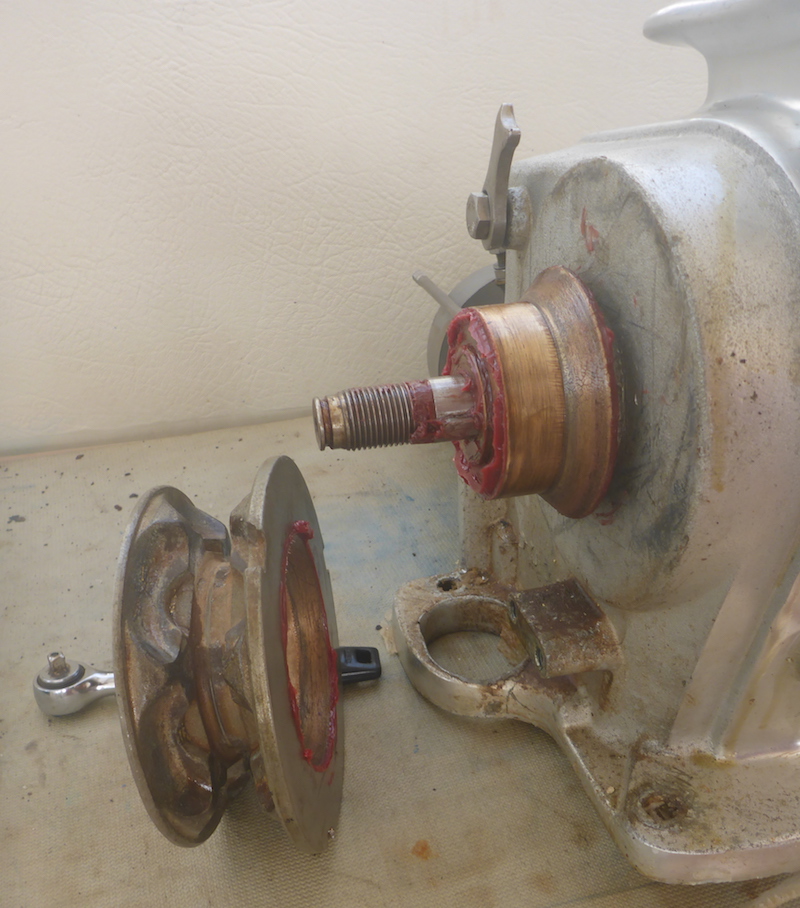

Picture 31
remove the gipsy/chain wheel
 windlass lofrans tigres overhaul Amel Super Maramu 2000

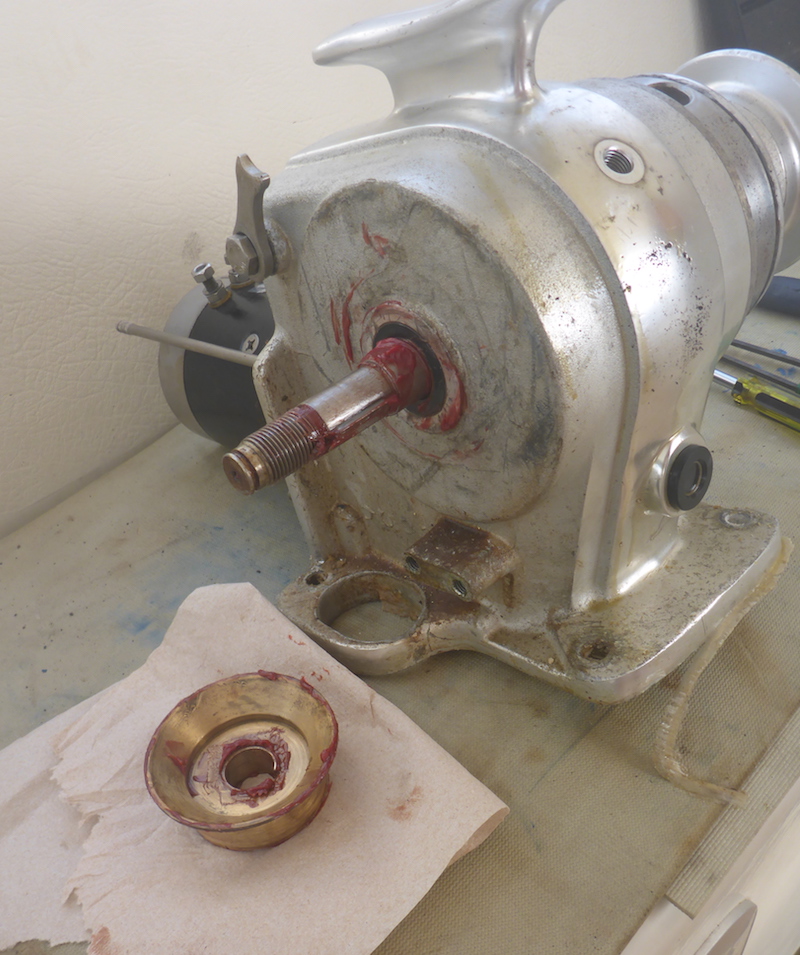

Picture 32
remove the gipsy holder

Picture 39 should be here as I remove the key from the shaft

 windlass lofrans tigres overhaul Amel Super Maramu 2000



Next: Part 4
