Amel Super Maramu 2000

Broken Boom Car Replacement Replacement Chariot de Bome Grand Mat

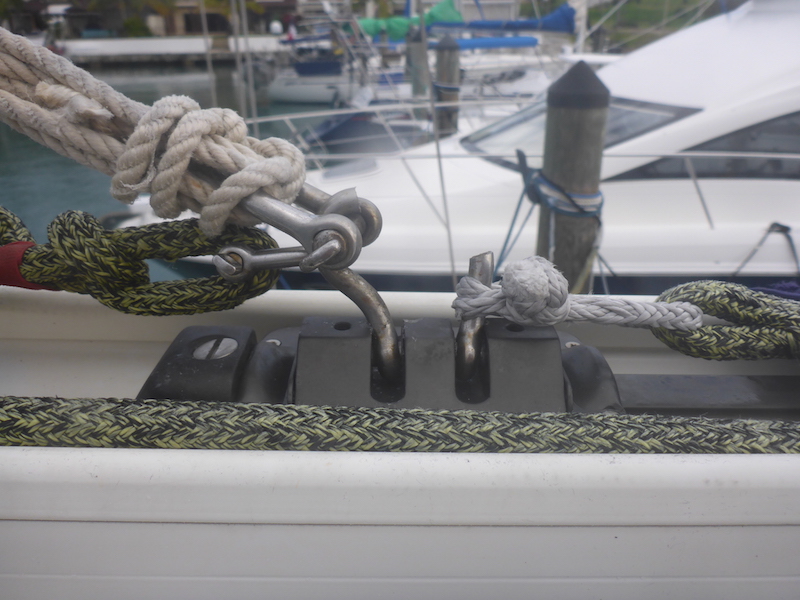

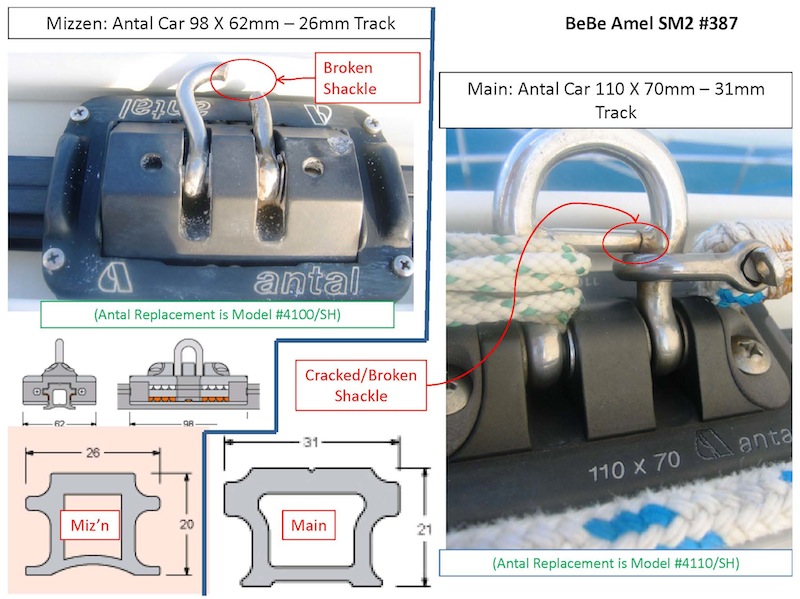

Pictures of another Amel Super Maramu (BeBe #387) showing a broken car which has the connection broken.

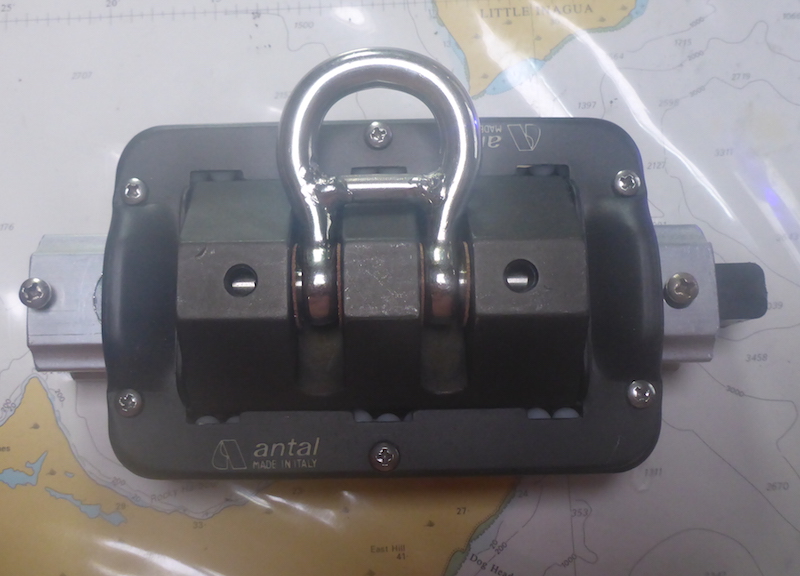

Spare with the modified reinforcement (Main only) on rail.

Replacement

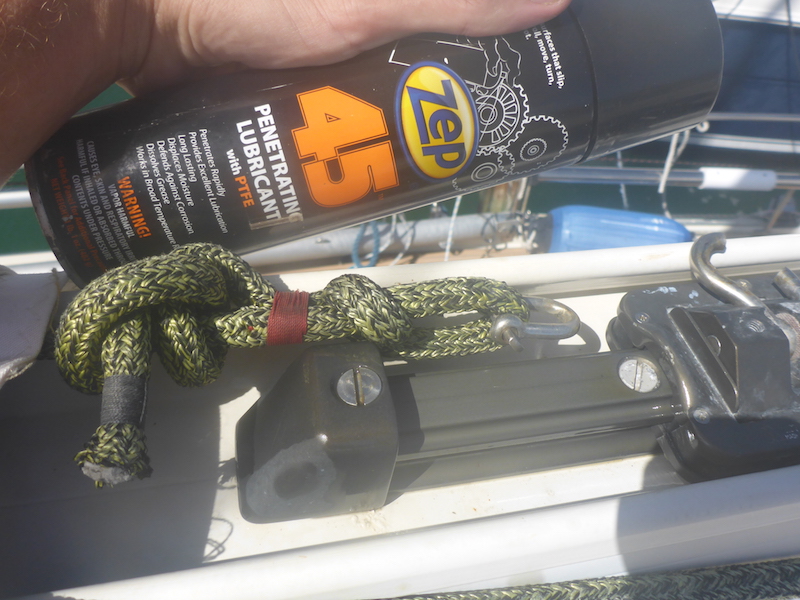

I put ZEP 45 (Penetrating oil) and let it soak

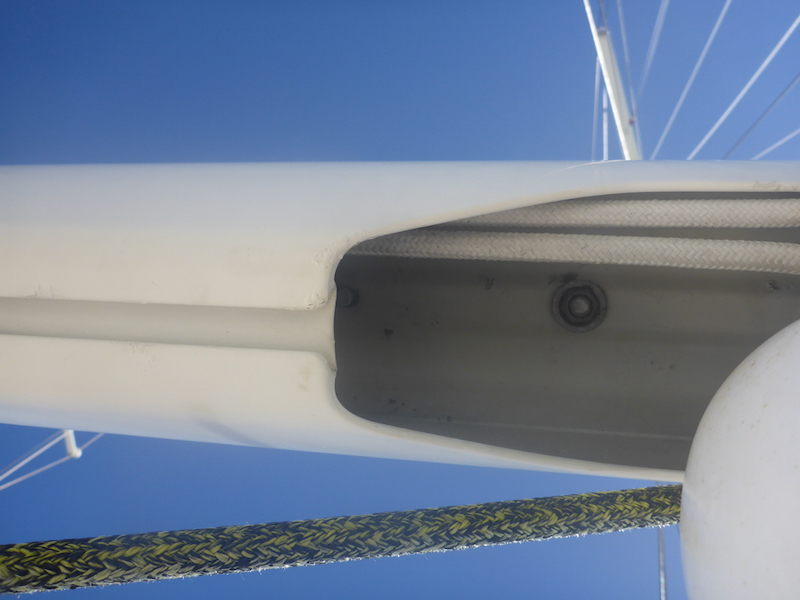

Under the Boome you will see a 13 mm nut

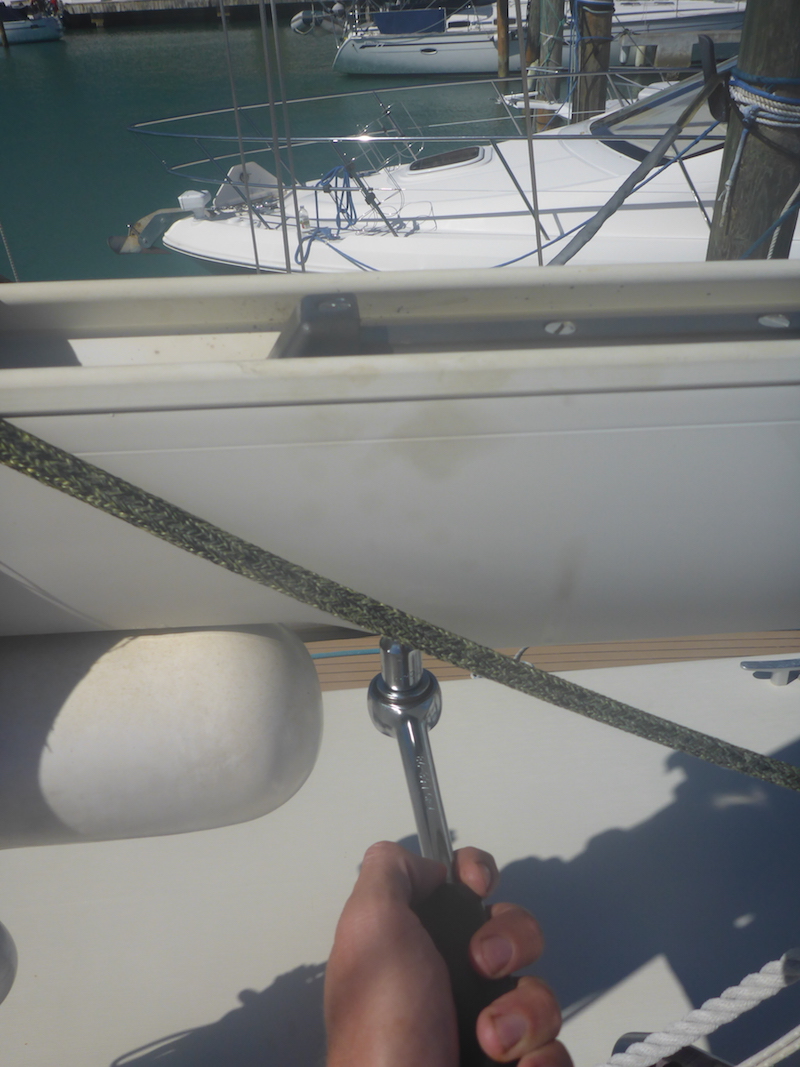

Will need a wrench and extension with the 13 mm socket

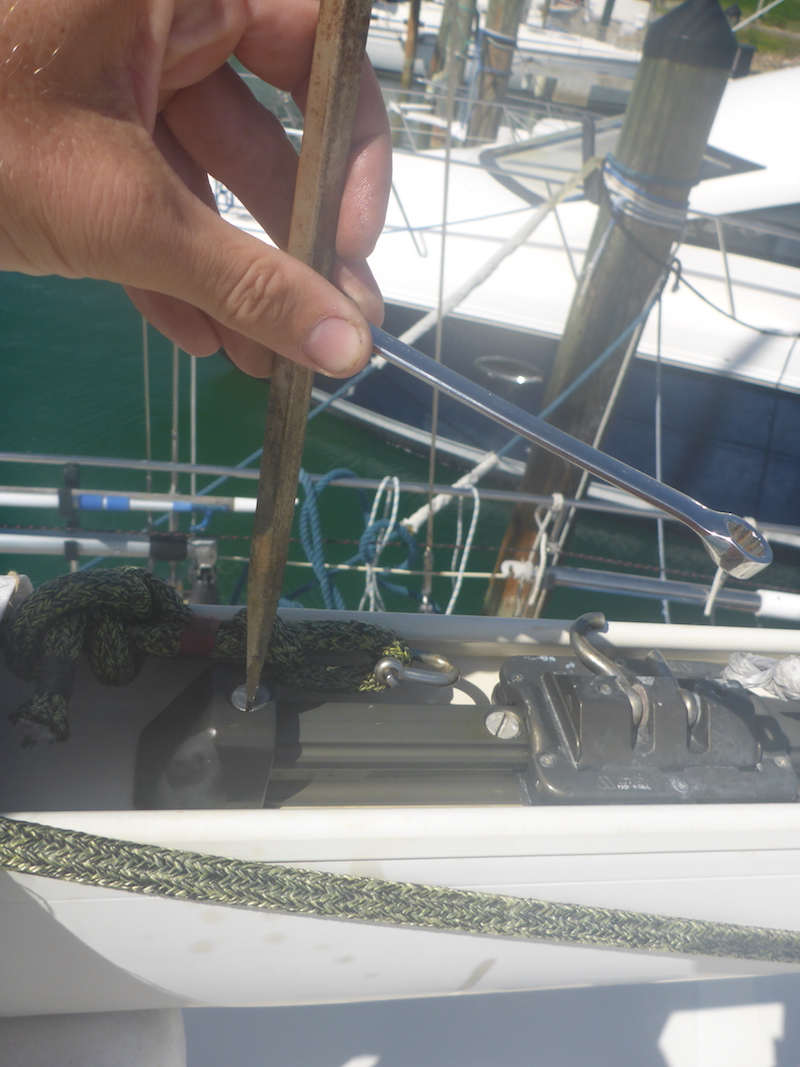

Large screw driver on top

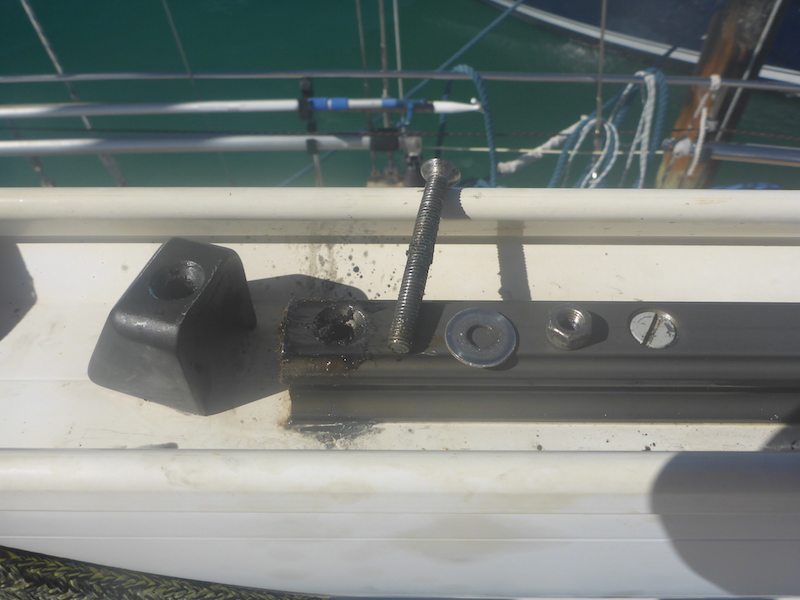

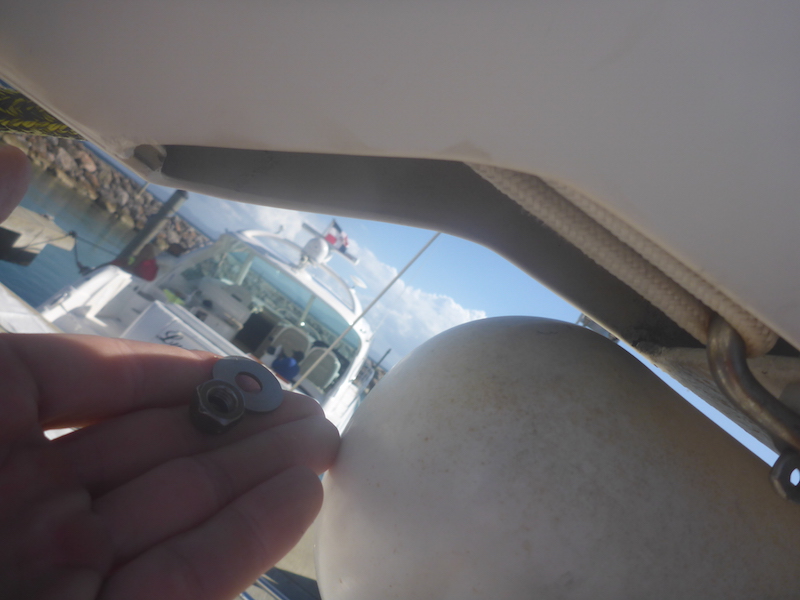

Removed, showing the washer and nut from under the boom

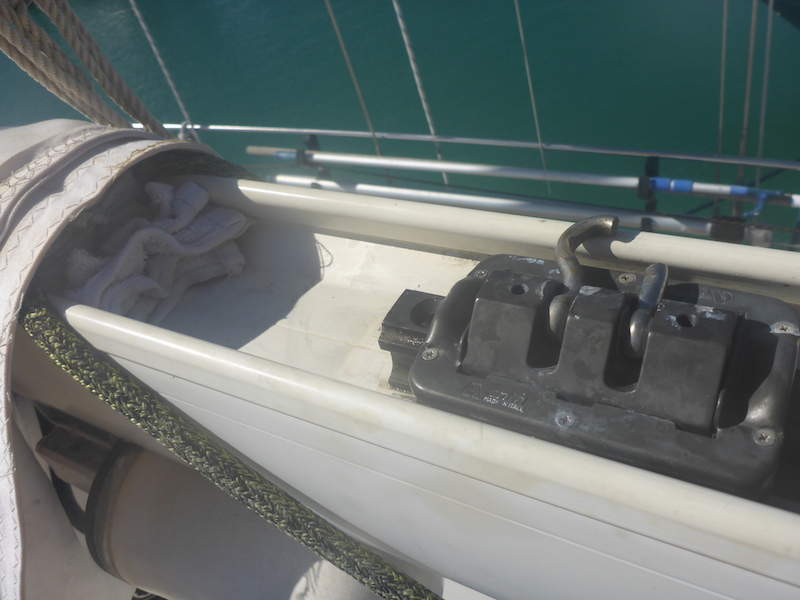

To prevent to loose the balls from the car, I put a rag

Of course, the balls went to the other side

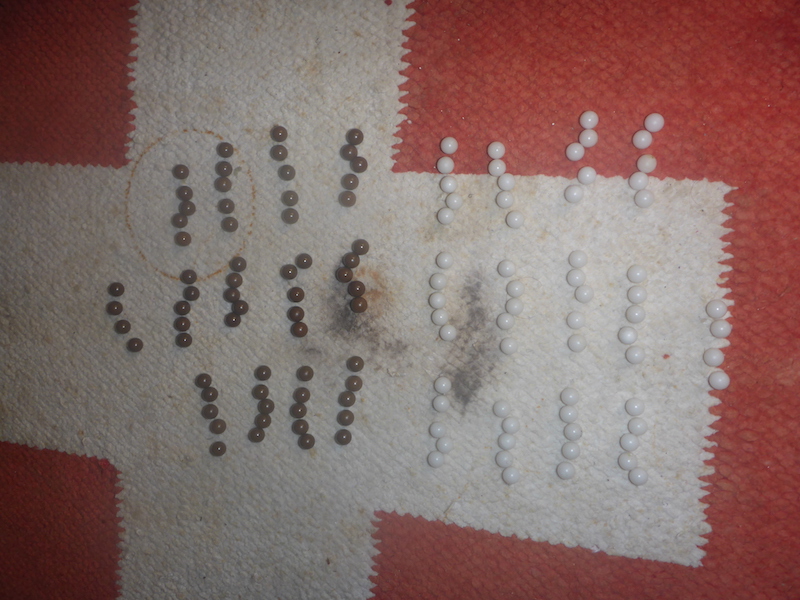

Counted 64 brown and 64 white balls

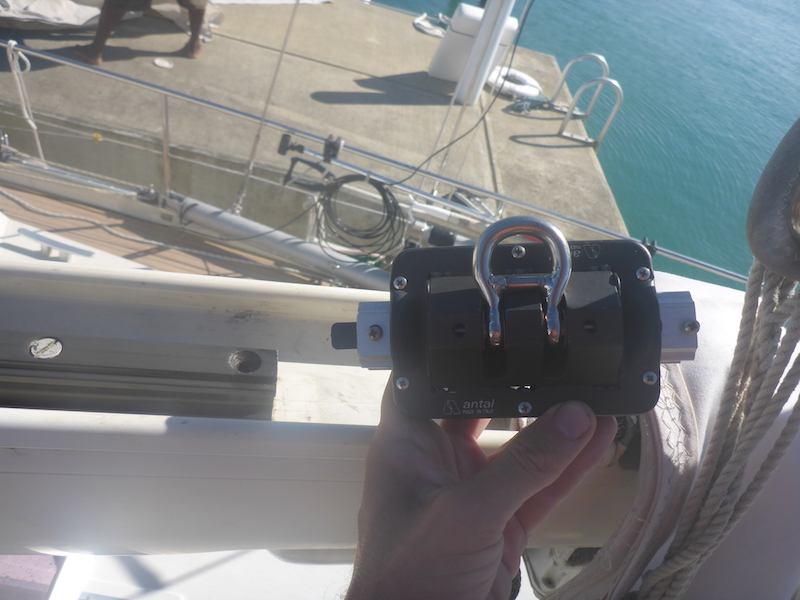

New car on its extension

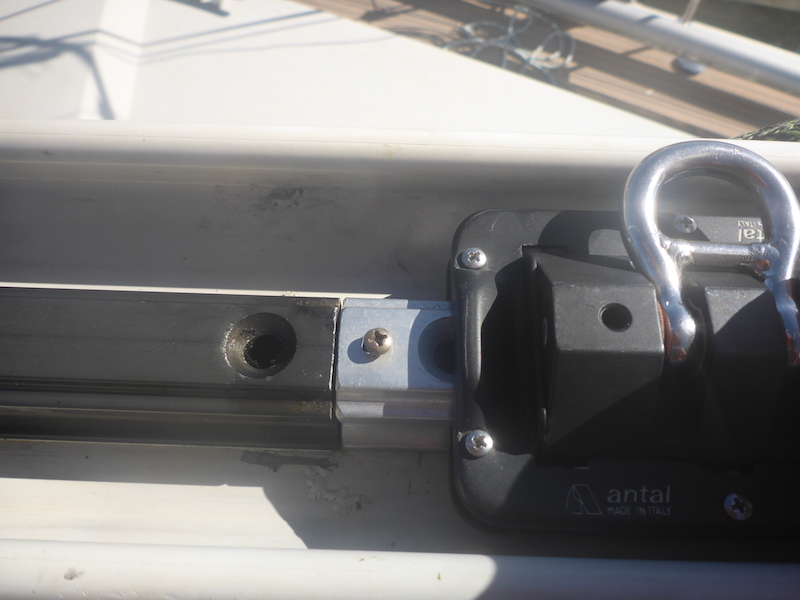

Connect the 2

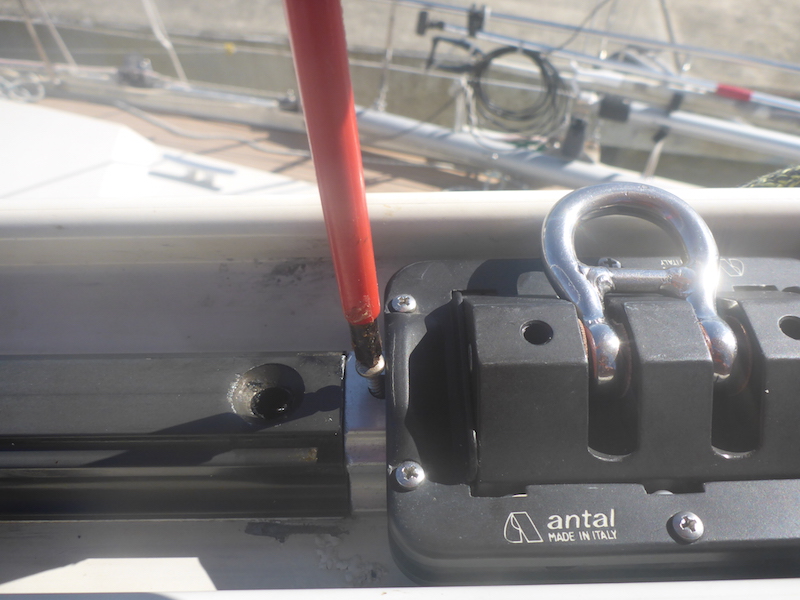

Unscrew the screw to allow the new car to slide

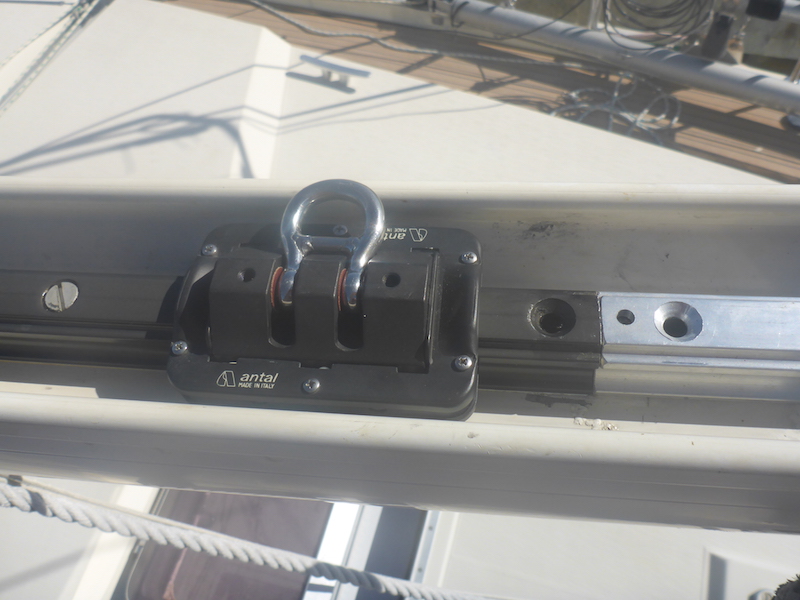

Slide the car

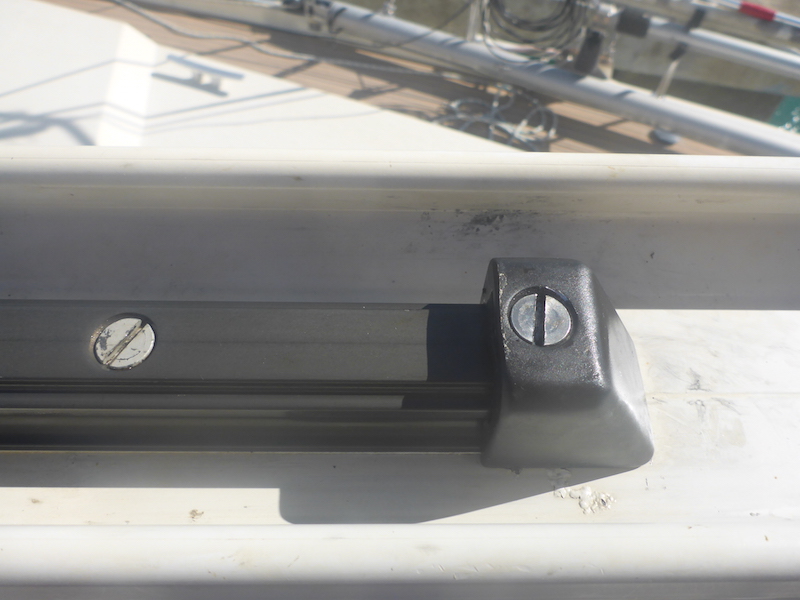

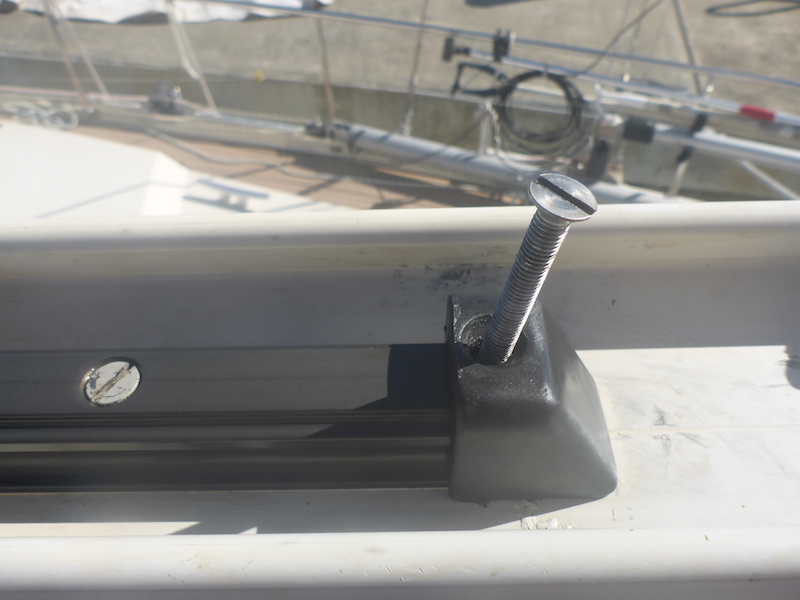

Put back bold

and washer and nuts under the boom

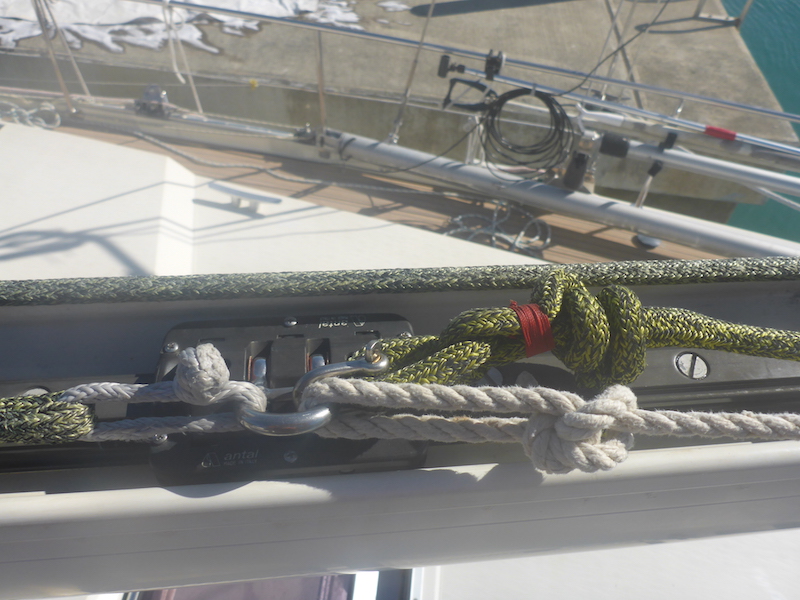

In order to reattach the outhaul lines I attach a cord

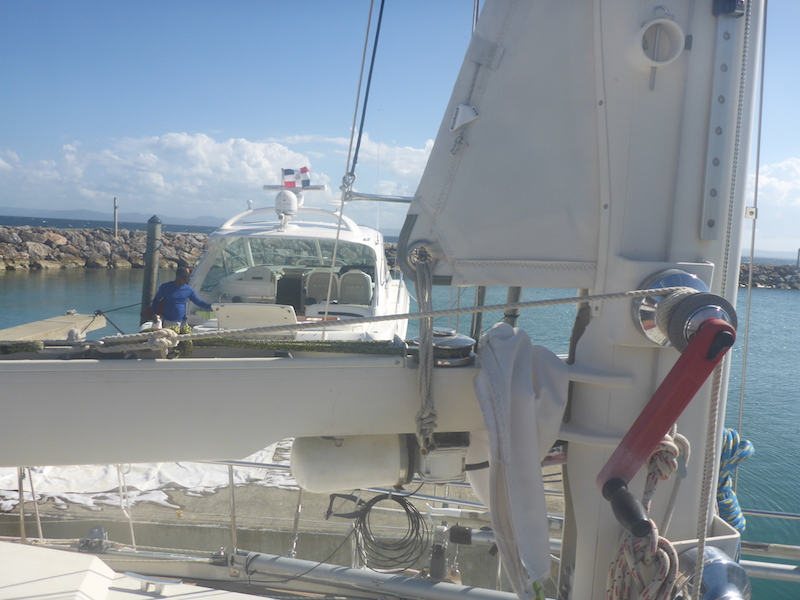

and pull with the winch

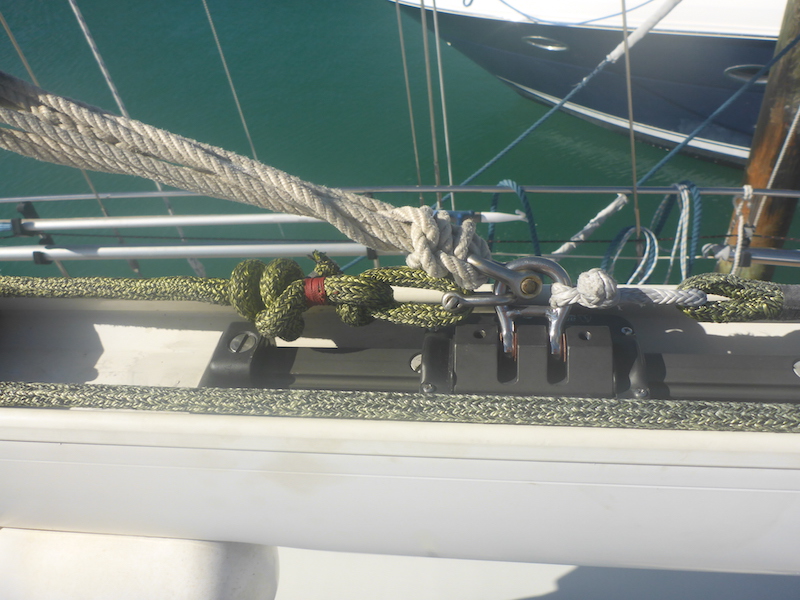

Then reconnect the main sail

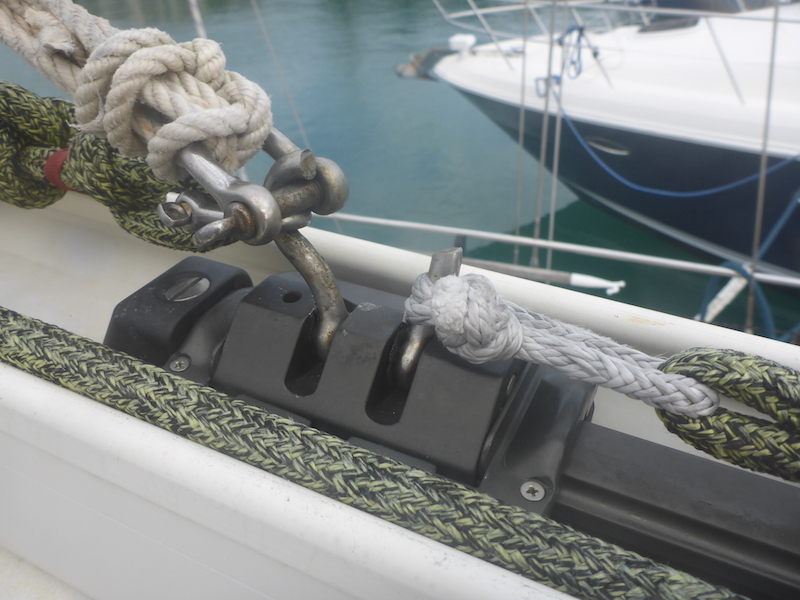

You can see the Rebuilt of the Main Boom Car.
