Amel Super Maramu 2000

Air Conditioning Climma Marine Compact 9

Reconnecting the Calpeda, AC (Alternative Current) and control box to the Aft Climma Marine Compact 9

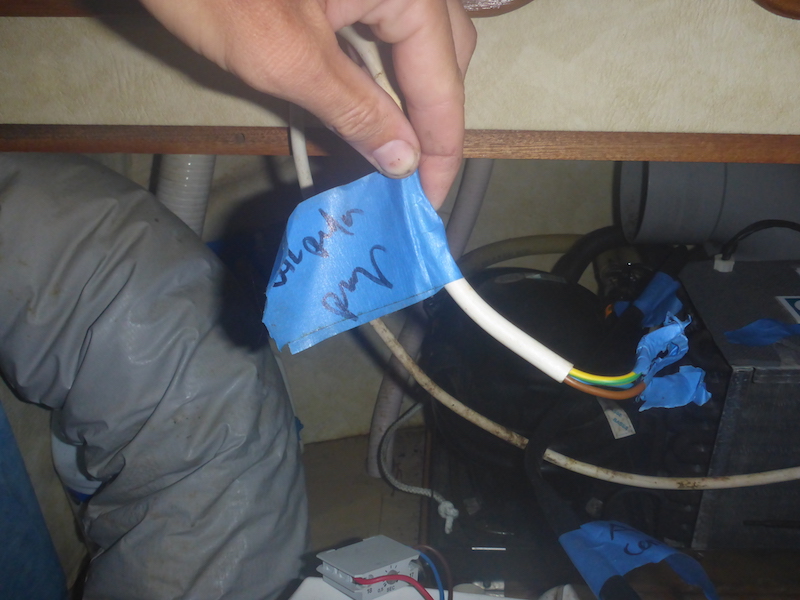

Now the wire of the Capleda cooling pump
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

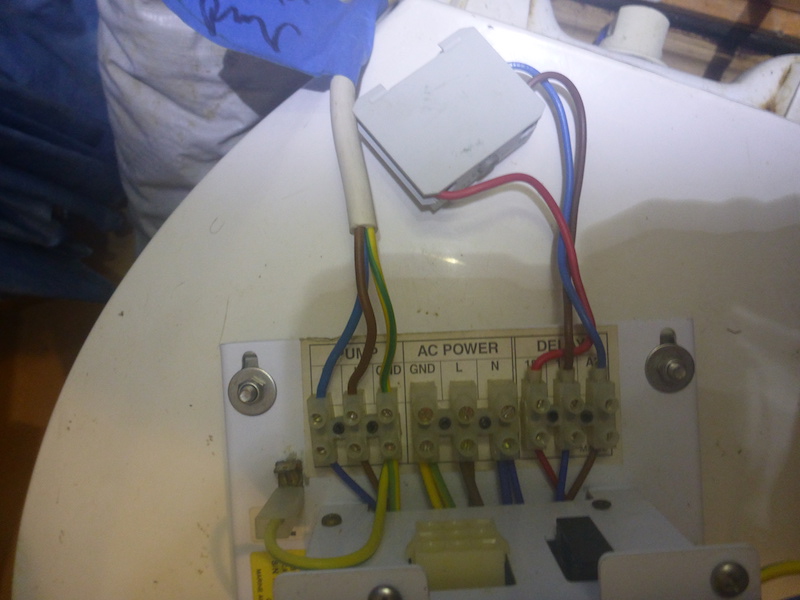

back in place
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

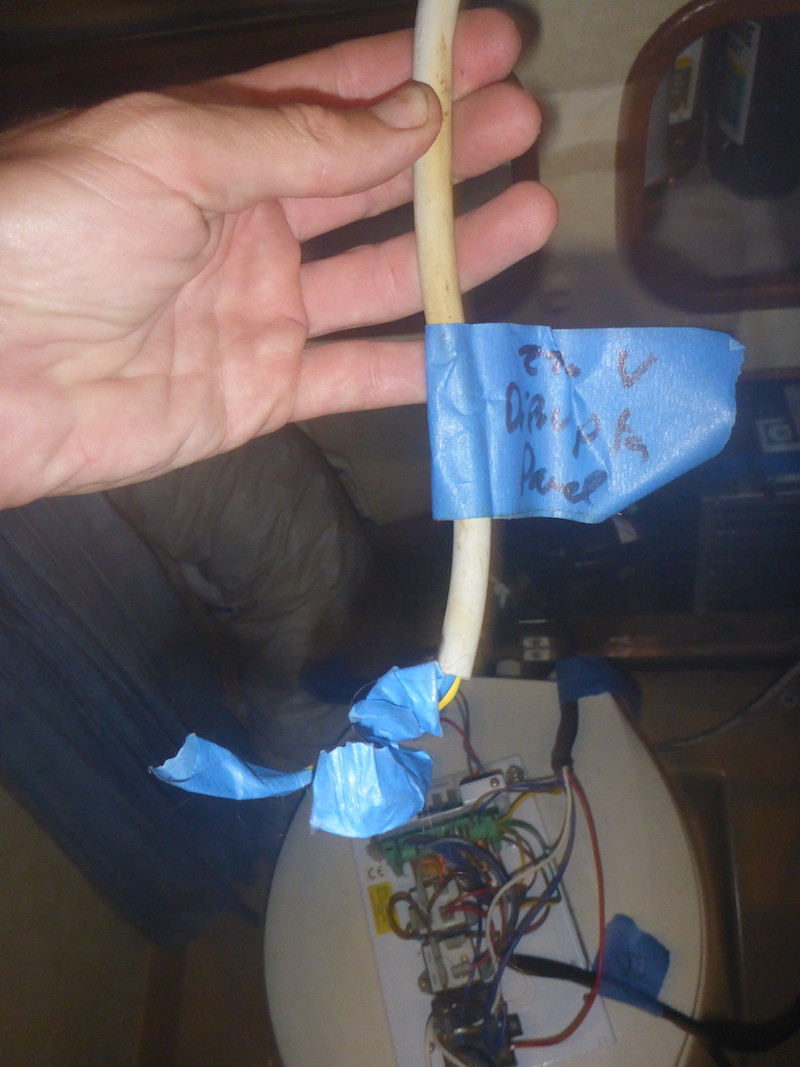

Now the 3 wires coming from the 220 Volt Panel (Diruptor)
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

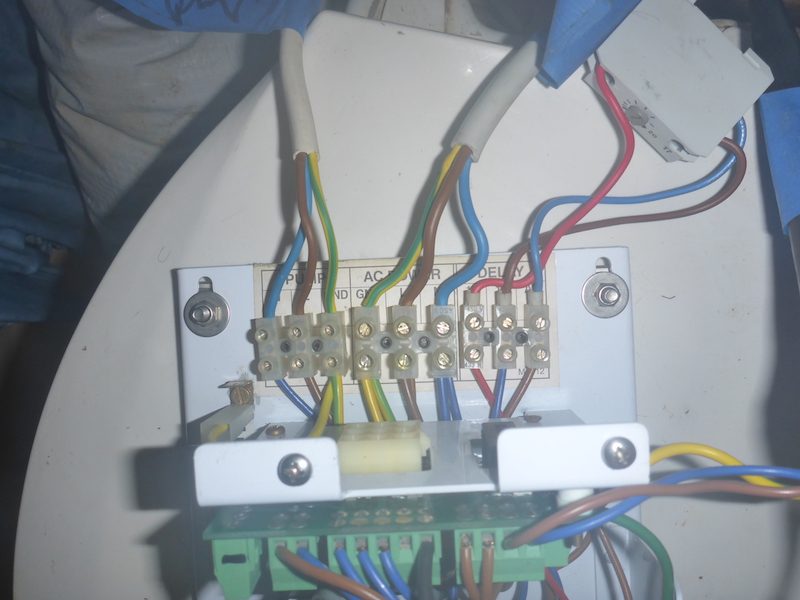

back in place
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

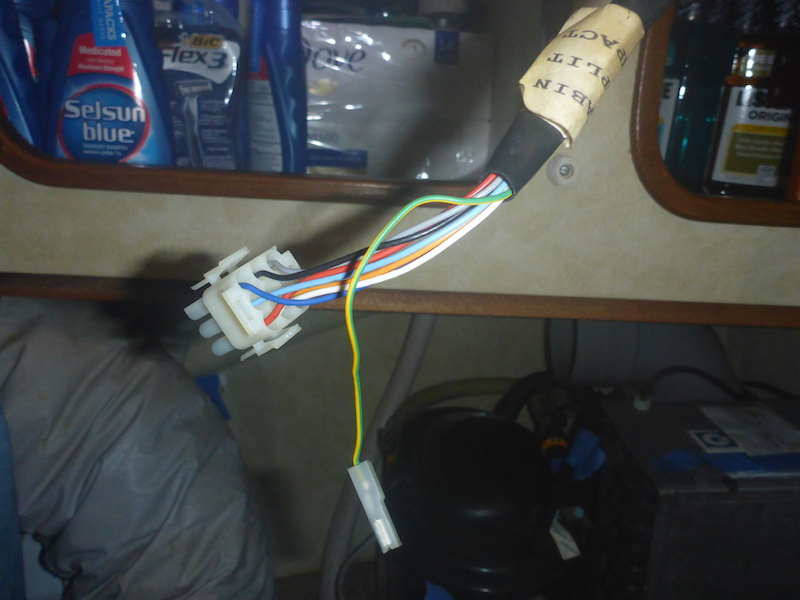

Now the control harness
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

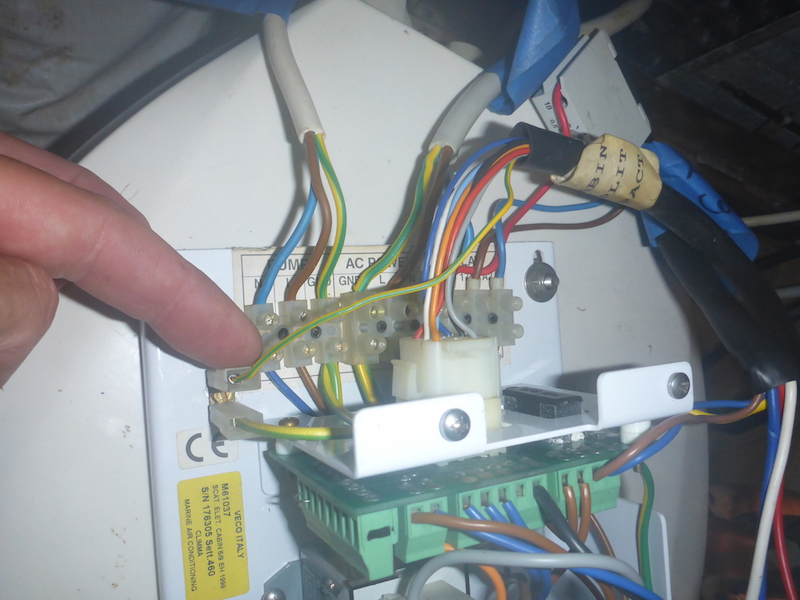

Now both in place
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Next: Part 26
