NIKIMAT
Amel Super Maramu 2000
|
Spare Parts These are parts I purchased from Amel La Rochelle or Martinique with the price and dates.
Then below parts I purchase from:
|
Windlass Lofran Tigre
| Amel Ref | Description French | Description English | Price | Location | Invoice date |

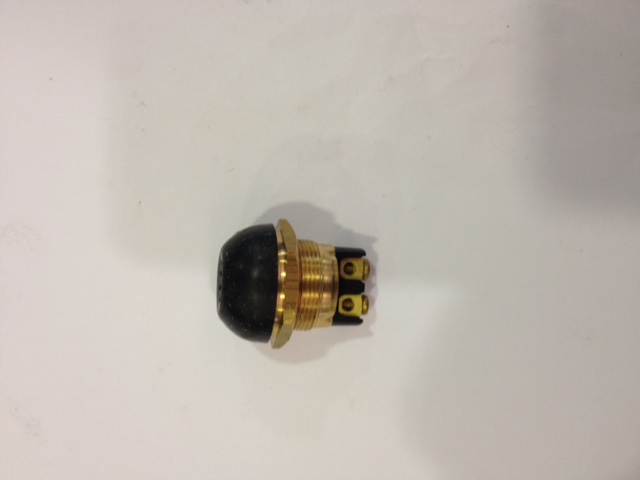

| 066 | Relais de guindeau Lofrans | Windlass switch | 86.94 Euro | Martinique | December 2012 |
| 0506 | BOUTON POUSSOIR DE GUINDEAU 13340 107760 UTIL1334 | Windlass switch (steel and rubber) | 45.70 Euro | La Rochelle | October 2015 |
| |||||
| Bague d'adaptation pour interrupteur de guindeau | adaptor for Windlass switch | 17.20 Euro | La Rochelle vOctober 2015 | ||

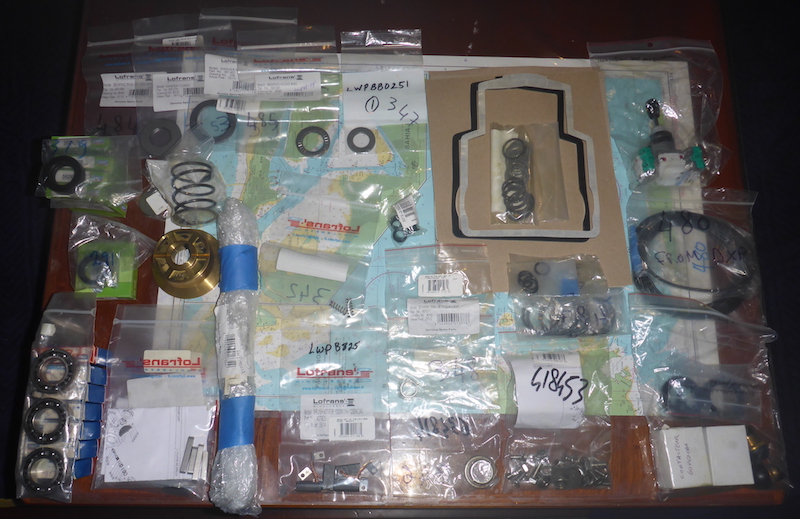

Windlass Lofran Tigre Parts purchased from IMTRA
| Lofran Part# | Description | Quantity | Imtra Part# | Price | Invoice Date |
| Lofrans Kit BK33610 | 24Volt/1200W | 1 | Imtra LWPB825 | $78 | September 2013 |
| Lofrans Kit KB10101 | Tigres | 1 | Imtra LWPKB10101 | $49 | September 2013 |
| Lofrans Kit KC10101 | Tigres | 2 | Imtra LWPKC10101 | $65 | September 2013 |
| Lofrans #268 | Nylon Bush | 4 | Imtra LWPBB005 | $7.25 | September 2013 |
| Lofrans #277 | Clutch cone - inner | 1 | Imtra LWPCC003 | $74 | September 2013 |
| Lofrans #291 | Oil Seal 25-35-7 692305 | 5 | LWPOS035 | $? | September 2013 |
| Lofrans #316 | O Ring seal 117 | 5 | LWPOR012 | $? | September 2013 |
| Lofrans #318b | Clutch cone - outer | 1 | LWPCC002 | $60 | July 2016 |
| Lofrans #319 | Oil Seal 25-42-6 562978 | 10 | LWPOS040 | $? | September 2013 |
| Lofrans #323 | 6005 JEM Bearing | 7 | LWPBB013 | $? | September 2013 |
| Lofrans #324 | Circlip 25 din 471 | 9 | Kit D | $? | September 2013 |
| Lofrans #325 | Washer | 1 | Imtra LWPGP028 | $10.25 | September 2013 |
| Lofrans #326 | Spring | 1 | Imtra LWPGP006 | $23 | September 2013 |
| Lofrans #339 | Washer | 1 | Imtra LWPBB008 | $10.25 | September 2013 |
| Lofrans #342 | Spring | 2 | Imtra LWPGP035 | $6.25 | September 2013 |
| Lofrans #344 | Washer 6.5x33x3 | 1 | Imtra LWPCA022 | $11 | September 2013 |
| Lofrans #346 | Combines Bearing Rax | 1 | Imtra LWPBB025 | $87 | September 2013 |
| Lofrans #347 | Thrust ring CP32035 | 1 | Imtra LWPBB0251 | $25 | September 2013 |
| Lofrans #348 | Ring IM1520164 | 1 | Imtra LWPGP047 | $33 | September 2013 |
| Lofrans #463 | Gasket | 4 | Imtra LWPHP0095 | $33 | September 2013 |
| Lofrans #478 | Main Shaft | 1 | Imtra LWPMS012 | $244 | September 2013 |
| Lofrans #480 | O Ring seal 4462 | 7 | LWPOR003 | $? | September 2013 |
| Lofrans #484 | Thrust ring CP32542 | 1 | Imtra LWPBB0281 | $20.50 | September 2013 |
| Lofrans #485 | Thrust bearing AX2542 | 1 | Imtra LWPBB028 | $45 | September 2013 |
| Lofrans #487 | O Ring seal 4143 | 10 | Kit A | $? | September 2013 |
Windlass Lofran Tigre Parts purchased from Other
| Description | Quantity | Price | Invoice Date |
| M6-1.0 x 16mm Stainless Steel Flat Head Socket Cap Screws A2 | 10 | $? | September 2016 |
