Amel Super Maramu 2000
|
Spare Parts These are parts I purchased from Amel La Rochelle or Martinique with the price and dates |
Amel Bow Thruster
| Amel Ref | Description French | Description English | Price | Location | Invoice date |
| 3425 | RONDELLE MOUSSE NEOPRENE EP 10 mm 110 x60 | Neoprene foam seal 110x60 | 2,52 Euro | La Rochelle | December 2014 |
| 3426 | RONDELLE MOUSSE NATUREL EP 10 mm 110 x 60 | Natural foam seal 110x60 | 1.78 Euro | La Rochelle | December 2014 |
| Note: as of 2015 Amel La Rochelle replaced it with the above Part 3425 RONDELLE MOUSSE NEOPRENE EP 10 mm Ø 110 x60 Neoprene foam seal 110x60 | |||||

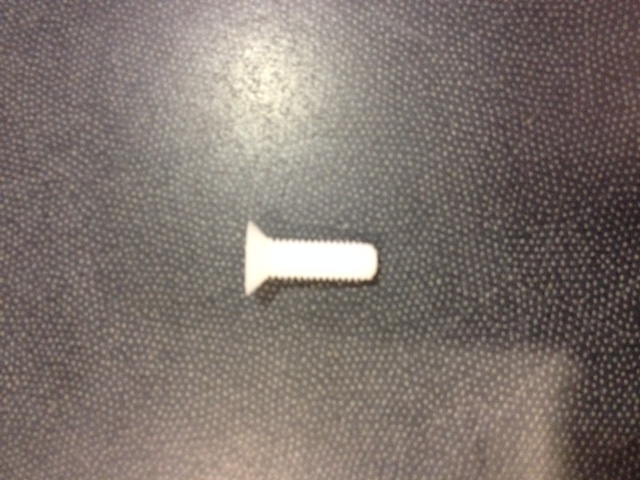

| 4330 | VIS METAUX NYLON TF 8X25 | Nylon screw for bowthruster hub | 0.48 Euro | La Rochelle | October 2015 |
| |||||

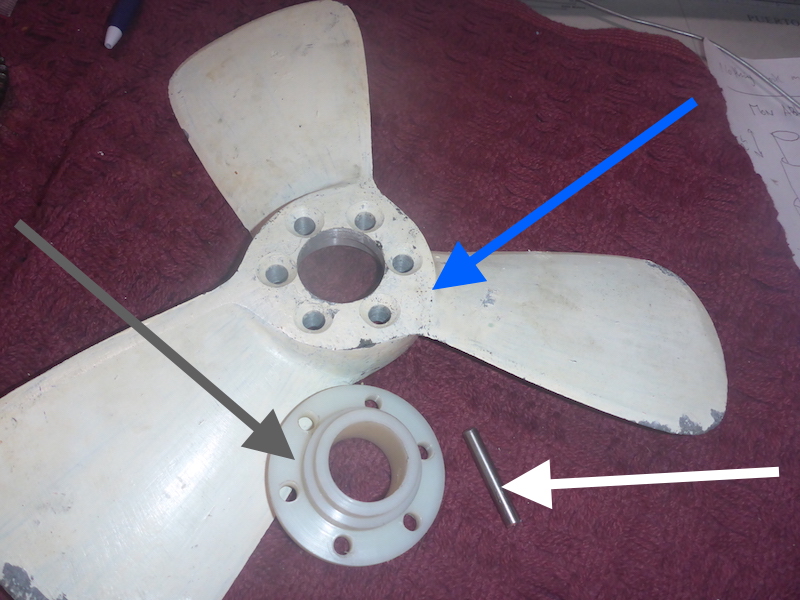

| 1647 | MOYEU D'HELICE PROPULSEUR 4 X M8 + 4 X M6. | Propeller Hub 8 screws | 36.00 Euro | La Rochelle | April 2016 |
| 3415 | MOYEU D'HELICE PROPULSEUR D'ETRAVE SM 6 x M8 | Propeller Hub 6 screws | 22.82 Euro | La Rochelle | April 2016 |
(Grey arrow)
| |||||
| Clavette pour moyeu d'helice de propulseur d'etrave | Stainless Pin | 3.00 Euro | La Rochelle | April 2016 | |
|
(White arrow)
| |||||
| Helice de propulseur d'etrave | Bow Thruster Propeller | 210.00 Euro | La Rochelle | April 2016 | |
|
(Blue arrow)
| |||||
| Capteur de propulseur d'etrave et support | Sensor for bowthruster including bracket (plastic) | 24.00 Euro La Rochelle December 2014 | |||

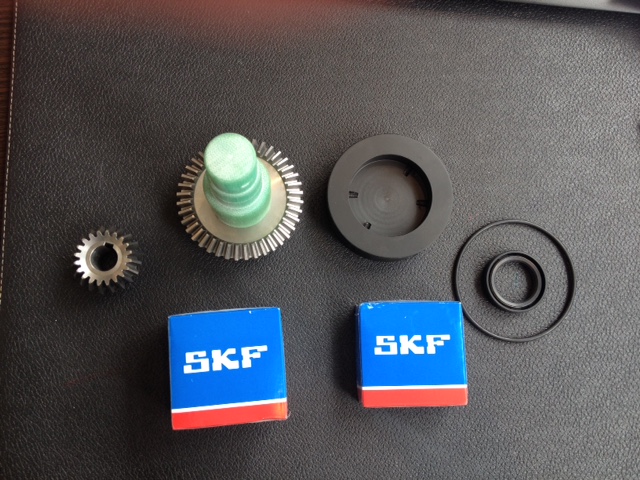

| 1110 | MECANISME PIED DE PROPULSEUR SM | 977.20 Euro | Martinique | September 2012 | |
| 1110 | MECANISME PIED DE PROPULSEUR SM | 582.40 Euro | La Rochelle | April 2016 | |
|
Vient avec l'arbre en Tufnol, grand pignon, petit pignon, couvercle, roulement a bille, O ring et joint/ which comes with Tufnol shaft, large and small wheel, open bearing, O ring and Seal. (Blue arrow)
(green arrow)
| |||||
Non- Amel Specific parts
|
3 bearing: 6006 JEM (Open Bearing)
1 seal: 30 x 42 x 8
1 seal: 60 x 80 x 12 (that goes inside the boat in the forward cabin). O ring 78.00 x 3.00 O ring 40.00 x 2.50
|
