Amel Super Maramu 2000

Onan MDKAL Exhaust Elbow Replacement

Part 2: Exhaust Mixing Elbow removal

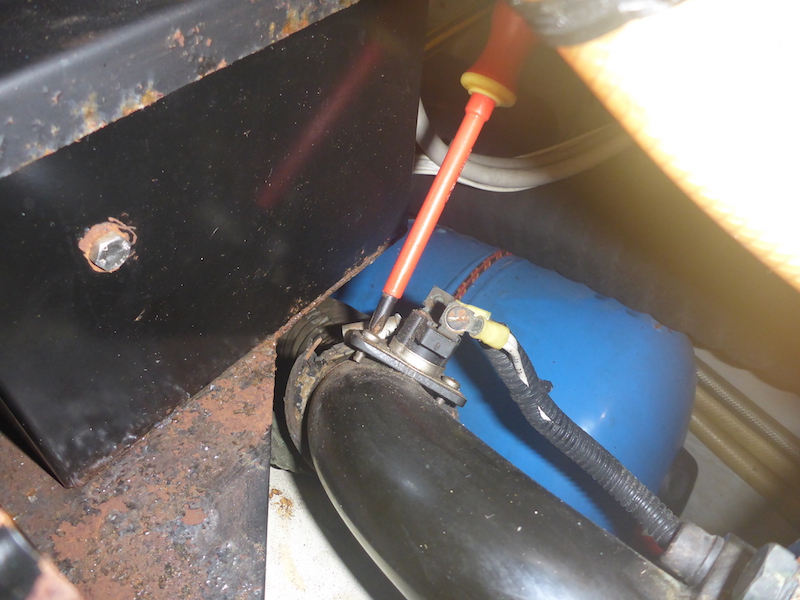

Removing the 2 bolt that hold the Exhaust temperature sensor
 Amel Super Maramu 2000 Genset Onan Exhaust Elbow Replacement




 Amel Super Maramu 2000 Genset Onan Exhaust Elbow Replacement

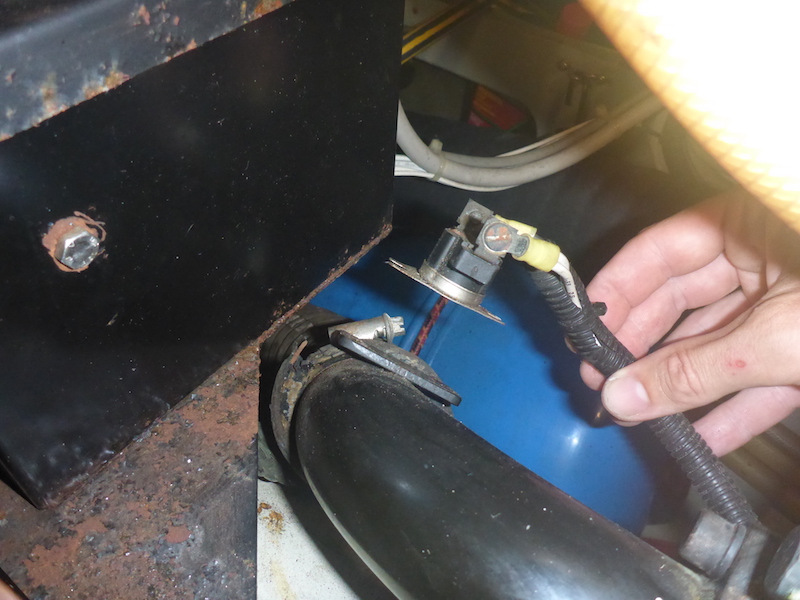

Without the sensor
 Amel Super Maramu 2000 Genset Onan Exhaust Elbow Replacement

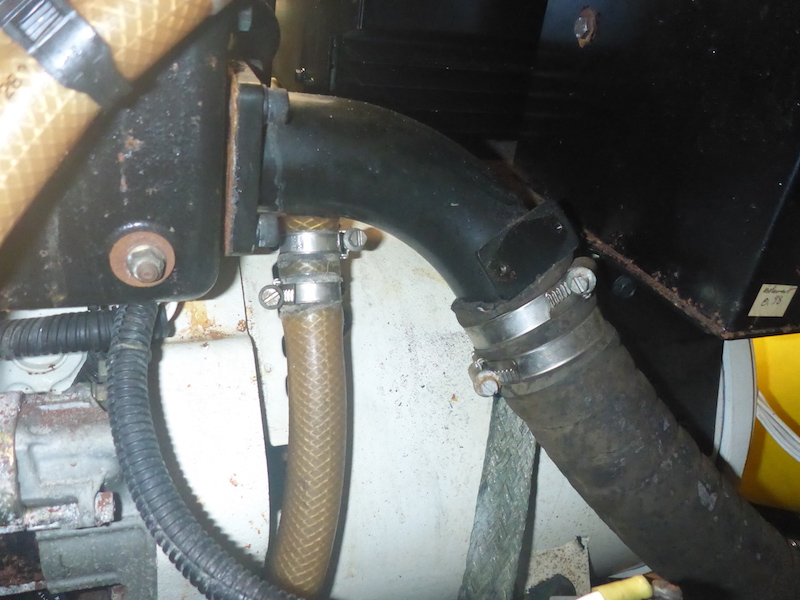

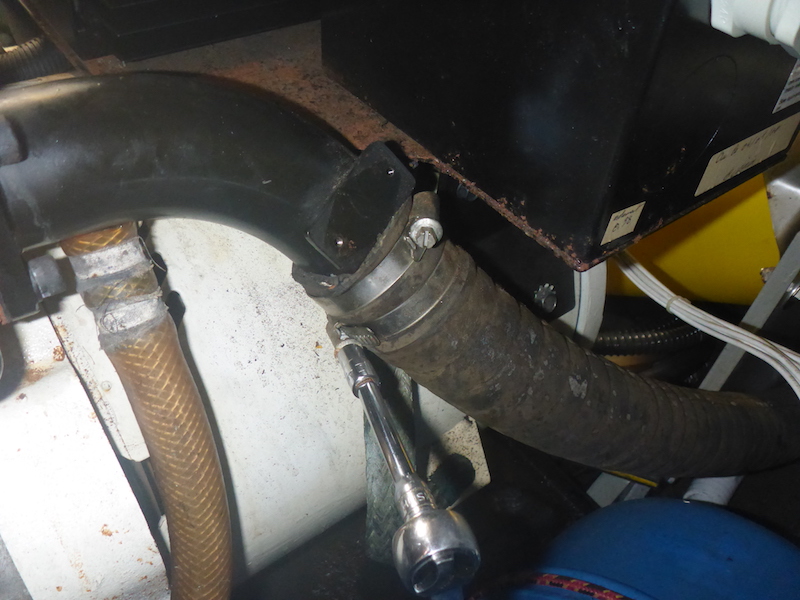

Removing the 2 clamps on the Exhaust
 Amel Super Maramu 2000 Genset Onan Exhaust Elbow Replacement

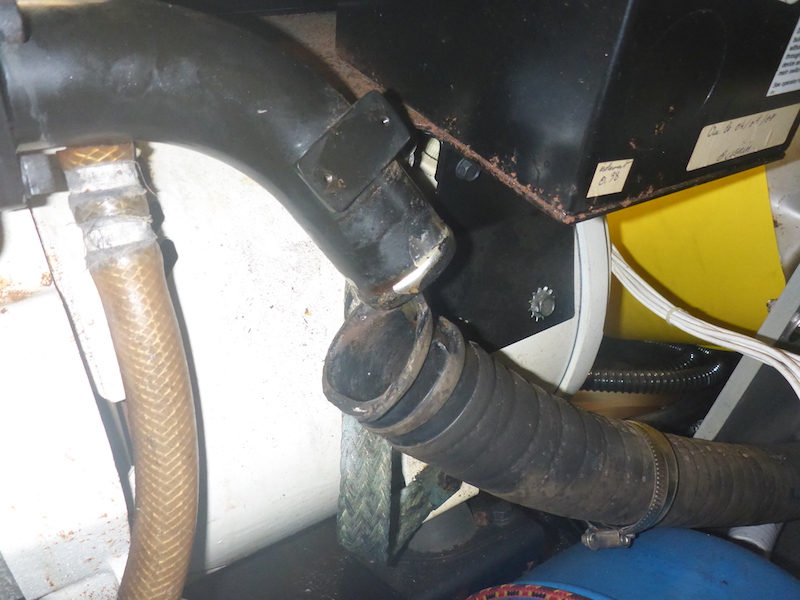

Surprisingly the exhaust hose went out easily
 Amel Super Maramu 2000 Genset Onan Exhaust Elbow Replacement

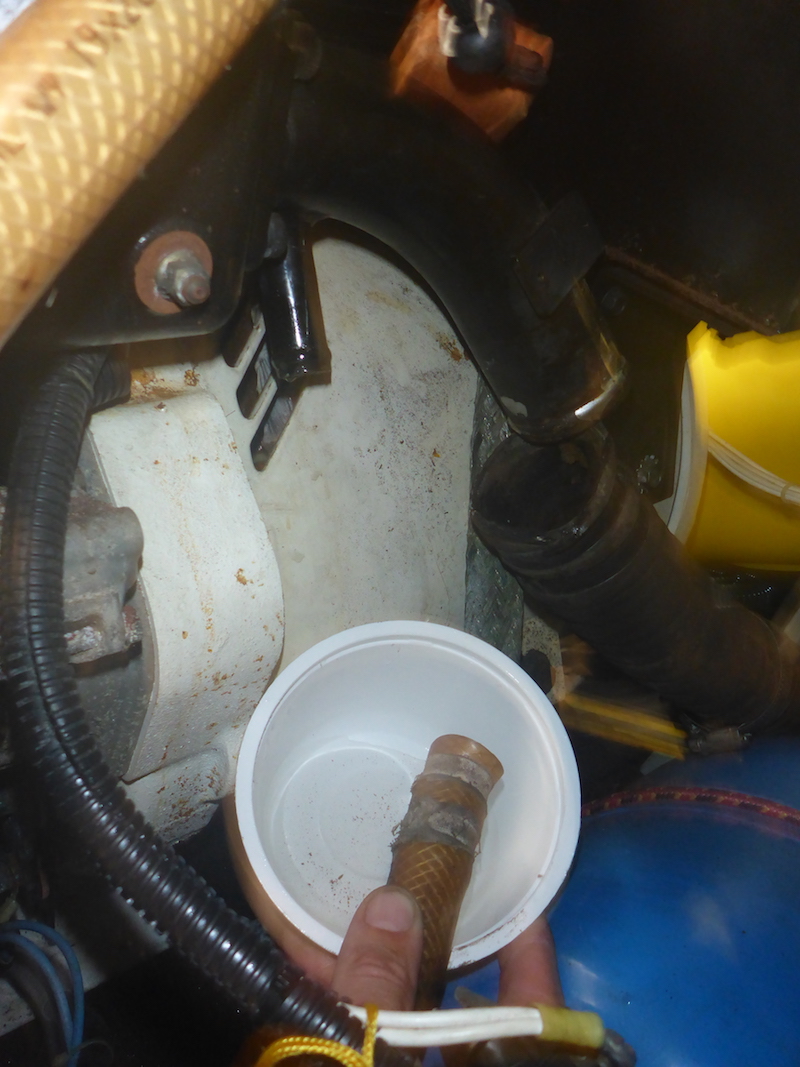

Then removed the water hose and put the extra in a small cup
 Amel Super Maramu 2000 Genset Onan Exhaust Elbow Replacement

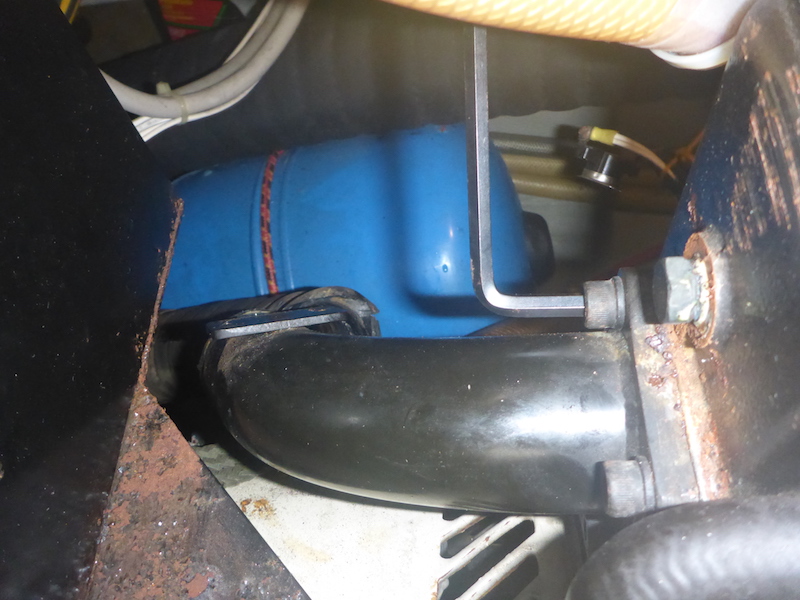

Using 6 mm Allen key I removed the bolt, was also surprisingly easy
 Amel Super Maramu 2000 Genset Onan Exhaust Elbow Replacement

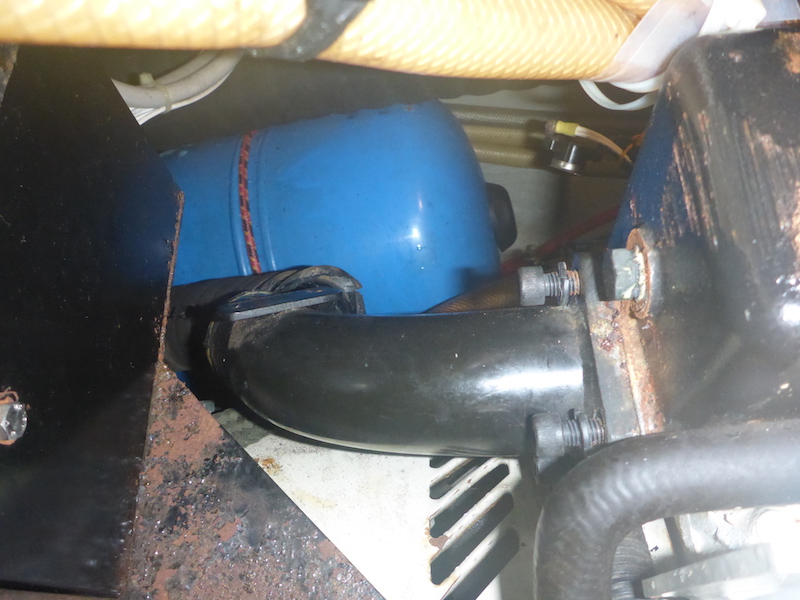

All 4 bolt loosen
 Amel Super Maramu 2000 Genset Onan Exhaust Elbow Replacement



With the 4 bold remove the exhaust holds in place
 Amel Super Maramu 2000 Genset Onan Exhaust Elbow Replacement

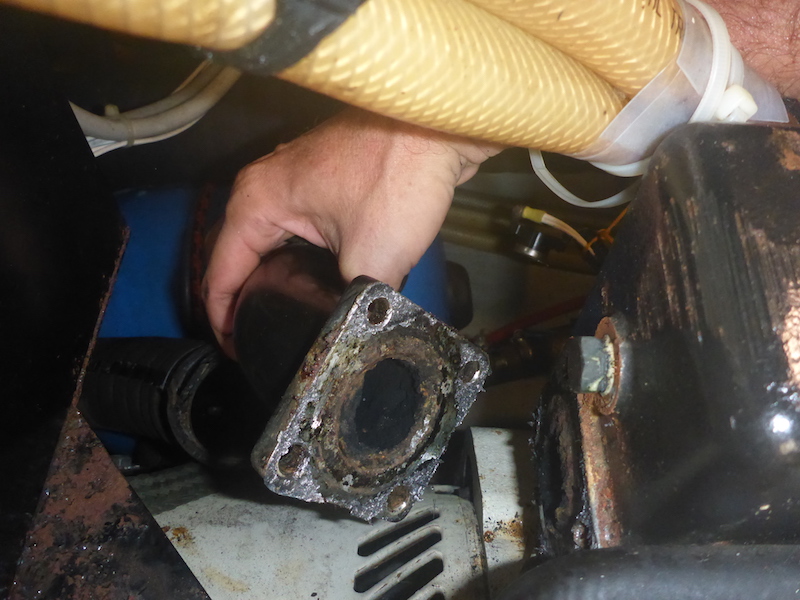

Lots of carbon built up, but not too bad
 Amel Super Maramu 2000 Genset Onan Exhaust Elbow Replacement



Go to: Part 3
Inspecting old Exhaust Mixing Elbow
