Amel Super Maramu 2000

Lofrans Tigres Windlass Basic Maintenance

Part 1:

Extraction of the shove gipsy, gipsy / chain wheel and gipsy holder

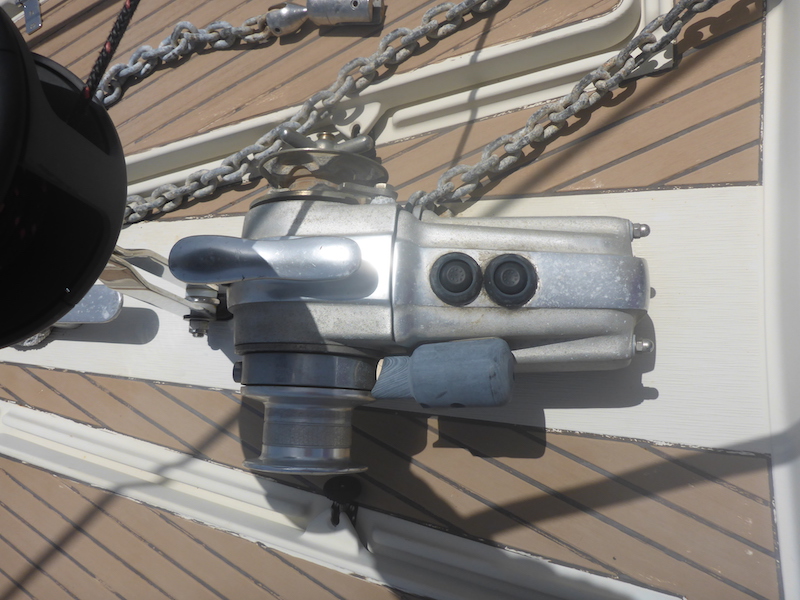

Remove the chain of the gipsy and secure the chain.
 windlass lofrans tigres maintenance Amel Super Maramu 2000



If necessary use a 17 mm socket to lock the gipsy stopper into a gipsy border socket
 windlass lofrans tigres maintenance Amel Super Maramu 2000



gipsy stopper is now in a gipsy border socket
 windlass lofrans tigres maintenance Amel Super Maramu 2000

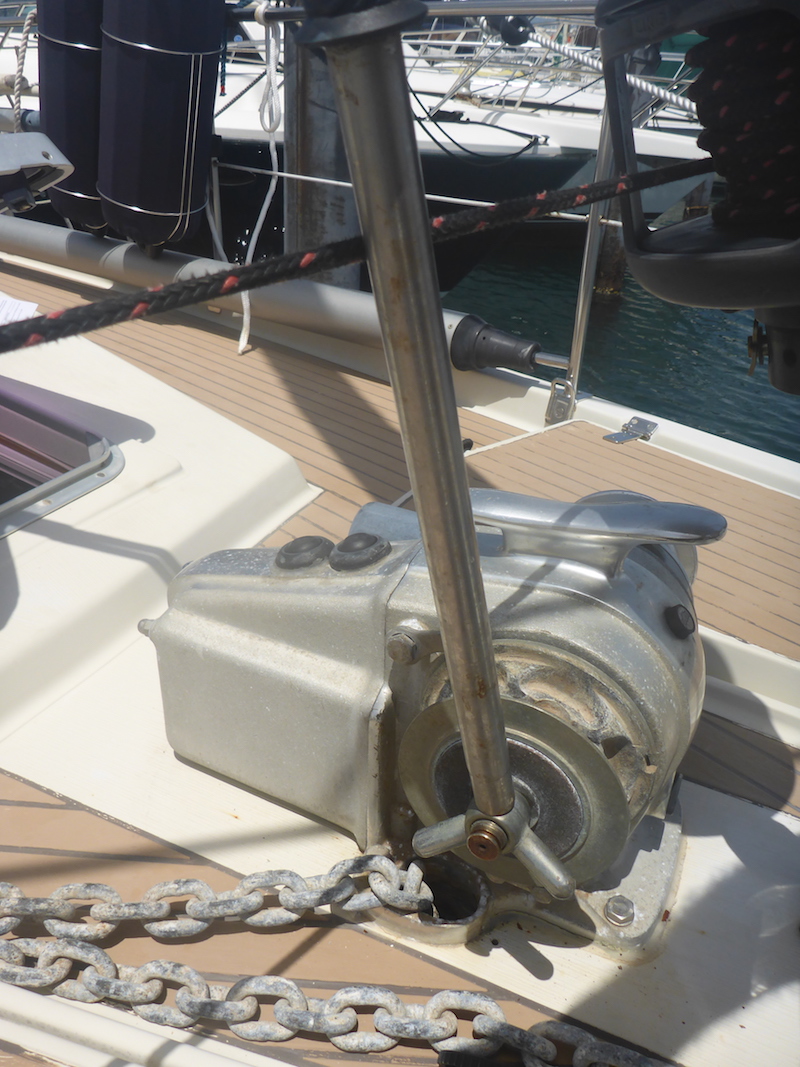

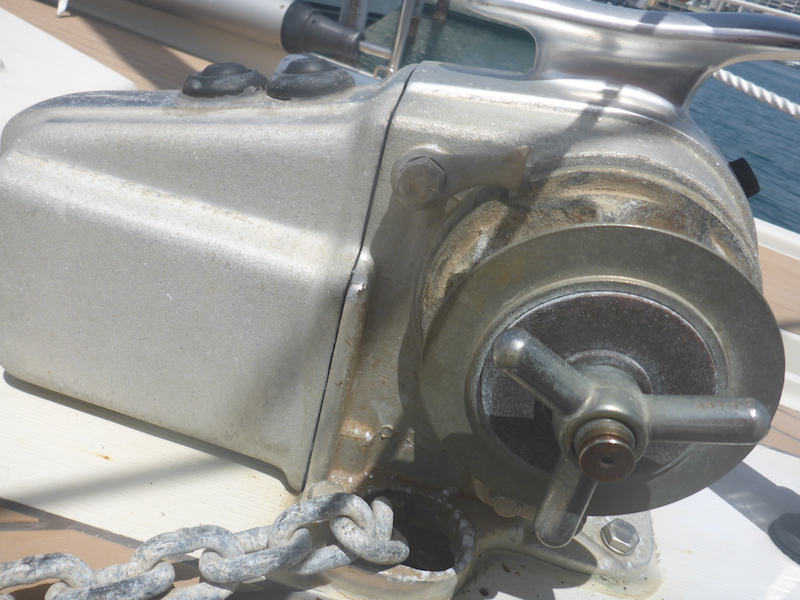

using the emergency handle unscrew the wingnut
 windlass lofrans tigres maintenance Amel Super Maramu 2000

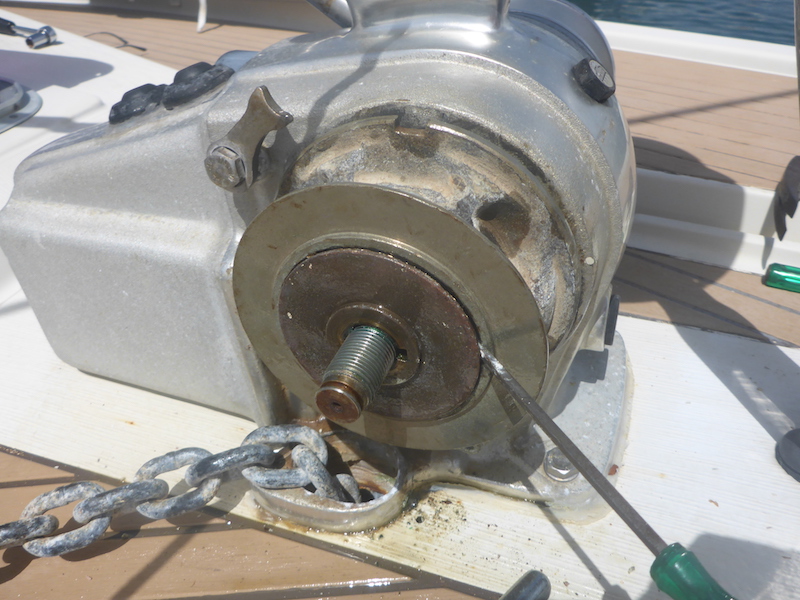

extract the shove gipsy
in my case it was difficult as I had not grease the windlass for the last 3 years...
It was time consuming and had to use several screw drivers
I suspect it will be a lot easier if I do it every 3 to 6 months
 windlass lofrans tigres maintenance Amel Super Maramu 2000

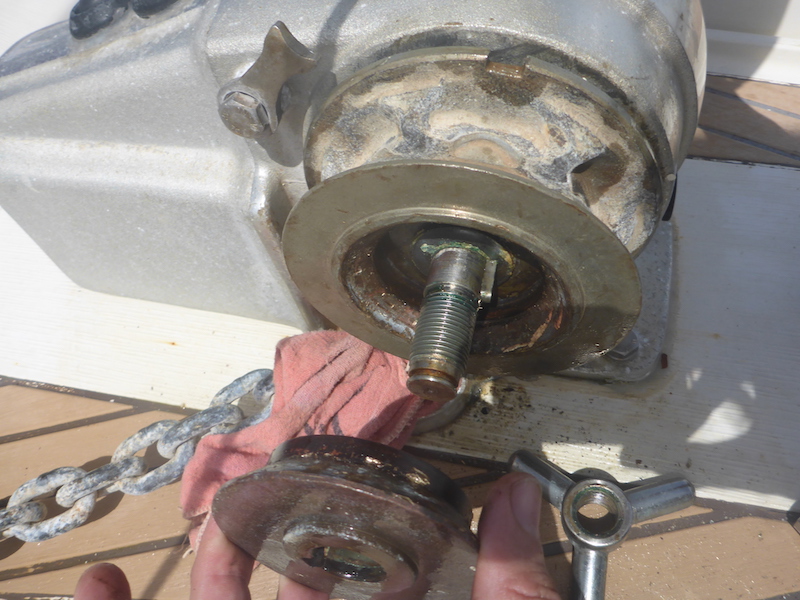

finally the shove gipsy is out
 windlass lofrans tigres maintenance Amel Super Maramu 2000

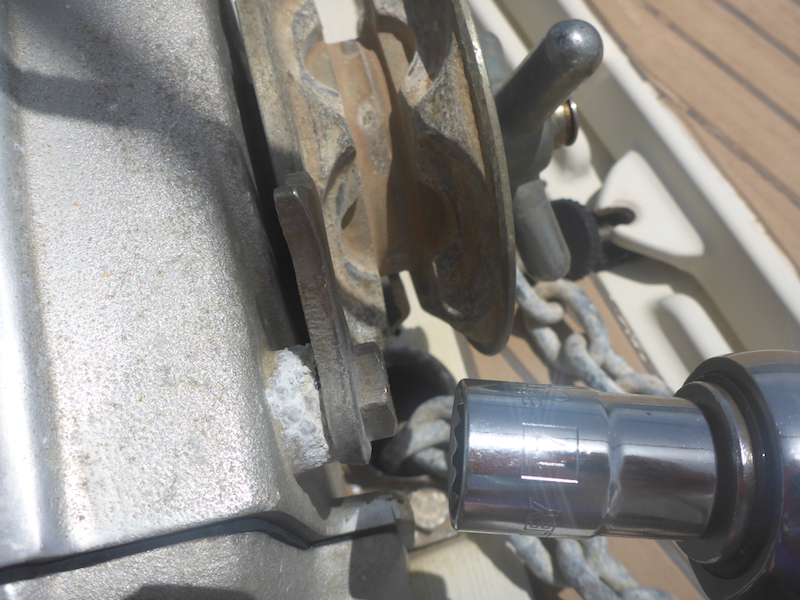

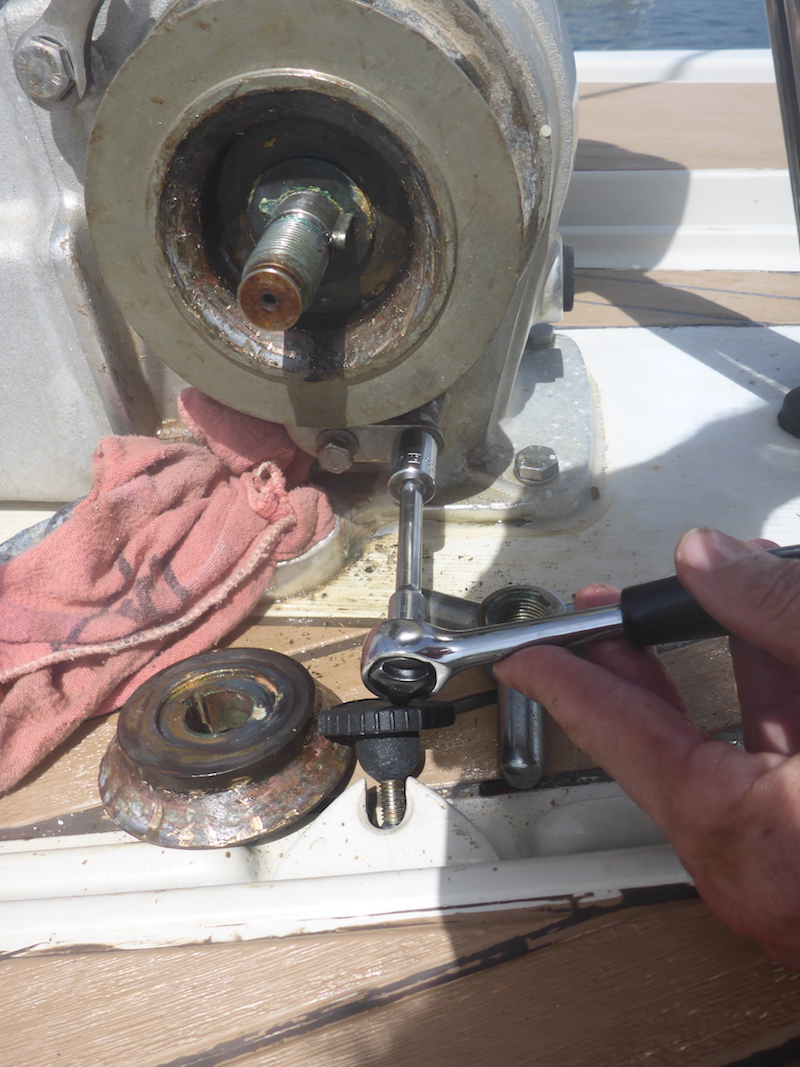

using a 13 mm socket unscrew bolt, remove washer and stripper
Note: I put a rag in the hole where the chain goes to prevent parts to fall in
 windlass lofrans tigres maintenance Amel Super Maramu 2000

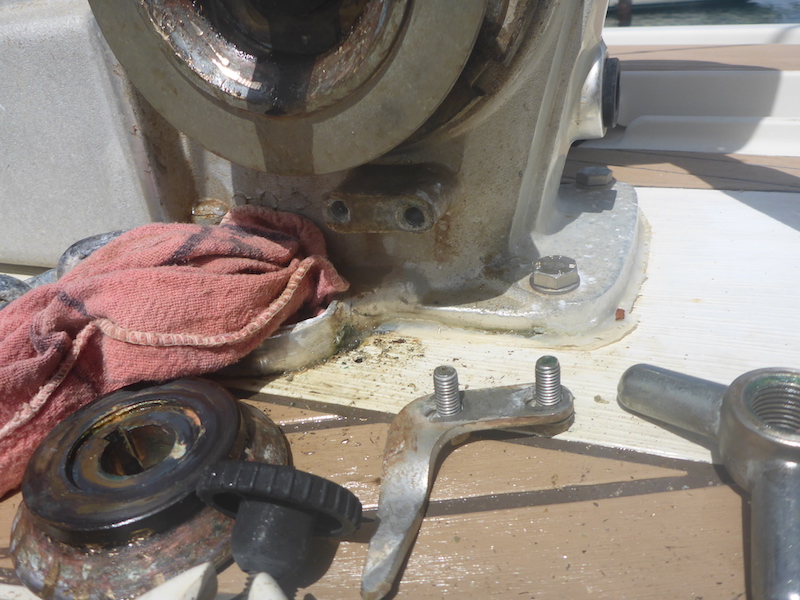

bolt and stripper out
 windlass lofrans tigres maintenance Amel Super Maramu 2000



remove the gipsy/chain wheel
in my case it was difficult and time consuming

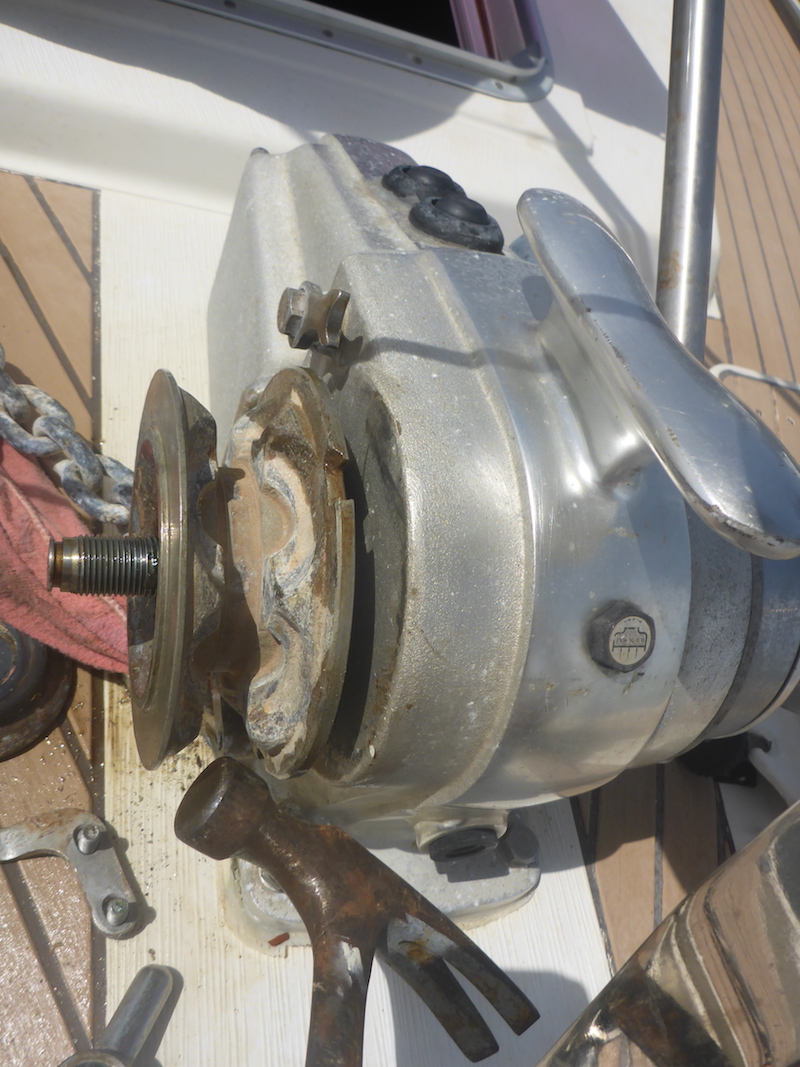

had to use long screw driver as well as hammer to slowly wedge it out
I suspect it will be a lot easier if I grease it every 3 to 6 months
 windlass lofrans tigres maintenance Amel Super Maramu 2000

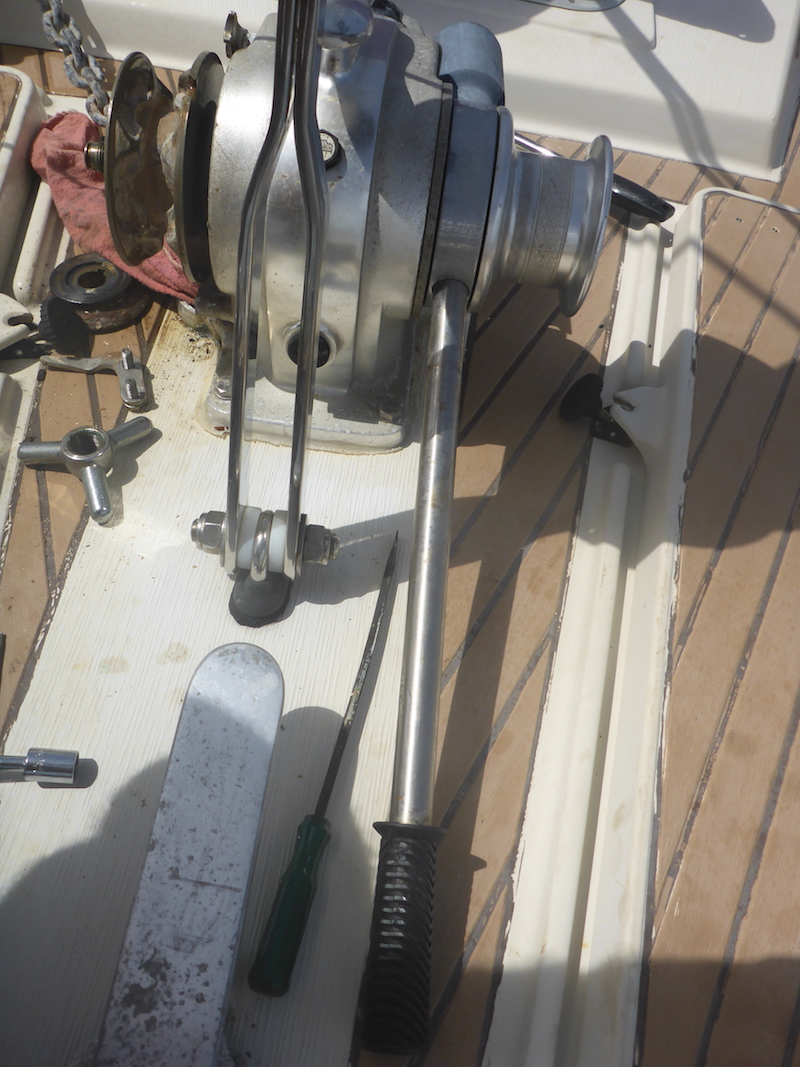

I used the emergency handle to rotate the gipsy/chain wheel
then use screw drivers and hammer
 windlass lofrans tigres maintenance Amel Super Maramu 2000

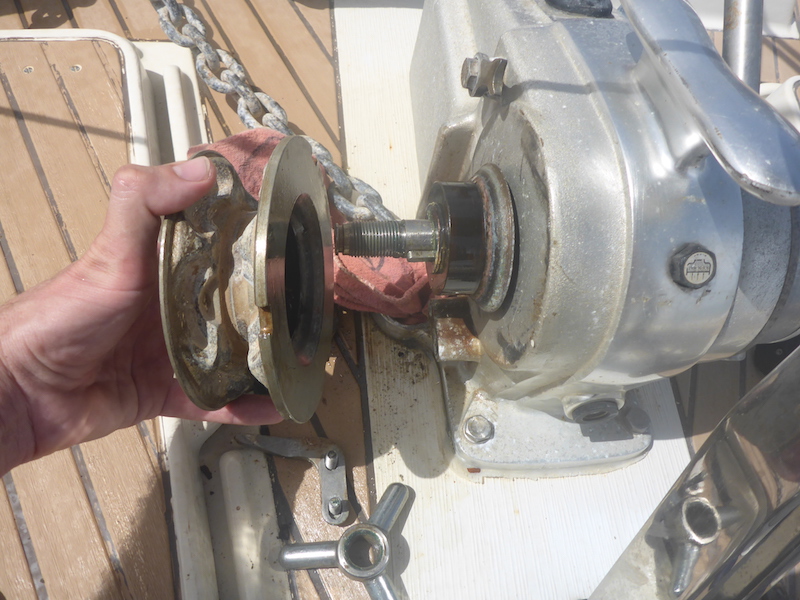

gipsy/chain wheel is extracted
 windlass lofrans tigres maintenance Amel Super Maramu 2000



next is the gipsy holder to extract

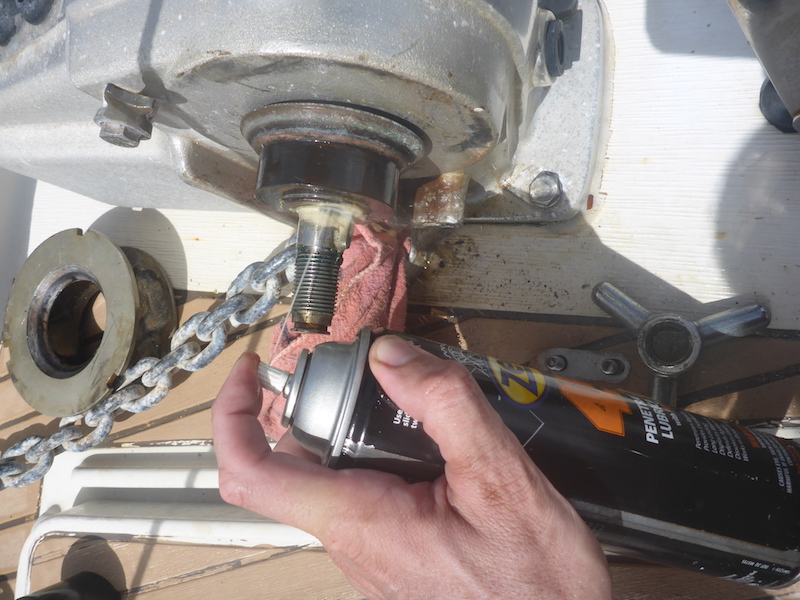

During the extracting of the various parts, I used a lots penetrating oil (I used ZEP 45)
 windlass lofrans tigres maintenance Amel Super Maramu 2000

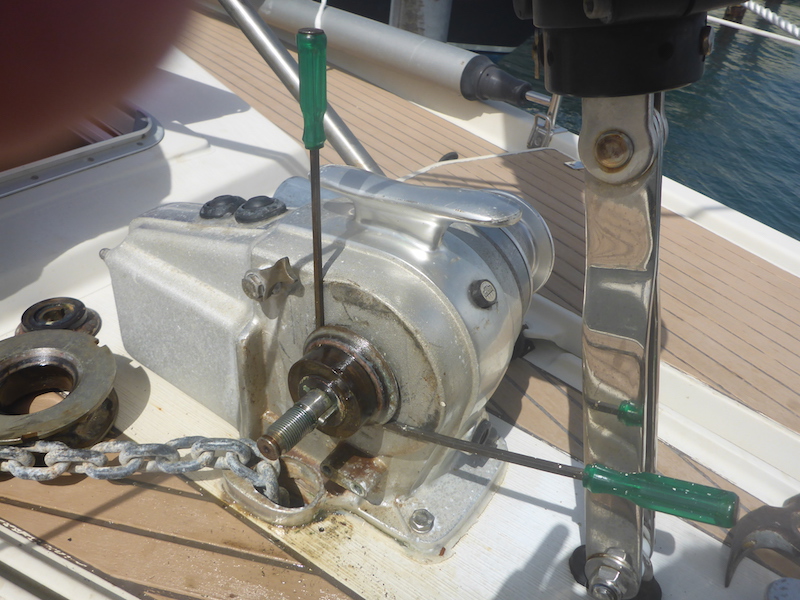

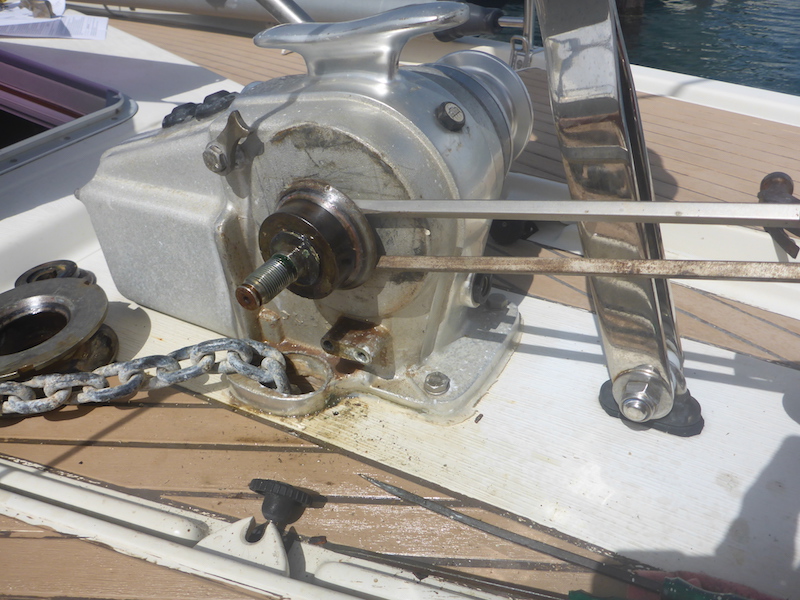

screw drivers as wedge
 windlass lofrans tigres maintenance Amel Super Maramu 2000



bigger screw drivers
 windlass lofrans tigres maintenance Amel Super Maramu 2000

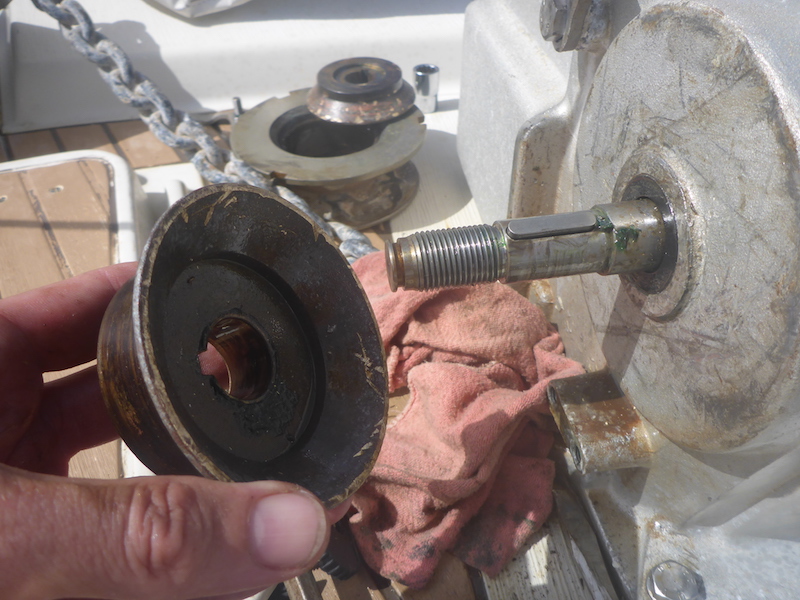

the gipsy holder is out
 windlass lofrans tigres maintenance Amel Super Maramu 2000



Next: Part 2
Extraction of the drum, emergency wheel clutch plate and manual emergency wheel
