Amel Super Maramu 2000

Removing the shaft from the Outhaul transmission furler It is the very first repair I did in March 2013, so it is not well illustrated.

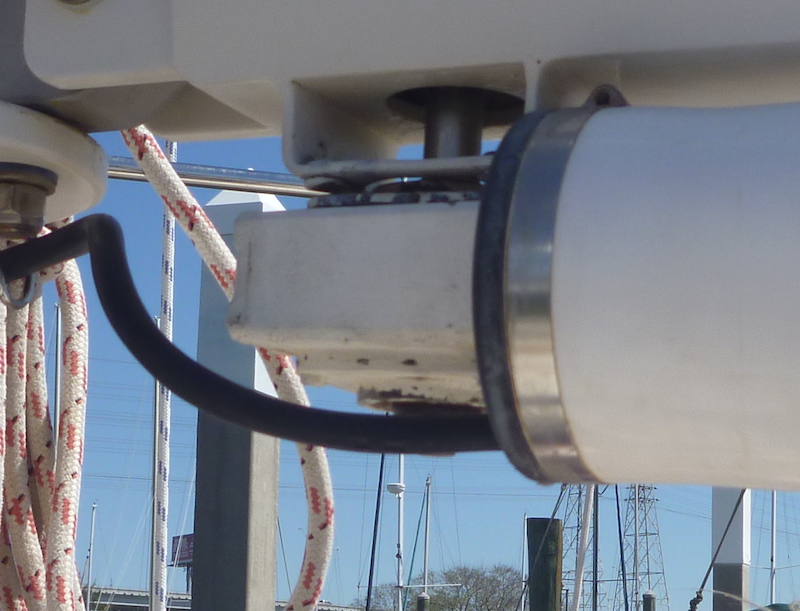

How it looks

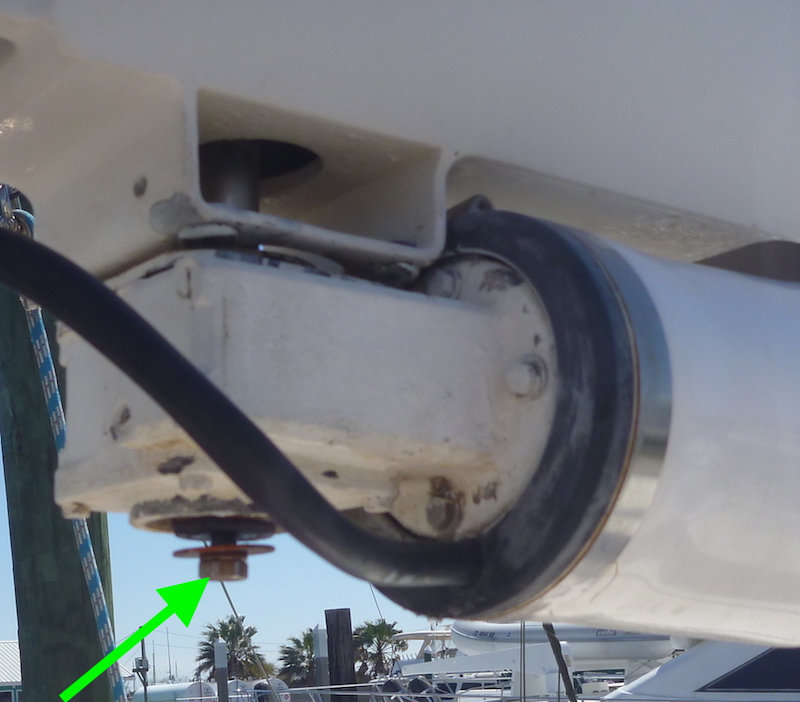

Loosen the bolt at the bottom
I later replace it with a similar thread bolt, but much longer

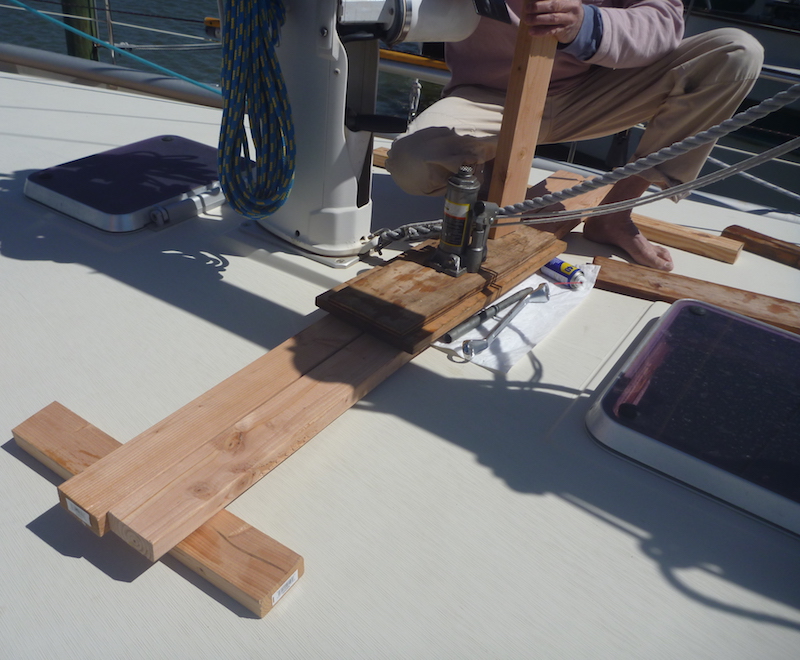

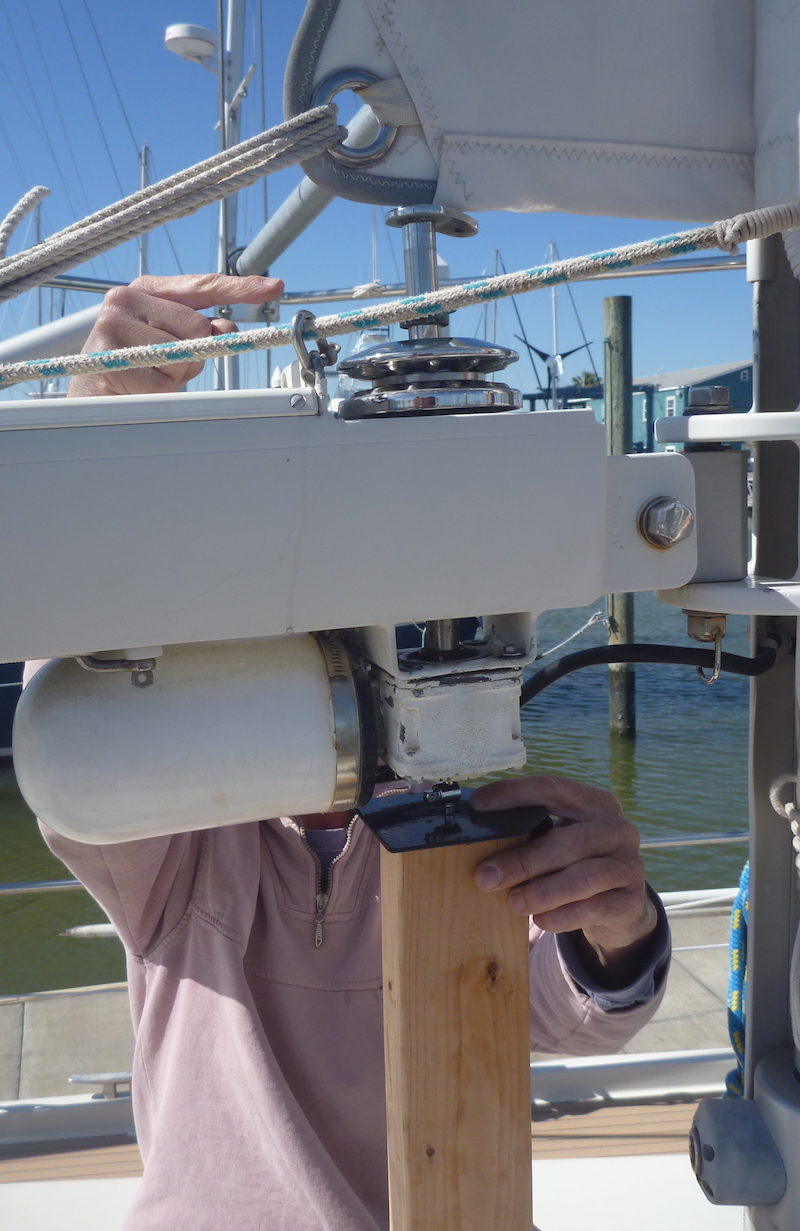

Use a car jack and protect the deck with wood to even the pressure

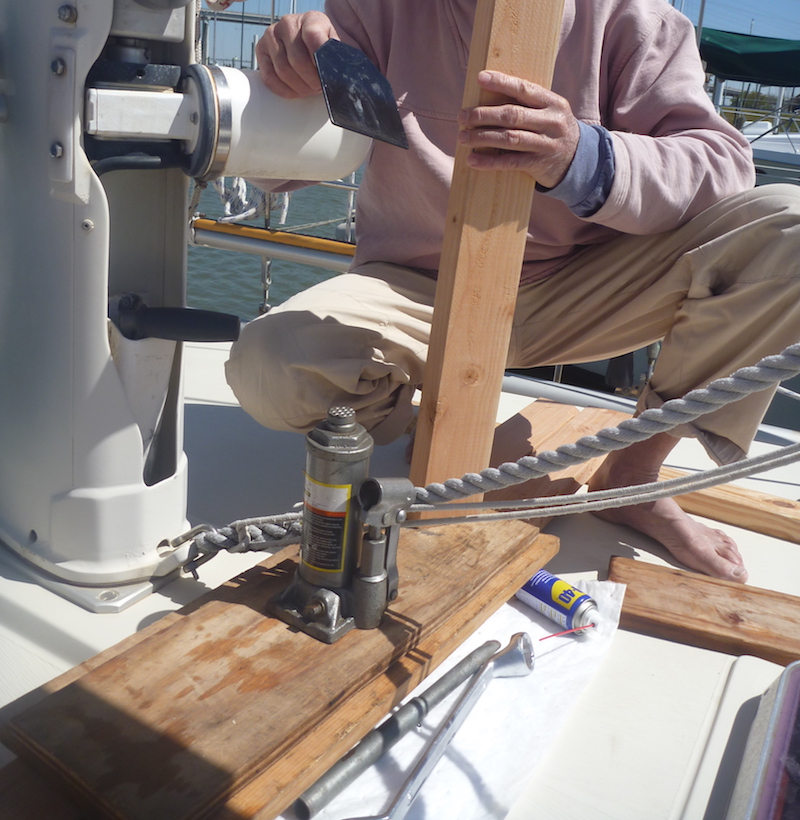

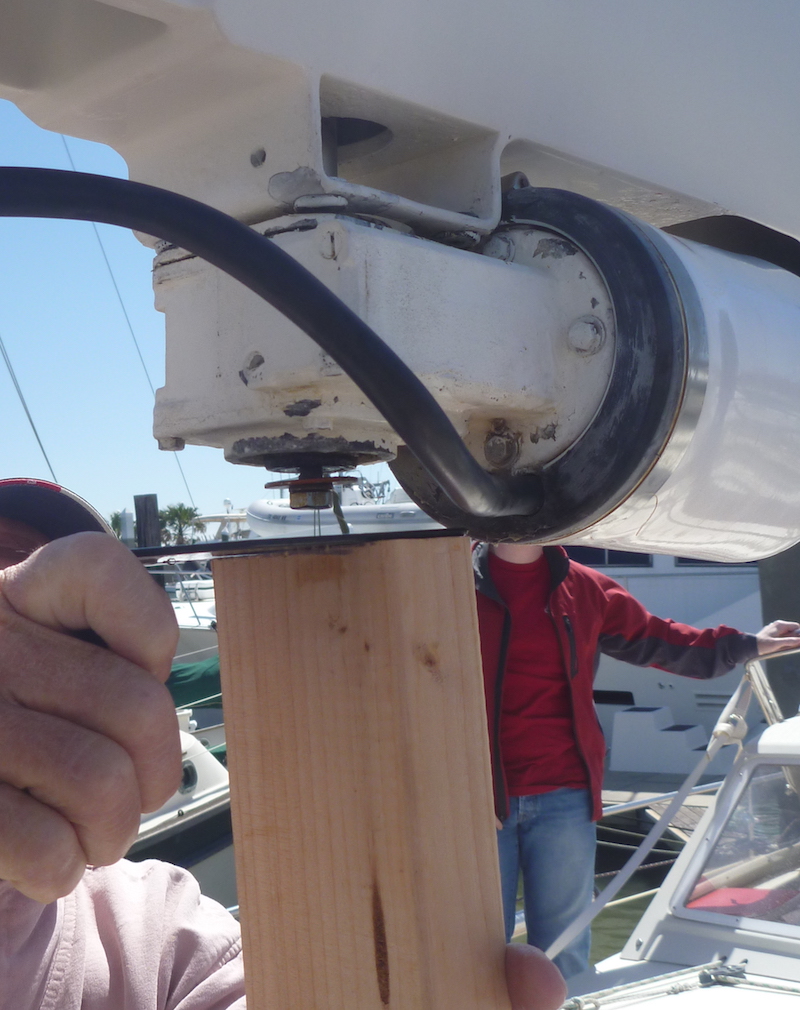

Closer look

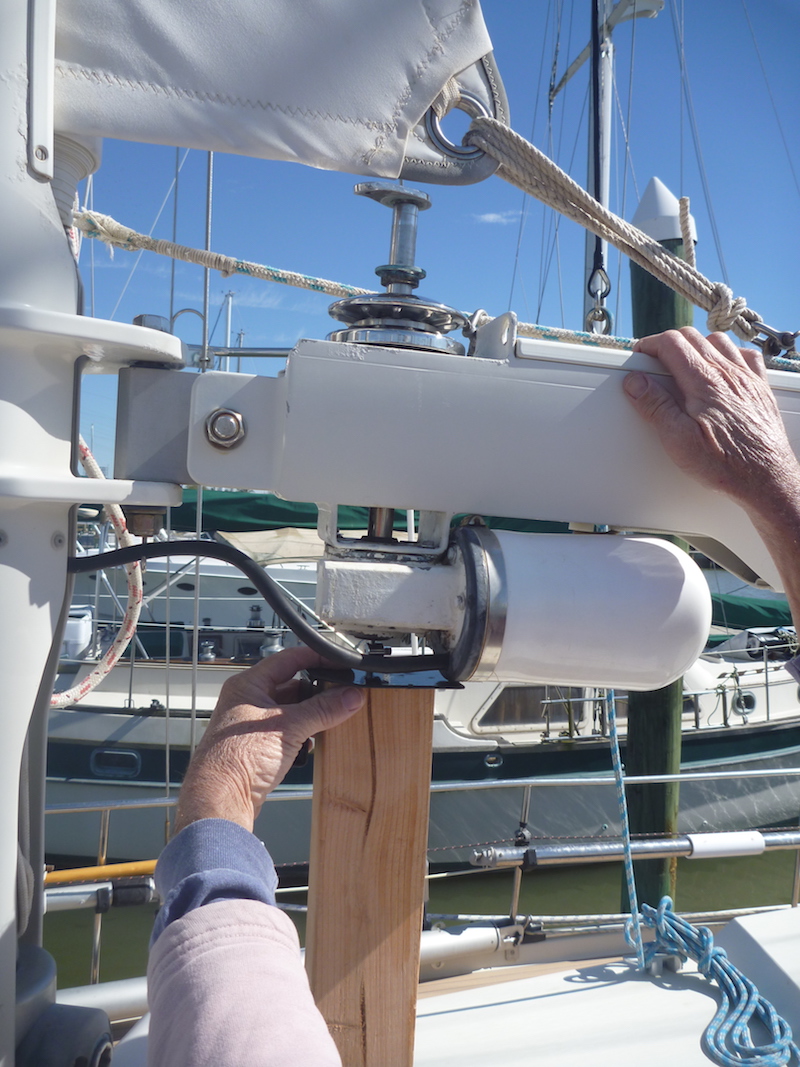

I put a metal plate between the bolt and the wood

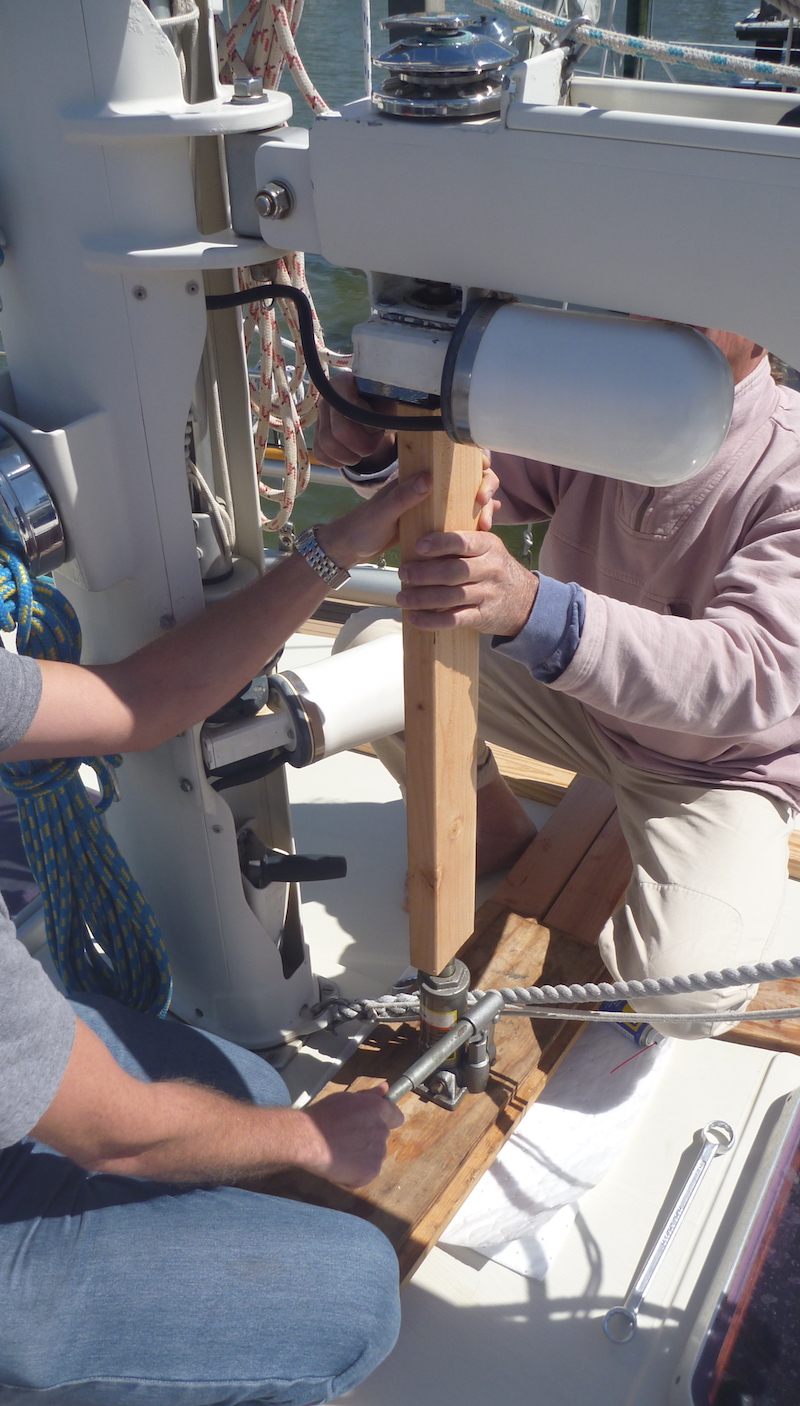

Slowly jack up

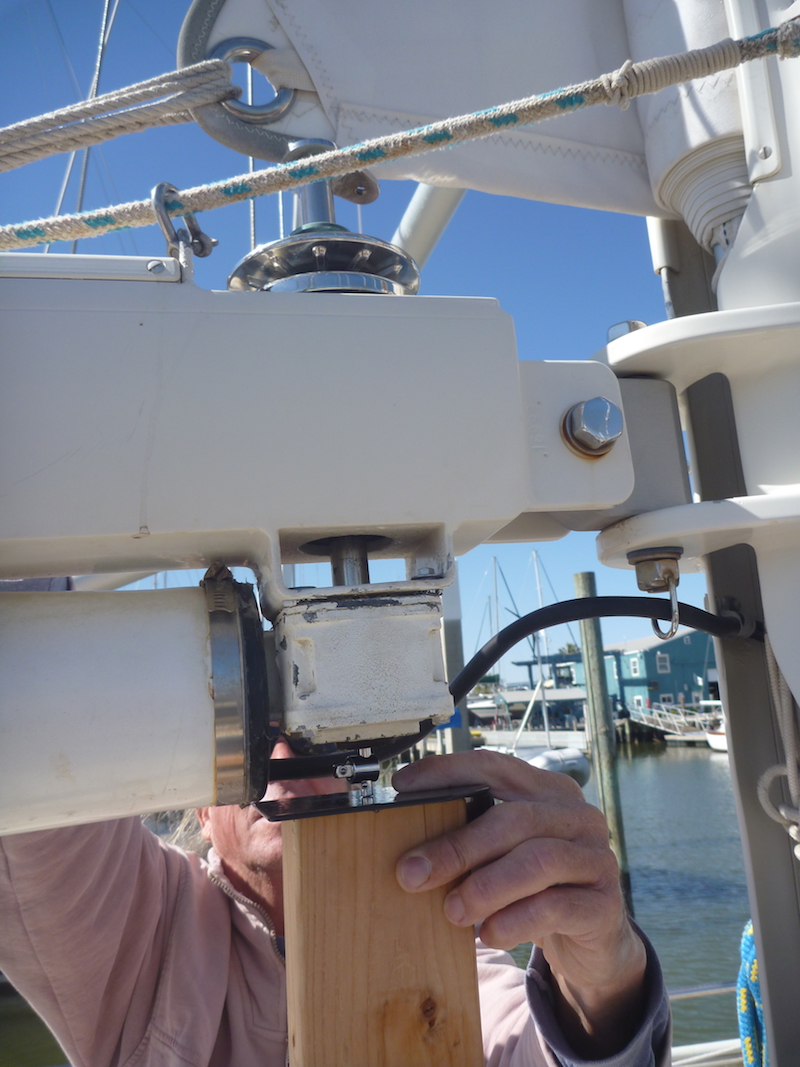

You can see the shaft that starts to go out

I later replaced the bolt with something longer to push the shaft through

Different angle

I unfortunately did not photograph the removal of the 4 bolts holding the transmission (and the electric motor attach to it)
Neither the removal of the 3 bolt connecting the transmission box to the electric motor

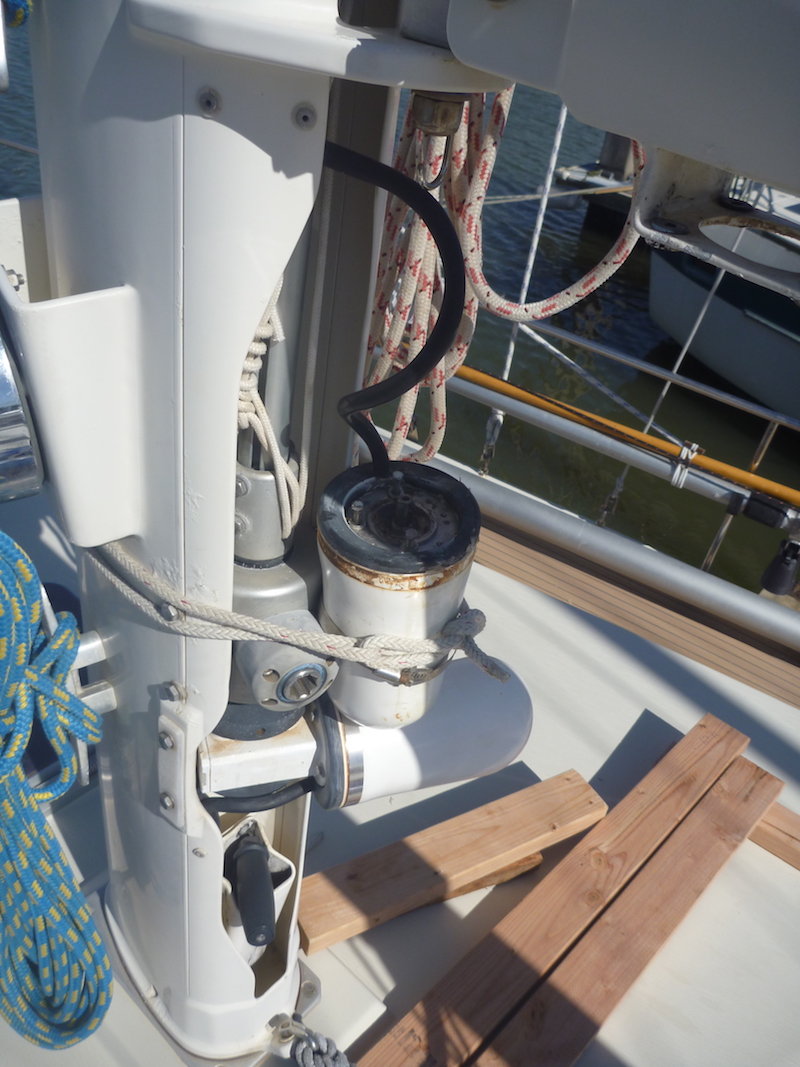

Now is the electric motor secured to the mast
