Amel Super Maramu 2000

Frigoboat Fridge removal

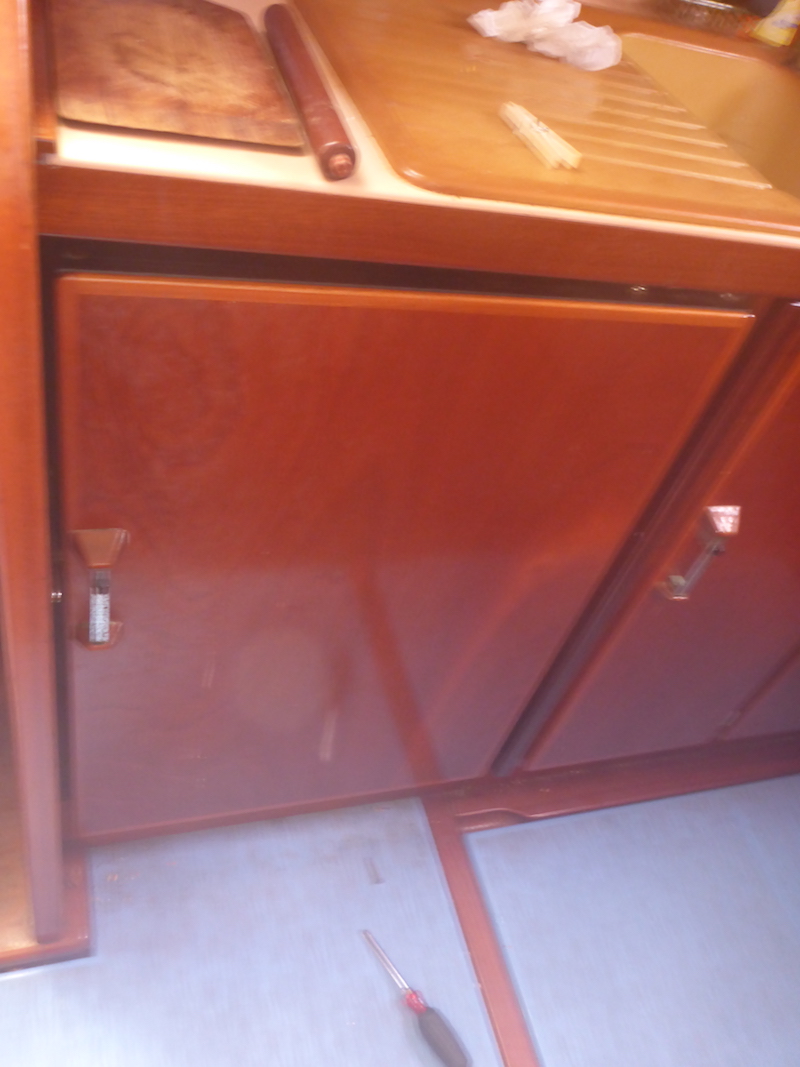

In order to clean the condenser and it's fan you will have to do the following.




 Amel Super Maramu 2000 Frigoboat Fridge removal

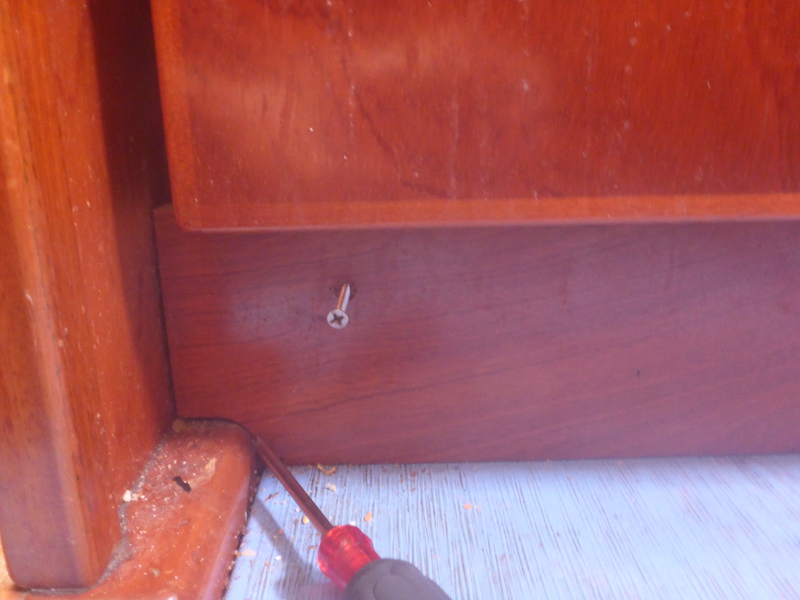

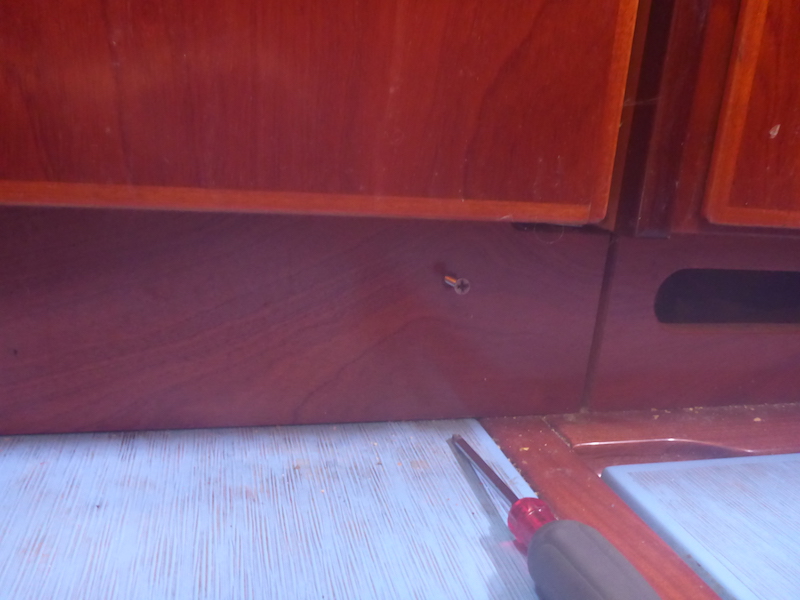

Bottom of the fridge remove screw
 Amel Super Maramu 2000 Frigoboat Fridge removal

Remove screw on the other side (don’t look at the dust)
 Amel Super Maramu 2000 Frigoboat Fridge removal

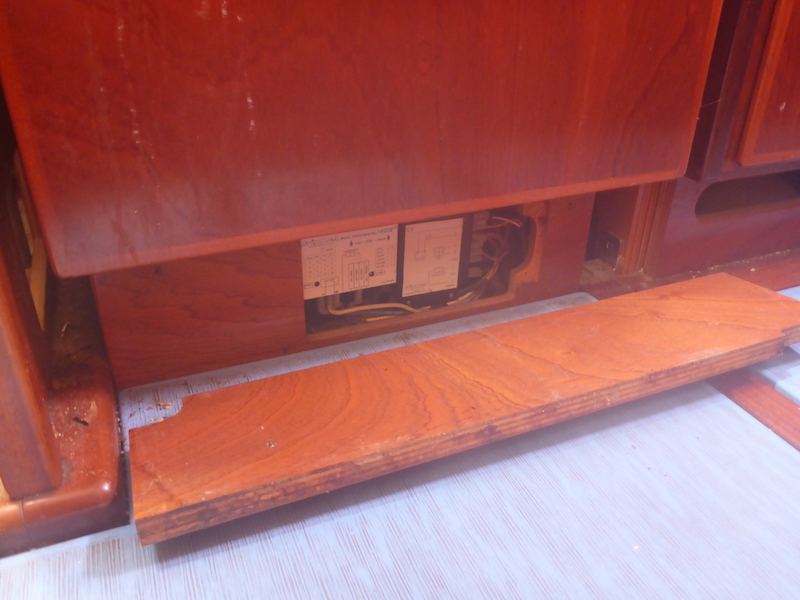

Remove the plan that give access to the compressor box
 Amel Super Maramu 2000 Frigoboat Fridge removal

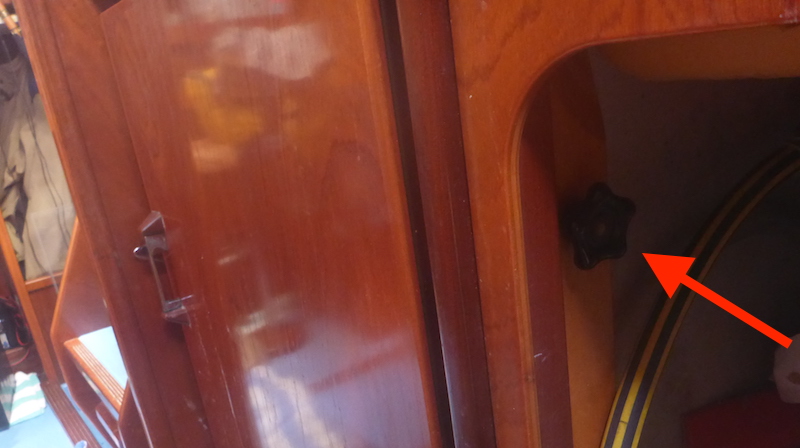

Unscrew the knob that hold the fridge in place
 Amel Super Maramu 2000 Frigoboat Fridge removal

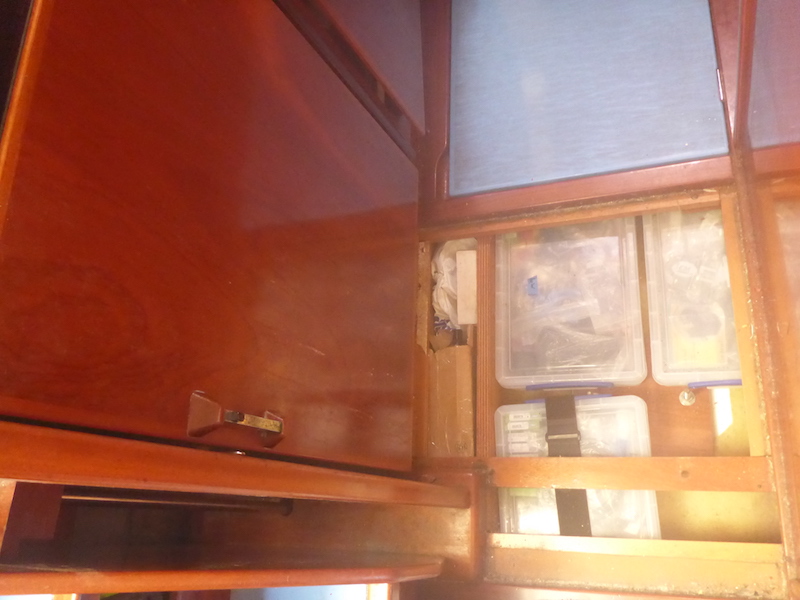

Remove the floor board
Note: I use this space to store parts
 Amel Super Maramu 2000 Frigoboat Fridge removal

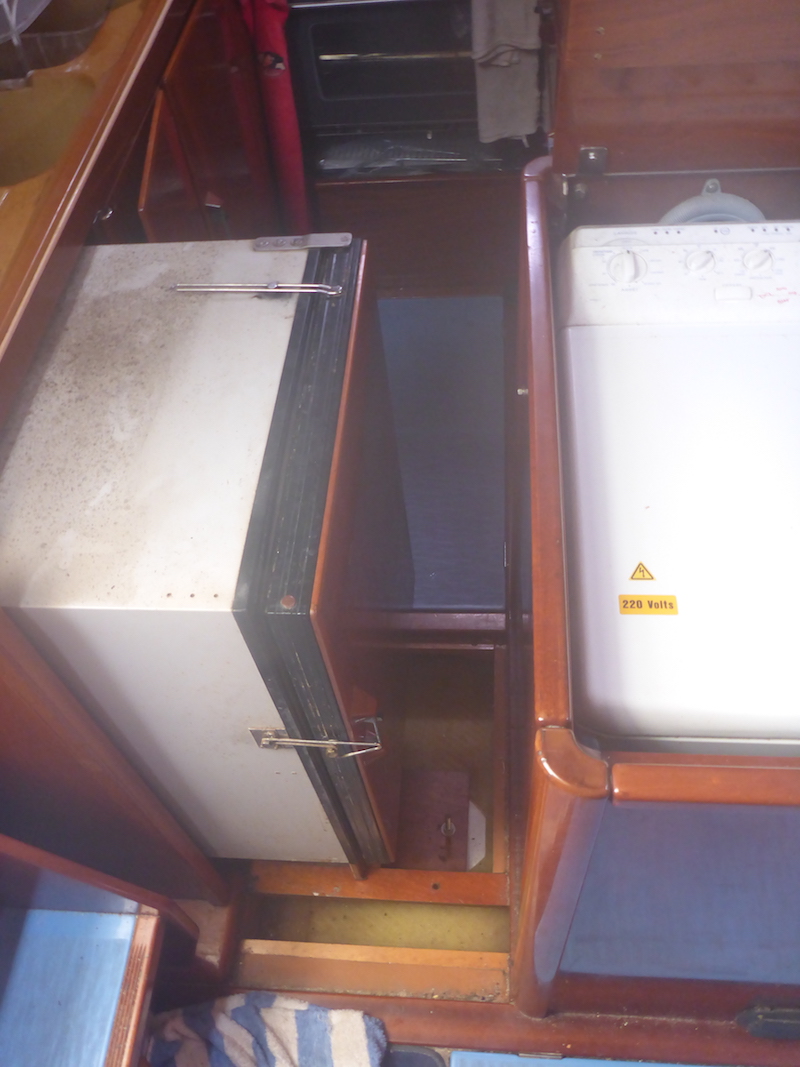

As you slide the fridge out, you will realize there is not enough space
 Amel Super Maramu 2000 Frigoboat Fridge removal

So you need to remove the washing machine cover, using a 13 mm wrench
 Amel Super Maramu 2000 Frigoboat Fridge removal

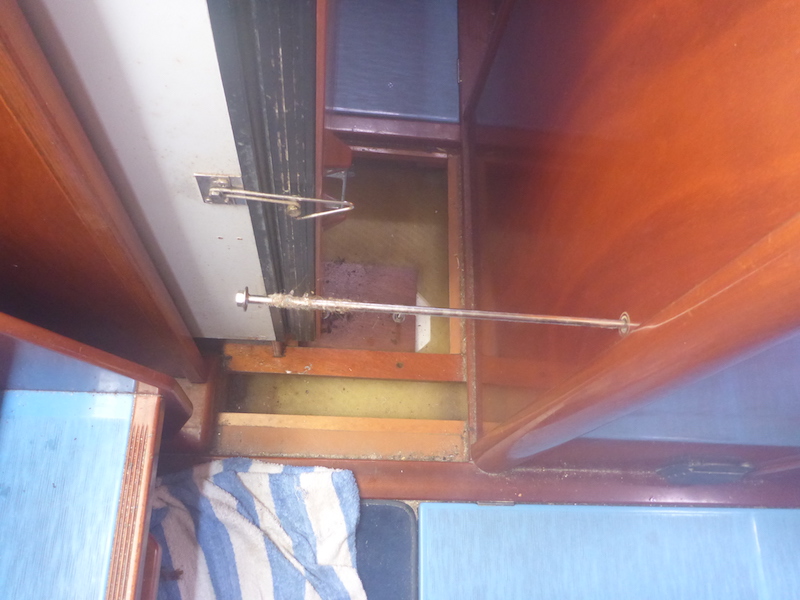

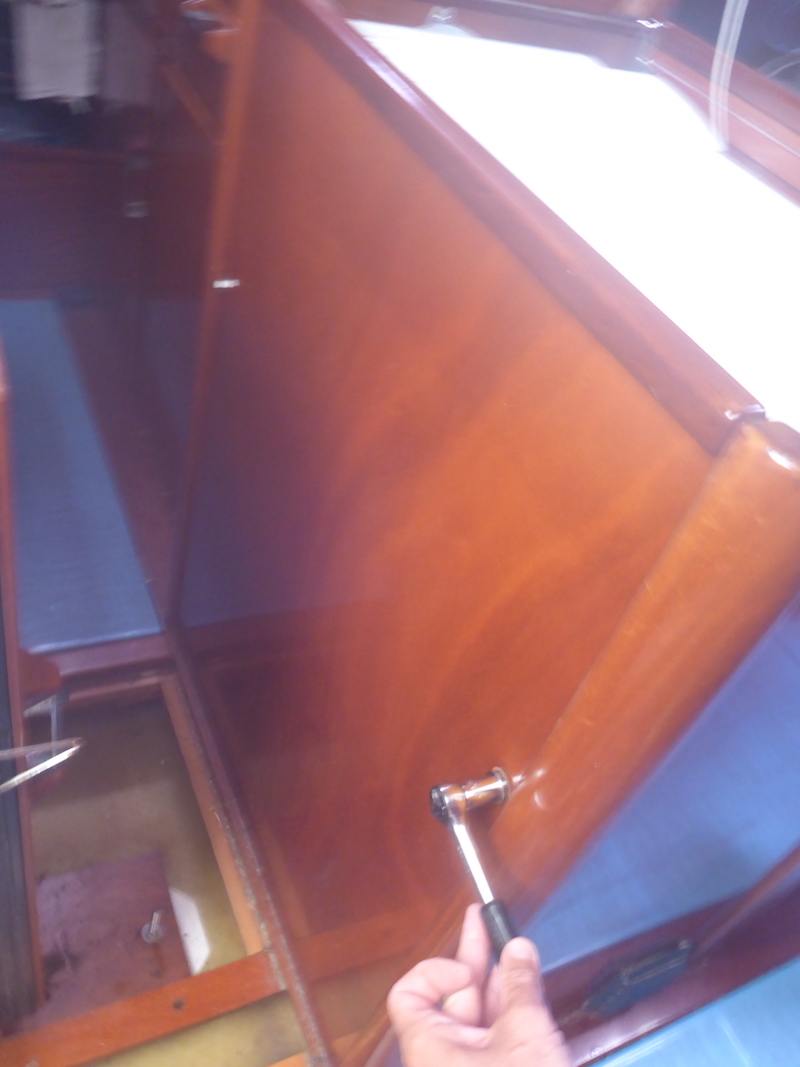

Remove the long bolt
 Amel Super Maramu 2000 Frigoboat Fridge removal

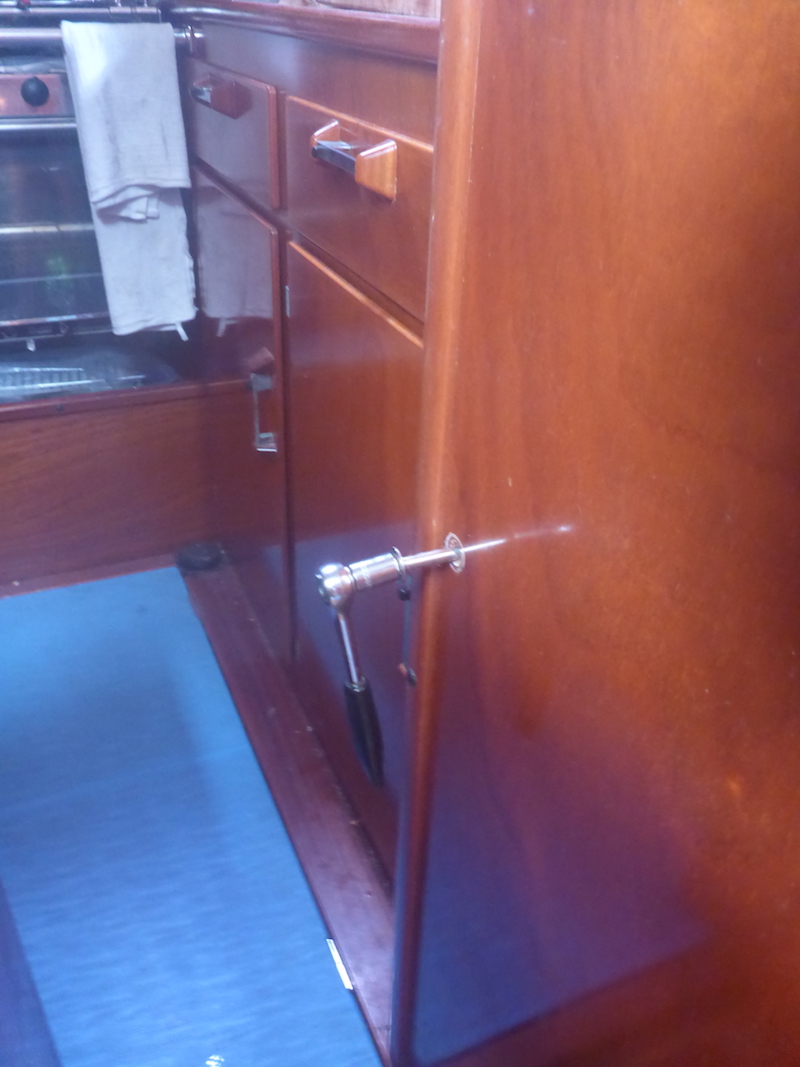

Remove the other side
 Amel Super Maramu 2000 Frigoboat Fridge removal

Remove the other long bolt
 Amel Super Maramu 2000 Frigoboat Fridge removal

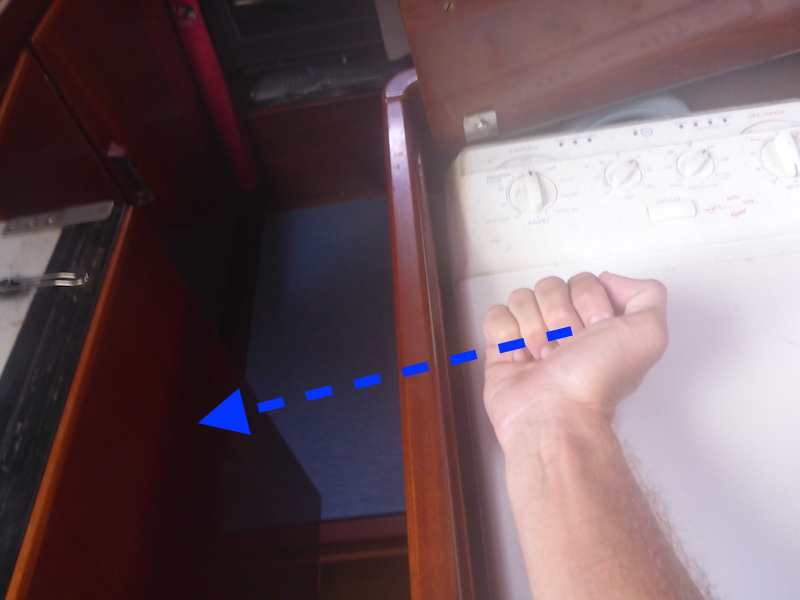

Gently tap against the panel.
 Amel Super Maramu 2000 Frigoboat Fridge removal

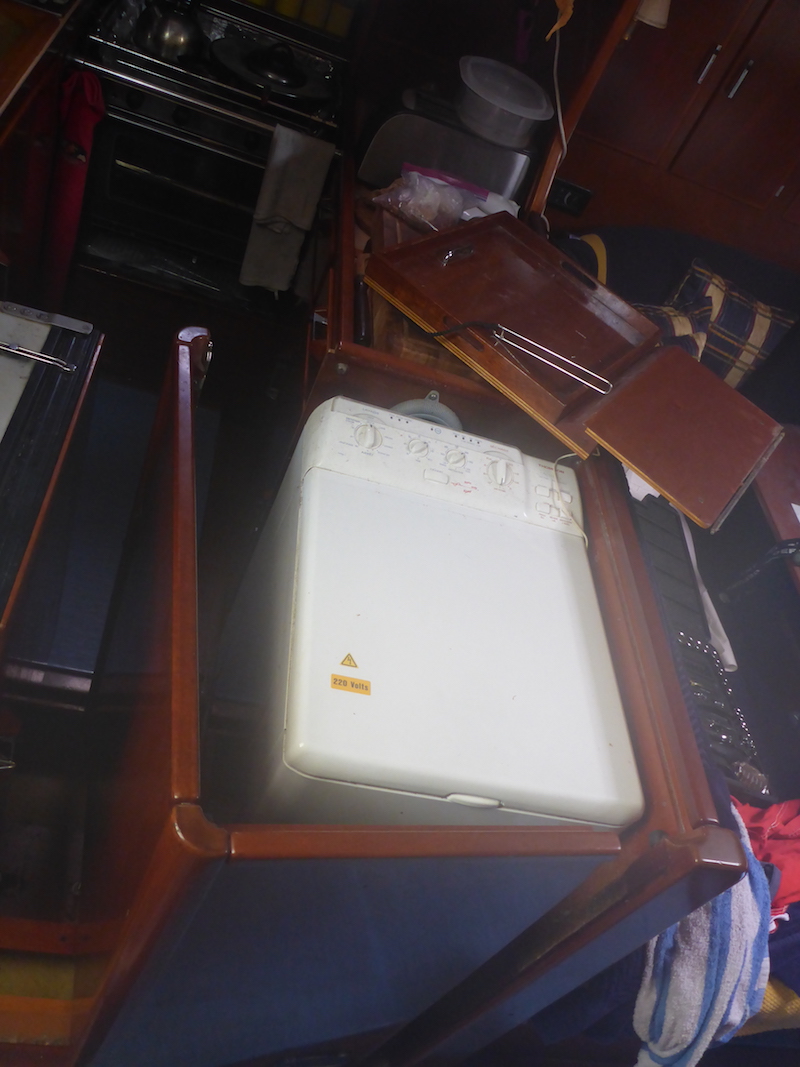

The top hiding the washing machine will fall
You can see the "L" shape of the washing machine cover
 Amel Super Maramu 2000 Frigoboat Fridge removal

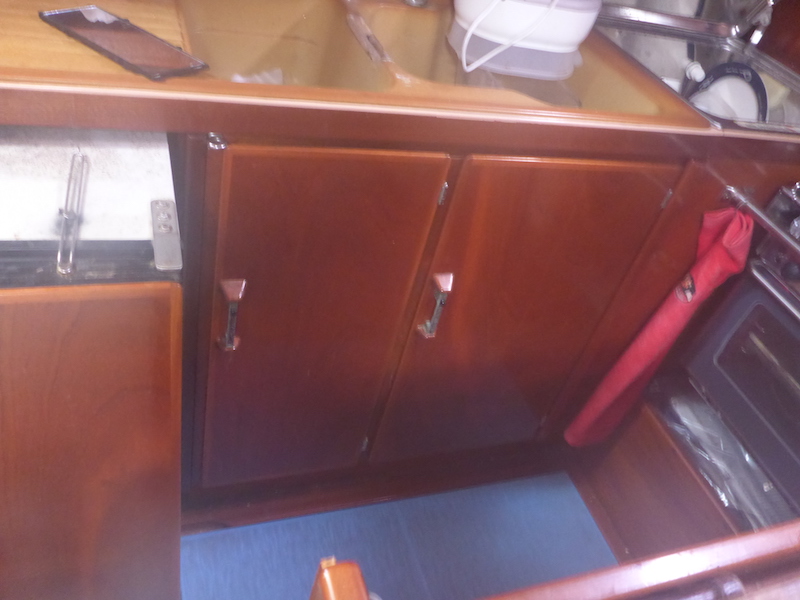

Now you need to remove the sink panel
 Amel Super Maramu 2000 Frigoboat Fridge removal

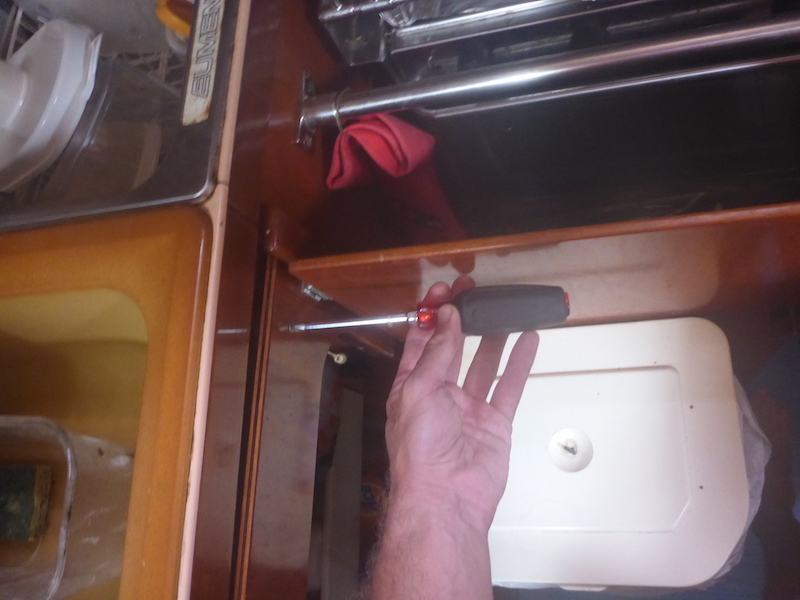

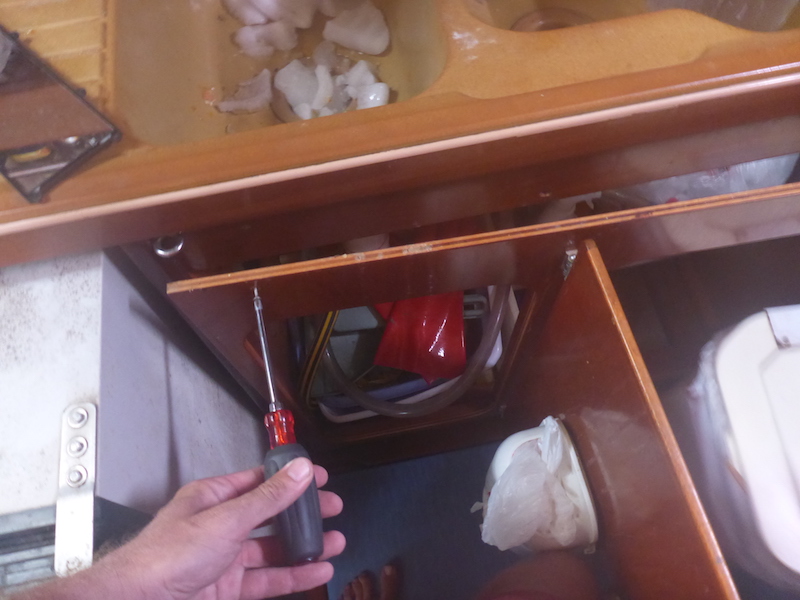

Remove right screw
 Amel Super Maramu 2000 Frigoboat Fridge removal

Remove left screw
 Amel Super Maramu 2000 Frigoboat Fridge removal

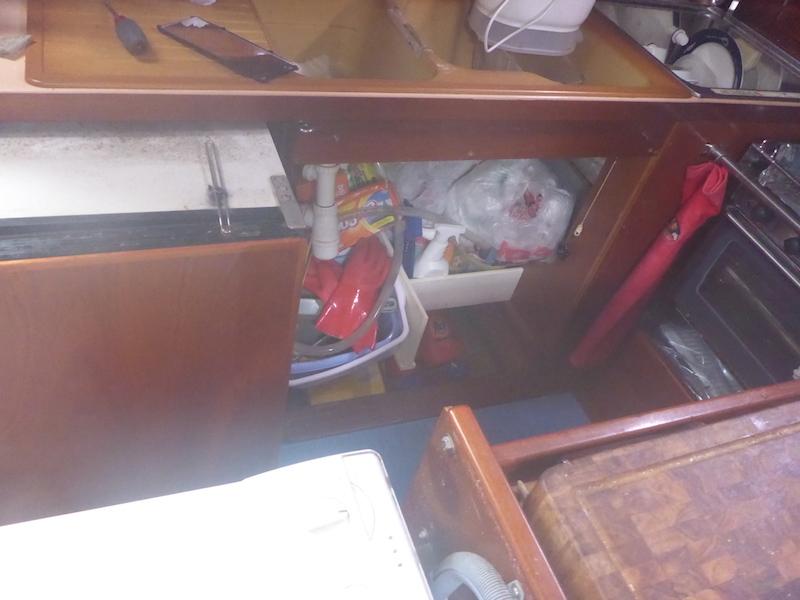

Lift the panel up and remove it
 Amel Super Maramu 2000 Frigoboat Fridge removal

Spread wide the door attach (I started unbolting it but it look weak)
 Amel Super Maramu 2000 Frigoboat Fridge removal

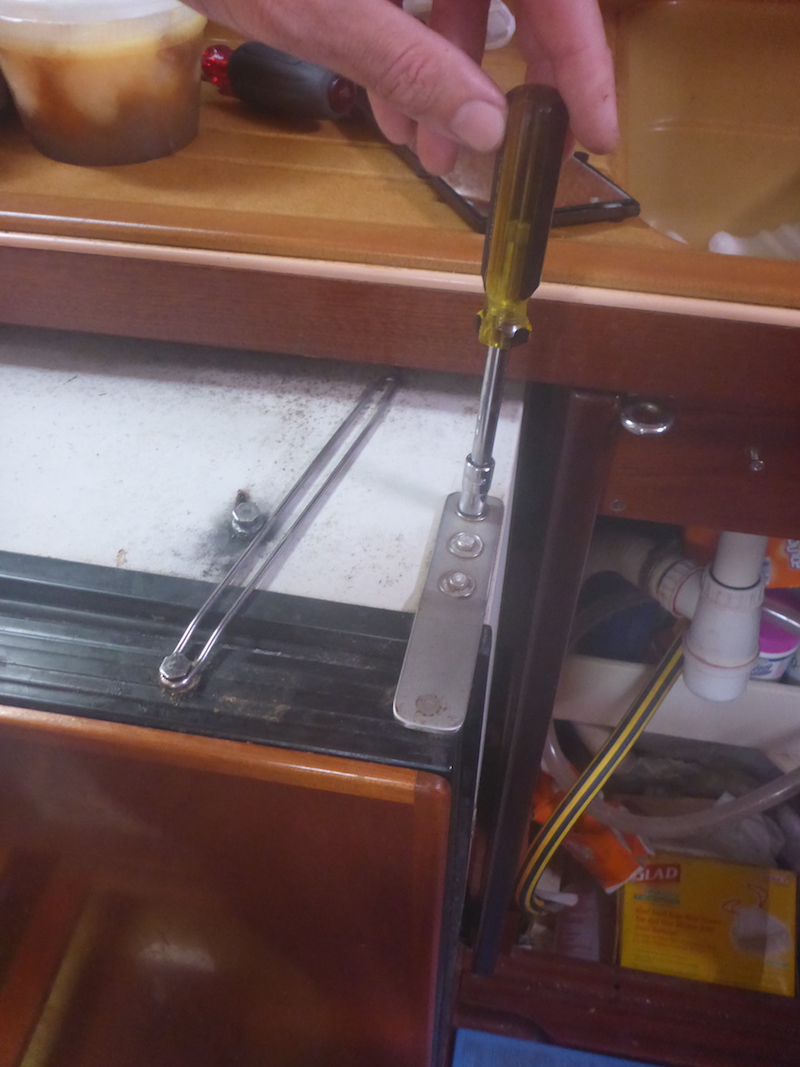

Remove the 3 bolts that hold the door attach
 Amel Super Maramu 2000 Frigoboat Fridge removal

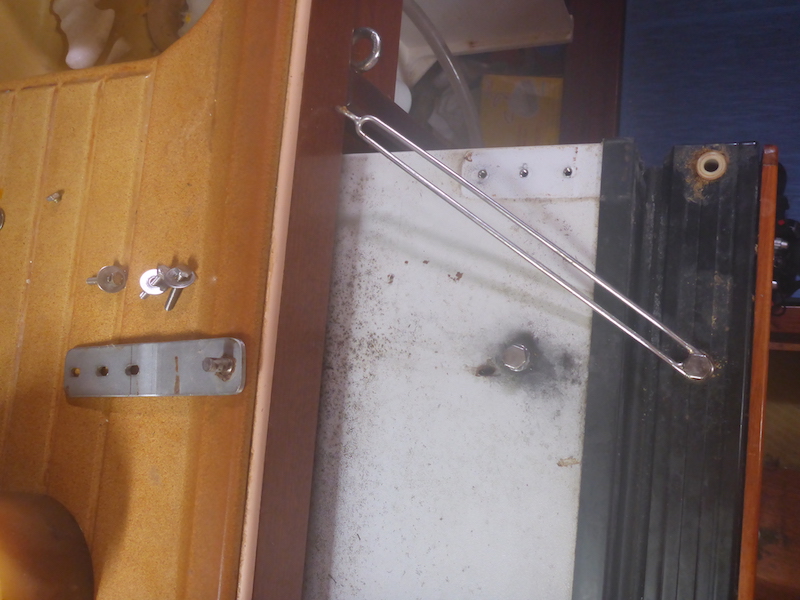

Now remoted
 Amel Super Maramu 2000 Frigoboat Fridge removal

Now you can remove the door
 Amel Super Maramu 2000 Frigoboat Fridge removal

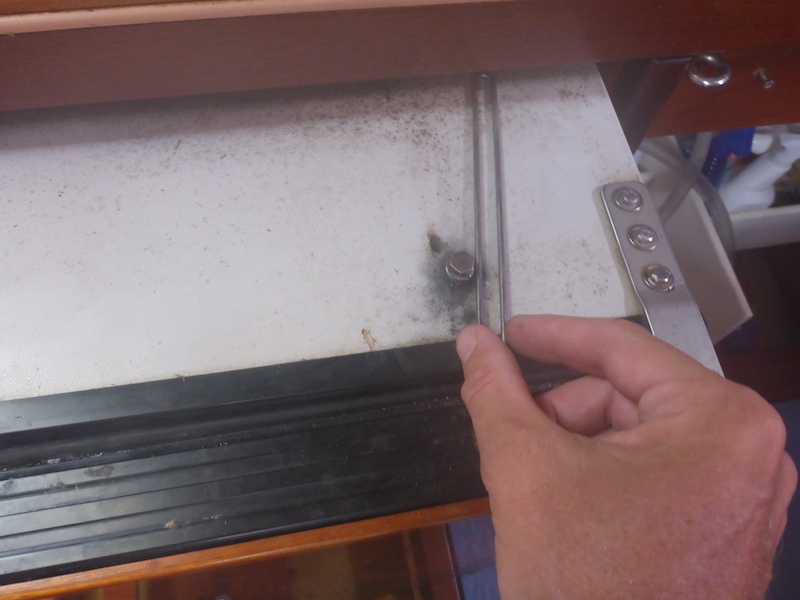

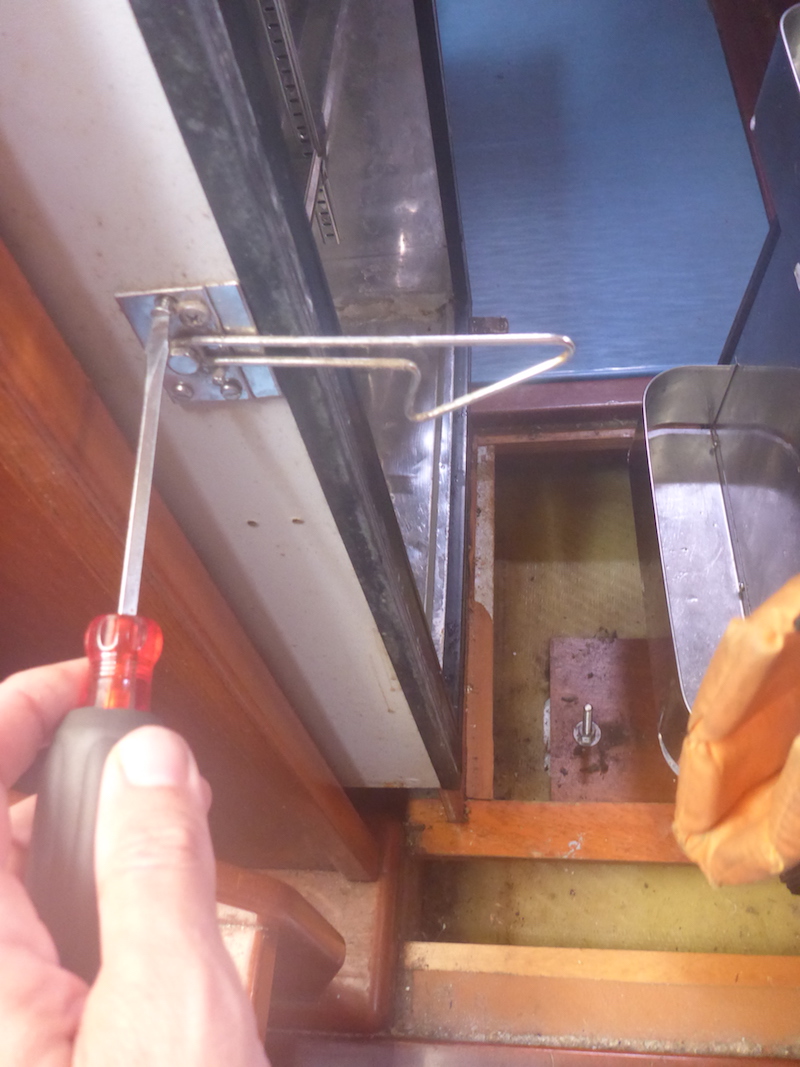

Remove the latch that keep the fridge's door secure
 Amel Super Maramu 2000 Frigoboat Fridge removal

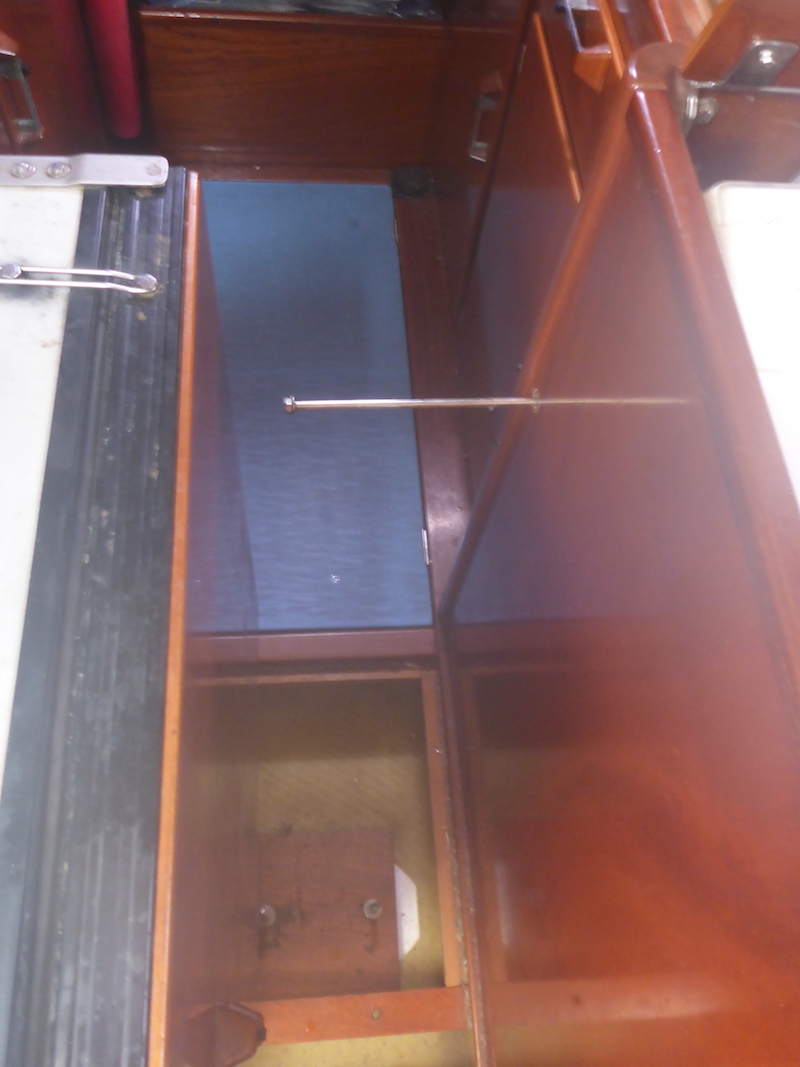

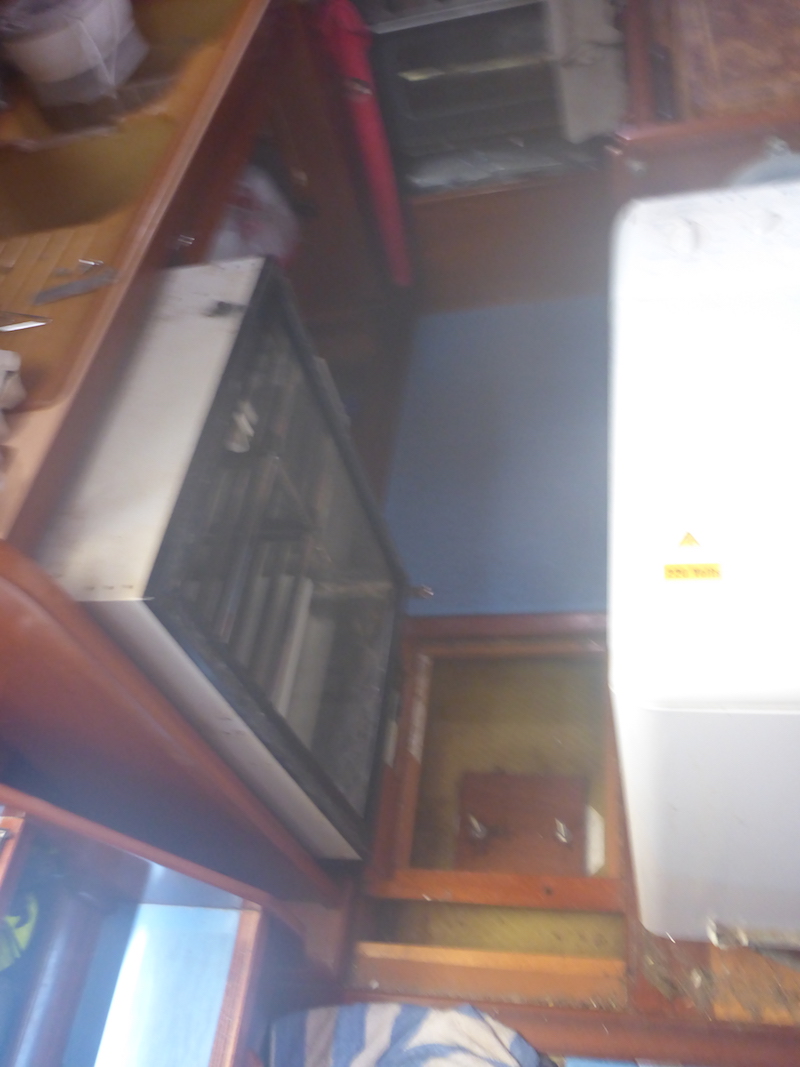

Now you have enough space to remove the fridge
 Amel Super Maramu 2000 Frigoboat Fridge removal

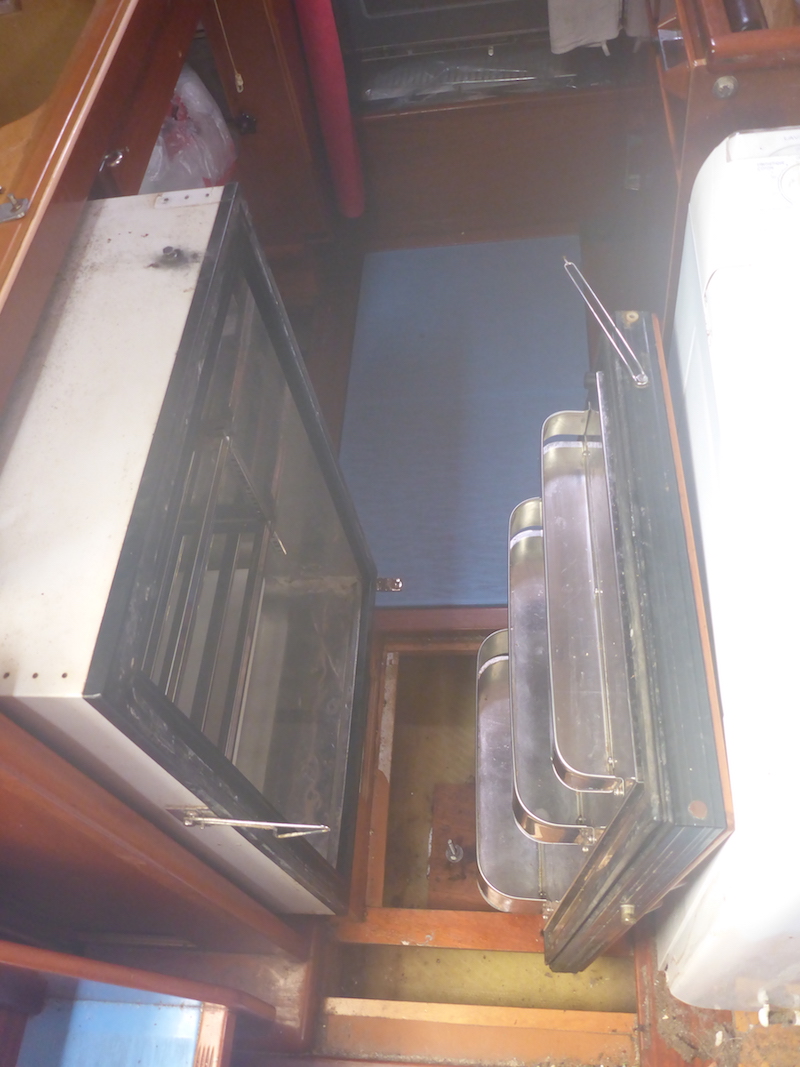

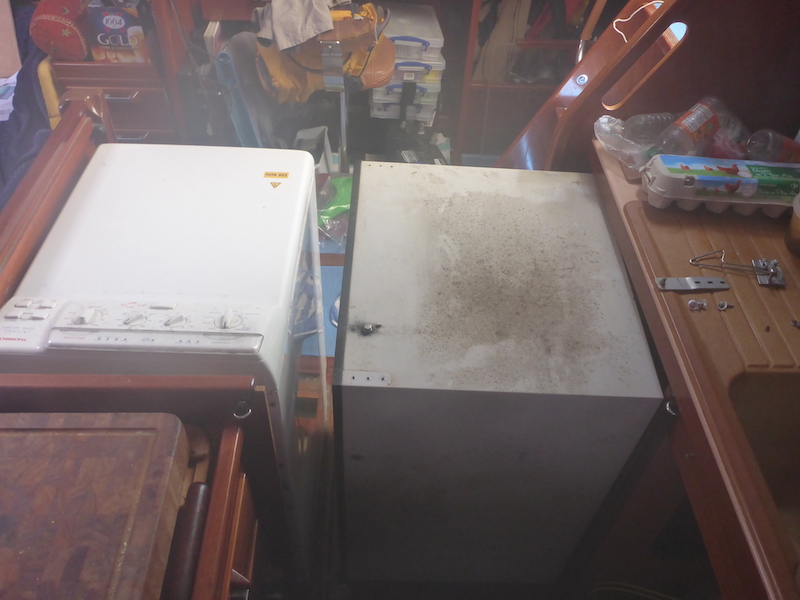

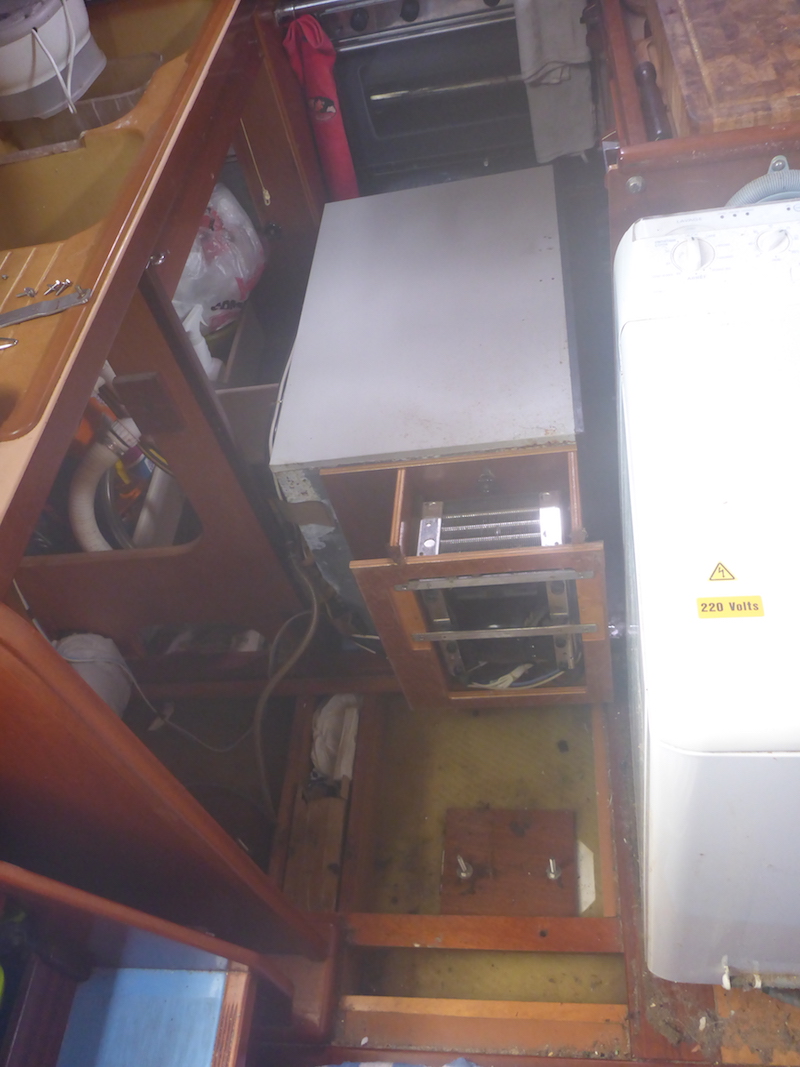

Slide it out (picture taken from the other side)
 Amel Super Maramu 2000 Frigoboat Fridge removal

Then I was able to lean the fridge on its side
 Amel Super Maramu 2000 Frigoboat Fridge removal

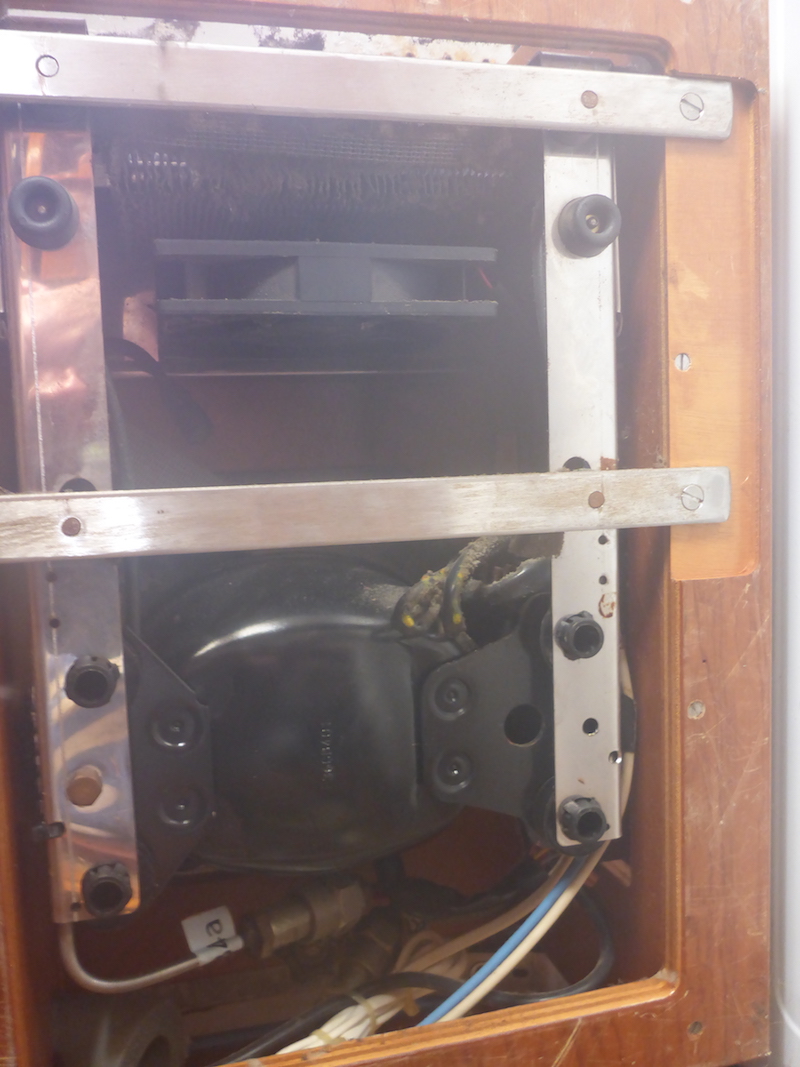

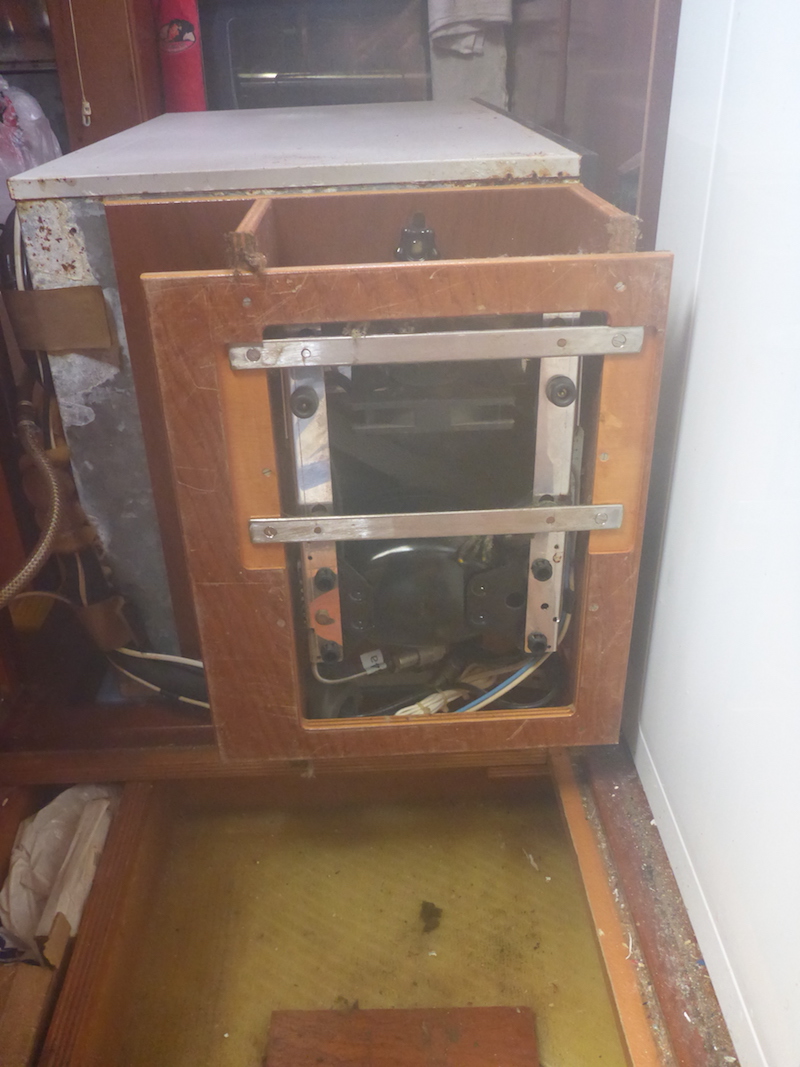

And access the compressor, condenser and it's fan.
 Amel Super Maramu 2000 Frigoboat Fridge removal

Closed up view
 Amel Super Maramu 2000 Frigoboat Fridge removal

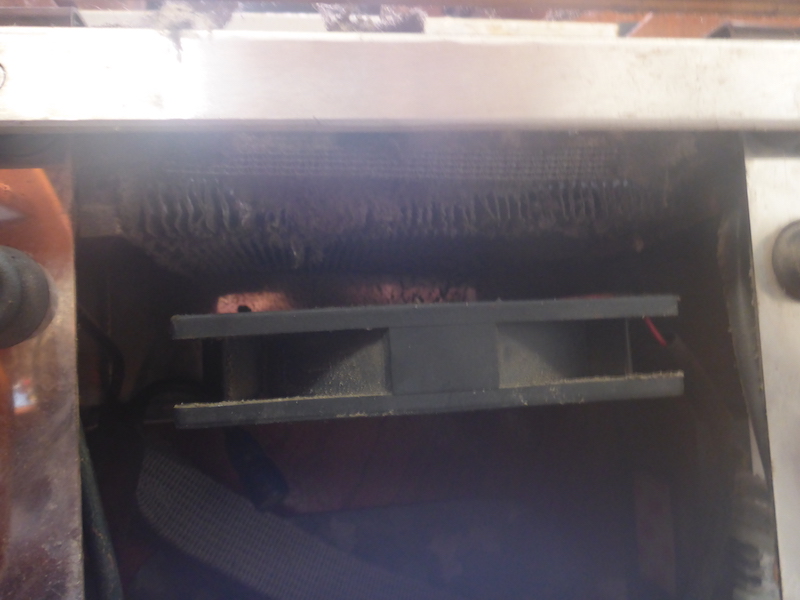

You can see the dust that accumulated on the condenser
 Amel Super Maramu 2000 Frigoboat Fridge removal

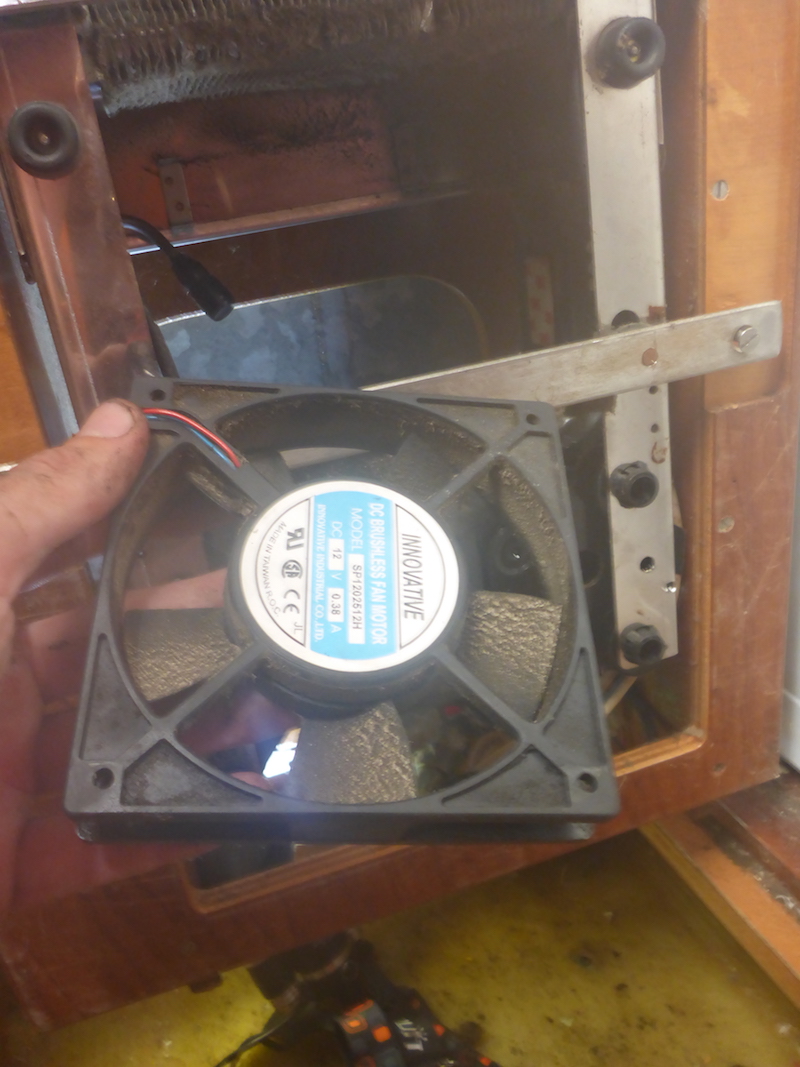

The fan is hold with 2 bolts which were difficult to reach
 Amel Super Maramu 2000 Frigoboat Fridge removal

Then everything was cleaned and put back together in reverse order.
