Amel Super Maramu 2000

Air Conditioning Climma Marine Compact 9

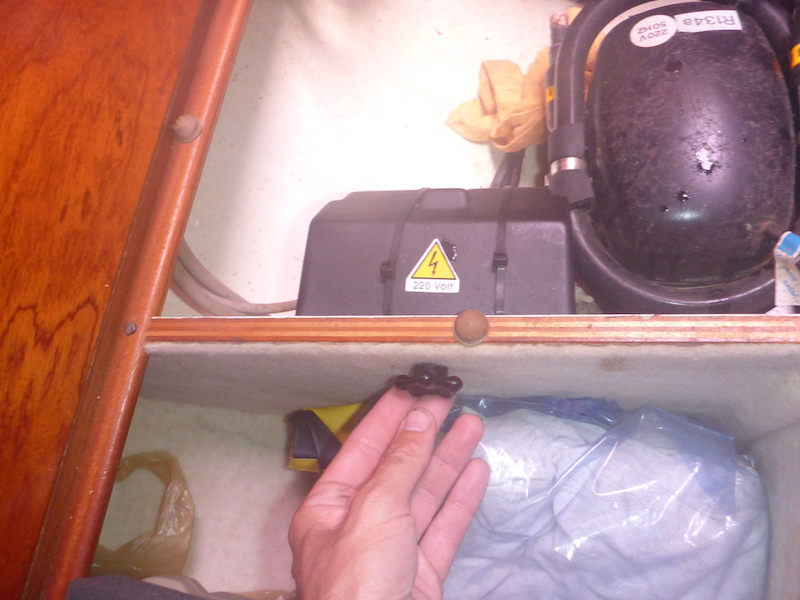

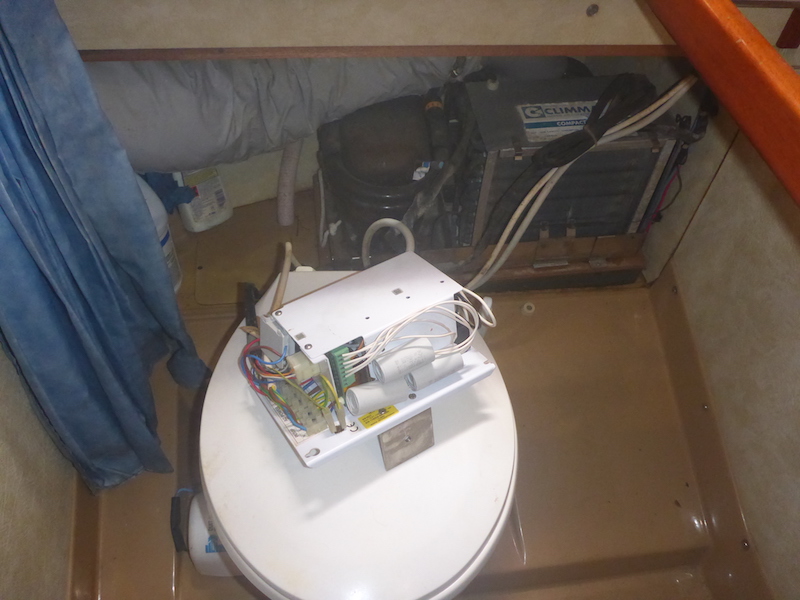

The original Air Conditioning Climma Marine Compact 9 in the aft cabin stop working (and was tripping the boat power as well as the marine shore power).

Since a new unit will take 3 months to arrive, I decided to swap the forward and aft air conditioning units.

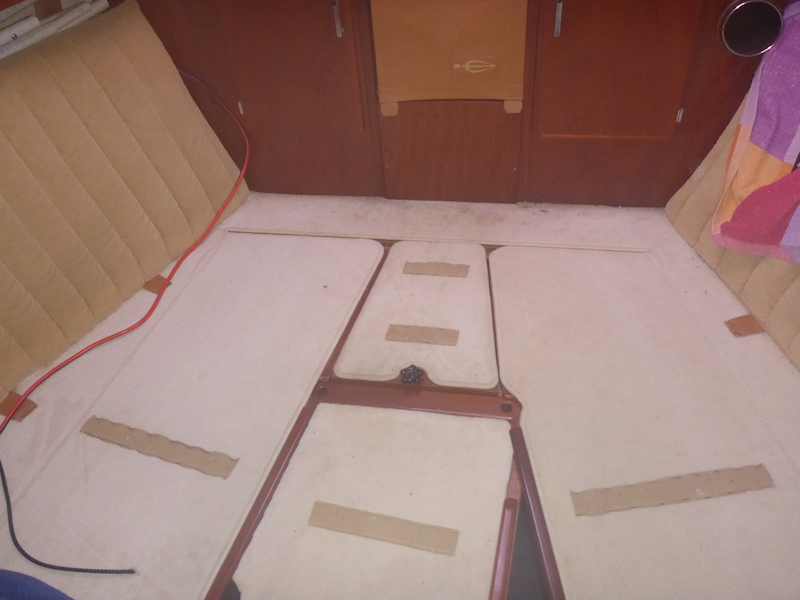

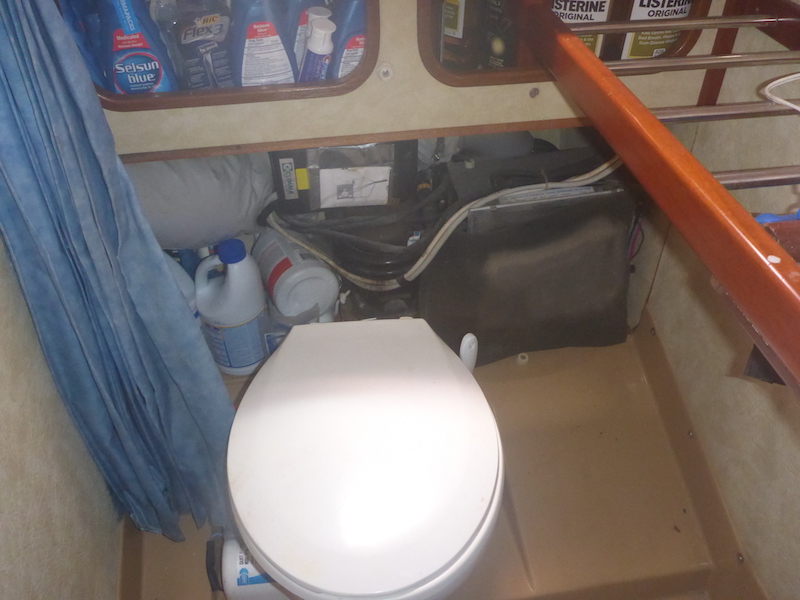

An easier option would have been to sleep in the forward cabin

You will see the removal of the aft and forward cabin air conditioning. Then reinstallation of both units with unexpected complications of the fan and bracket holding the control boxes

It is common sense that the power to the air conditioning units should be turn off at the 220 Volt panel (diruptor) before doing anything.

Air Conditioning Climma Marine Compact 9 EH Thermostats and control box removal

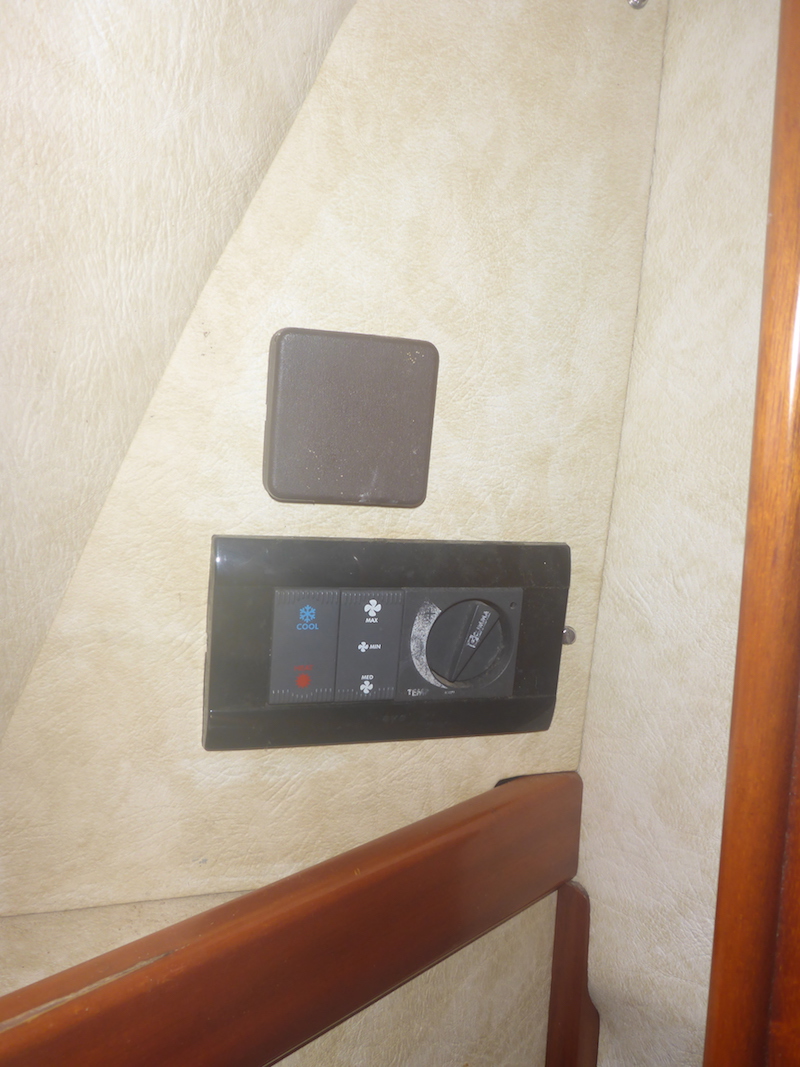

Not necessary to swap the air conditioning, but I removed the control panel in order to test the unit in the cockpit.

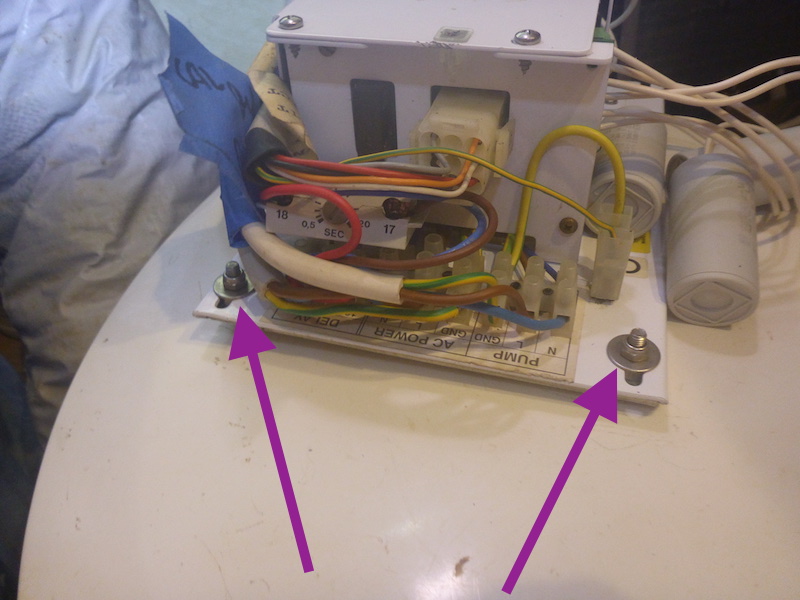

Unscrew the 2 bolt holding the panel.
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

It is preferable to switch off the 220 Volt outlets, which I did not do in order to have a fan cooling me off
I was always very careful not to couch the plug.
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Turn the 2 screw, to open the panel
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Slide the panel out of the way.

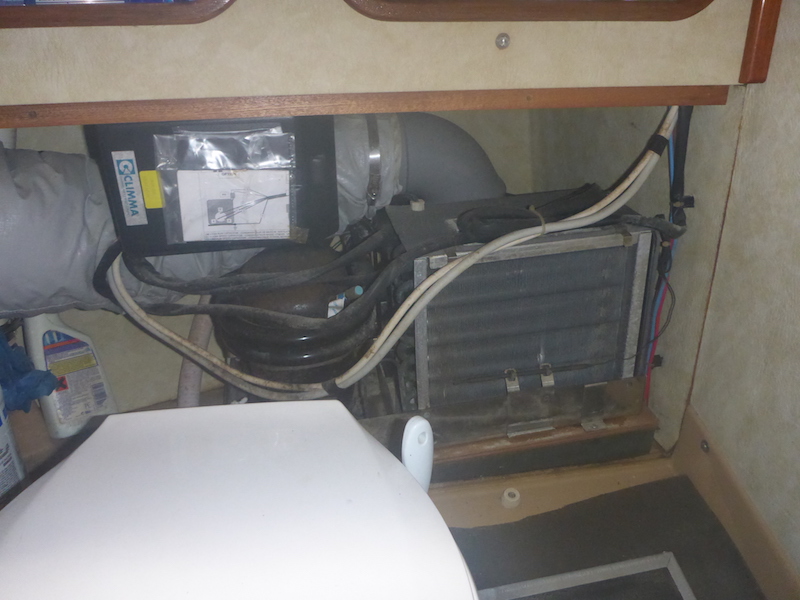

Now you see the compressor
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

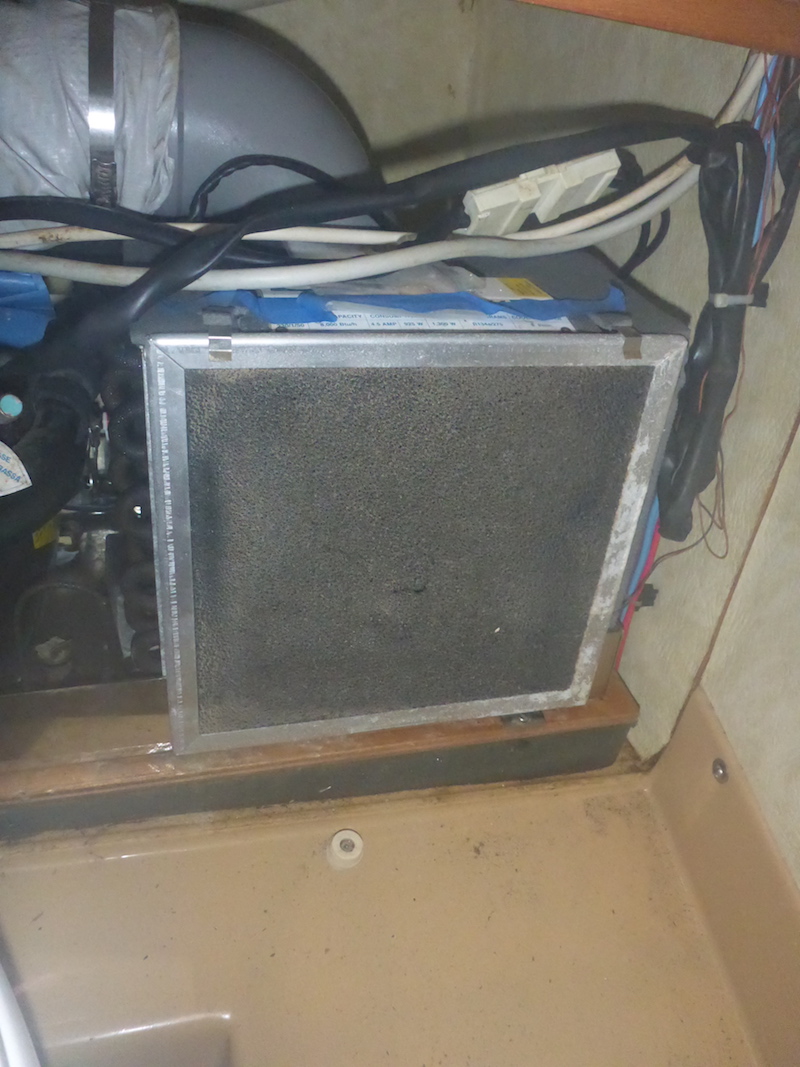

Remove the filter
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

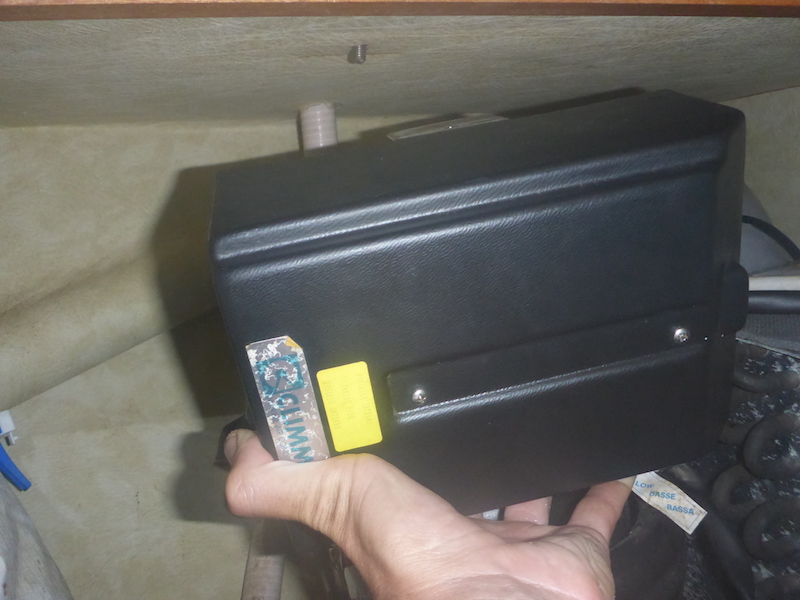

I started to unscrew the cover of the control box only to realize I need to let it loose from the bolt
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

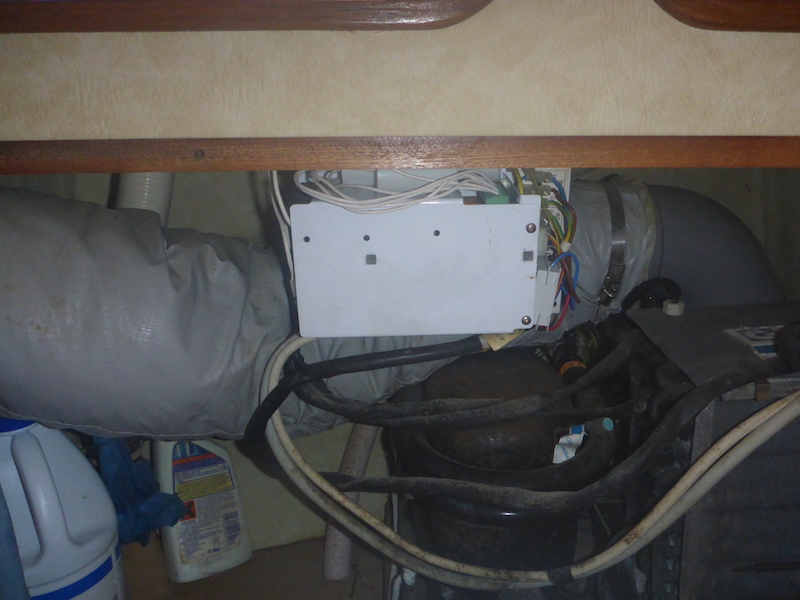

Cover removed
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

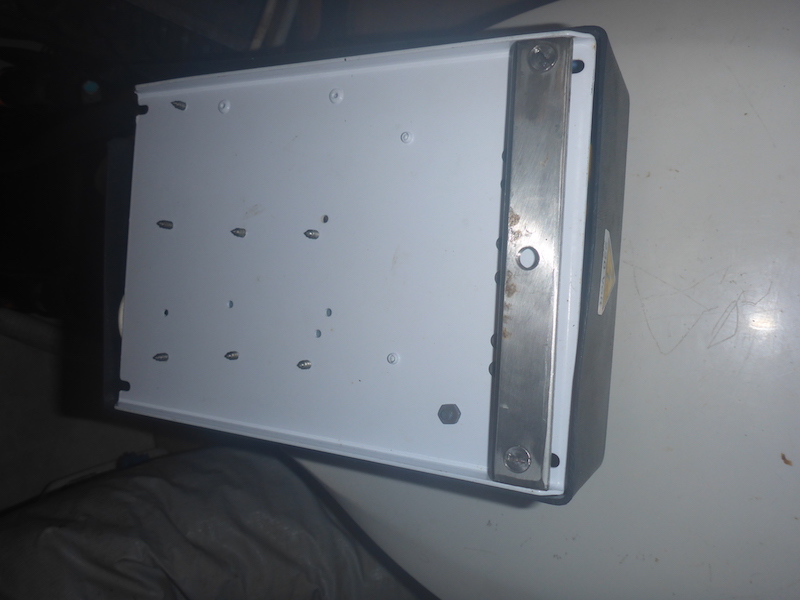

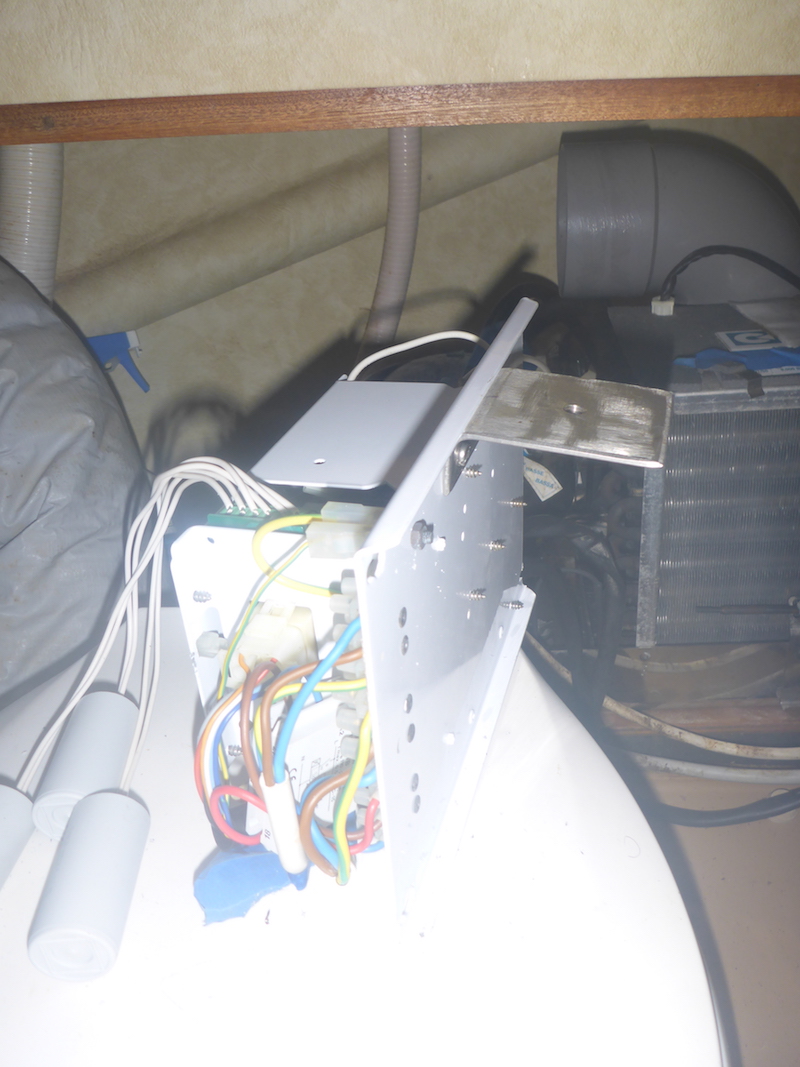

Now I am getting the control box loose.
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

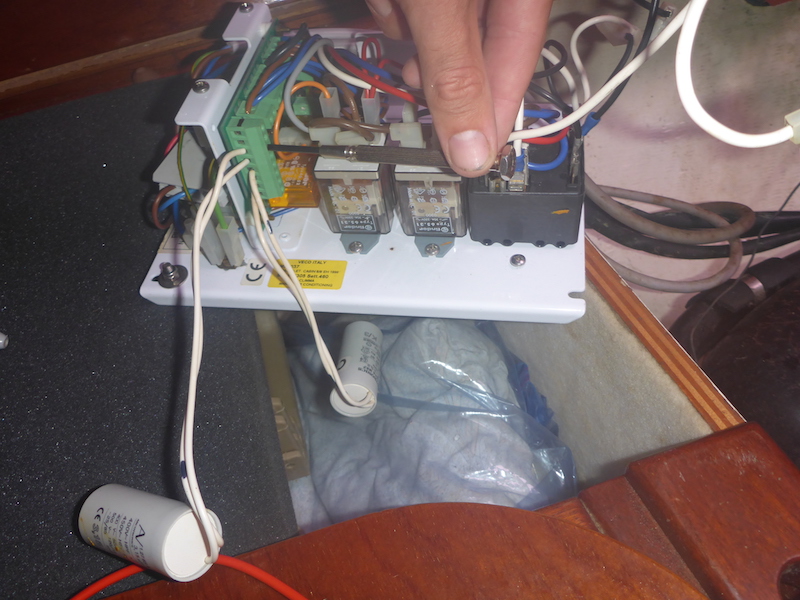

You can see the 3 capacitors for the fans
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9





Disconnecting the current of the Aft Climma Marine Compact 9 Control Box and testing voltage

Then inside the 2 to start the compressor
I did not get shock, but was told it is possible and hurts.
You are supposed to "discharge" the capacitors.
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

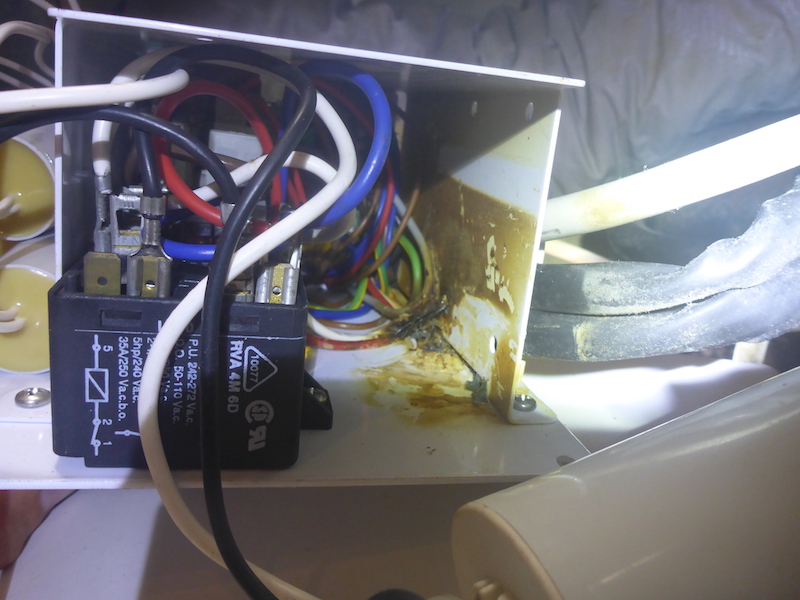

At first I thought I found my problem, but in fact this was from a previously burnt capacitor.
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

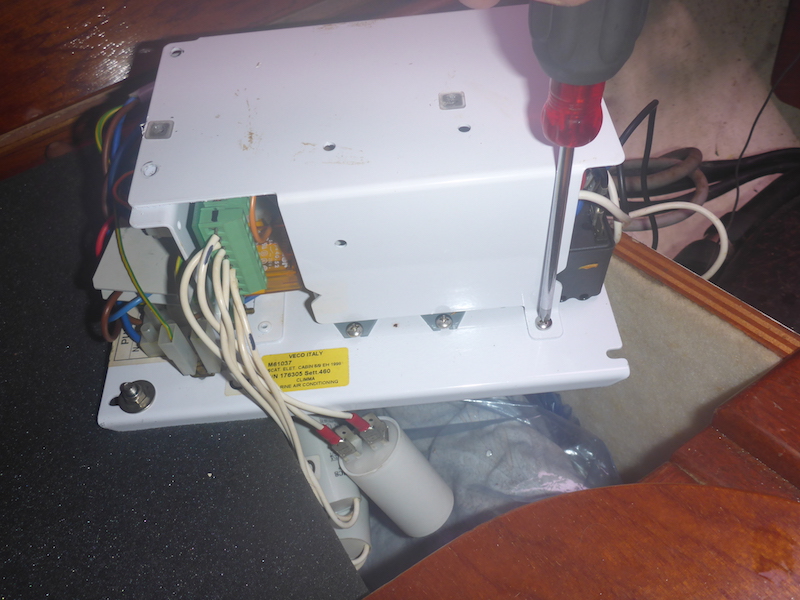

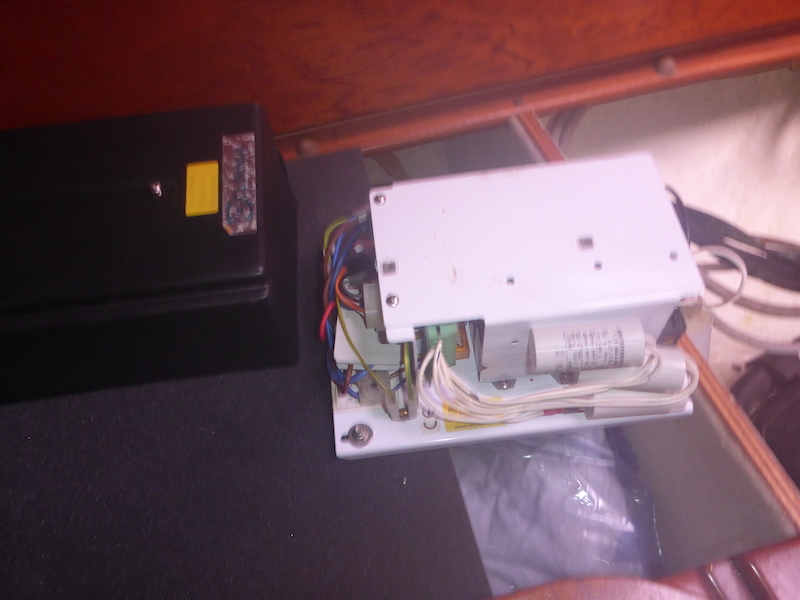

Removing the top of the control box
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

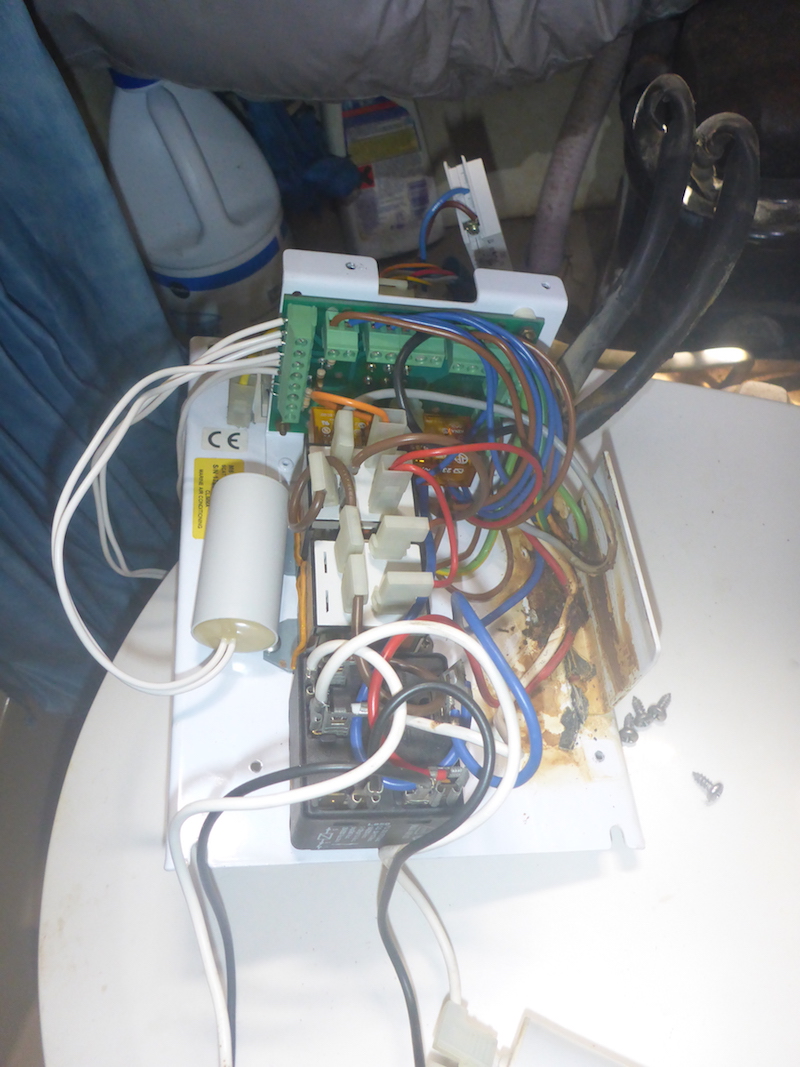

inside view
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

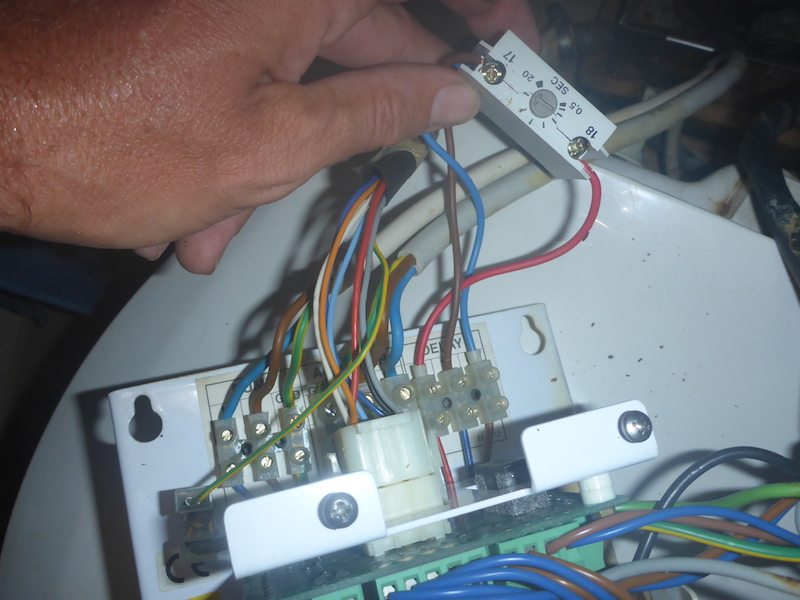

Here is the timer set on 15 or so seconds.
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

The 3 wires going to the 220 volt panel
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Now removed - then I put clamp on them
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Then I turn the Diruptor on the 220 Volt panel
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

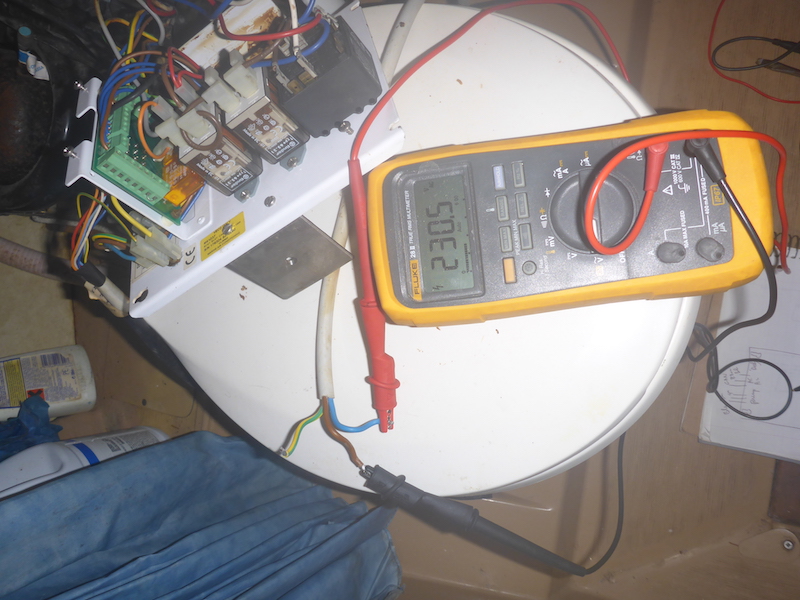

Then I measure 230 Volt of electricity.
This allow me to confirm there was no short in the wiring going to the air conditioning unit.
Then I Switch Off the Diruptor on the 220 Volt panel.
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9





Disconnecting the harnesses of the Aft Climma Marine Compact 9

I randomly named the first harness "A" as I will find out later, it is going to the Compressor
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

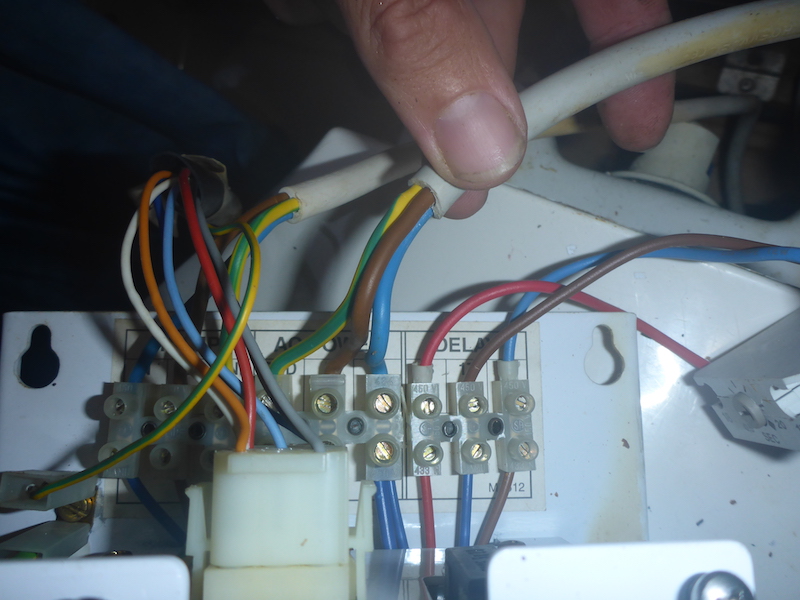

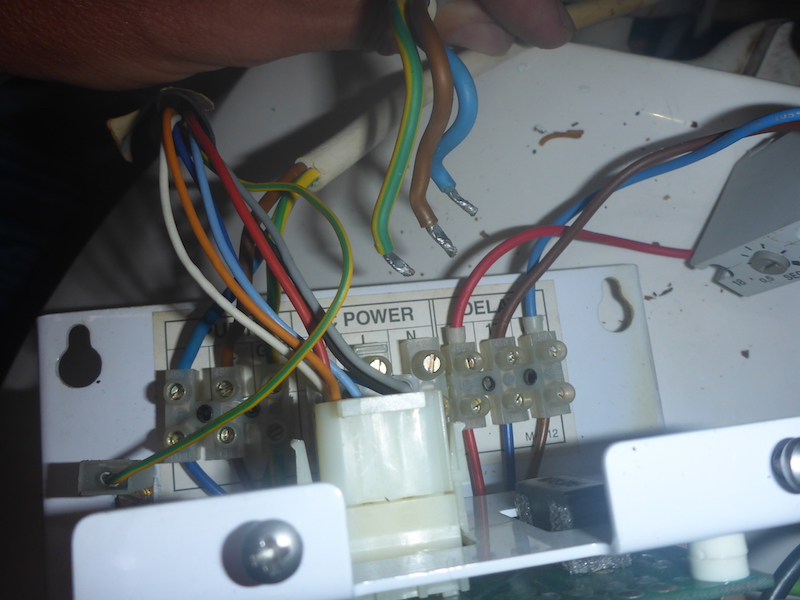

I took note of the wire position and removed the blue, white and red wires
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Then the brown, blue and ground (yellow/green) wires
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Here is a picture of my notes
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Then I label the second harness "B", as I will find out later it goes to the fan
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

I took note of the wire position and removed the brown, blue, black, ground (yellow/green) and grey wires
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Here is a picture of my notes
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9





Disconnecting the Calpeda pump and control harness of the Aft Climma Marine Compact 9

I labeled the wire going to the Calpeda pump then removed them
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Here is the harness going to the control box
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Easy to unplug including the ground
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

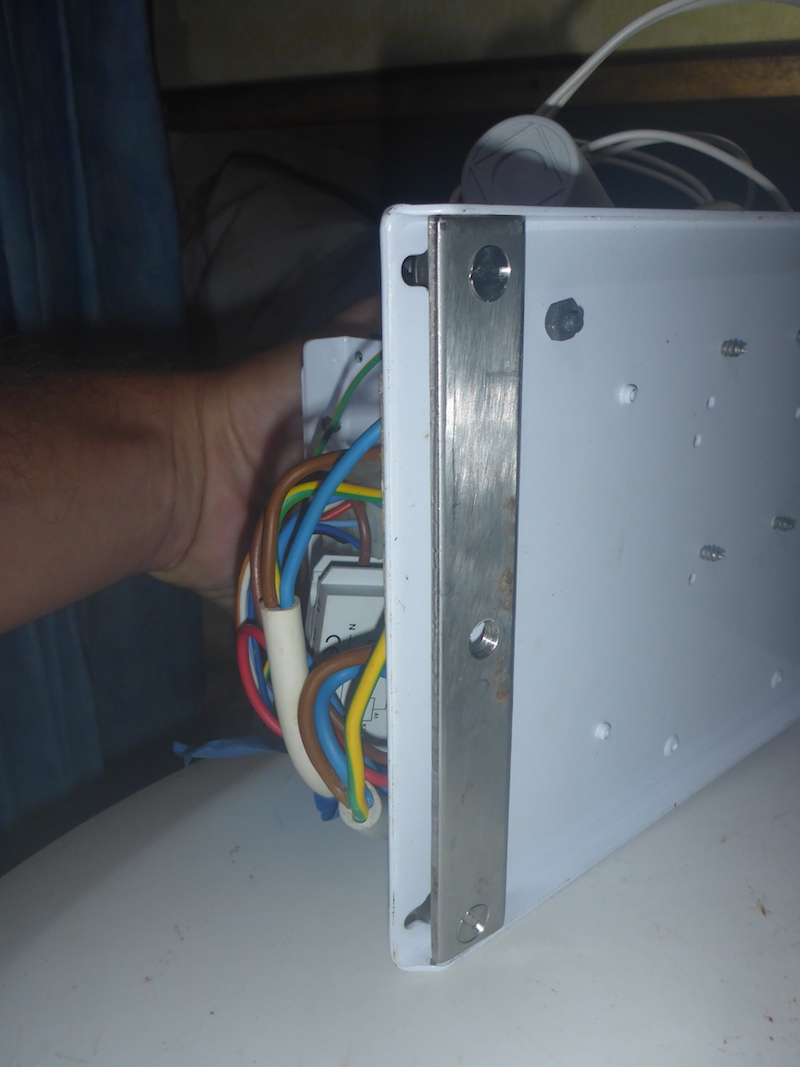

Now the control box is completely disconnected
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

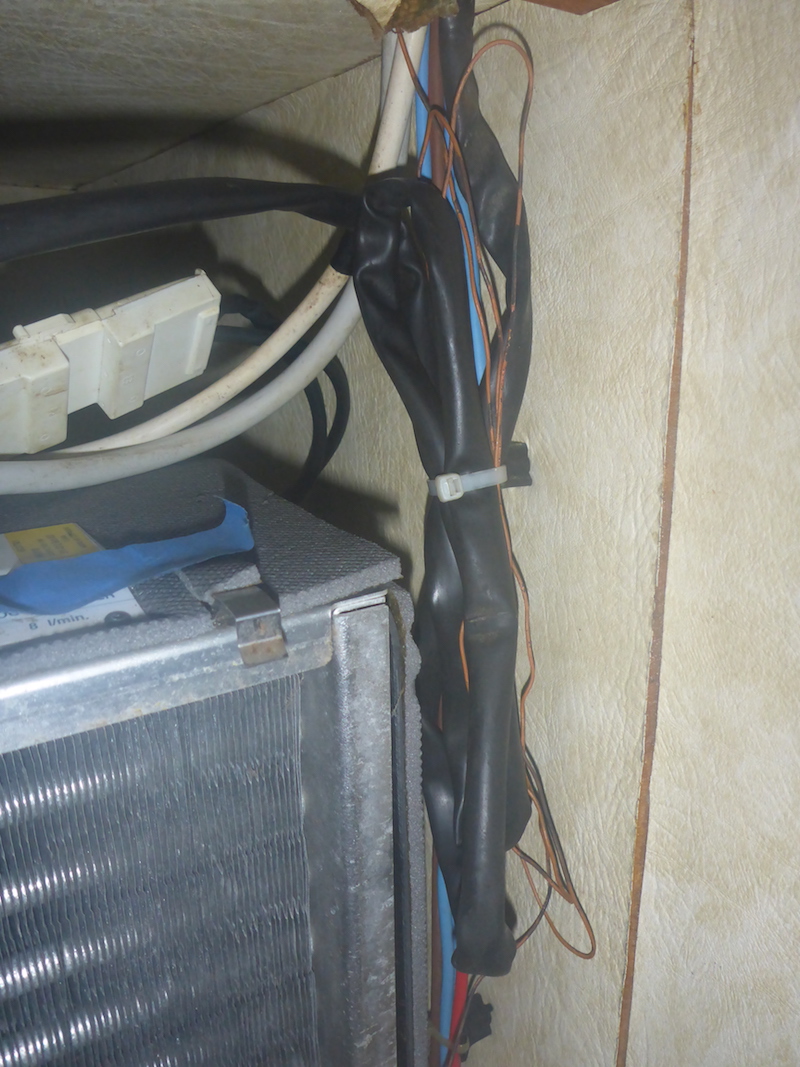

Disconnecting the air duct and cooling hoses of the Aft Climma Marine Compact 9

remove the clamp holding the hose
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Removing the hose of the overflow (this was actually quite difficult)
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Remove the clip holding the cooling water to the compressor.
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

I realize how important are these clamp, should there be a failure water would fill up quickly in the boat from the calpeda pump.
They are two clamp and a metallic wire holding the second one
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Hose removed
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Same on the other side
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Hose removed
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9





Removing the thermostats and holding brackets of the Aft Climma Marine Compact 9

Now unscrewing the attach
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Close up of what is holding in place
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

2nd one
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

3rd one
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

and 4th one on the side
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Now can use the handle to slide the unit
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

but before, let's not forget to remove the thermostat
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

sliding the unit
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Now out
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

A look at the other side
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9





Removing the thermostats control of the Aft Climma Marine Compact 9

Not necessary to swap the units, but necessary in my test, I removed the thermostat adjuster
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Remove the cover with a screw driver
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Pull the cable out
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

uncrew the cover
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Pull out the unit
again careful that the electric outlet above is either off or stay away from it
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9





Removal of the forward cabin Air Conditioning Climma Marine Compact 9

Disconnecting the cooling hoses of the forward cabin Air Conditioning Climma Marine Compact 9

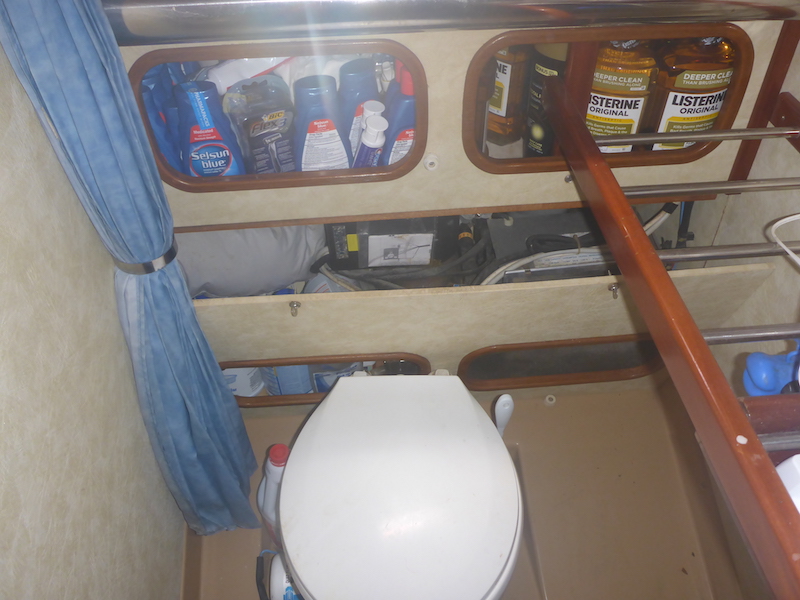

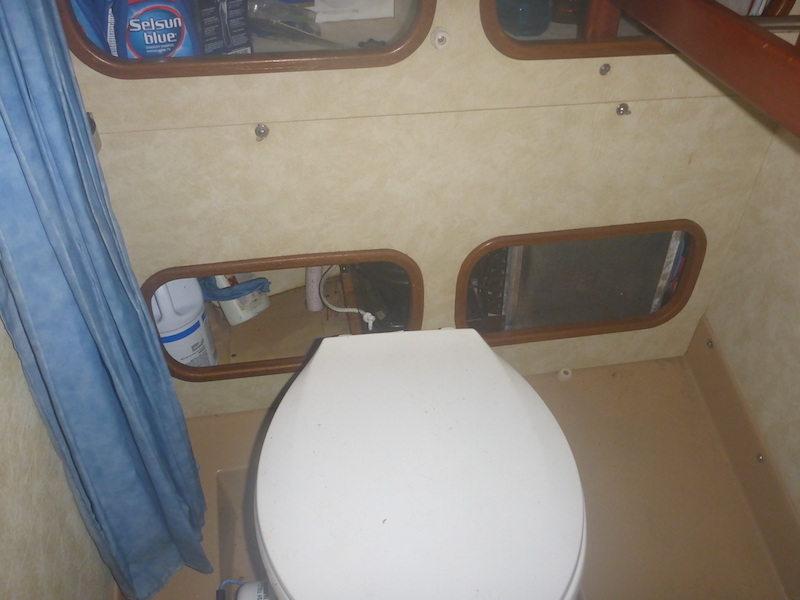

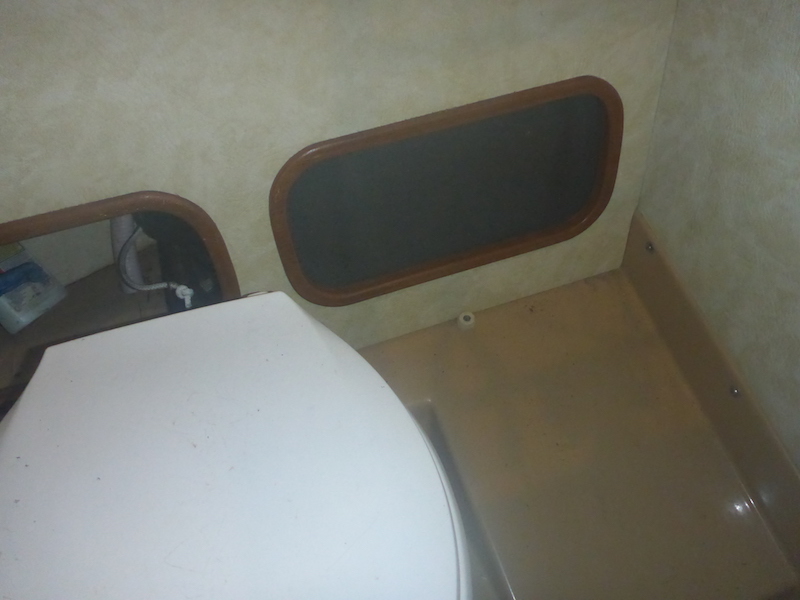

Empty the cabin and open the 3 panels
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Close the valve that reject the cooling water
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

In my case, it appears frozen and I did not want to risk adding another problem, so I did not close it, but prepared with towels and plugs
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Removed the 2 clamps, same as the aft cabin there is also a metallic wire attached on the 2nd clamp.
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Very little water went and I put the plug.

 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Also removed the 2nd hose, put a plug and position these high above the water line.
You can see the 2 metallic wire holding the 2nd clamp in position
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Remove the clamp holding the air hose
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9





Removal control box of the forward cabin Air Conditioning Climma Marine Compact 9

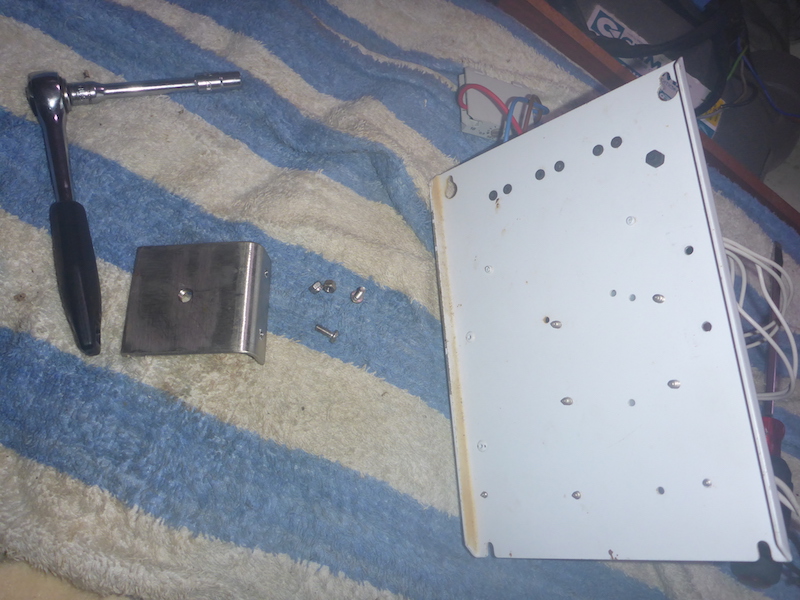

unbolt the wheel holding the control box
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

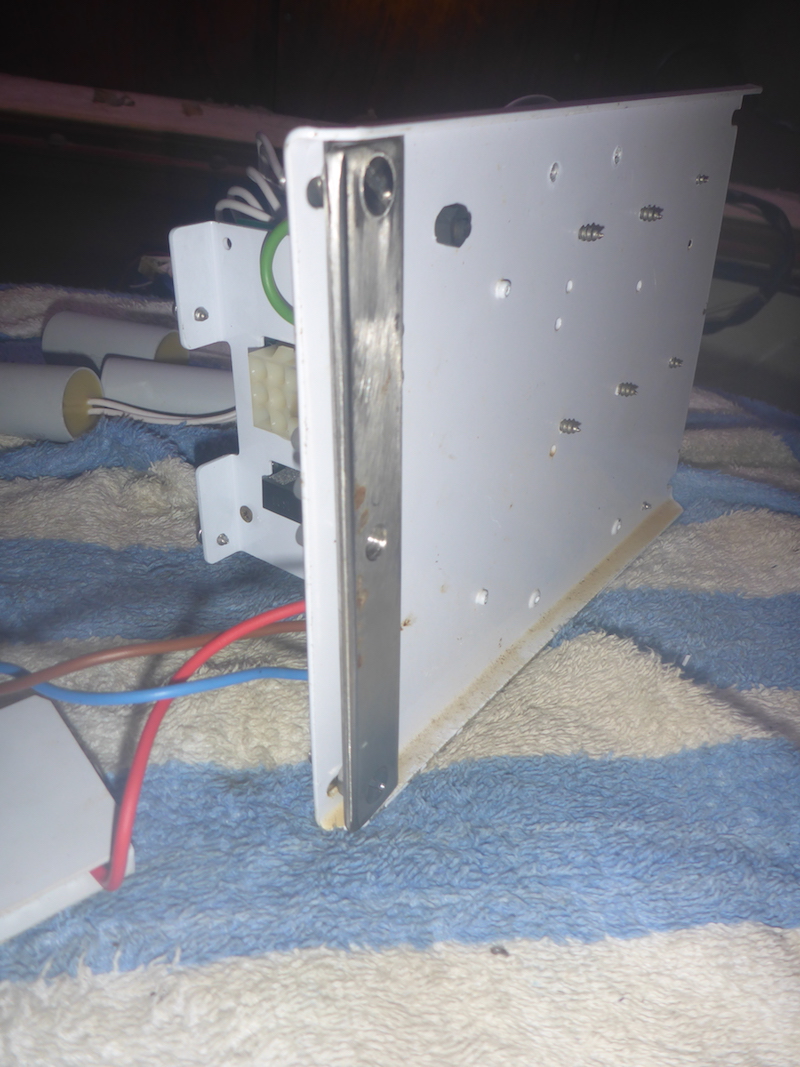

Take the control box out and remove the cover
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

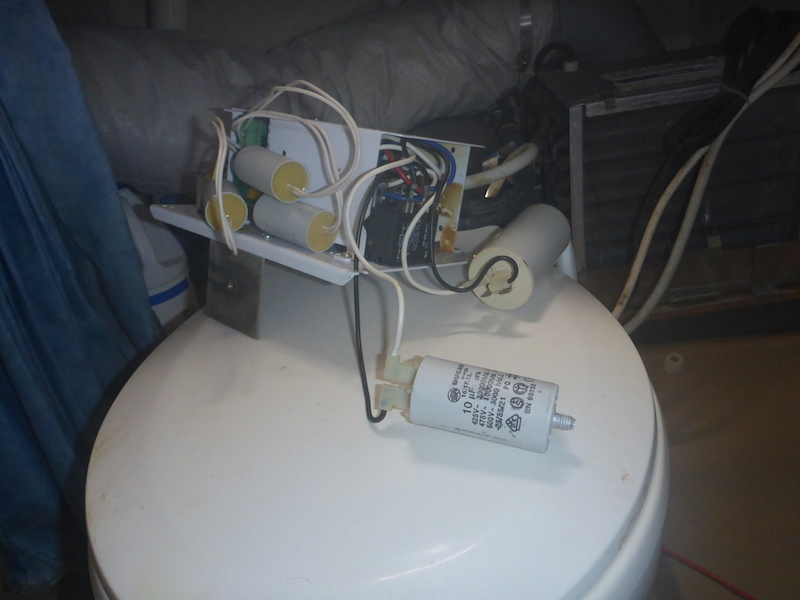

Cover out, now you see the 3 capacitors for the fan speed.
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Unbolt the box cover
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9





Capacitor testing of the forward cabin Air Conditioning Climma Marine Compact 9

Now you can see the 2 capacitors for the compressor
note: you don't have to remove the cover to access these capacitors, you can just pull them out.
Note: careful as the capacitors are "charged" and need to be "discharged".
I won't write much about discharging them as I am not sure.

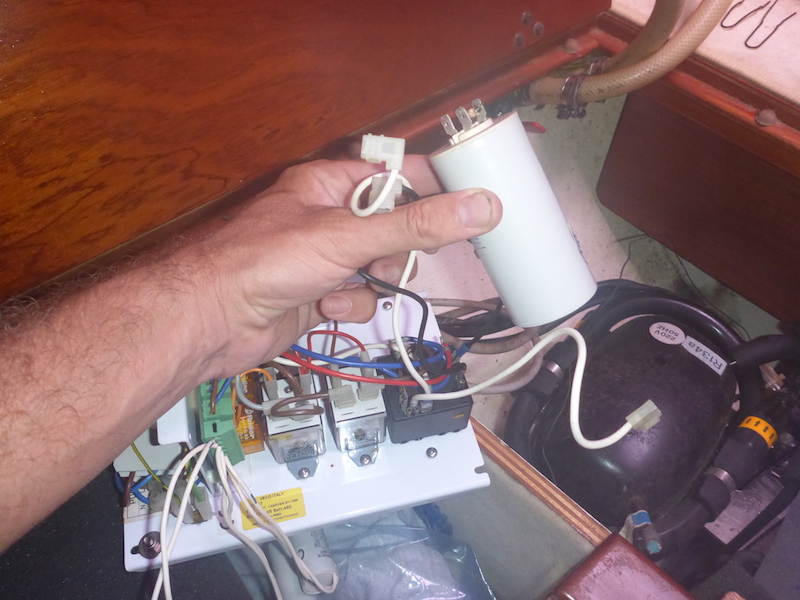

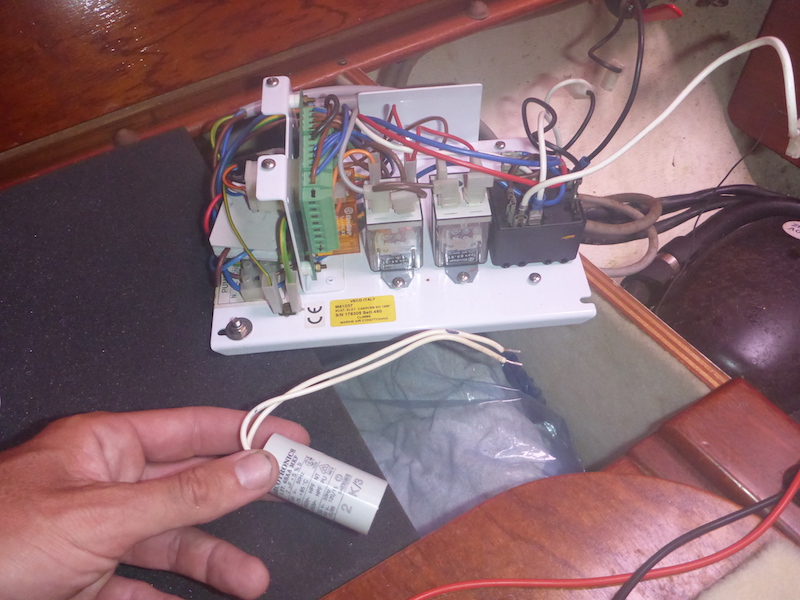

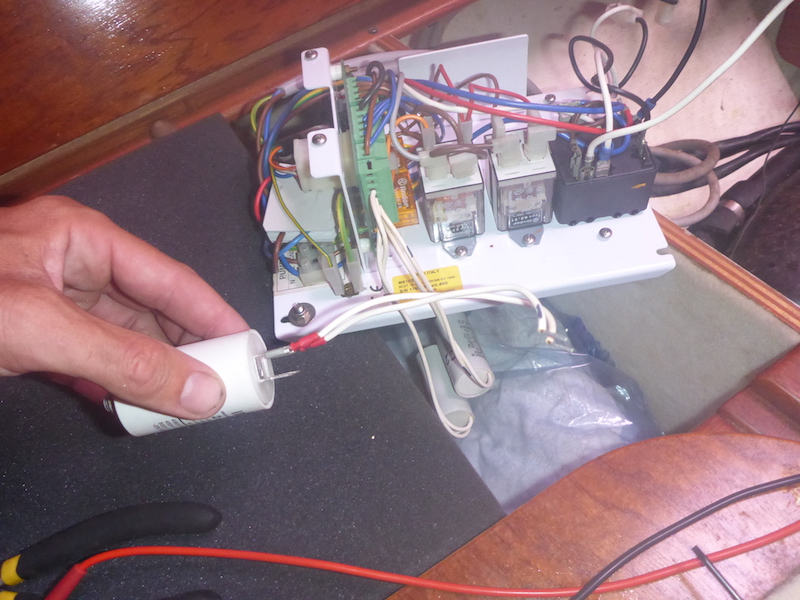

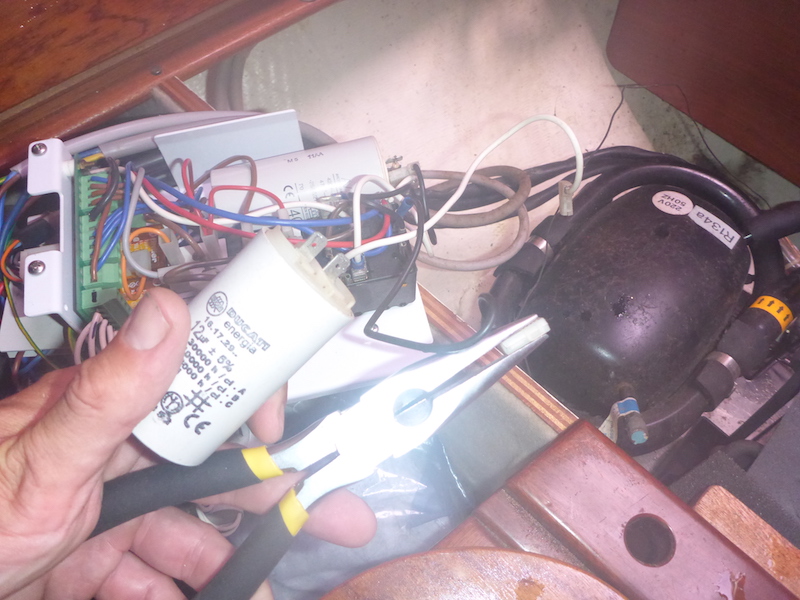

I used plier to remove the connector of the 10 MicroFarrah capacitor
Take note of which wires goes where.
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

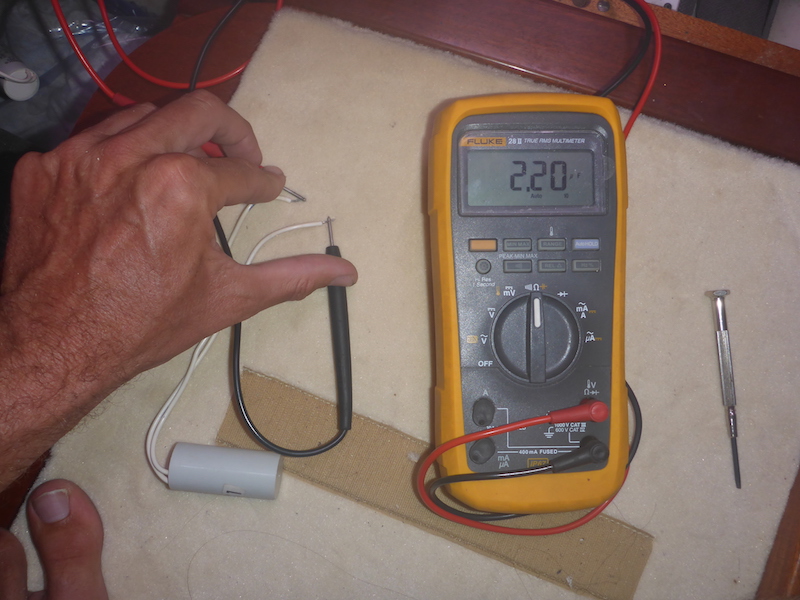

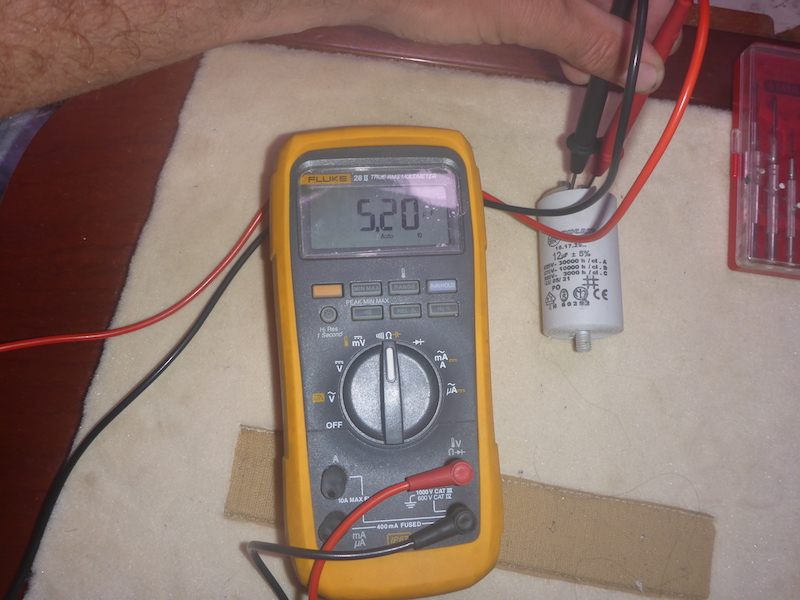

I measured the micro Farrah of the 10 MicroFarrah capacitor and it shoed 5.2 so will be changed
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Now the 40 MicroFarrah capacitor
Take note of where the wire go
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

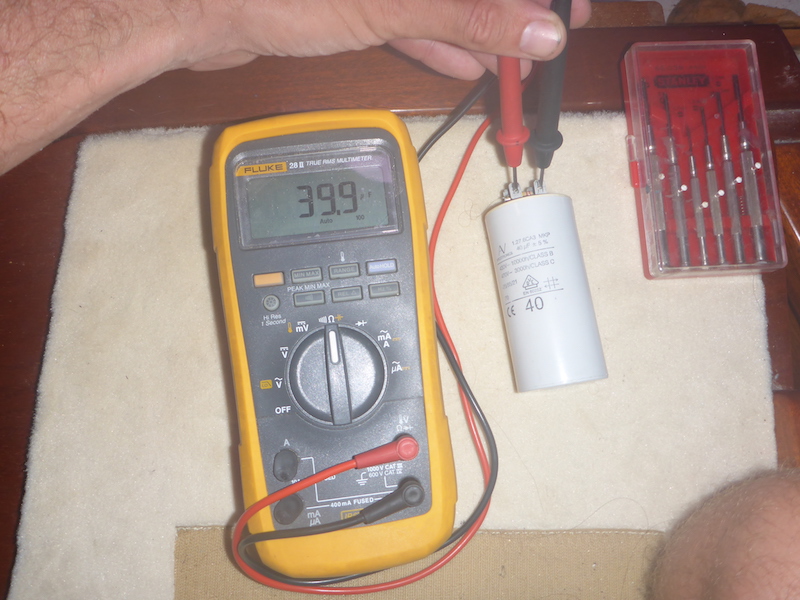

The 40 MicroFarrah capacitor show 39.9 so well within the +/-10% allowance
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

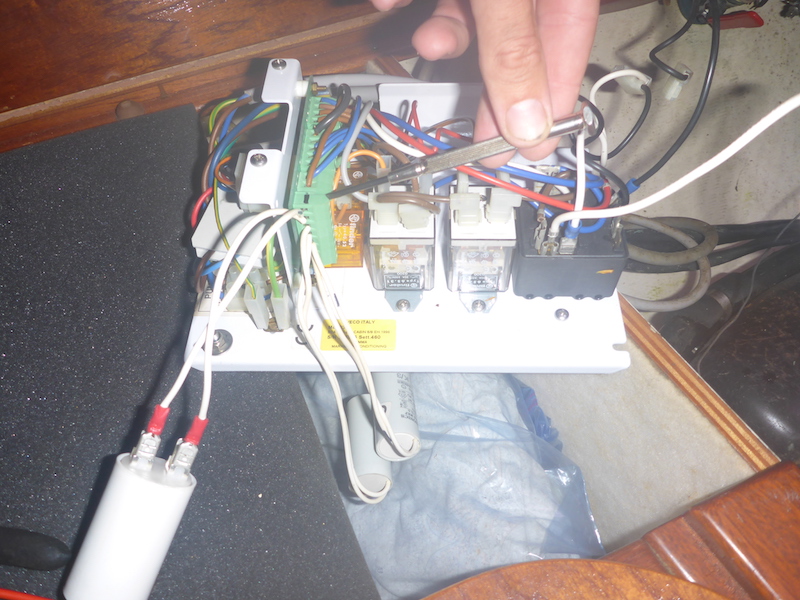

With a small screw driver, I removed the top the 2 MicroFarrah capacitor
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

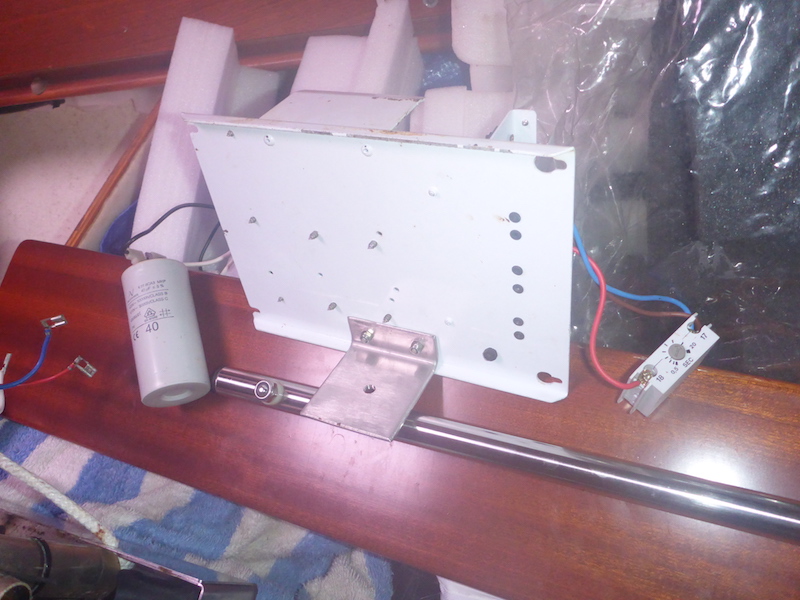

Now removed
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

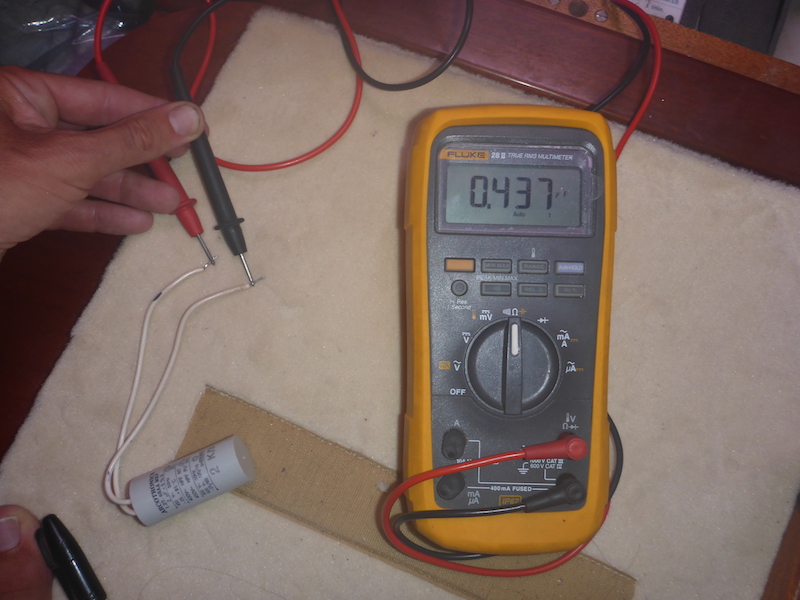

The 2 MicroFarrah capacitor shows 0.5 and will be changed
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

next below is the 3.5 (or 3.15 can't remember) capacitor
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Removed
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Also showing less than the 3.15 o 3.5 so will be changed
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Last is other 2 MicroFarrah capacitor
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

removed
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Also need to be replaced.
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9





Disconnecting the Calpeda pump, AC (Alternative Current) wire and control box of forward cabin Air Conditioning Climma Marine Compact 9

Removing the wires going to the Calpeda pump
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

removed
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Since the forward air conditioning will not be replaced for some time, I protected the connector to avoid any short.
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Next is the AC (Alternative Current) Power connection
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

All 3 wires removed
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

And labeled. I also protected them in the accidental switch of the Diruptor going to this unit.
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Removing the connection of the control box, removing the ground
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Then removing the plug
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9





Disconnecting the Compressor and Fan harnesses of the forward cabin Air Conditioning Climma Marine Compact 9

Removing what I called Harness "A" and "B" - make sure to take notes where the wires go
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Here is a picture of my notes for harness "A" going to Compressor
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Here is a picture of my notes for Harness "B" going to fan
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

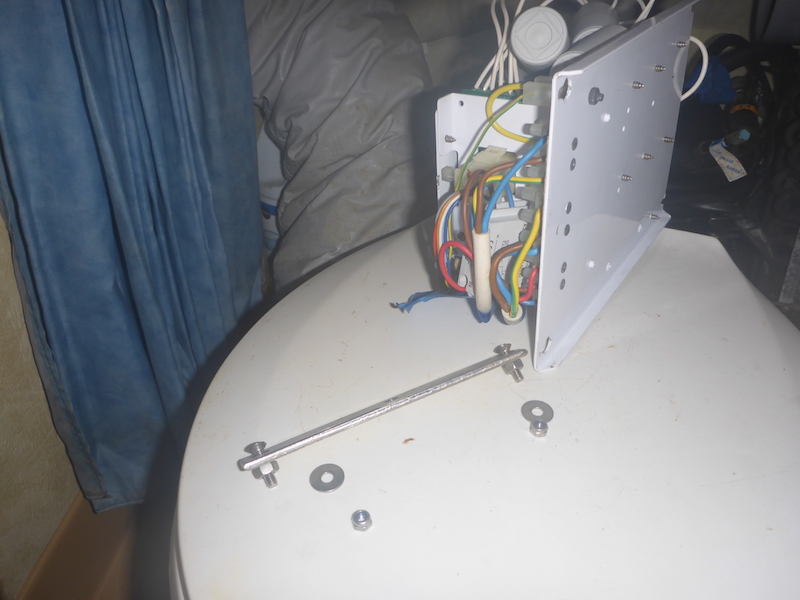

The control box is off
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9





Removing the thermostats and brackets holding the forward cabin Air Conditioning Climma Marine Compact 9

Removing the 4 attach point that hold the unit in place
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Clip out
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

2nd one
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

3rd one
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

4th and last one
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Then removing the hose for the condensation - more difficult than it sounds
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Hose is off
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Now using the handle you can more the unit
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

let's not forget the thermotat
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Cutting the little zip tide that hold the thermostat
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

The unit can now be lifted
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9





Installation of the Aft cabin Air Conditioning Climma Marine Compact 9

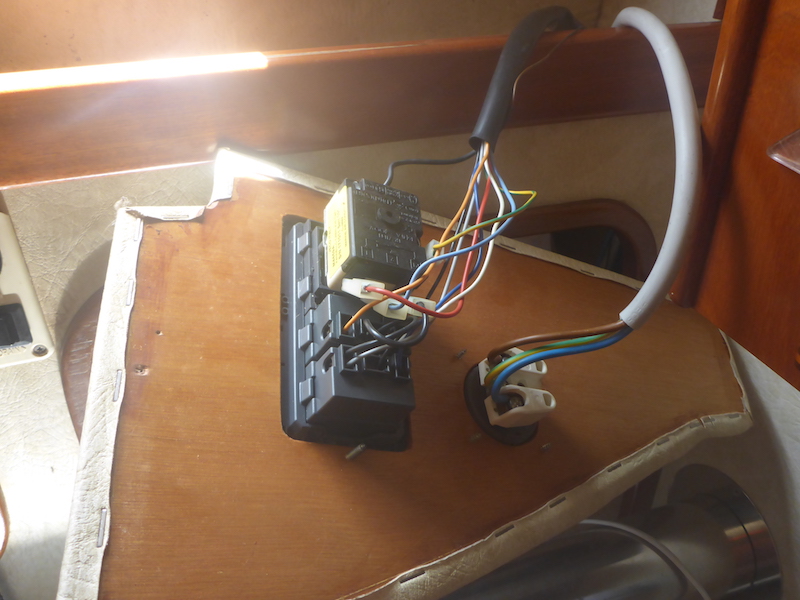

Putting back the thermostat and control box of the Aft cabin Air Conditioning Climma Marine Compact 9

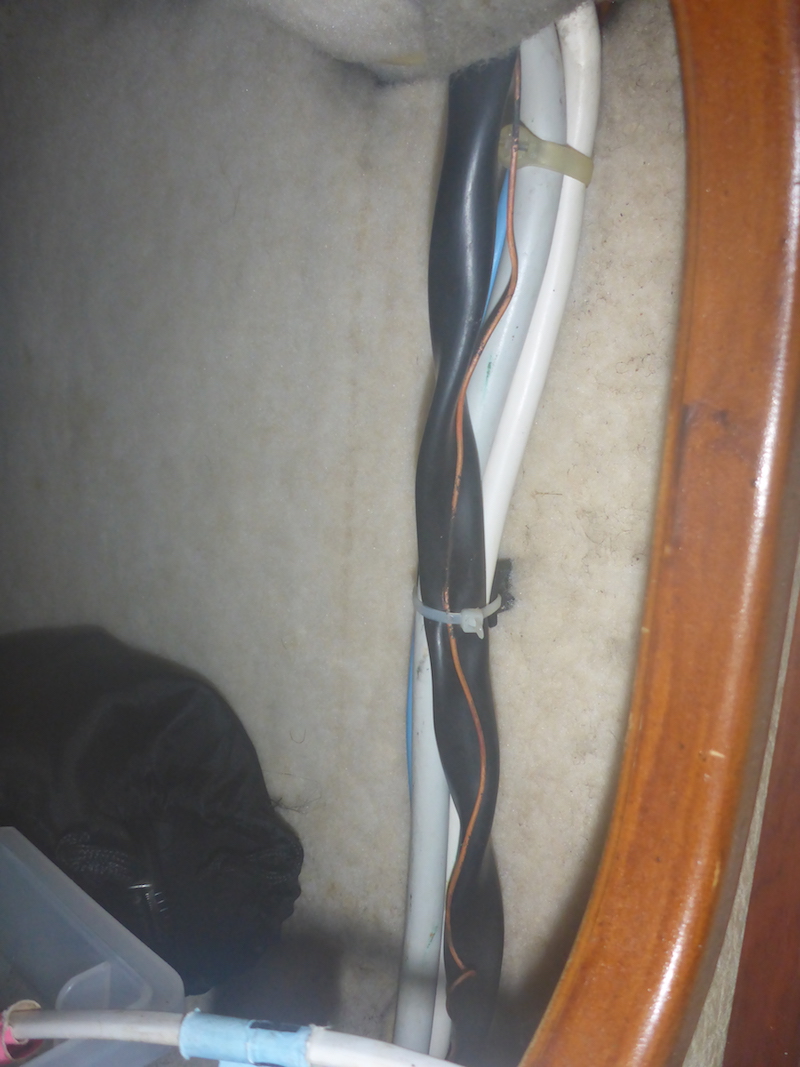

Install the harness for the control
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Through the hole
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Bolt it in
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Put the cover plate
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Put the harness through the hole
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Next level down
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Lower level
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Then put the thermostat
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9


 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Through all levels
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Changing the hose direction of the Aft cabin Air Conditioning Climma Marine Compact 9 to later realize it will not fit

Original unit in the aft cabin has the hose pointed in one direction
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Original unit in the forward cabin has the hose pointed in a different direction

 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

So naturally I thought of changing the directions - unfortunately this was wasted time
look at the pictures before you do the work

unscrew in the middle
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

4 bolt total
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

unscrew the plate that hold the fan
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

2nd bolt
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

the plate goes out
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Put it back the plate turning it 90 degrees
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

put bolt on
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

and the 4 in the middle
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

unbolt the 90 elbow
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

has 3 screw
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

turn is 90 degree and screw it back
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Bring the unit to the aft cabin
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

And it does not fit...
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Comparing the Aft and Forward cabin Air Conditioning Climma Marine Compact 9

unscrew the elbow
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

remove its
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

unscrew the elbow that was on the original aft cabin air conditionning
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Now we see the difference
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Look at the forward cabin one again
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

If we put it on the new unit, it might fit
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

but I don't like the obstruction
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

I could saw it, but this is now the way I want to do it
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9





swapping the fan cover of the Climma Marine Compact 9

Starting with removing the fan of the Aft Climma Marine Compact 9

remove the 4 bolt that hold the fan
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

remove the 2 bolt that hold the place
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

remove the assembly
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

remove the bolts that hold the 2 halves of the fan together
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

another one
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

lift up one half
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

using a socket wrench remove the 4 bolt
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

remove the other half
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Take note of the wiring
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

unscrew the bolt that hold the wires
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Pass the wires through the hole
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

unbolt the 2nd half from the plate
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

one more bolt
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

remove the 2nd half
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9





Removing the fan of the forward Climma Marine Compact 9

Go to the other unit and pretty much do the same.
I did it in a difference sequence for variety
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

unbolt the bolt holding the plate
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

remove the plate and remove the bolt that hold the fan assembly
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Another one
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

The fan is now removed from the plate
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Remove the 4 bolt holding the electric motor to the fan assembly
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Remove the bolts that hold the 2 half of the fan assembly/casing together
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

another one
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

separate the 2 halves
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Take note of the wiring
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

removed the wires
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

pass through the hole
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

now by itself
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9





Putting back the fan on the new Aft Climma Marine Compact 9

take the former aft cabin fan assembly
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

bolt it on the plate
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

pass the wires through
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

bolt back in place the electric motor with the 4 bolt
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

bolt the 2 halves of the fan assembly together
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

reconnect the wiring as it was
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

bolt the plate and fan back on
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Bolt back the 90 degree elbow
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

This time it will fit
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9





Reconnecting the cooling hoses of the Aft Climma Marine Compact 9

Replace the original clamp with new ones
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Remember that there is a critical piece of wire that will be placed under the 2nd clamp as an additional way to hold the hose in place
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

The 2 ends of the metal wires will be bent
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Same on the other hose
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

close up of the work
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9





Putting back holding brackets, overflow and thermostat on the Aft Climma Marine Compact 9

screw back the brackets holding in place the unit
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

2nd one
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

3rd one
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

4th and last one
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

clamp back the hose
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

tie back the thermostat
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9





Looking at the control box of the Aft Climma Marine Compact 9

Look at the control box
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

This side will have the 3 capacitors regulating the fans
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

top
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

other side
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

another view
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

front where the 3 wires going to the Calpeda cooling pump will go, then the 3 wires coming from the diruptor
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Let's start with the wires going to the fans
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9





Reconnecting the Fan harness to the Aft Climma Marine Compact 9

Here is a picture of my notes for Harness "B" going to fan
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Brown wire
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Blue wire
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Black wire
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Yellow/Green (Ground) wire
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Then the gray attach there
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9





Reconnecting the Compressor harness to the Aft Climma Marine Compact 9

Now the compressor harness
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Here is a picture of my notes for harness "A" going to Compressor
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Brown wire
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Blue wire
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Yellow/Green (Ground) wire
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Then the blue
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

red
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

and white
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9





Reconnecting the Calpeda, AC (Alternative Current) and control box to the Aft Climma Marine Compact 9

Now the wire of the Capleda cooling pump
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

back in place
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Now the 3 wires coming from the 220 Volt Panel (Diruptor)
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

back in place
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Now the control harness
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Now both in place
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9





Reconnecting the Capacitors to the Aft Climma Marine Compact 9

Now the 40 Microfarad capacitors
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

back in place
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Now the 10 Microfarad capacitors
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

back in place
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Now the 2 Microfarad capacitors (starting with the bottom as it is easier to go up)
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

In place
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Now the 3.15 Microfarad capacitors (somehow I forgot to take a pictures of the 2 wires in place - they are the 2 in the middle of the 6)
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Now the second 2 Microfarad capacitors at the top
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

All back in place
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9





Closing the control box and attach back the Aft Climma Marine Compact 9

Bolting back the cover of the control box
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Putting in the 40 and 10 Microfarad capacitors
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Positioning on the side the two 2 and the 3.15 Microfarad capacitors
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Putting the wires
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

putting back the cover
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Going to bolt back the box
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9





Swapping the control box and attach of the Aft and forward Climma Marine Compact 9

But it will not fit... because the control box coming from the forward cabin is hold through a bar at the end
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

While the control box in the aft cabin is hold by a braket.
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

So removing the bracket
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Removing the 2 bolt/nuts that hold the plate
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

close up look
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Plate is removed
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

put back on the other unit
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Unfortunately I forgot to take a picture, but I had to drill 2 holes in the other plate in order to fit the bracket
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Put the cover back and now you can bolt it back on
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9





Reconnecting the fan assembly on the forward Climma Marine Compact 9

Putting back the half fan assembly on the plate
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Passing the wire through the hole
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Reconnecting the 4 bolt that hold the fan motor in place
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

connecting the 2 halves of the fan assembly together
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

4 screws
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Putting back the plate on the unit and bolt the 2 bolts holding it and 4 bolts in the middle
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

putting back the harness
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

screwing back the 90 degree elbow
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9





Attaching holding brackets of the forward Climma Marine Compact 9

The unit is ready
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Back in position
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Attach back the 4 brackets holding the unit in place
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

2nd one
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

3rd one
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

4th brackets
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9





Reconnecting the hoses and Thermostat of the forward Climma Marine Compact 9

I will not reconnect the ducking as this unit is non fonctional
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

connect back the hose
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Putting new clamp
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Close up of the wire that goes under the 2nd clamp as a double security
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

showing how it is bent
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Putting back the thermostat (again this is the non-working unit)
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Putting back the screen
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

The the additional filter I had
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9





Quick reconnection of the harnesses, Capacitors of the forward Climma Marine Compact 9

As detailed for the other unit, put back the fan harness
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Here is a picture of my notes for Harness "B" going to fan
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Now in place
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Now the compressor harness
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Here is a picture of my notes for harness "A" going to Compressor
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Now in place as well as the 3 capacitors on the side
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Put the 2 larger capacitors and close the cover
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Position the capacitors
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Position the wires
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Since this unit is NOT working and to avoid any risk to trip the main breaker should the Diruptor of the 220 Volt panel be activated for this unit
I will not reconnect the AC (Alternative Current) wires and make sure they are well cover and away from each other.
Same for the calpeda pump, which I believe has current coming to these wires.
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Put back the cover
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Bolt in back (we previously exchange the brackets)
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9





Testing Climma Marine Compact 9

Before I close everything down (forward cabin access to the air conditioning and the cover of the aft cabin)
I wanted to make sure the hose were not leaking as it would be desastrous

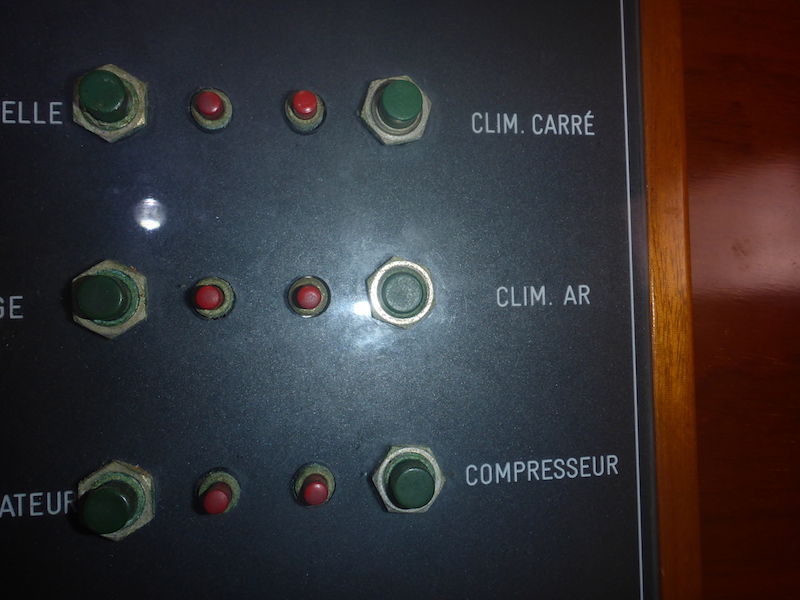

So I turn on the aft cabin air conditioning
Then inspected for several minutes to make sure there was water leak on both hoses

 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Then look at the hoses of the forward cabin
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

All good
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9





Putting back cover for Aft and Forward Climma Marine Compact 9

Now time to close down everything
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9





Putting back the Aft Climma Marine Compact 9

Before putting the panel
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Will nicely secure the wires
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

another one
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

3rd one
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

Put back the filter
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

The cover
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9

and my additional filter
 Amel Super Maramu 2000 Air Conditioning Climma Marine Compact 9
