Amel Super Maramu 2000

Removal of Eno Stove Oven In order to access the Eumenia dishwasher, I had to remove the Eno Stove Oven. Here is how I did (thanks to information from Bill Rouse (SM2K #387 BeBe) and Mark Erdos (SM#275 Cream Puff)

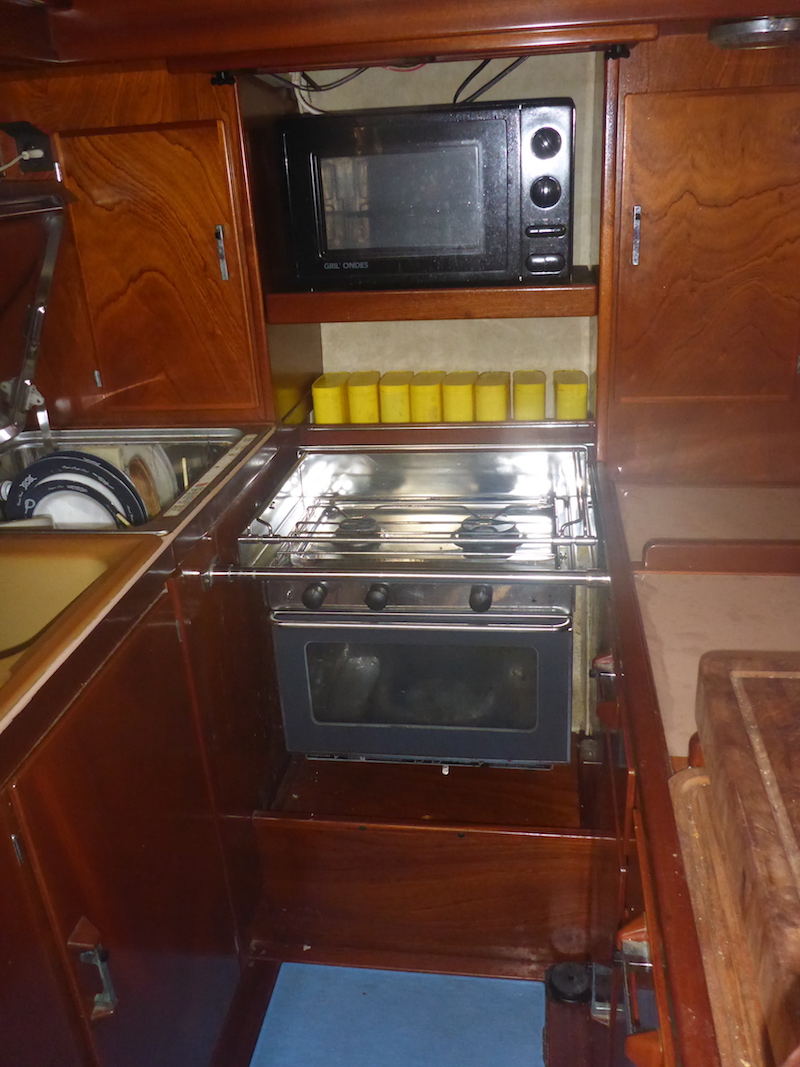

Let's start

It is a good idea to remove all you can from the oven to minimize its weight

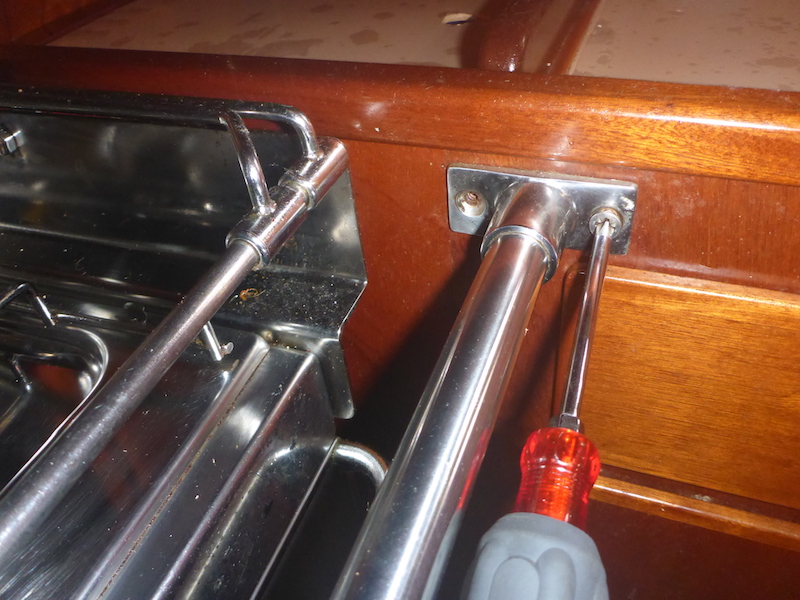

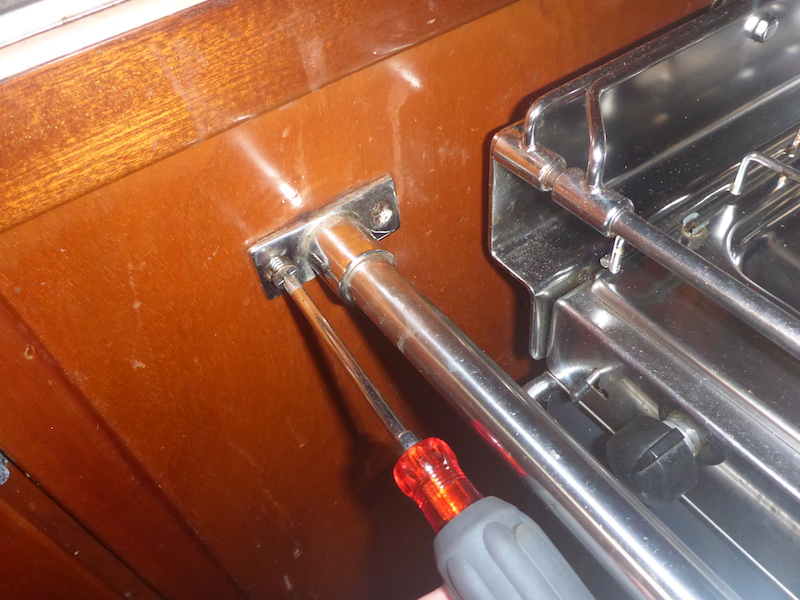

Remove the screws holding the safety bar

the other side

What I did not notice during the removal:
2 Allen set screws which can be unscrewed to allow the end to slide and give more space not to scratch the wood

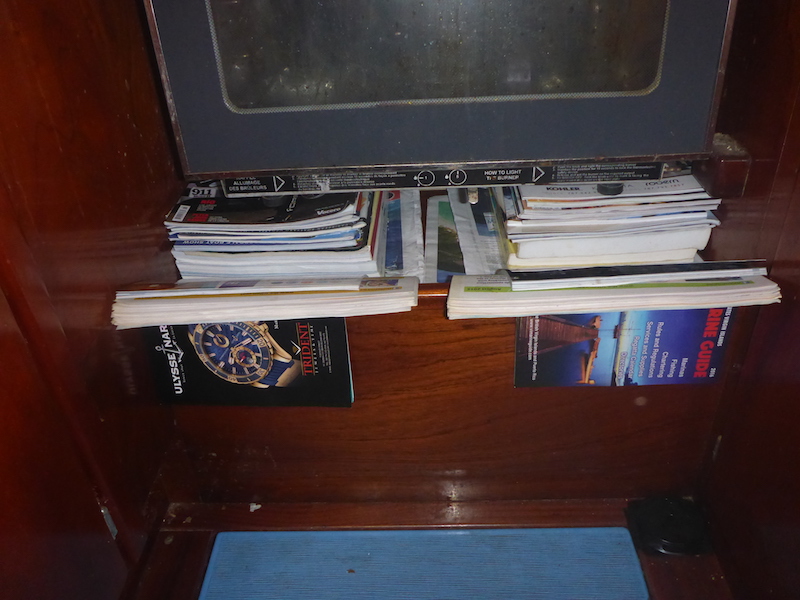

Placing what ever to hold the oven once it is disconnected
For the reinstallation, take note on how much books (or what ever) you need.

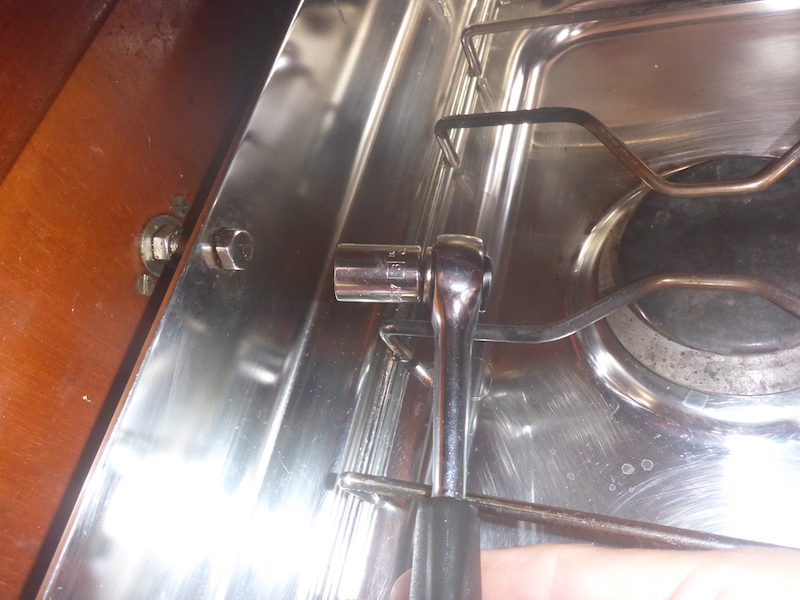

Removing left bolt

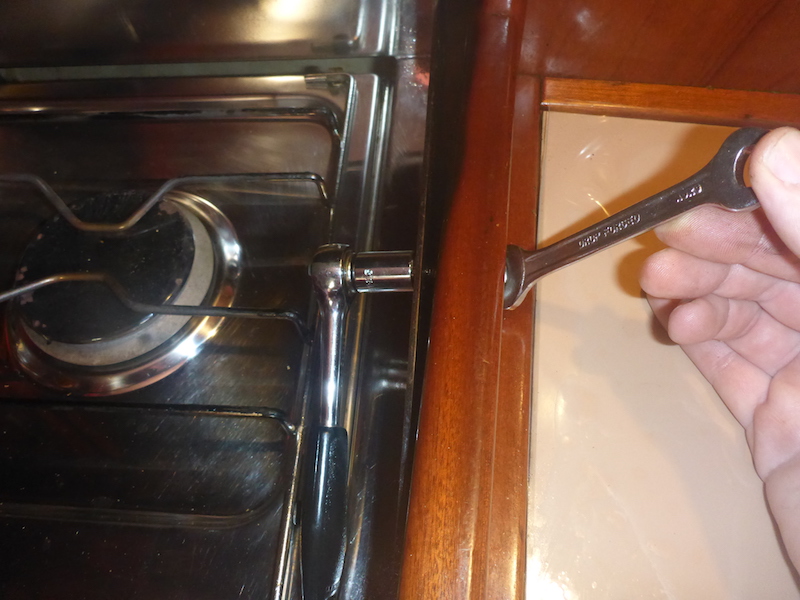

Removing right bolt

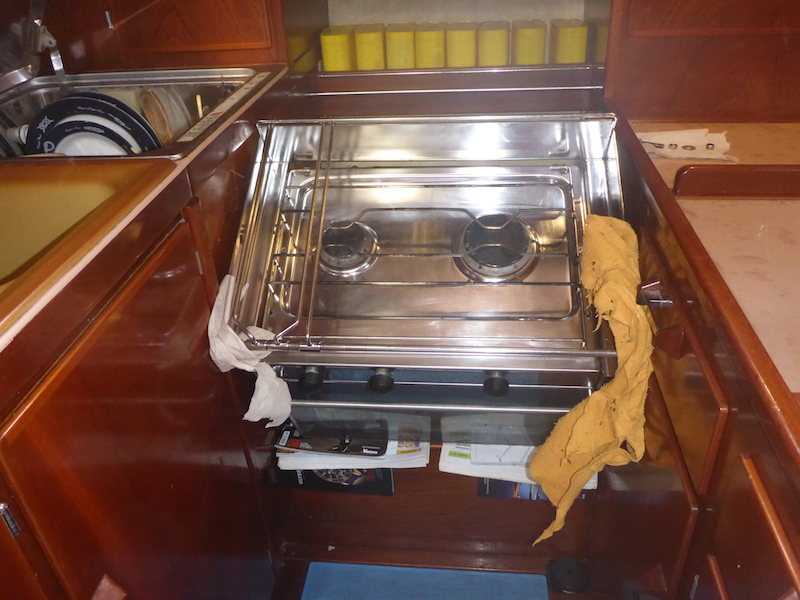

Using rag or whatever to avoid the oven scratch the wood

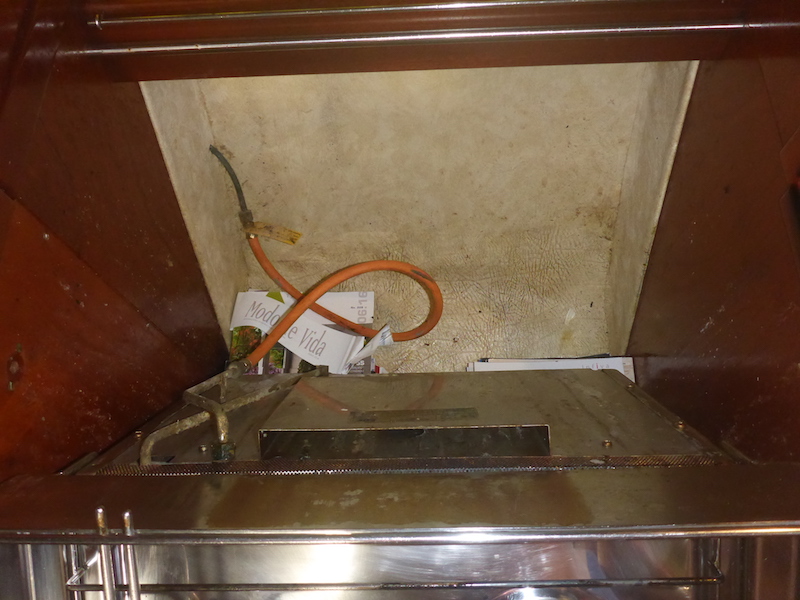

Lookg behind

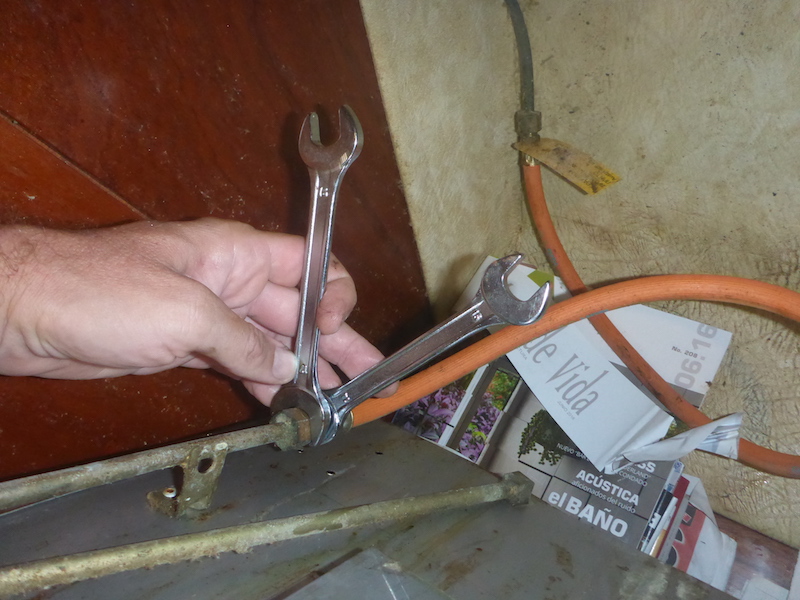

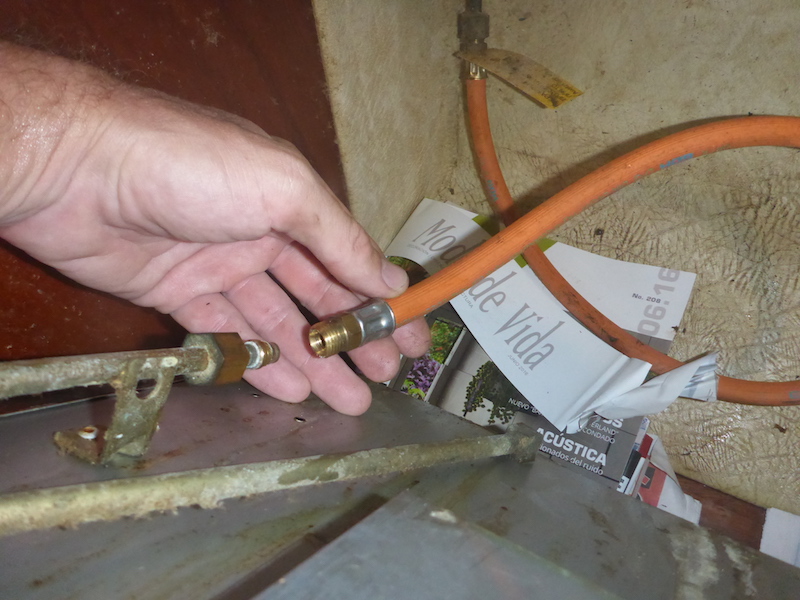

Disconnecting the propane/butane hose

disconnected

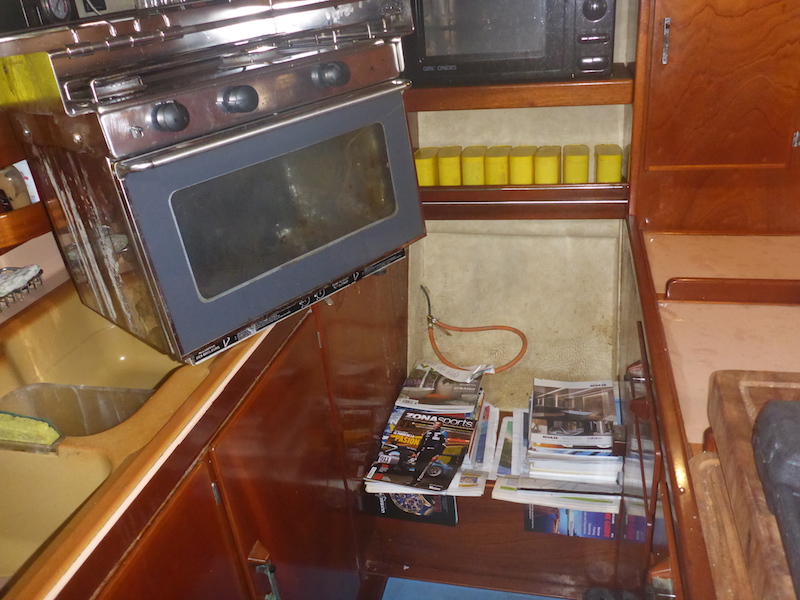

Lifting up and temporary setting on the dishwasher

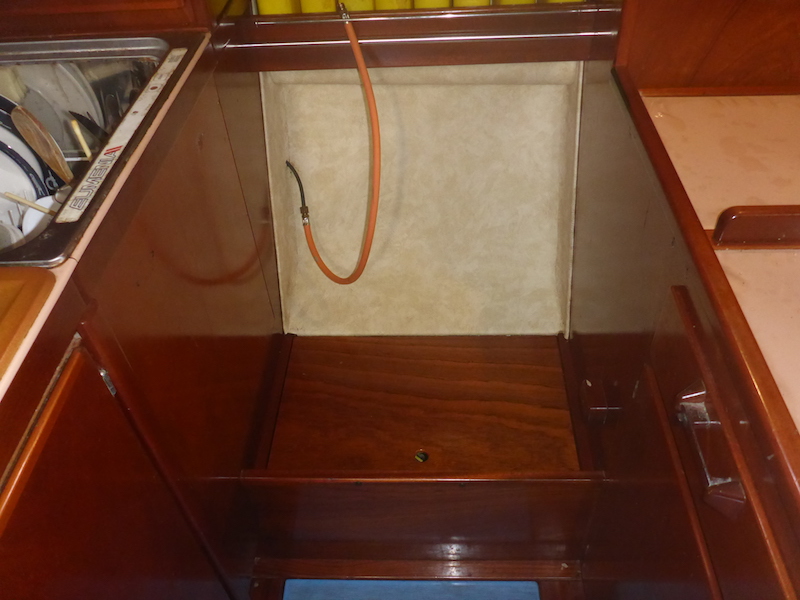

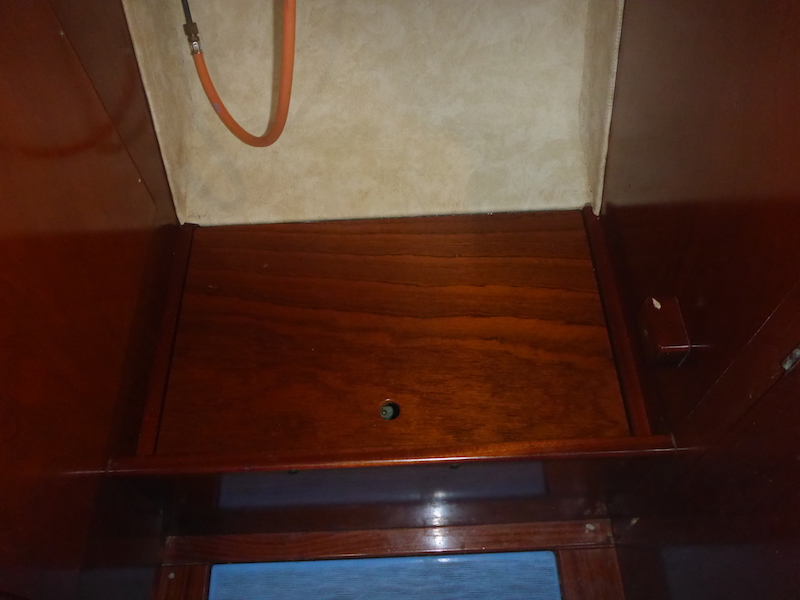

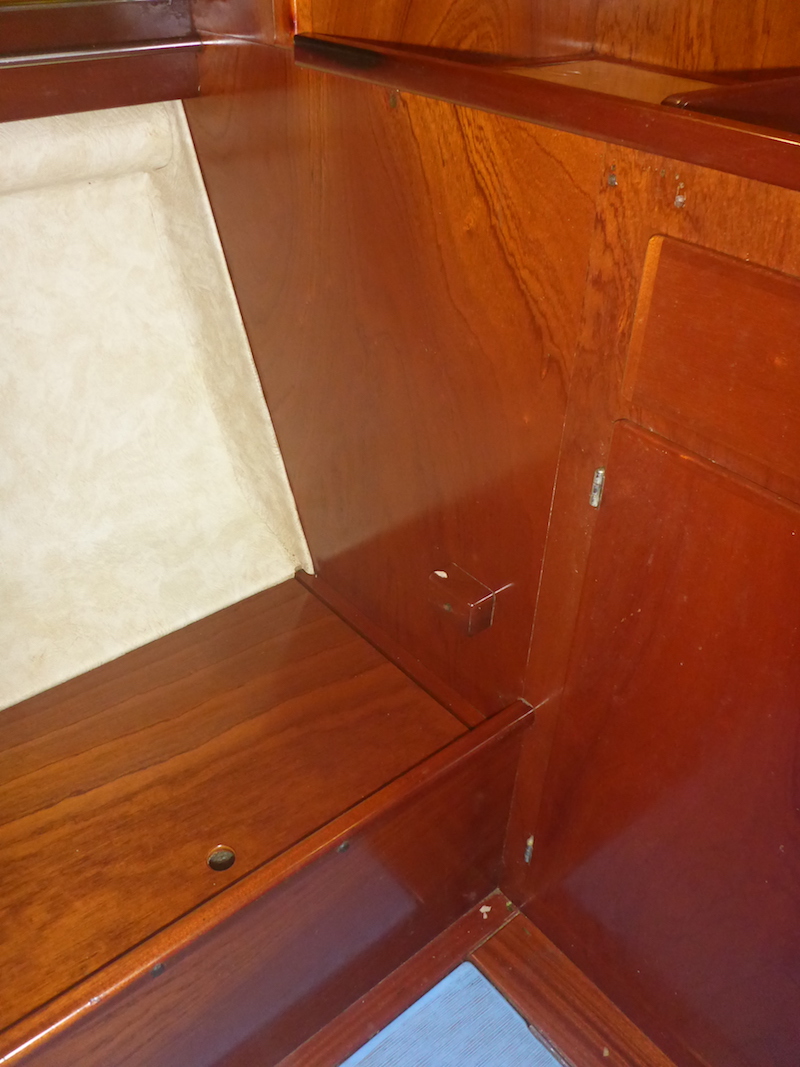

Looking at the rest

Beautiful wood

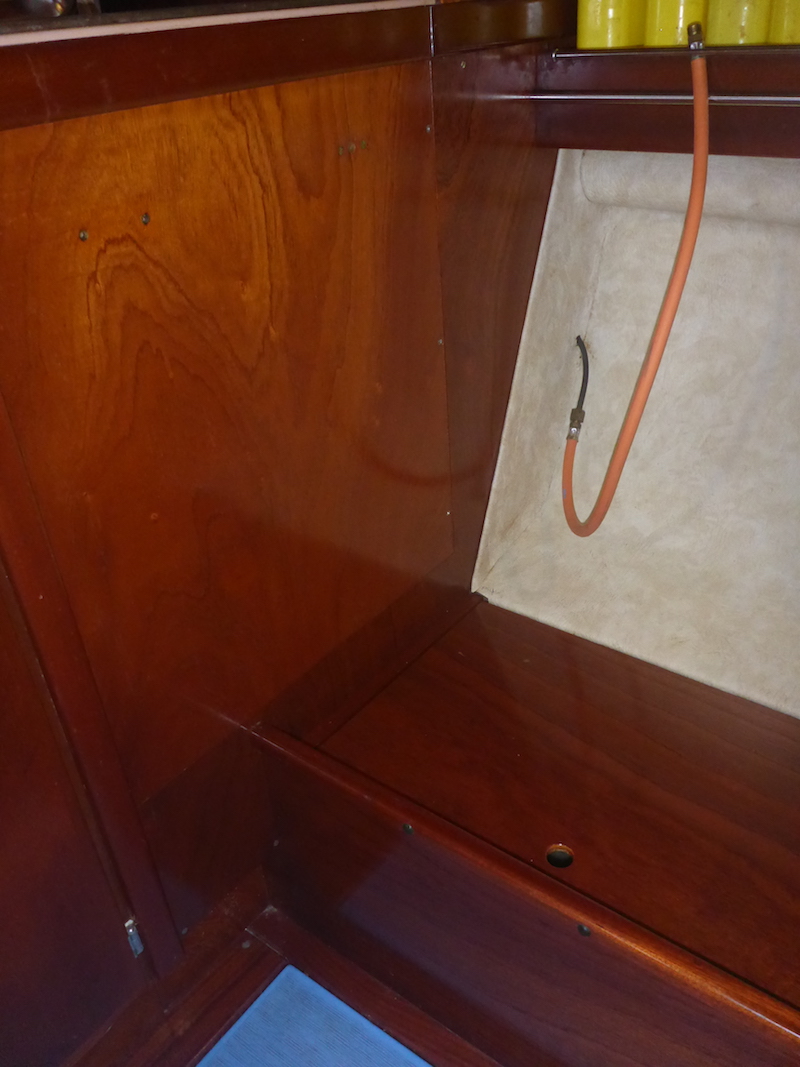

This side will later be removed to give access to the diswasher

You can always recognize the quality of a vessel with the wood use in place you rarely access

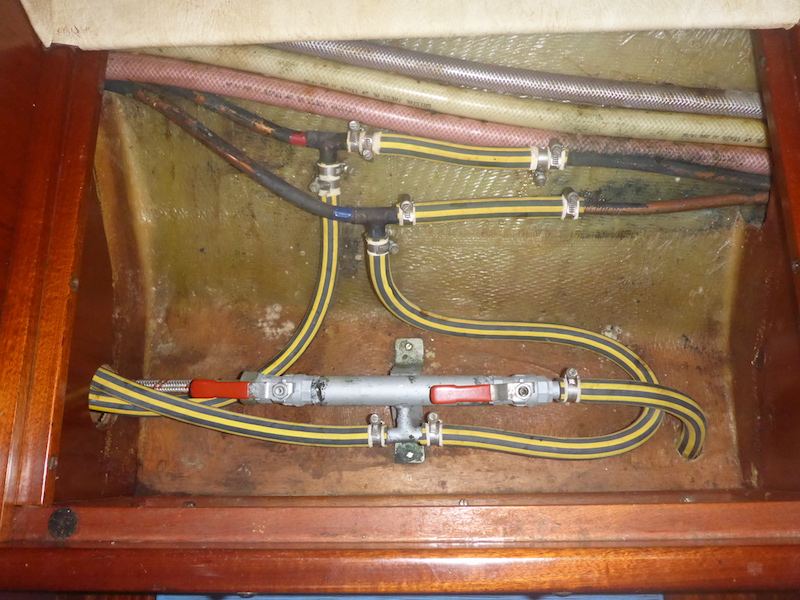

Under the floor

Here is the illustration for the Reinstallation of Eno Stove Oven
