Lofrans Tigres Windlass Basic Maintenance Part 2: Extraction of the drum, emergency wheel clutch plate and manual emergency wheel

Using a 10 mm socket remove the bold
I was not able to remove the washer as the maintenance says

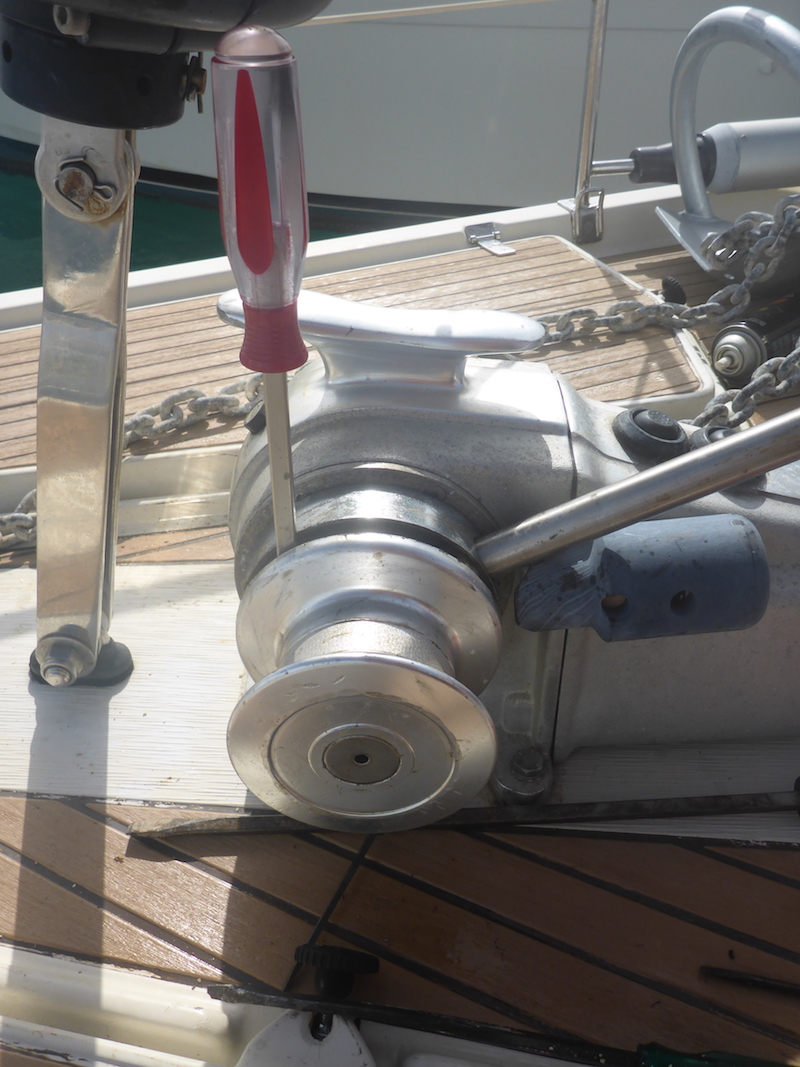

using screw driver as wedge and use the emergency handle to rotate the drum

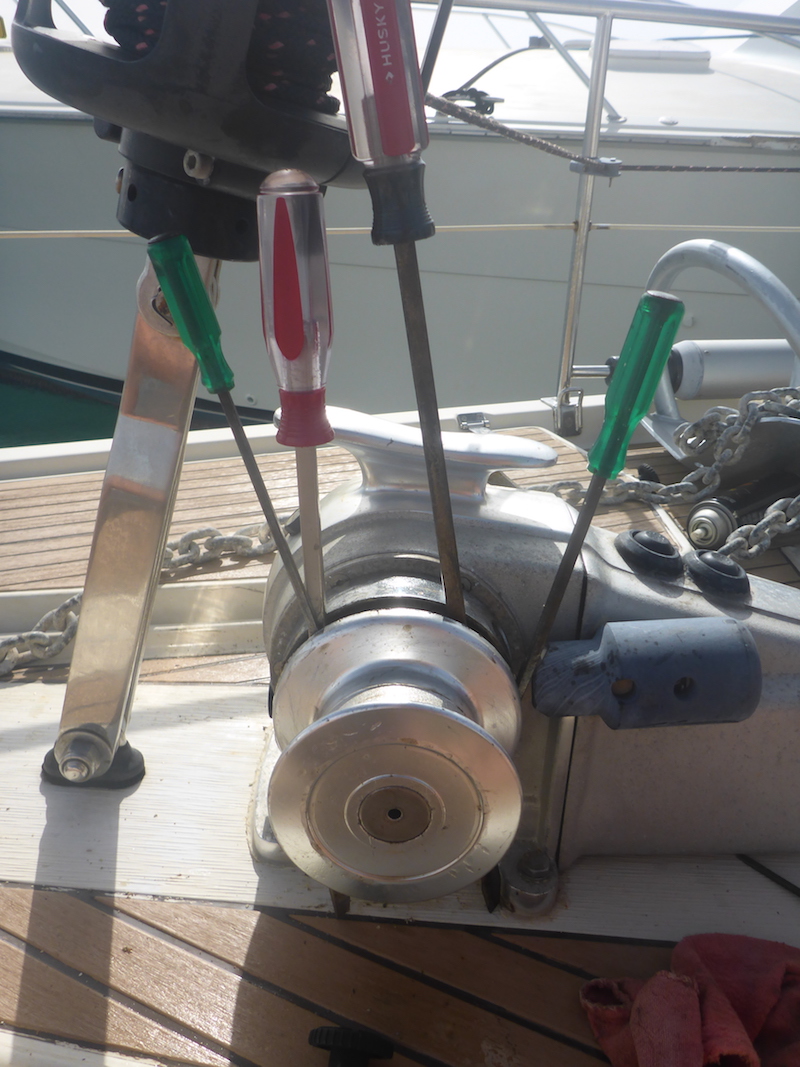

more screw drivers

now the drum is out

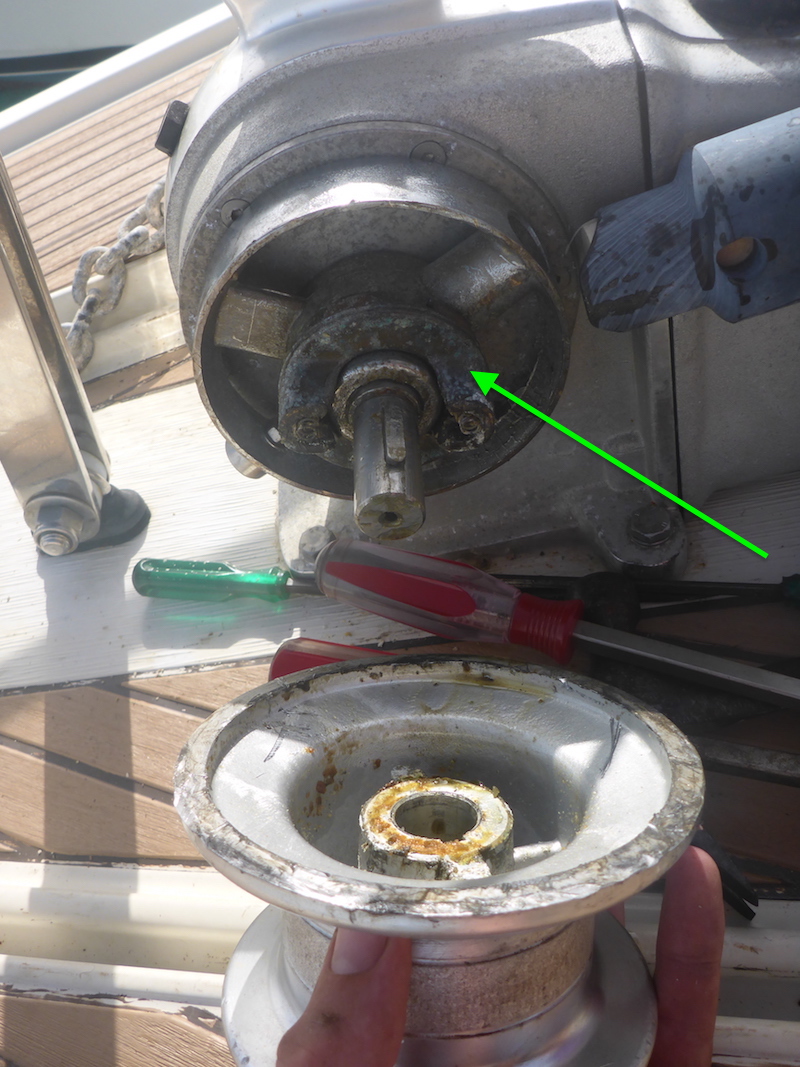

I forgot to take a picture of the removal of the emergency wheel clutch plate (green arrow)
it comes with 2 small spring on it

and I can remove the washer as well

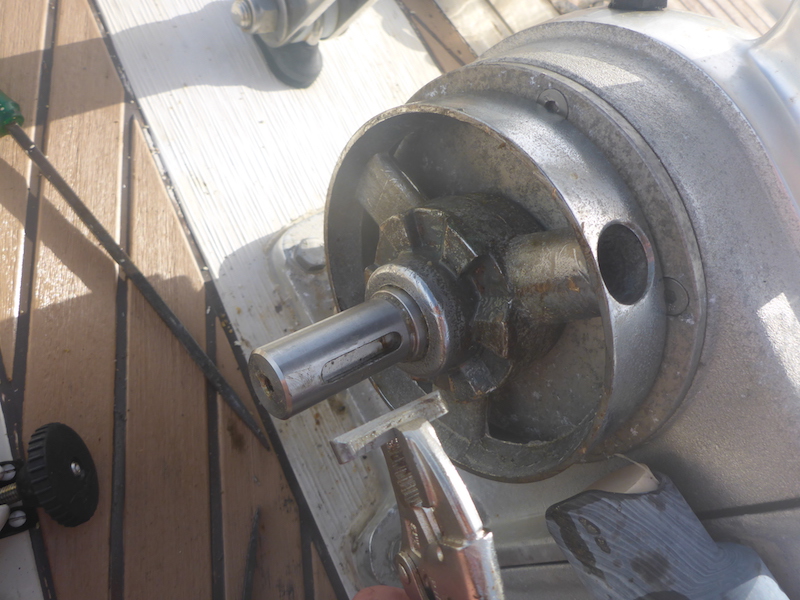

using Vise Grips I removed the key from the main shaft

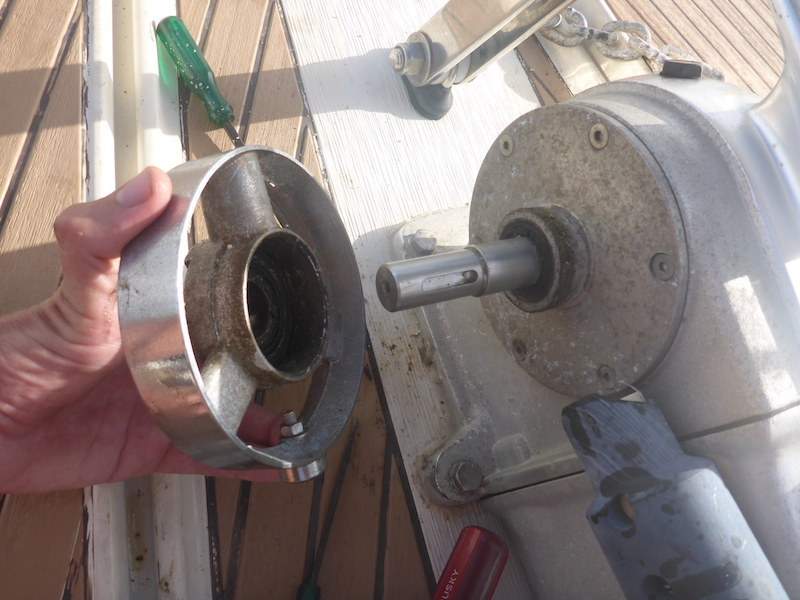

the manual emergency wheel was easy to remove

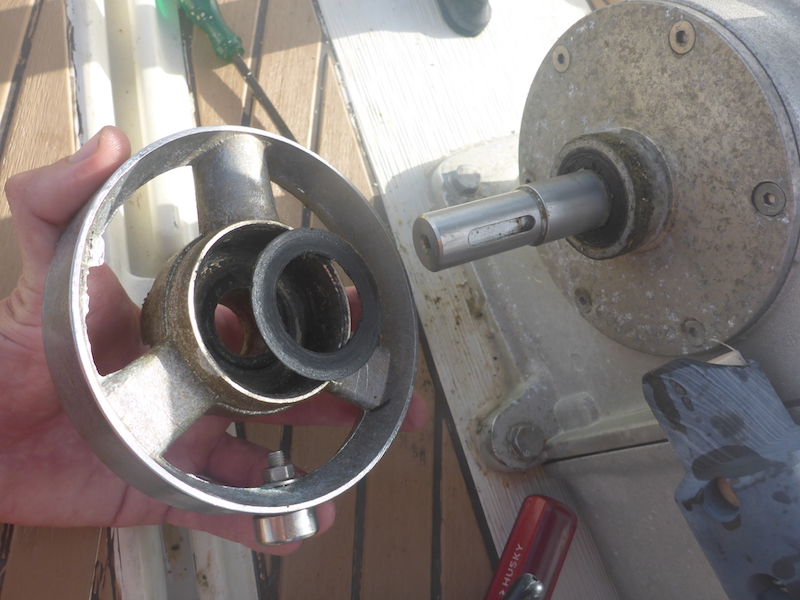

note the plastic washer

Next: Part 3 cleaning all the parts
