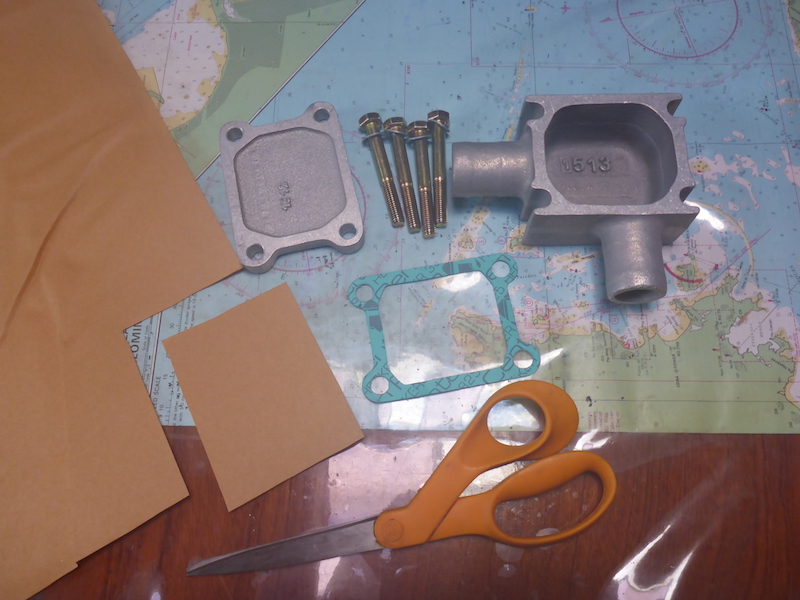

How to make paper gasket It is not an Amel related issue, but something I learnt from my instructor Jeremy Hood (who also taught me diesel class as well as the full Celestial Navigation and wrote the book Safety at Sea). Anyone could easily argue that you will find gasket maker silicone, the purpose of the exercise was if there is none what do you do if you need to put a gasket to a water pump or else. For the example, I took the ZF Hurth HBW 250 Transmission Cooling that I received. Later it happened that the original gasket provided was leaking and I actually used gasket maker silicone...

From gasket maker paper cut the approximate size of the gasket you want to make
If you don't have paper gasket, I heard of people using even magazine or newspaper

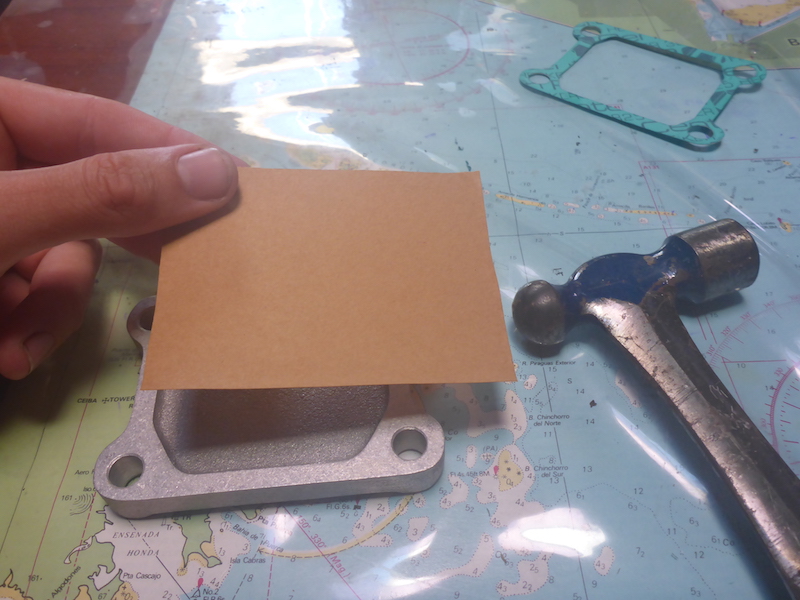

Put on top of the part (raw water pump, etc.)

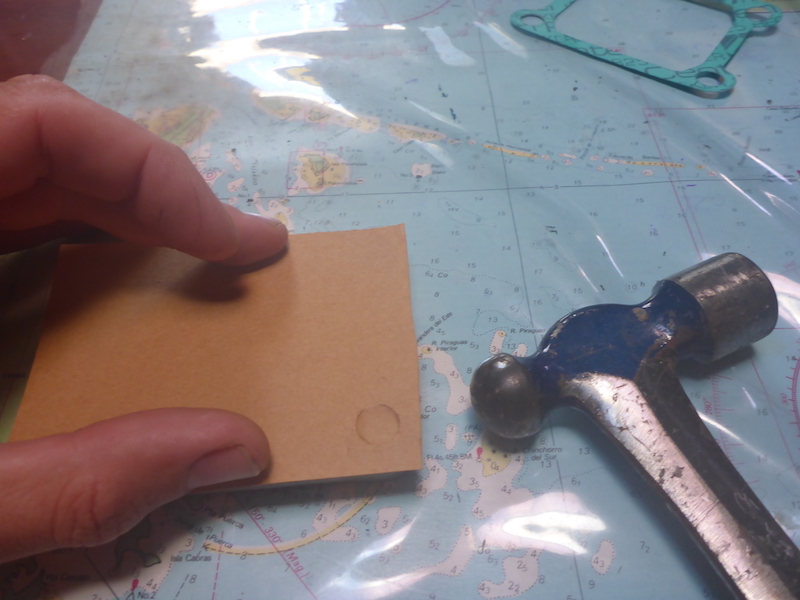

With the "round" end of a ball peen hammer knock on the hole

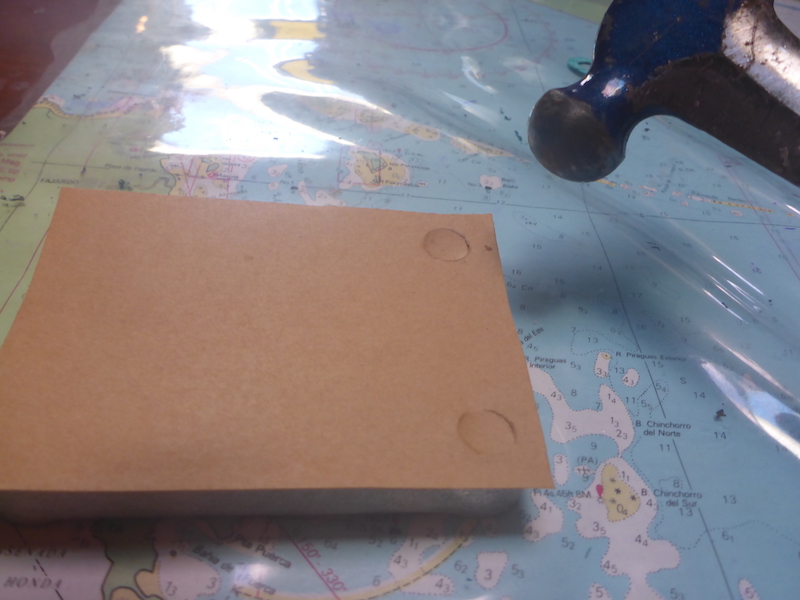

Then the next one

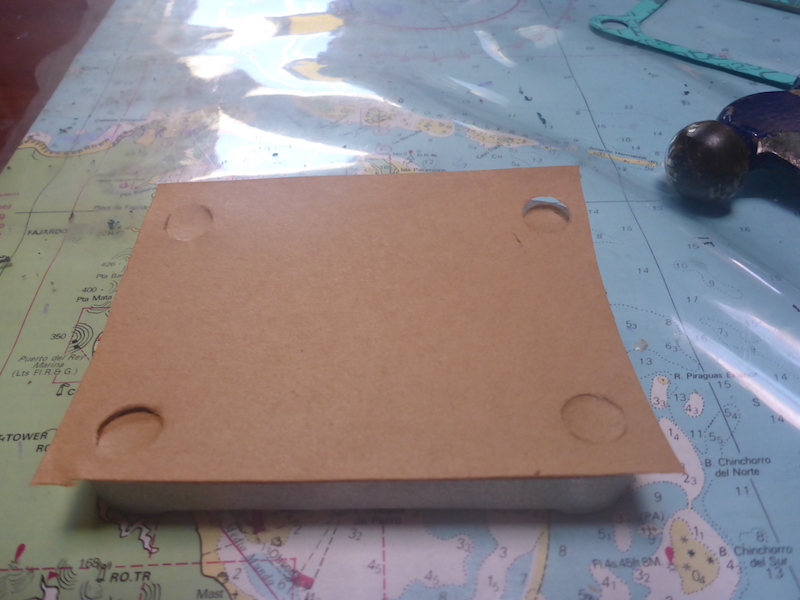

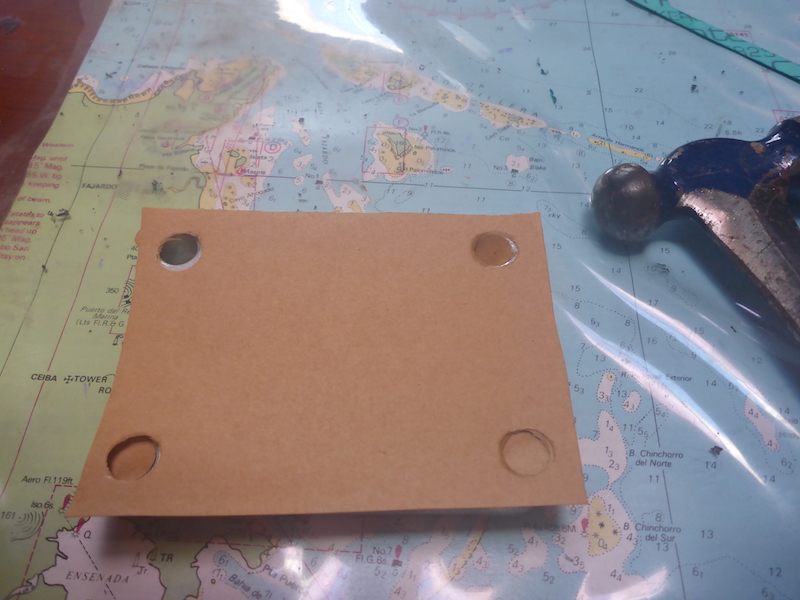

All 4 (having the holes cut first will help maintaining in place

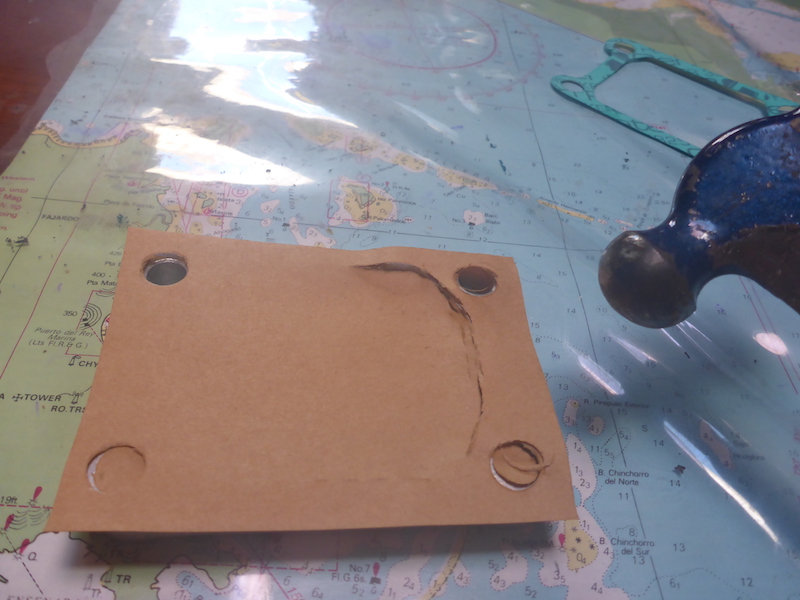

Then on the egd

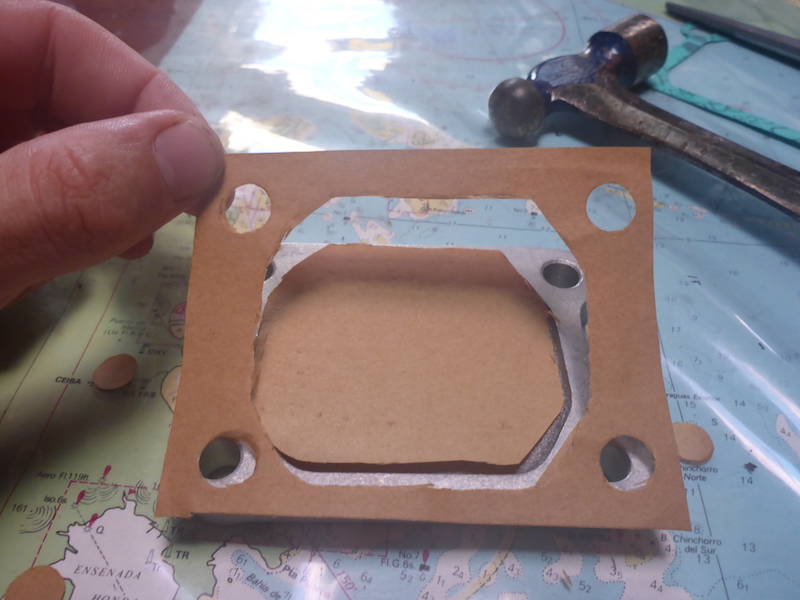

All cut

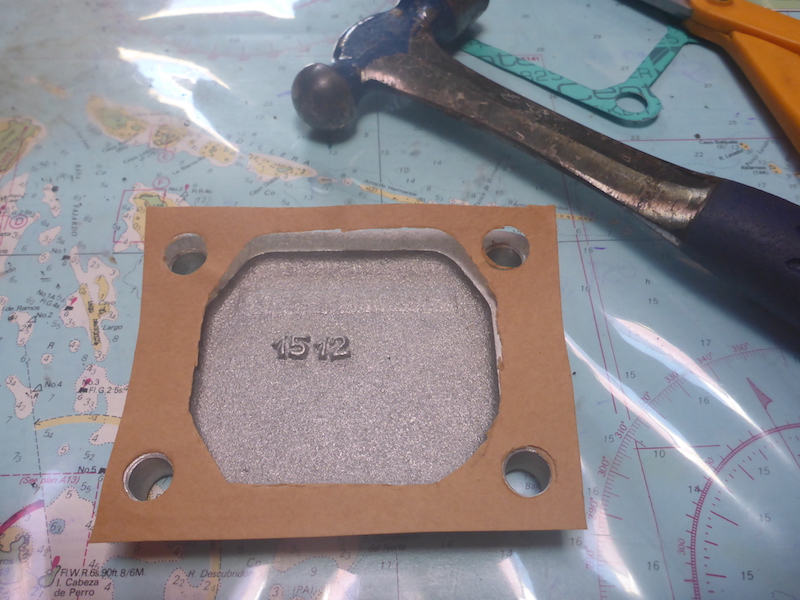

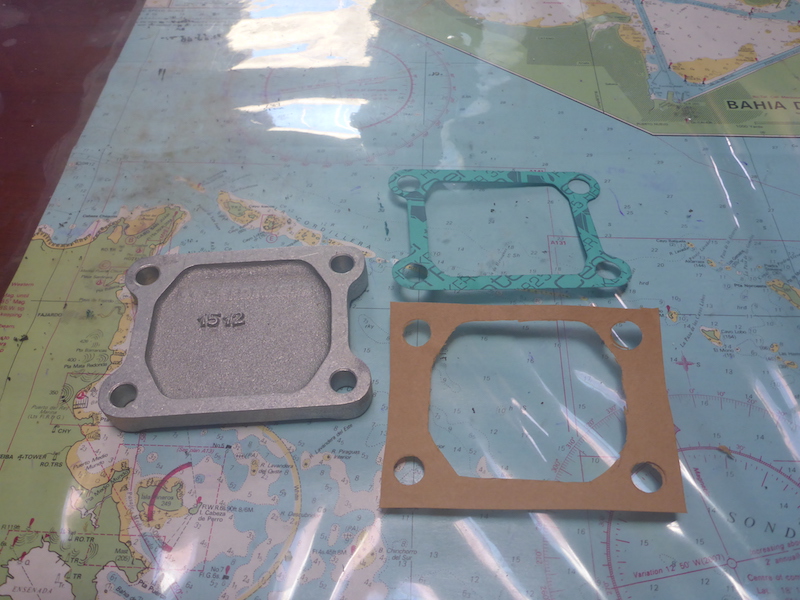

Perfect match

Done
