Amel Super Maramu 2000

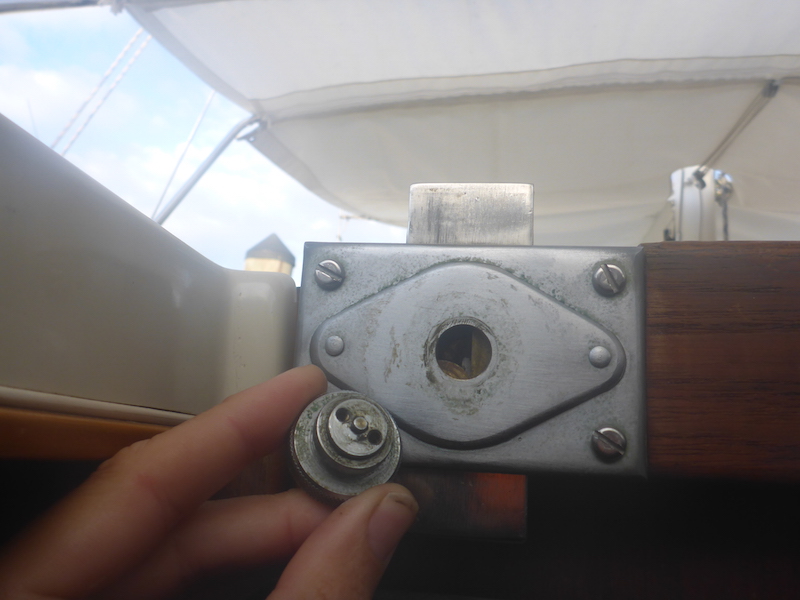

Broken Lock on Companion Way I had noticed the lock on the companion way was wobbly. Last week I emailed Amel to order a new one. Well... this morning it broke.

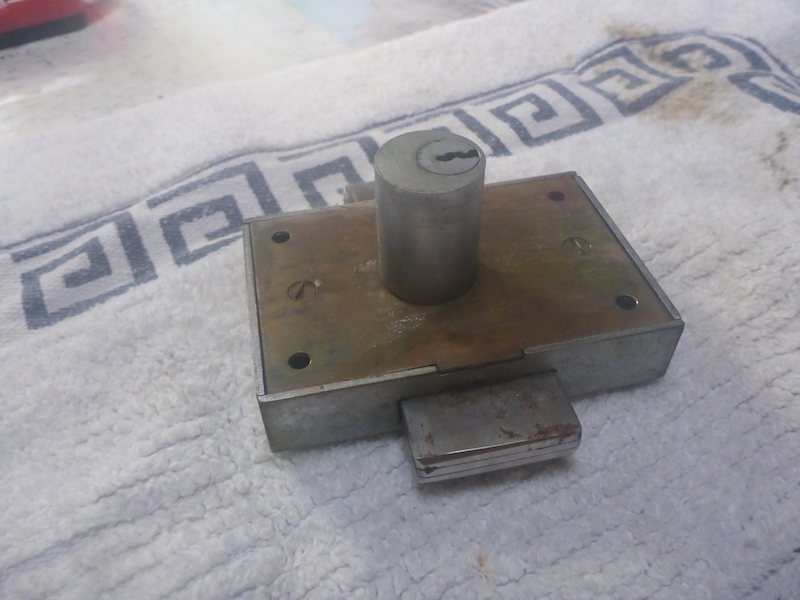

Unscrew the 4 bolts

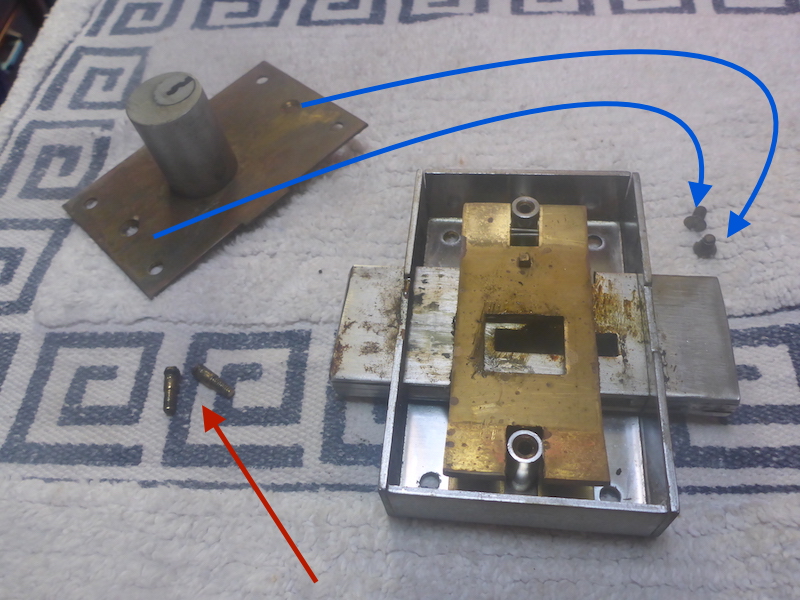

Remove the 2 bolts (blue arrow) holding the key lock
You can see the 2 failed parts (red arrows)

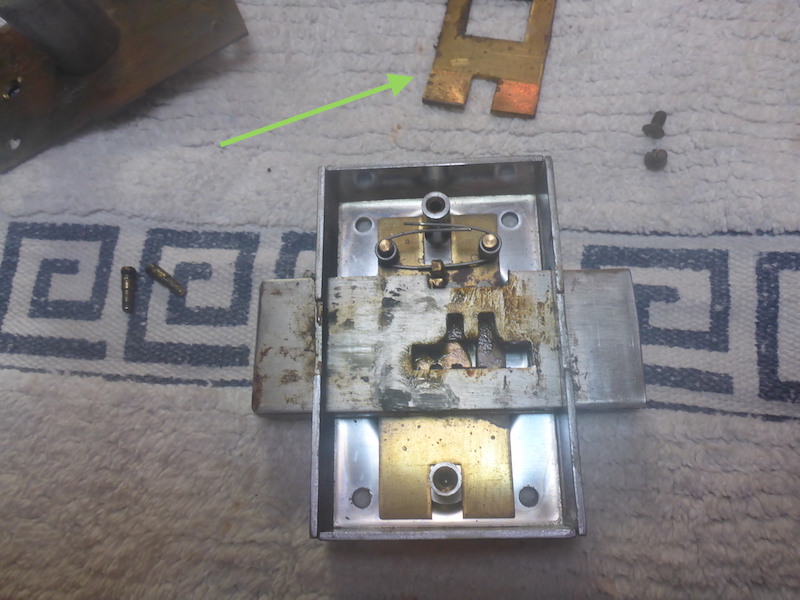

Remove top part (green arrow)

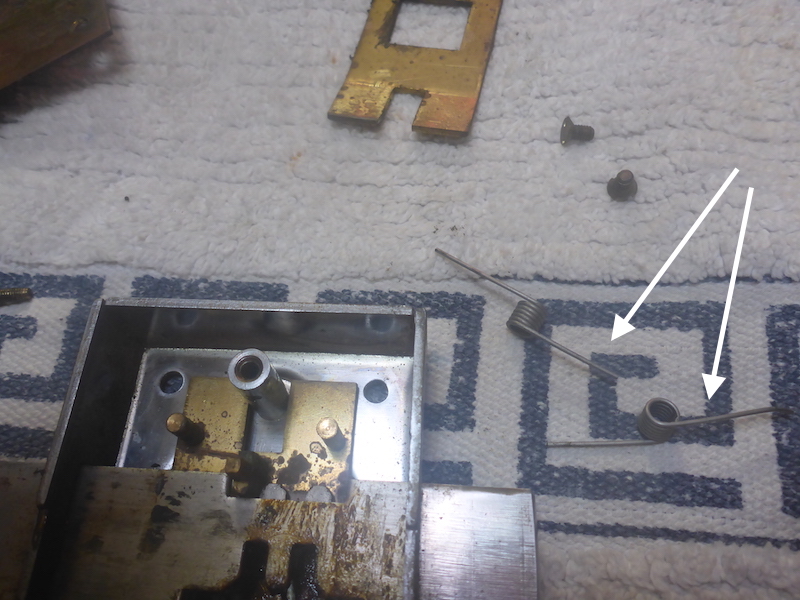

Remove the 2 springs (white arrow)

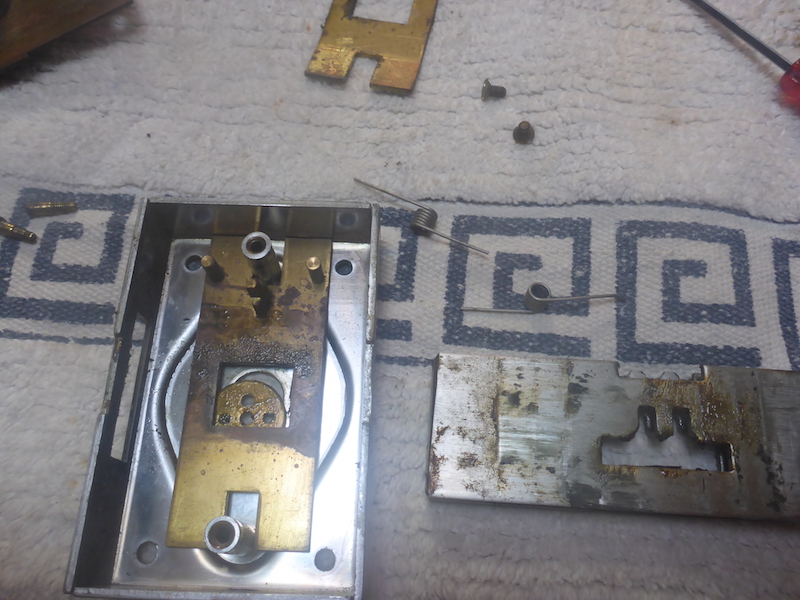

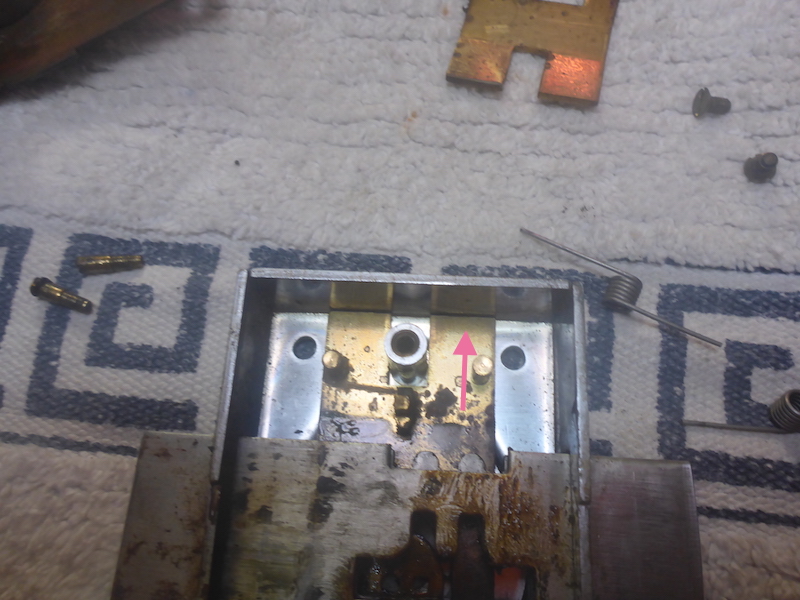

Slide up the bottom part (pink arrow)

Slide the deadbolt

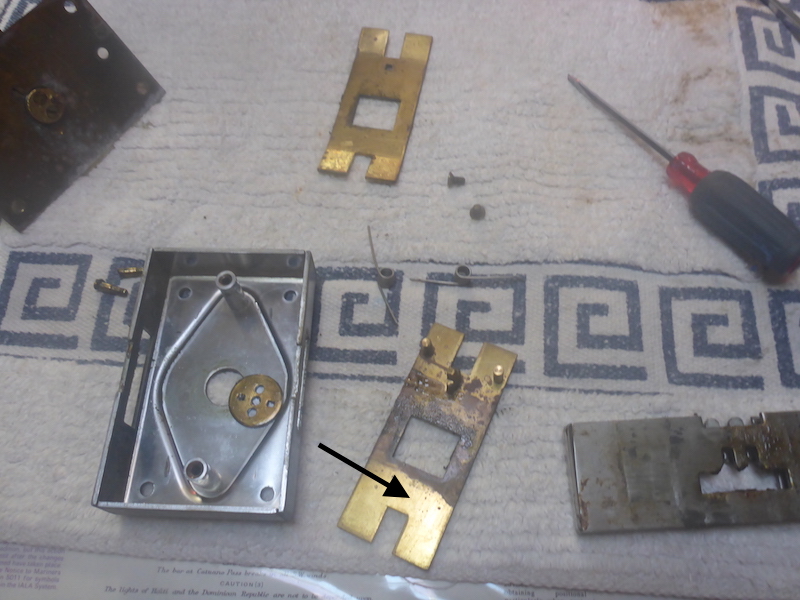

remove bottom part (black arrow)

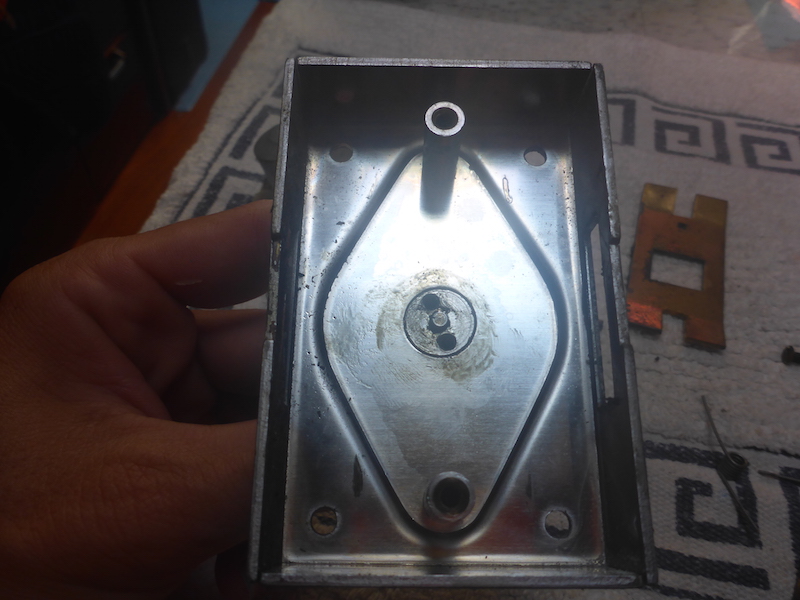

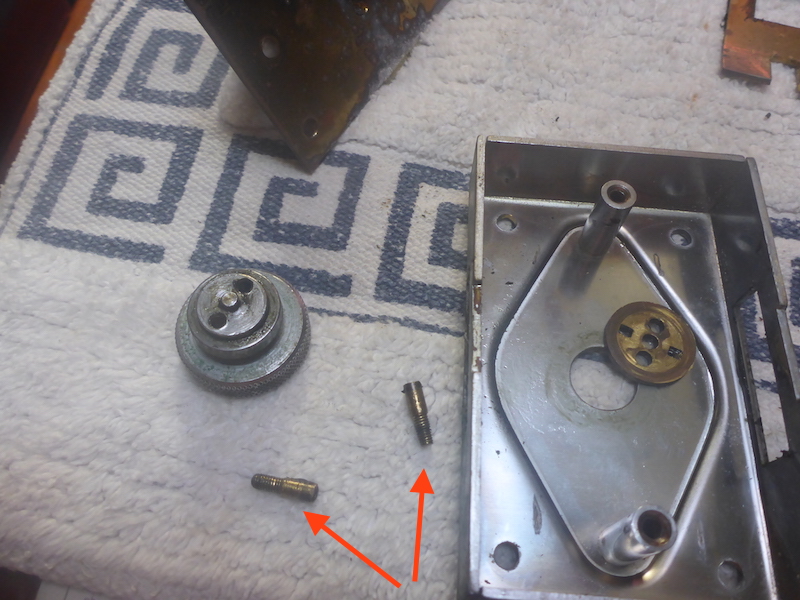

Now we are to the failed parts (red arrows)

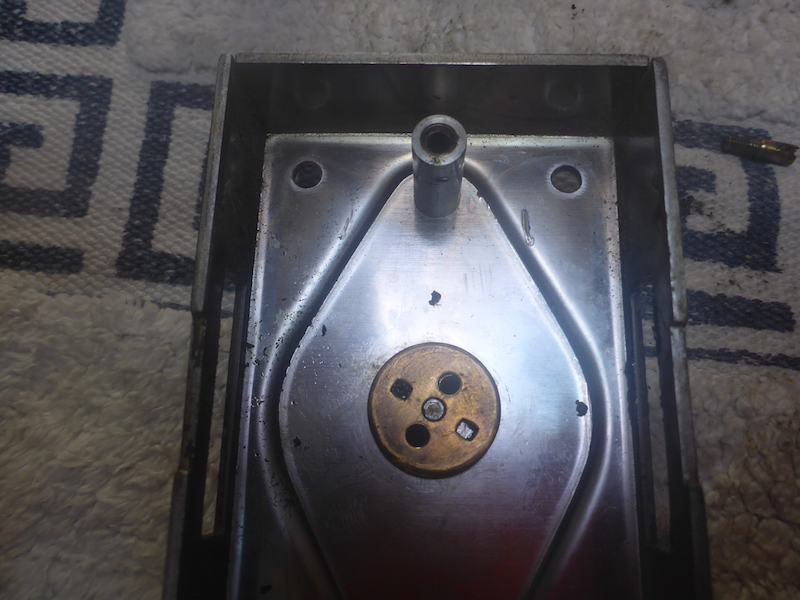

Put the button where it belong

Nice fit

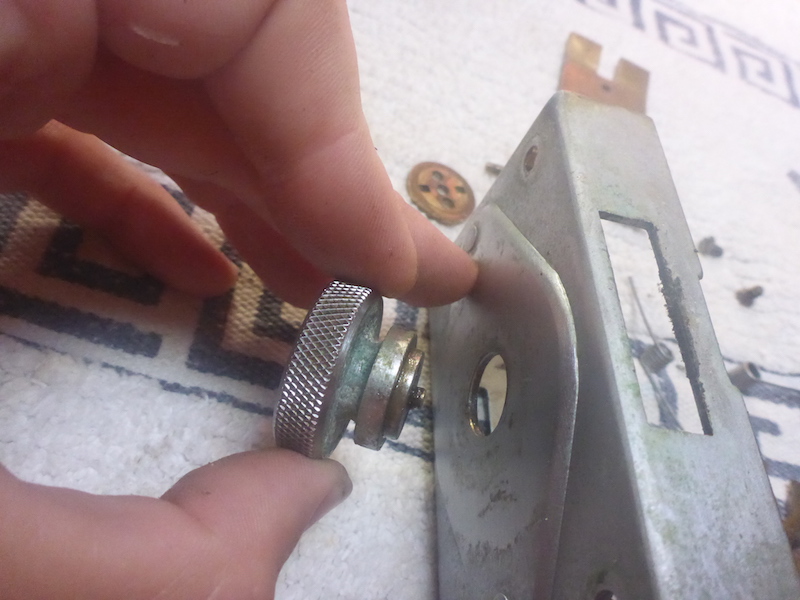

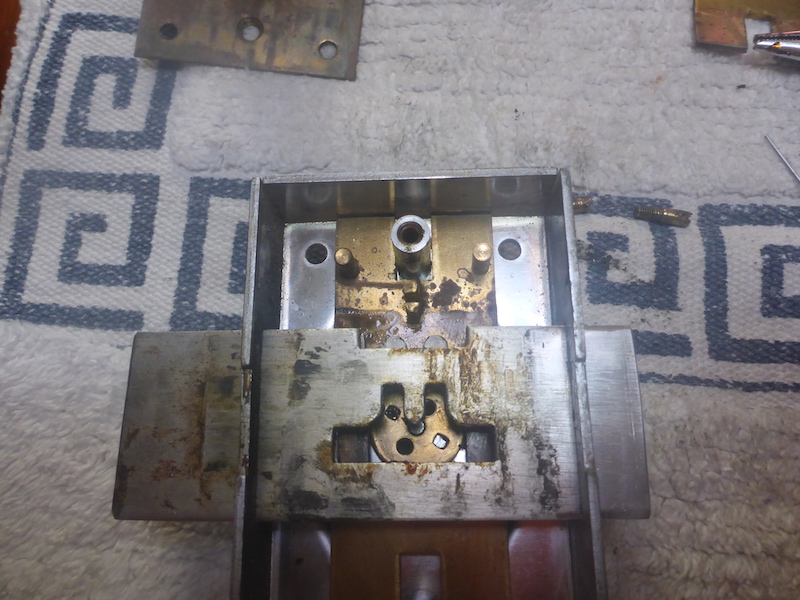

Add the wheel

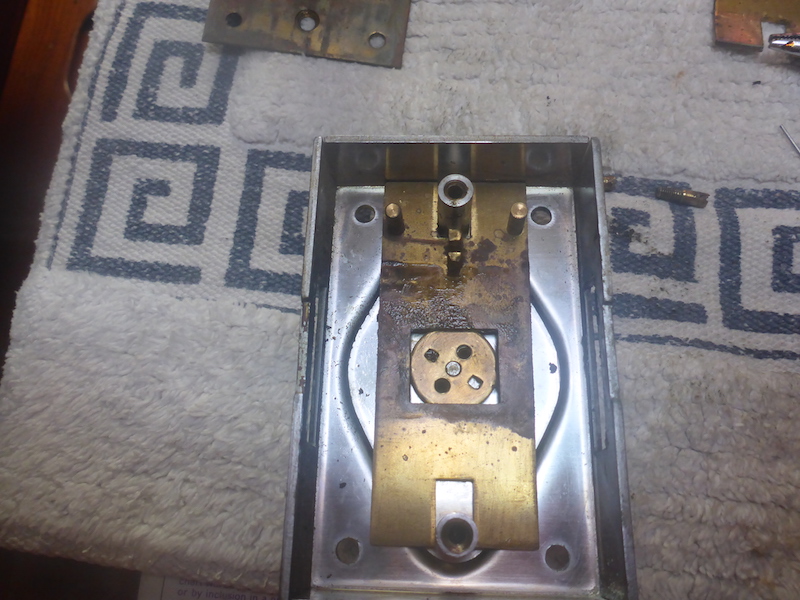

Put back bottom part (slide up)

Add the deadbolt

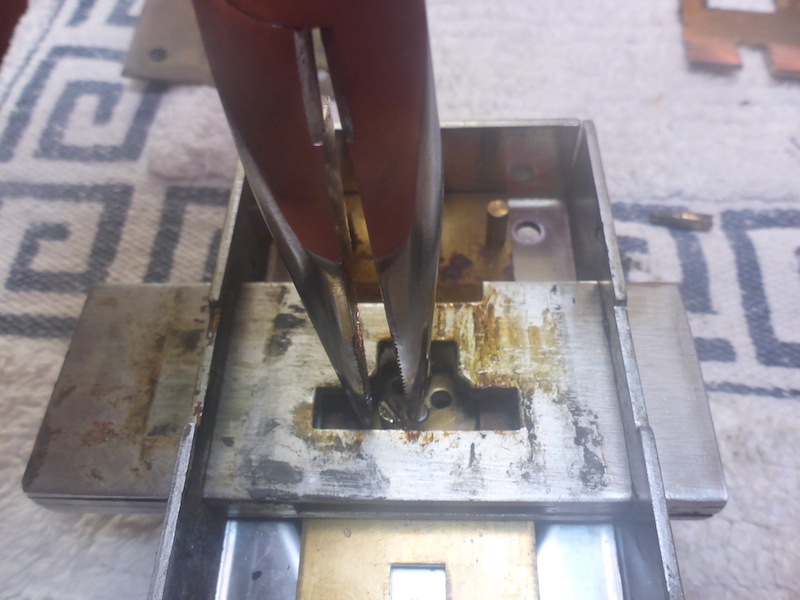

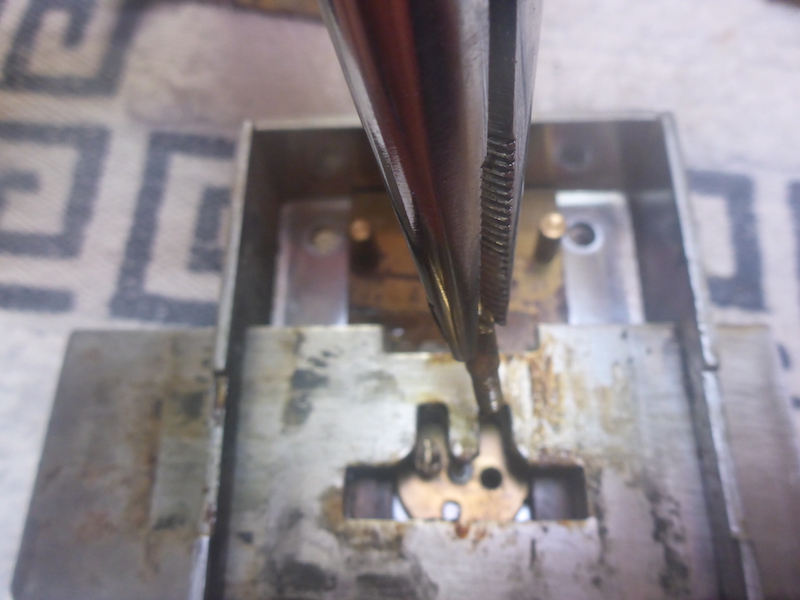

With player put the screw

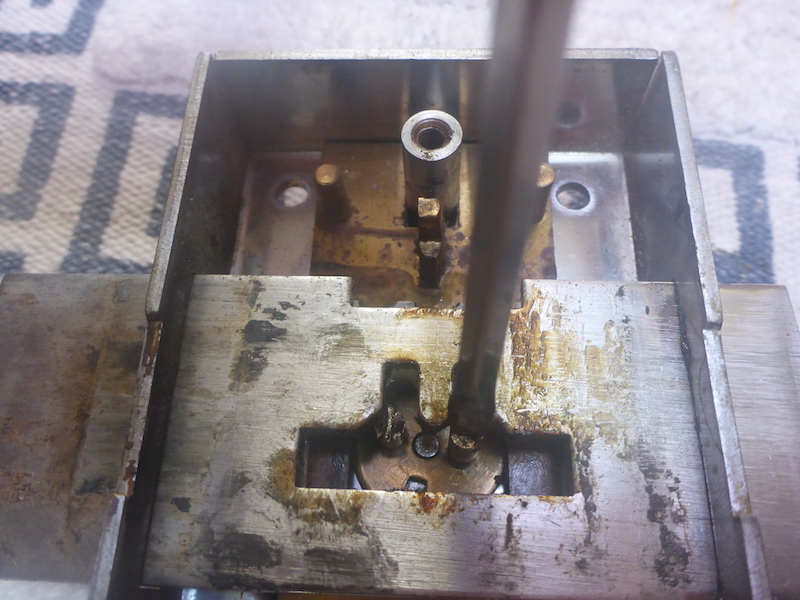

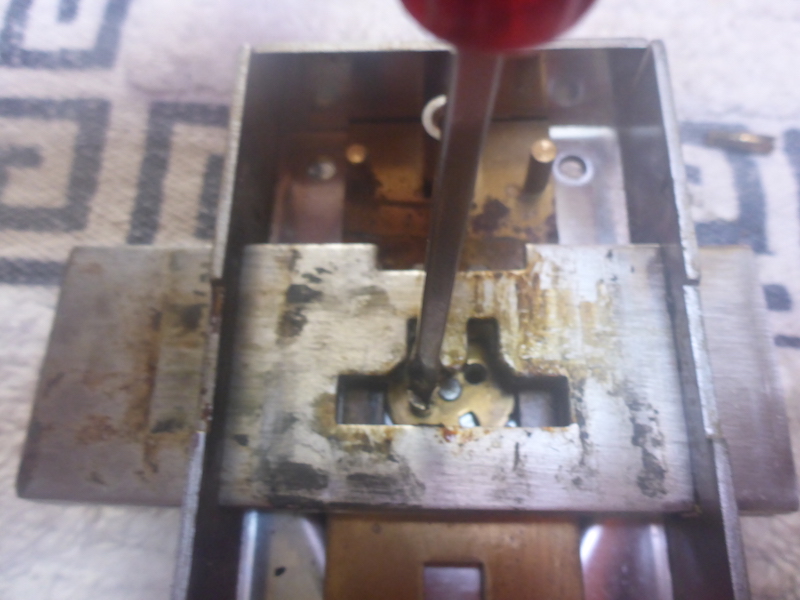

Tight the screw

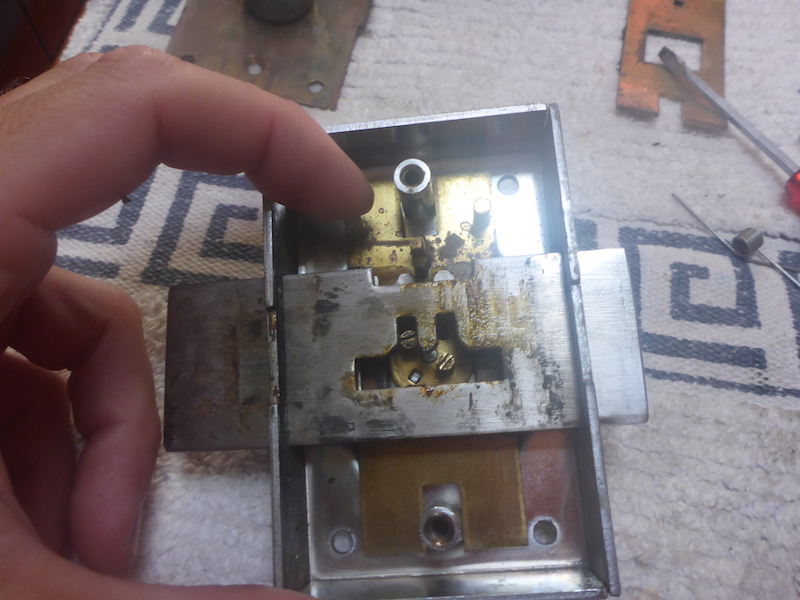

Add the second screw

Tight it

Slide the bottom part down

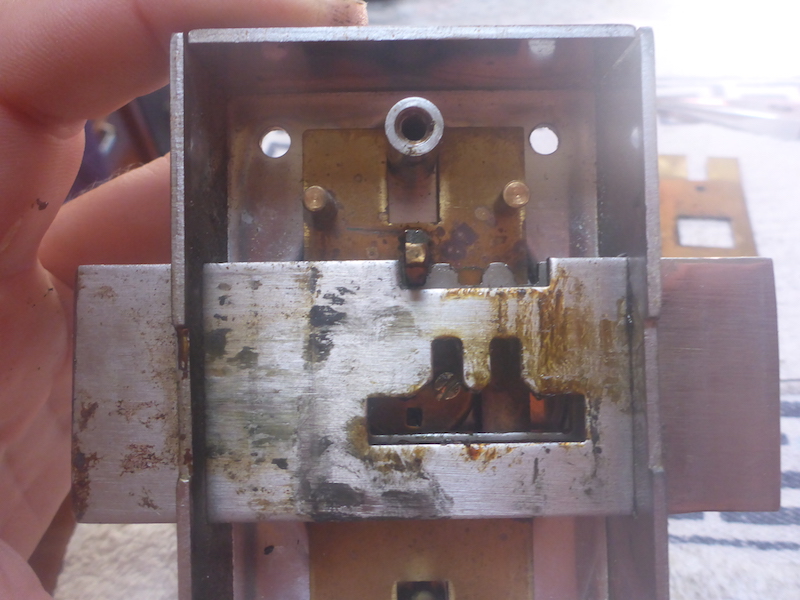

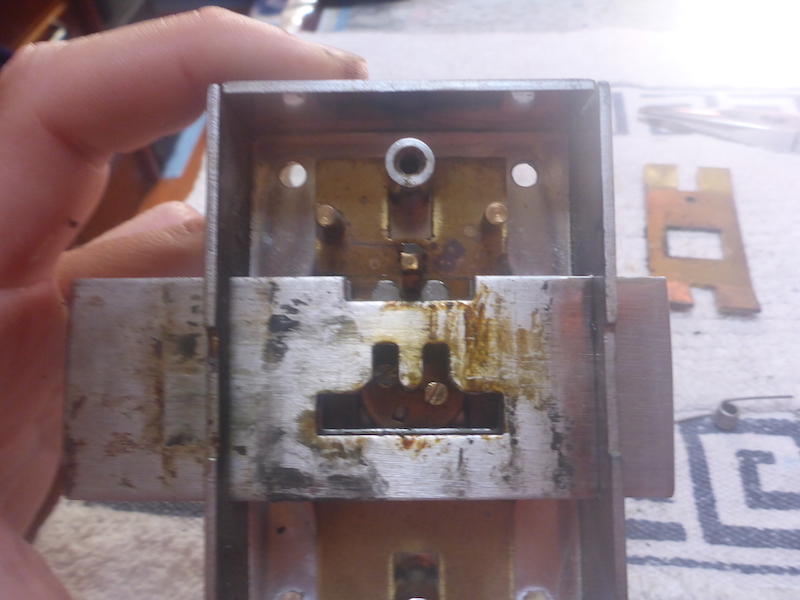

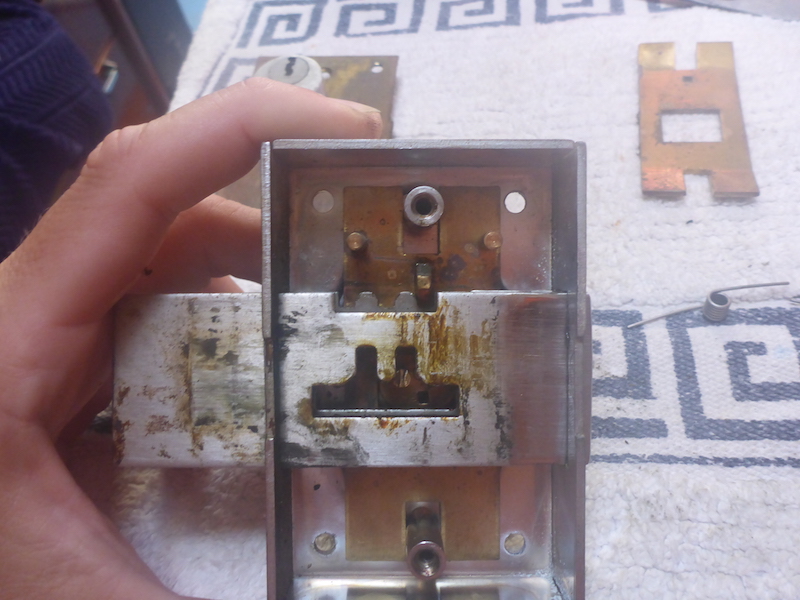

Looking at how the mechanism works

Looking at how the mechanism works

Looking at how the mechanism works

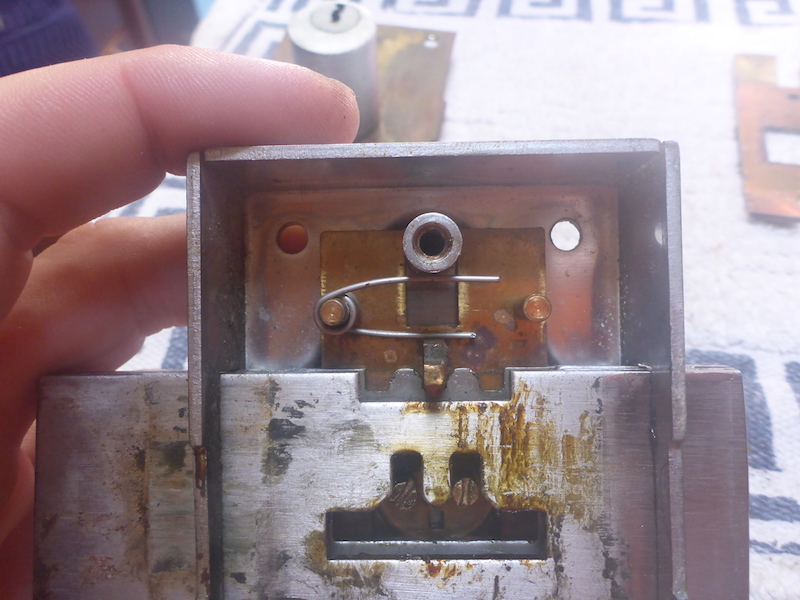

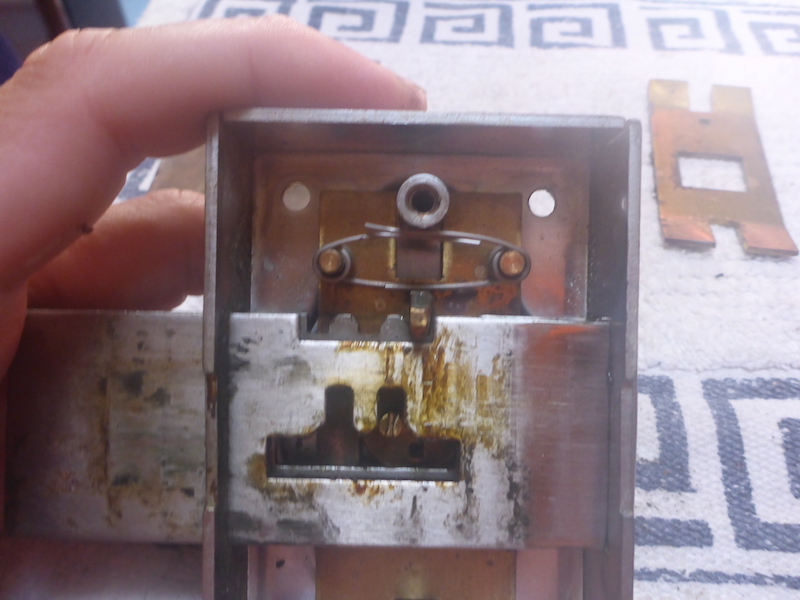

Add a spring

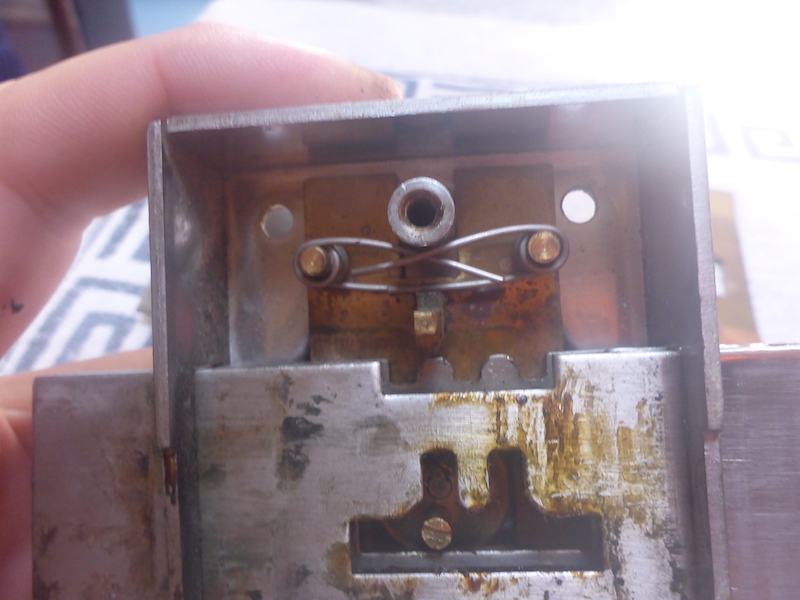

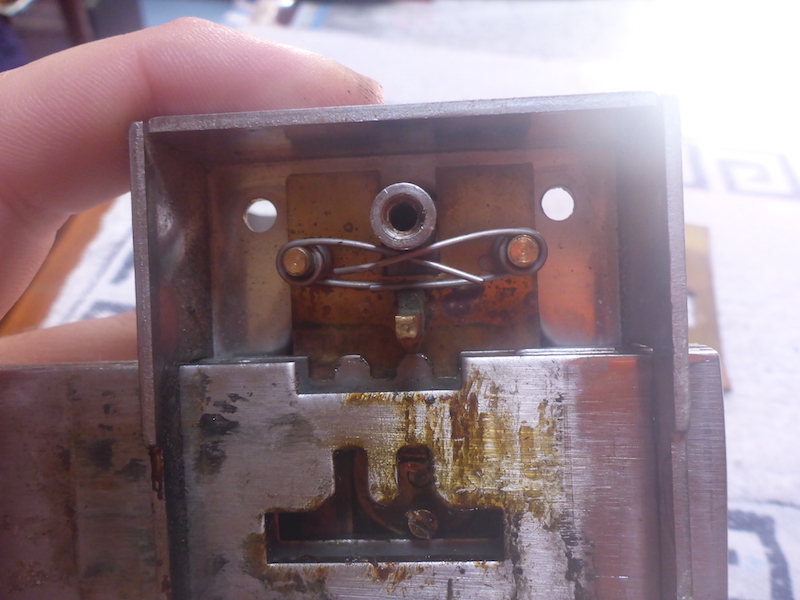

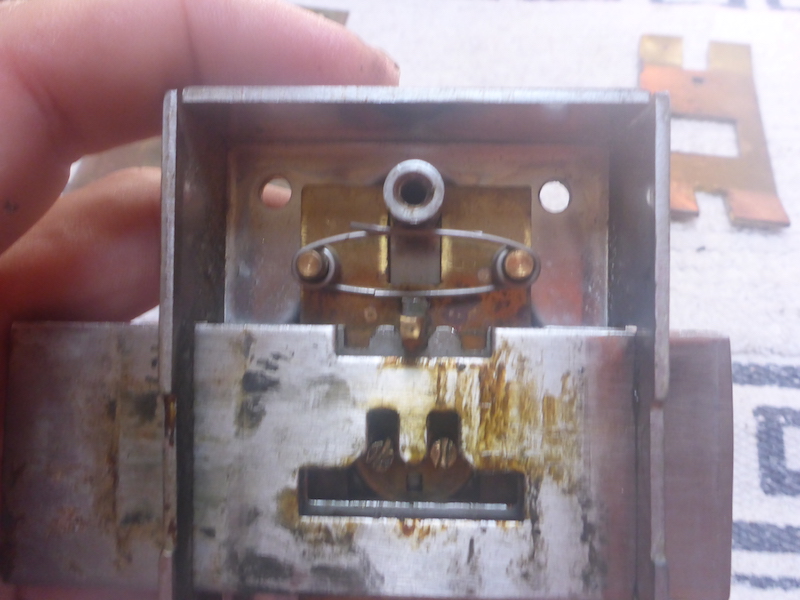

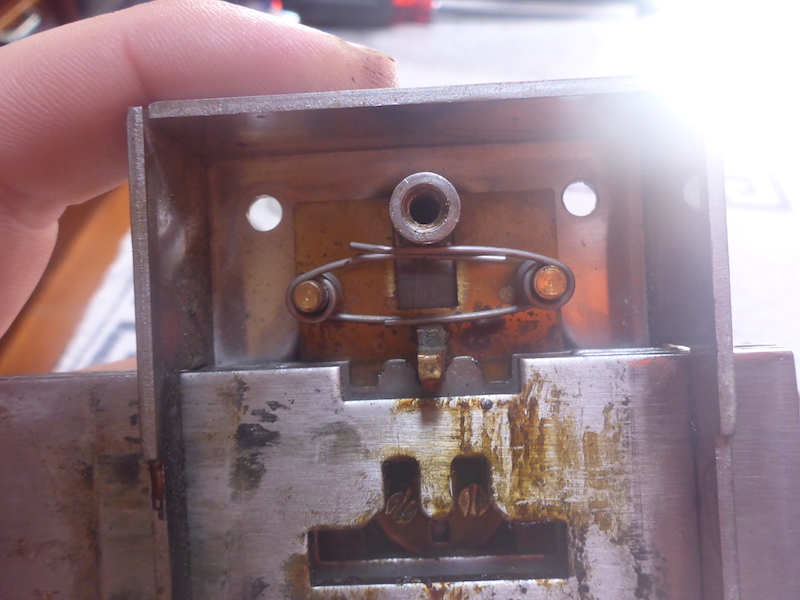

Add second spring

Looking at how the mechanism works

Looking at how the mechanism works

Looking at how the mechanism works

Looking at how the mechanism works

Looking at how the mechanism works

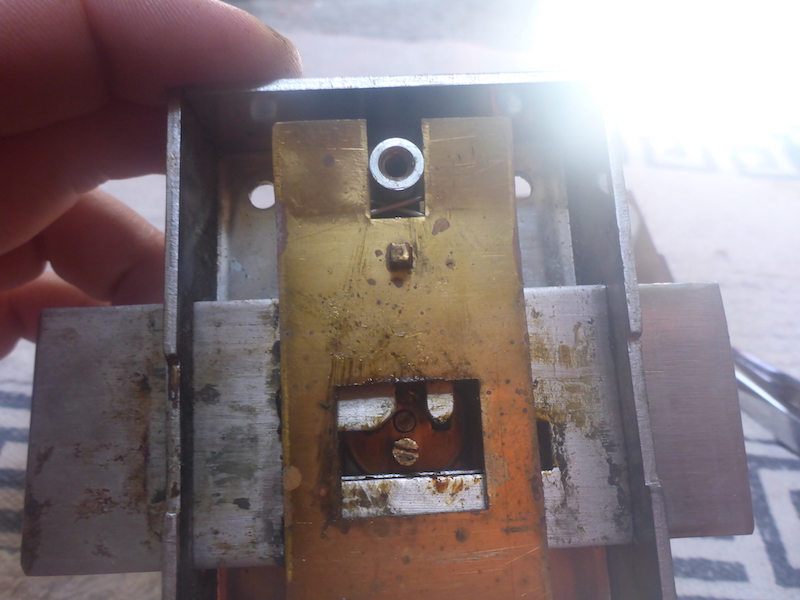

Add top part

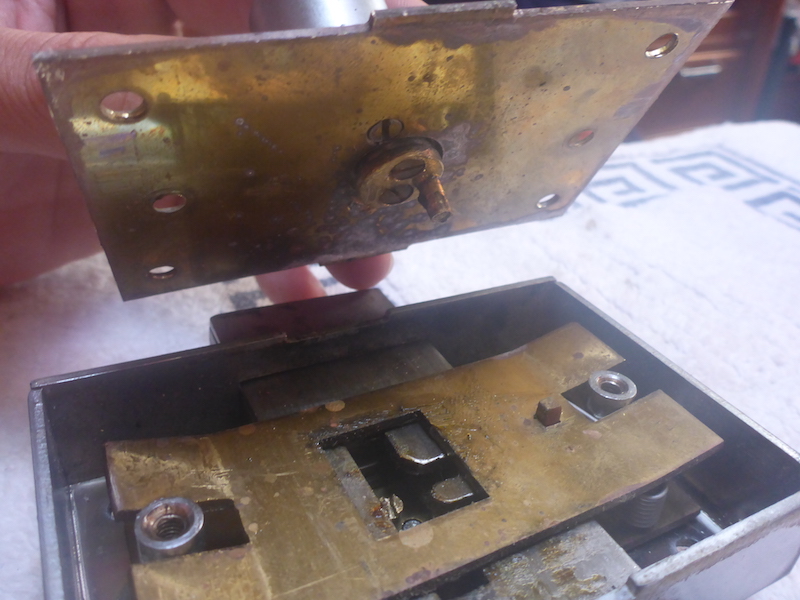

Then add cover

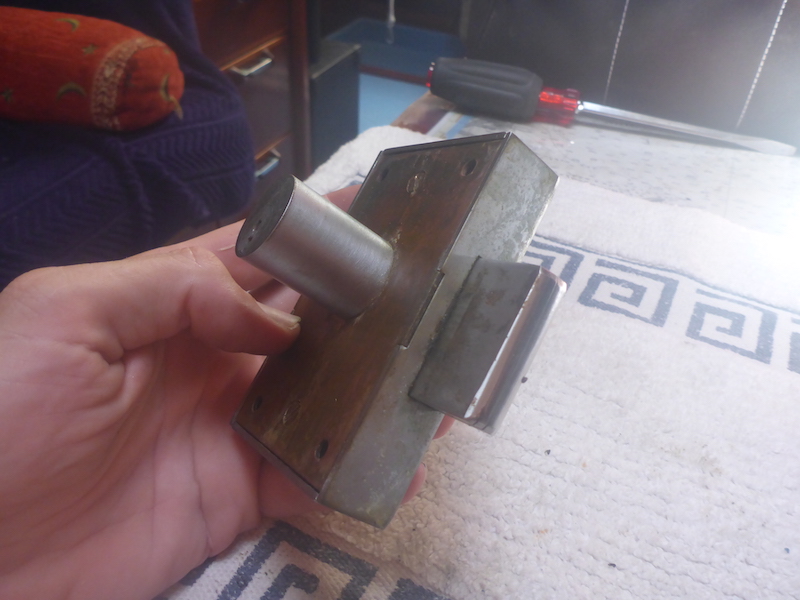

Done
